| Specifications | Value |
|---|---|
| No. | 960384 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6800 |
| Bucket capacity (m³) | 0.32 |
| Boom length (mm) | 3700 |
| Rod length (mm) | 1670 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

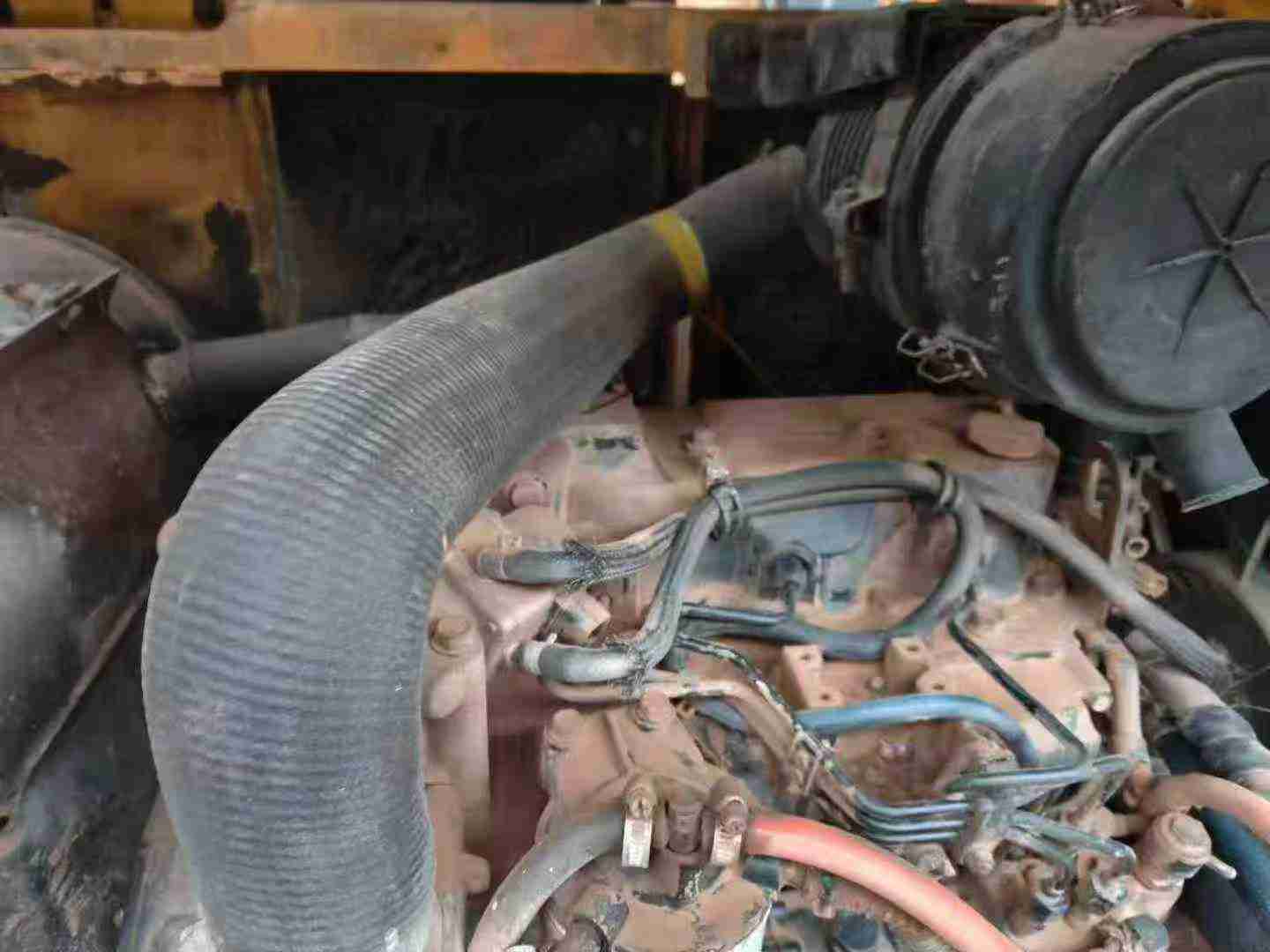

| Engine type | Yanmar 4TNV98-z |
| Rated power (kw/rpm) | 44.4 / 2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Maximum torque (N.m) | 24.5/1575 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.319 |
| Working form | 4 cylinder 4 stroke water cooled direct injection engine |
| Rotation speed (rpm) | 12.2 |
| Climbing ability (%) | 58 |
| Travel speed (km/h) | 4.7 / 2.9 |
| Rotary hydraulic motor type | Axial piston motor with automatic braking |
| Type of walking hydraulic motor | Two-speed axial plunger motor with brake valve and parking brake |
| Maximum flow of main pump (l/min) | 2 x 75.6 (2 x 20) |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 90 * 55 * 665 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 95 * 60 * 860 |
| Boom cylinders - Number × diameter × stroke (mm) | 115 * 70 * 980 |
| Fuel Tank (L) | 140 |
| Hydraulic Tank (L) | 75 |
| Engine Oil changes (L) | 12 |
| Coolant (L) | 11 |
| Hydraulic System (L) | 130 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2690 |
| Full cab height (mm) | 2650 |
| Counterweight ground clearance (mm) | 755 |
| Minimum turning radius of front working device (mm) | 1750 |
| Back end turning radius (mm) | 1750 |
| Onboard width (mm) | 2250 |
| Track plate width (mm) | 450/600 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 38 |
| Maximum digging radius (mm) | 6330 |
| Maximum digging depth (mm) | 4150 |
| Maximum excavation height (mm) | 7260 |
| Maximum unloading height (mm) | 5170 |
| Maximum vertical digging depth (mm) | 3200 |
| Bulldozer lift or depth (mm) | 400/280 |
| Dodging plate width × height (mm) | 2200*460 |
| Maximum excavation radius of stop surface (mm) | 6190 |
| Maximum effective digging depth (mm) | 3810 |
Description

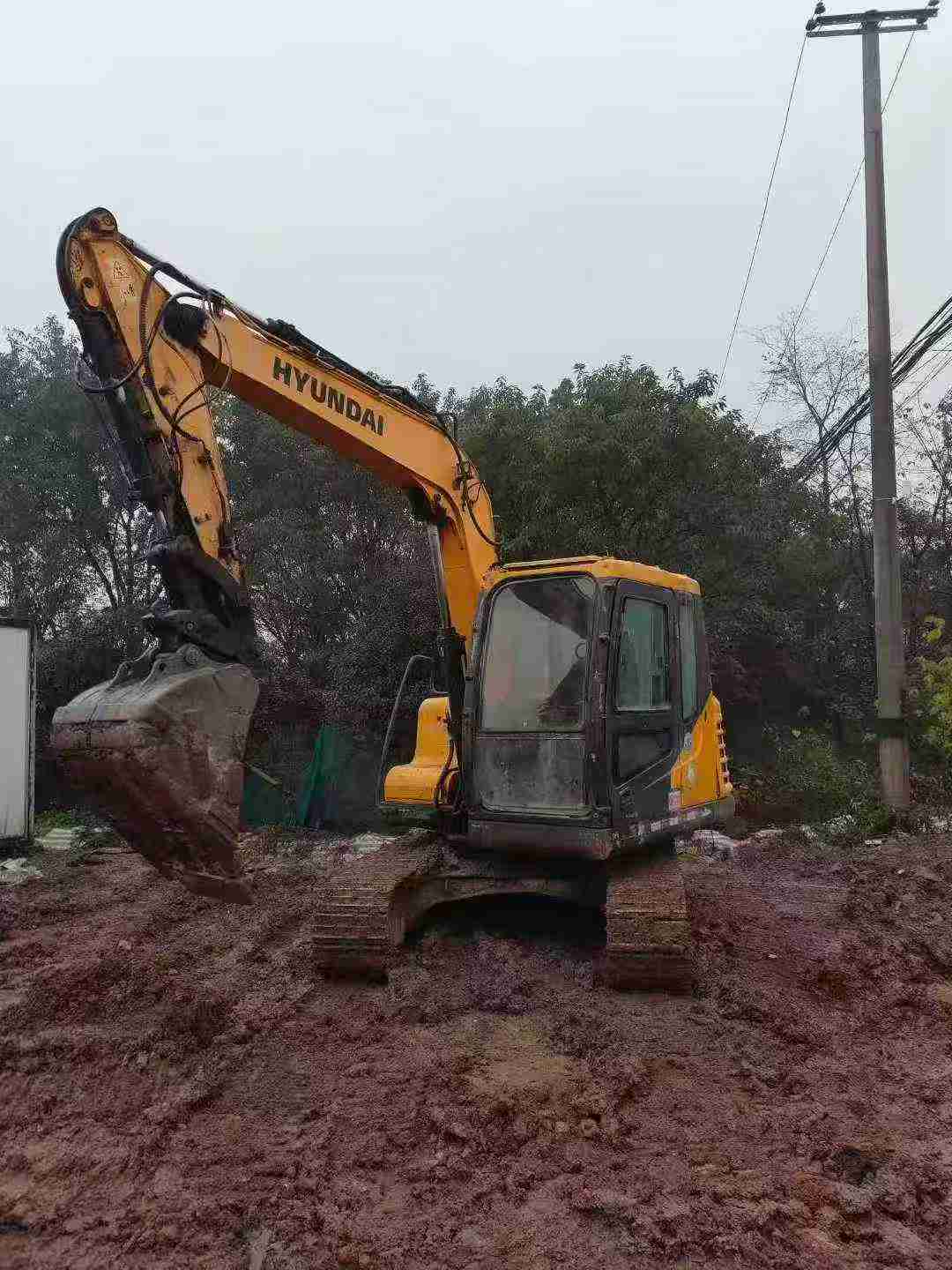

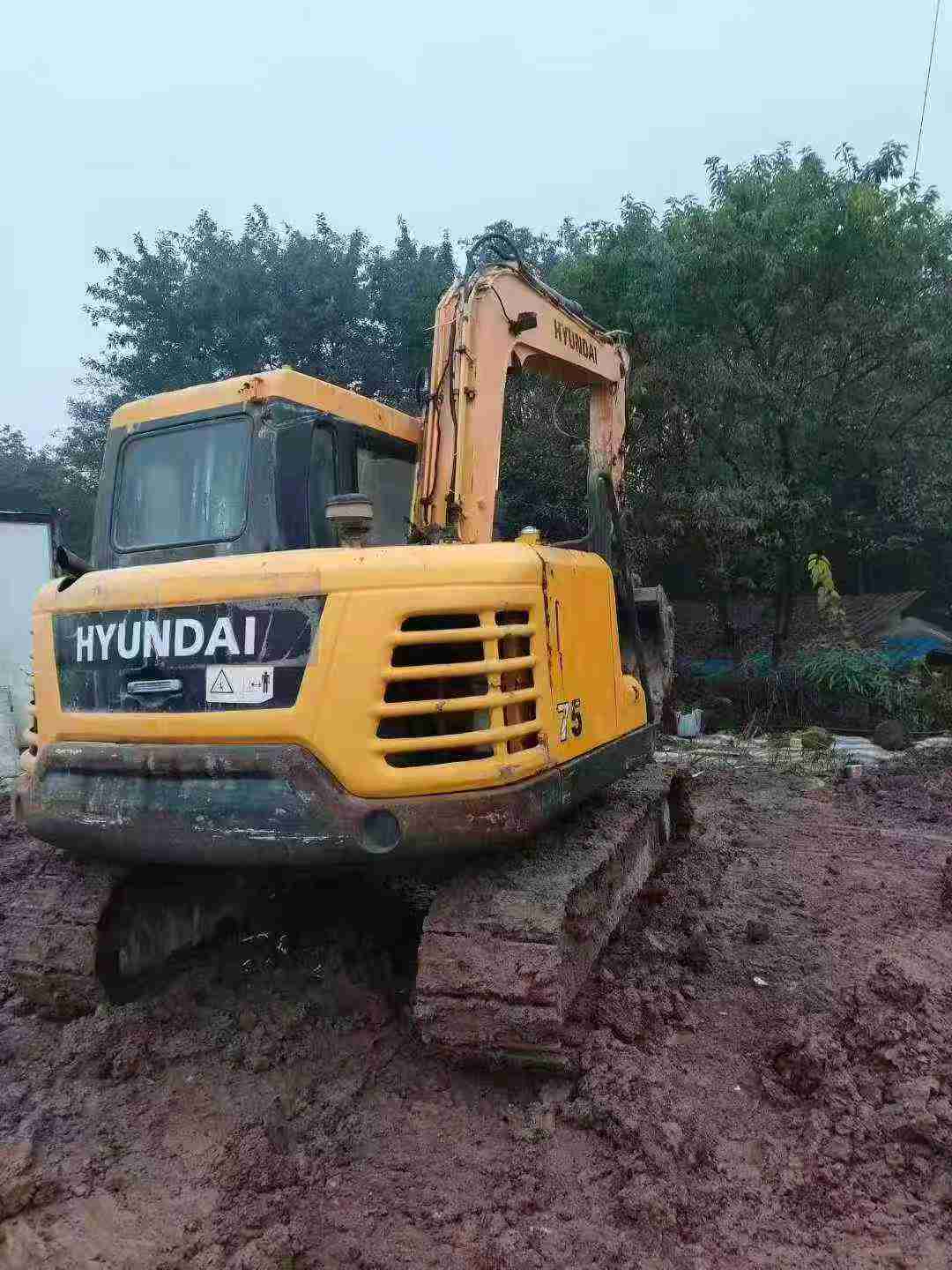

【 Premium Recommendation 】 Hyundai 75VS Second-hand Excavator, the Best Value for Money Choice! We currently have a batch of second-hand Hyundai 75VS excavators in first-hand supply. We sincerely invite agents from all over the country at a super value price of over 80,000 RMB. This excavator not only maintains a good appearance but also features stable and reliable performance, making it particularly suitable for the usage requirements of medium and small-sized engineering projects. ** Basic Information - ** Working hours ** : The working hours of this batch of excavators range from 2,000 to 3,000 hours, which is in a medium to upper range. However, their core components such as the engine and pump body have all undergone professional testing and maintenance to ensure good operating conditions. - ** Power System ** : It adopts an efficient and energy-saving diesel engine as the power source, featuring strong power output and a smooth operating experience. It can handle complex terrains or heavy-load working environments with ease. - ** Hydraulic System ** : Equipped with an advanced hydraulic control system, it can achieve rapid response and precise control. Both the excavation depth and the lifting height can achieve the ideal effe
