2016 Kato HD308US

1/5
Used Kato HD308US Excavator 2016 Model / 1

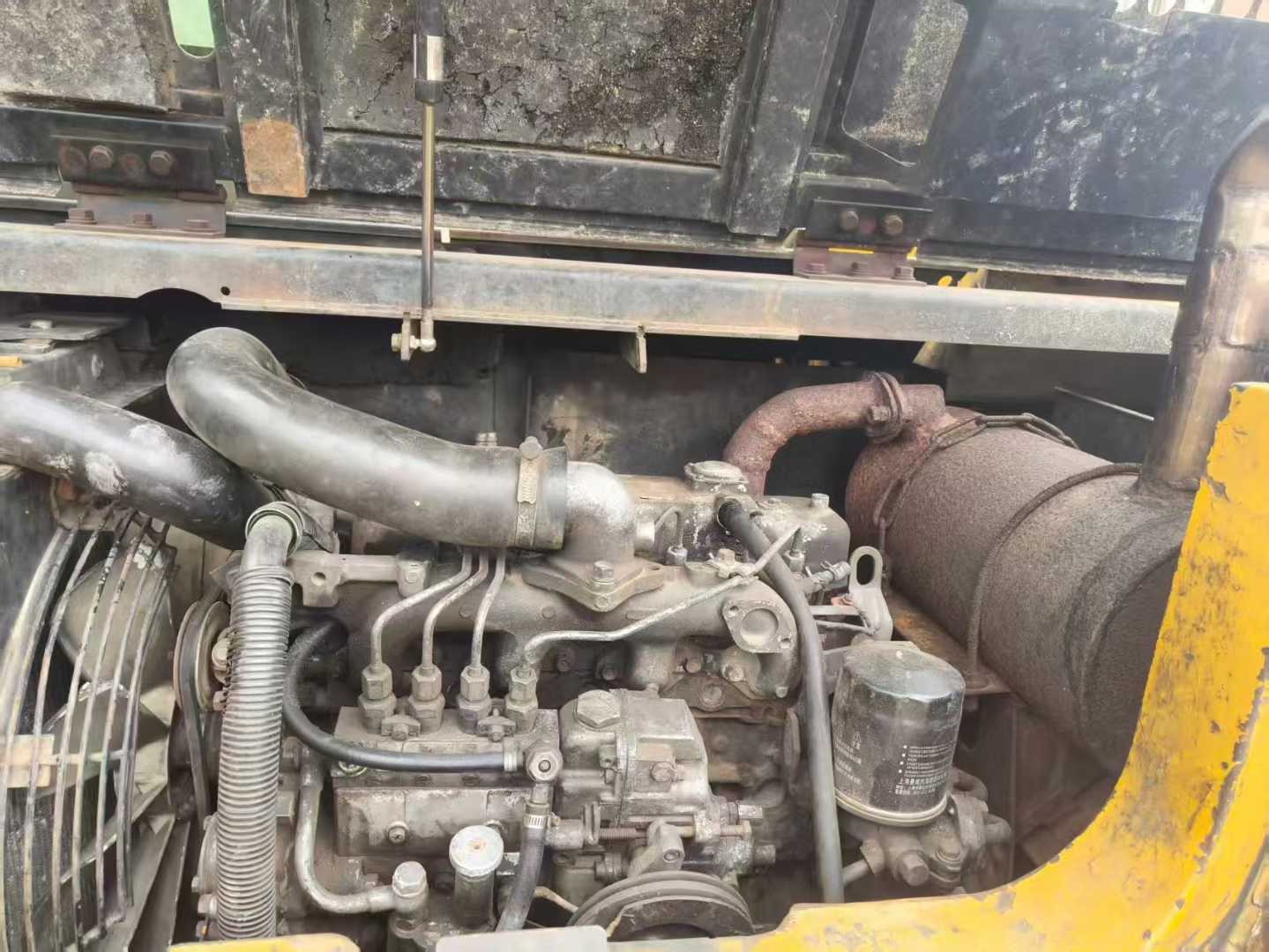

Used Kato HD308US Excavator 2016 Model / 2

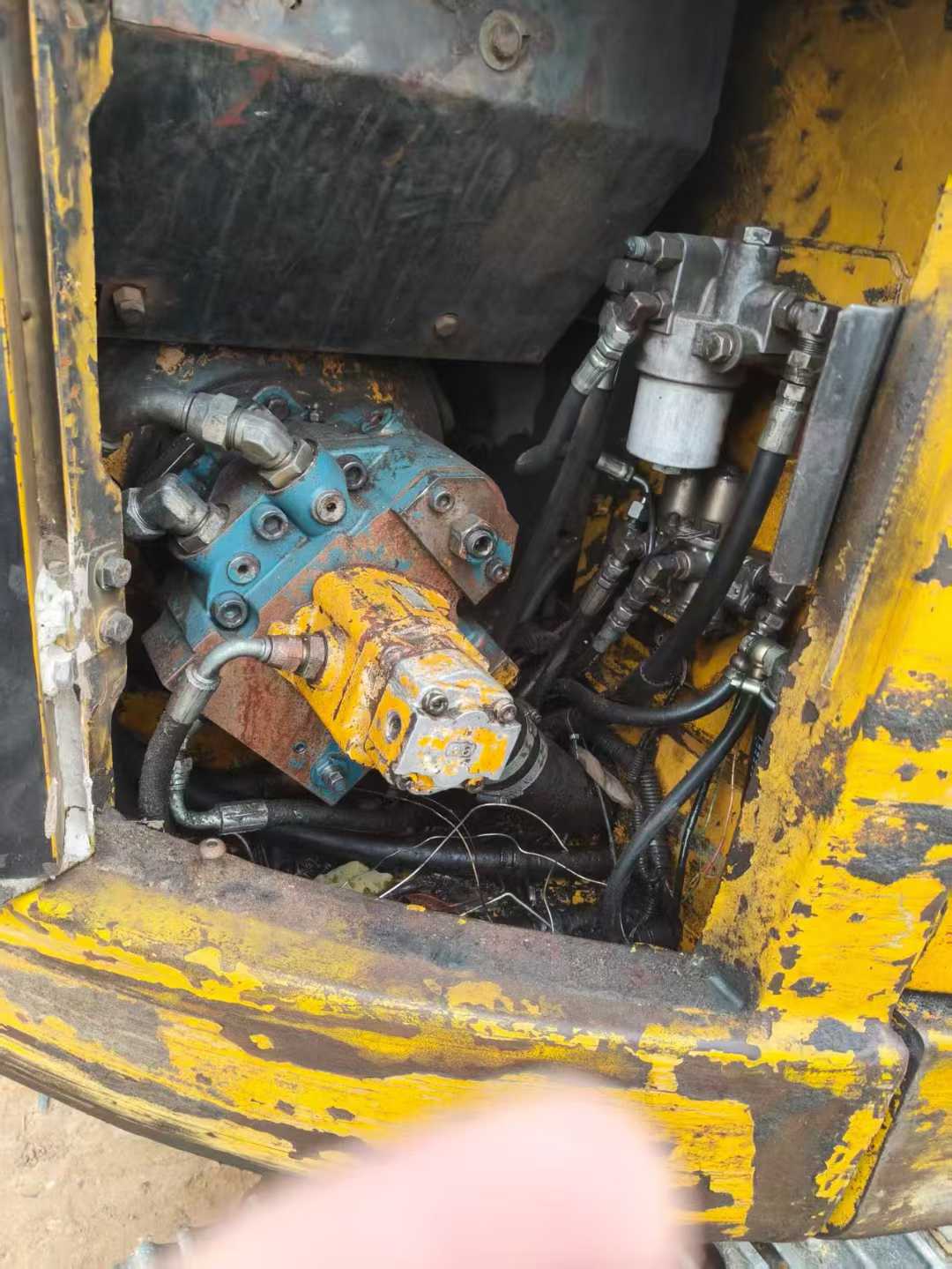

Used Kato HD308US Excavator 2016 Model / 3

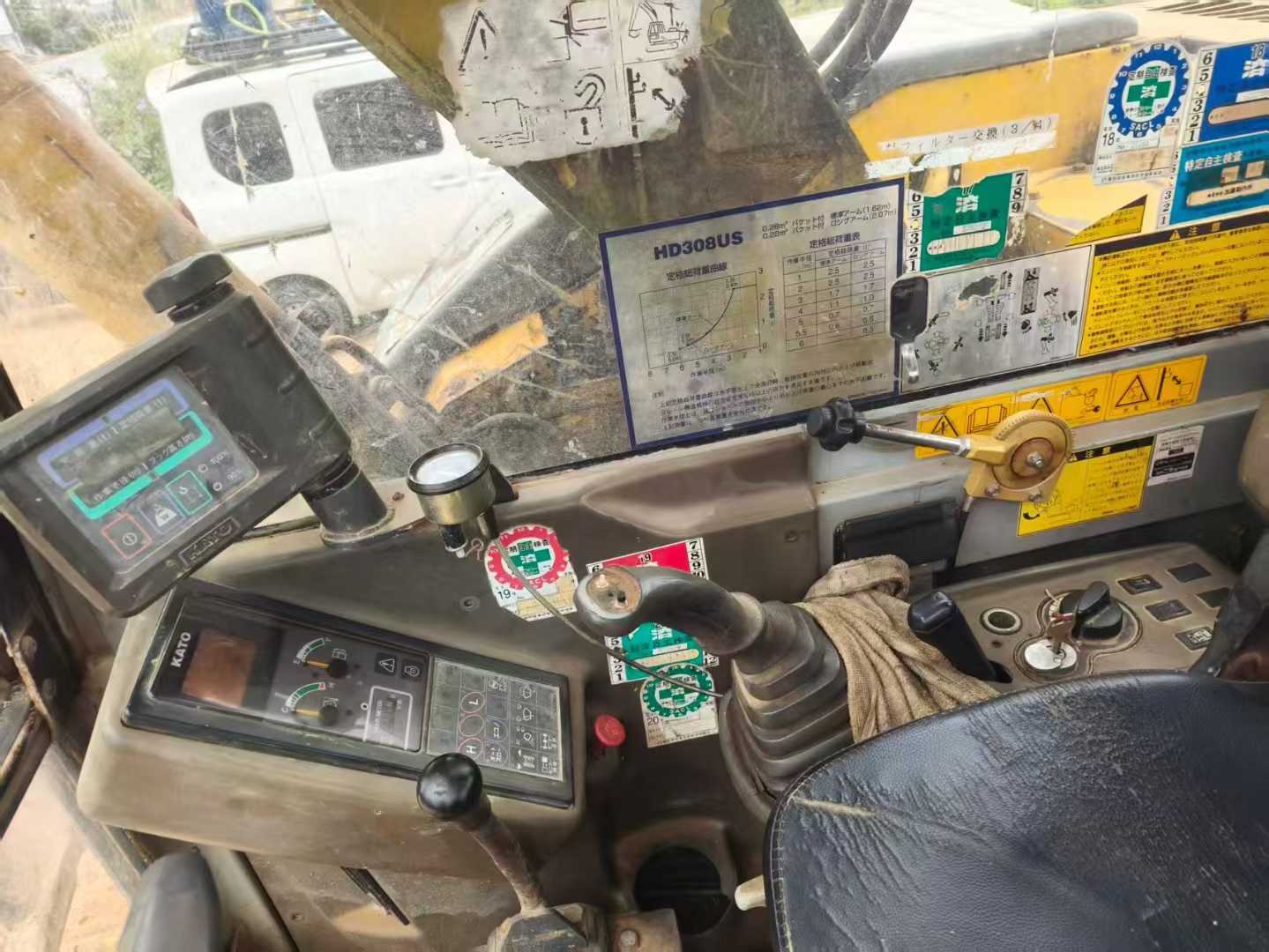

Used Kato HD308US Excavator 2016 Model / 4

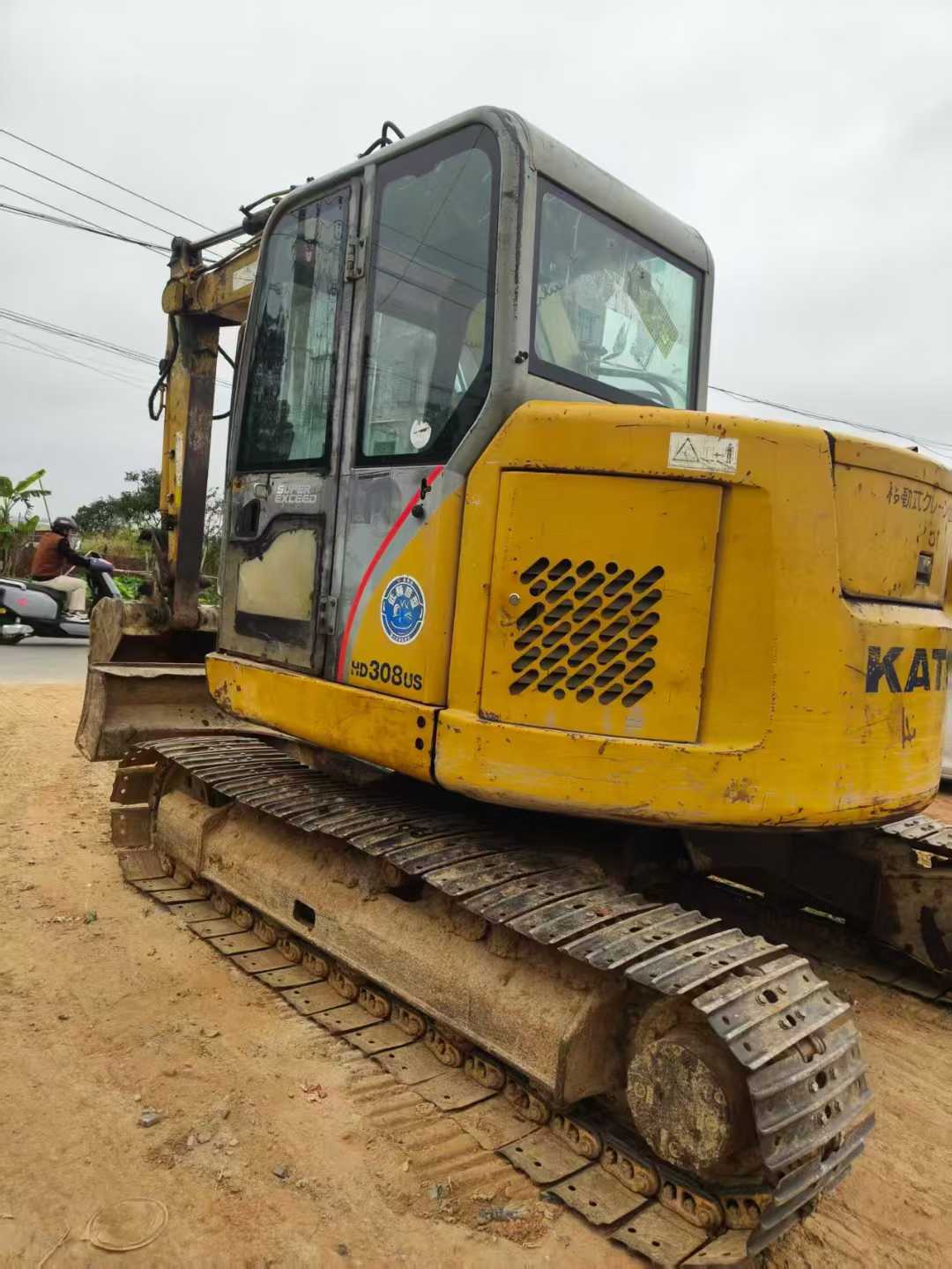

Used Kato HD308US Excavator 2016 Model / 5

Product Description

Detailed Introduction of Kato 308US Second-hand Excavator Dear customer, hello! It is a great honor to recommend to you this second-hand Kato 308US excavator with outstanding performance and extremely high cost performance. This machine has accumulated over 40,000 hours of working time so far, but its overall condition remains quite excellent and is fully capable of meeting various construction requirements. "Power System The Kato 308US is equipped with a highly efficient and energy-saving diesel engine, featuring strong power output and smooth operation. Even under long-term and high-intensity operation, it can ensure stable performance, and at the same time, it has good fuel economy, significantly reducing operating costs. In addition, after professional maintenance and upkeep, the engine starts quickly and generates low noise, ensuring a good working environment. "Hydraulic System This excavator is equipped with an advanced closed load-sensitive hydraulic control system, which features a fast response speed and flexible and precise operation. Whether it is complex working conditions such as excavation, loading or crushing, it can handle them with ease. Both the hydraulic pump and the motor are from well-known brand suppliers, ens

SpecificationsValue
No.971469
Tonnage (tons)8
Working weight (kg)7600
Bucket capacity (m³)0.28
Boom length (mm)3830
Rod length (mm)1620
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU CC-4JG1
Rated power (kw/rpm)40.5/2100
Cooling modewater-cooling
Cylinder diameter × stroke (mm)95.4 x 107
Number of cylinders (PCS)4
Displacement (L)3.059
Ground specific pressure (Kpa)31.4
Rotation speed (rpm)12.5
Climbing ability (%)70
Bucket digging force (kN)61.4
Rod digging force (kN)42.2
Travel speed (km/h)2.0/3.4/5.0
Rotary hydraulic motor typeConstant piston motor
Type of walking hydraulic motorVariable capacity piston motor
Maximum flow of main pump (l/min)77.7 x 2
Traveling Hydraulic Circuit (Mpa)31.4
Main pump typeVariable capacity piston pump ×2+ gear pump
Working Hydraulic Circuit (Mpa)29.4
Bucket cylinders - Number × diameter × stroke (mm)1-85 x 745
Bucket rod cylinders - Number × diameter × stroke (mm)1-95 x 920
Boom cylinders - Number × diameter × stroke (mm)1-105 x 960
Fuel Tank (L)100
Hydraulic Tank (L)48
Engine Oil changes (L)9.6
Coolant (L)11
Hydraulic System (L)95
Total transport length (mm)6300
Total transport width (mm)2300
Total transport height (mm)2600
Full cab height (mm)2600
Counterweight ground clearance (mm)740
Minimum turning radius of front working device (mm)1630
Back end turning radius (mm)1190
Total track length (mm)2850
Track gauge (mm)1850
Track plate width (mm)450
Total track width (mm)2300
Track ground length (mm)2260
Maximum digging radius (mm)6470
Maximum digging depth (mm)4120
Maximum excavation height (mm)7430
Maximum unloading height (mm)5320
Maximum vertical digging depth (mm)3620
Bulldozer lift or depth (mm)430/330
Dodging plate width × height (mm)2300 x 360
see more

Overview

No.971469

Brand Name:

Kato

Model Number:

HD308US

Year:

2016

Location:

Guangdong China
