| Specifications | Value |
|---|---|
| No. | 961231 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 25600 |
| Bucket capacity (m³) | 1.1 |
| Bucket width (mm) | 1250 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hino J05ETB |
| Rated power (kw/rpm) | 137/2100 |
| Cylinder diameter × stroke (mm) | 112 x 130 |
| Maximum torque (N.m) | 654/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.123 |
| Rotation speed (rpm) | 10.8 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 170 |
| Maximum tractive force (kN) | 245 |
| Travel speed (km/h) | 6.1/3.8 |
| Rotary hydraulic motor type | Axial piston pump motor |
| Type of walking hydraulic motor | Variable capacity axial piston motor |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3/37.8 |
| Fuel Tank (L) | 403 |
| Hydraulic Tank (L) | 165 |
| Hydraulic System (L) | 273 |
| Total transport length (mm) | 10210 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3180 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 3120 |
| Onboard width (mm) | 2980 |
| Total track length (mm) | 4260 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600/800 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3470 |
| Maximum digging radius (mm) | 10310 |
| Maximum digging depth (mm) | 7000 |
| Maximum excavation height (mm) | 9740 |
| Maximum unloading height (mm) | 6870 |
| Maximum vertical digging depth (mm) | 5990 |
| Maximum excavation radius of stop surface (mm) | 10140 |
| Maximum effective digging depth (mm) | 6520 |
Description

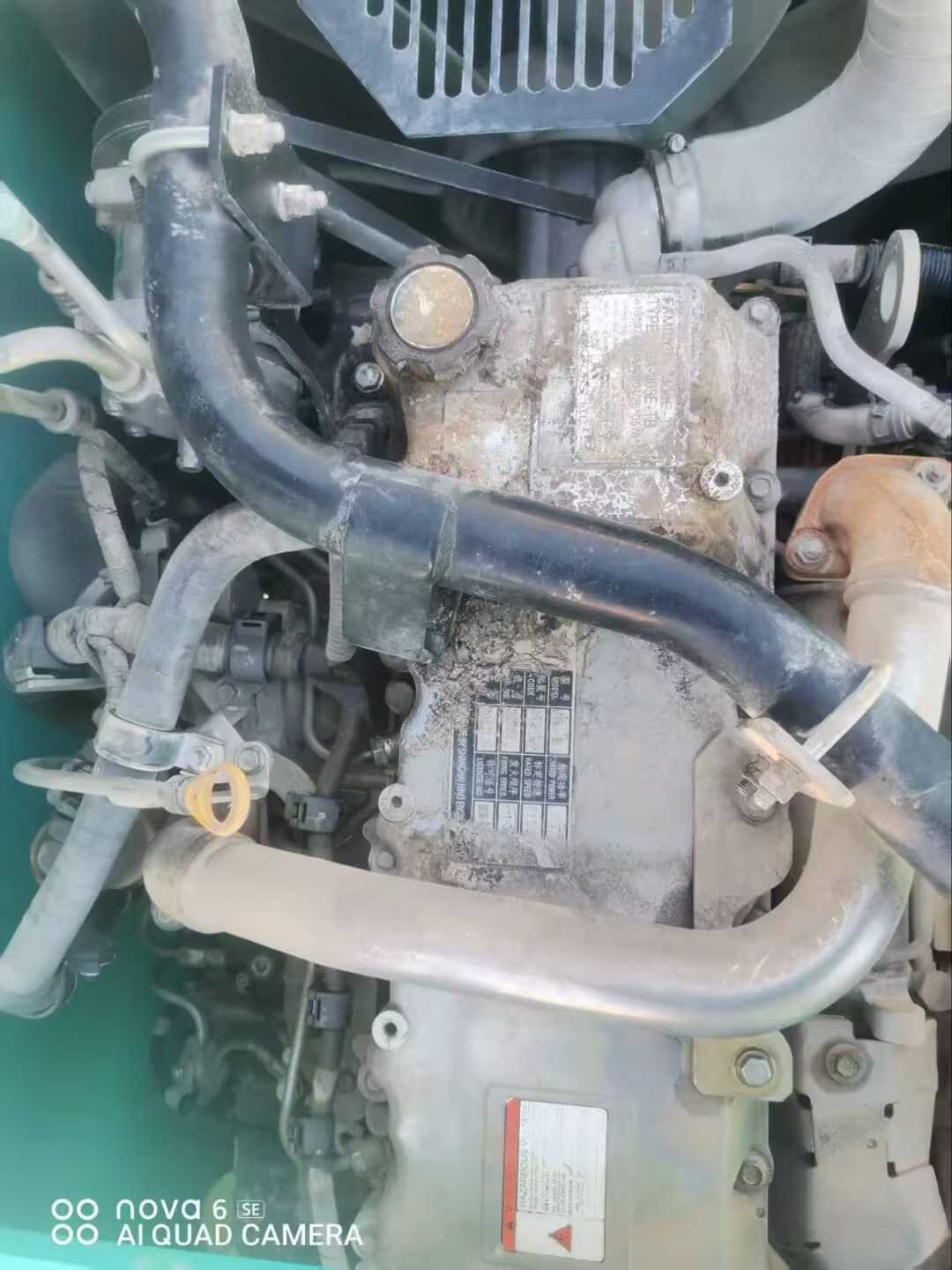

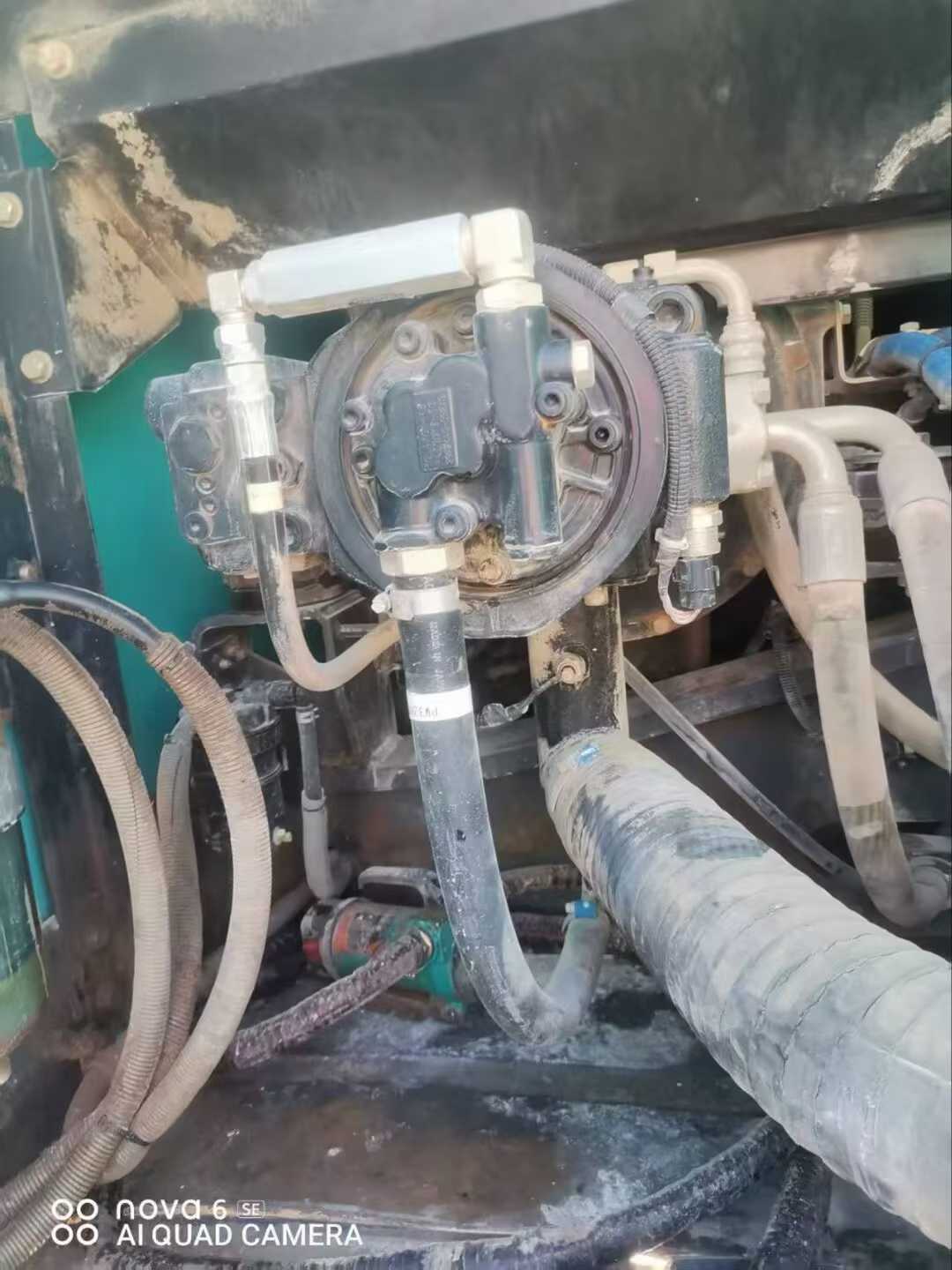

【 Premium Recommendation 】 Second-hand Kobelco SK250-10 excavator, now priced at only 218,000 yuan! This equipment is one of the most popular medium-sized excavators in the market, winning the favor of many users with its outstanding performance and durability. This machine has a working time of only 3,000 hours and is in the best usage condition with almost no wear and tear, which can meet various construction requirements. In terms of the power system, this excavator is equipped with a Cummins 6-cylinder turbocharged engine, which is powerful and has good fuel economy, providing users with stable and reliable power support. Even in harsh working environments, it can ensure efficient operation, greatly enhancing work efficiency. In addition, this engine features low noise and low emissions, meeting environmental protection requirements while also enhancing the comfort of the operator. The hydraulic system adopts advanced negative flow control technology, making the operation more smooth and precise, with a fast response speed and strong digging force. Whether it is for meticulous operations or heavy excavation tasks, it can handle them with ease. Meanwhile, an efficient hydraulic system can also effectively reduce fuel consumption a
