Sany SY135C

2020 Sany SY135C

1/9
Used Sany SY135C Excavator 2020 Model / 1

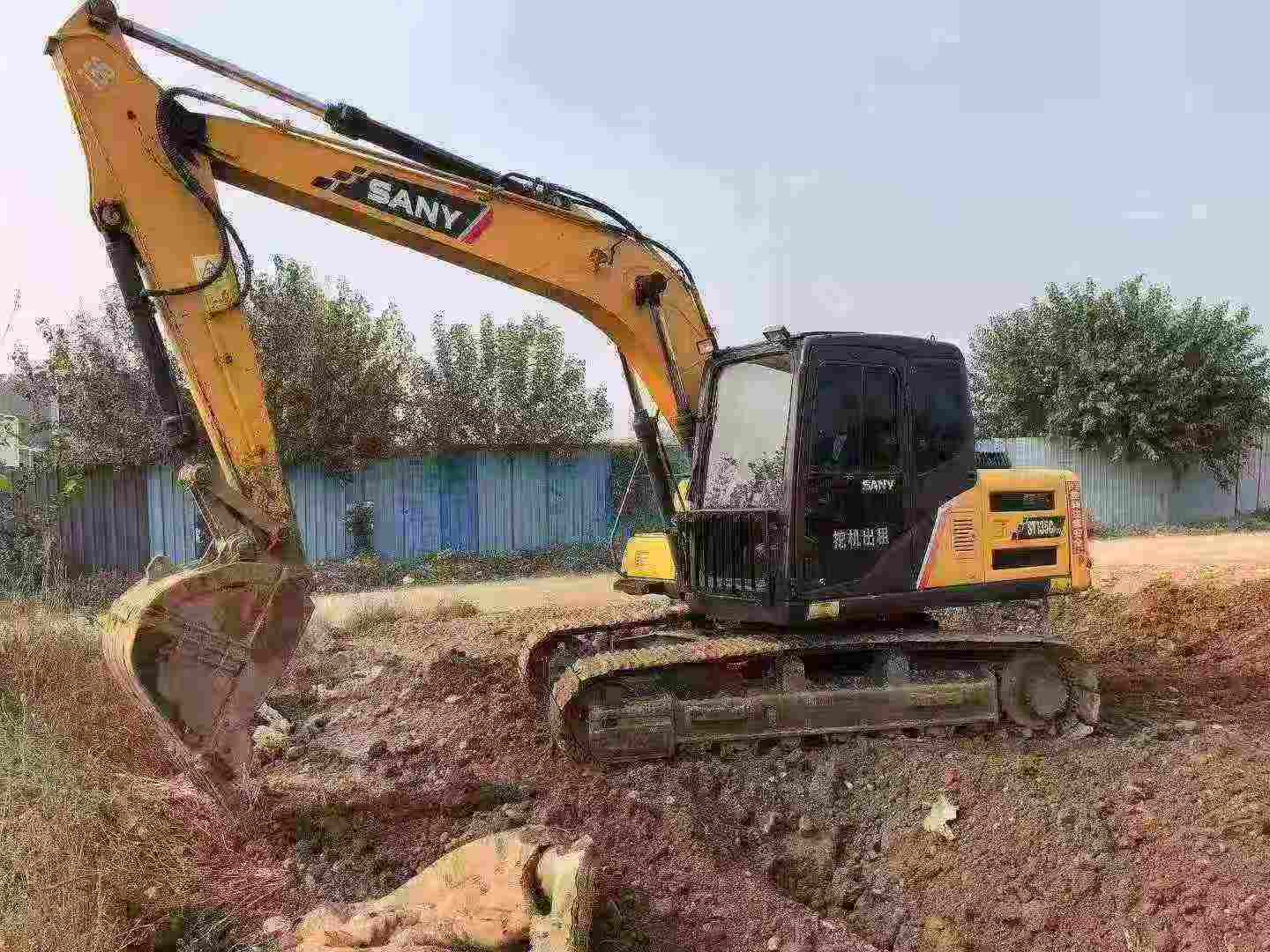

Used Sany SY135C Excavator 2020 Model / 2

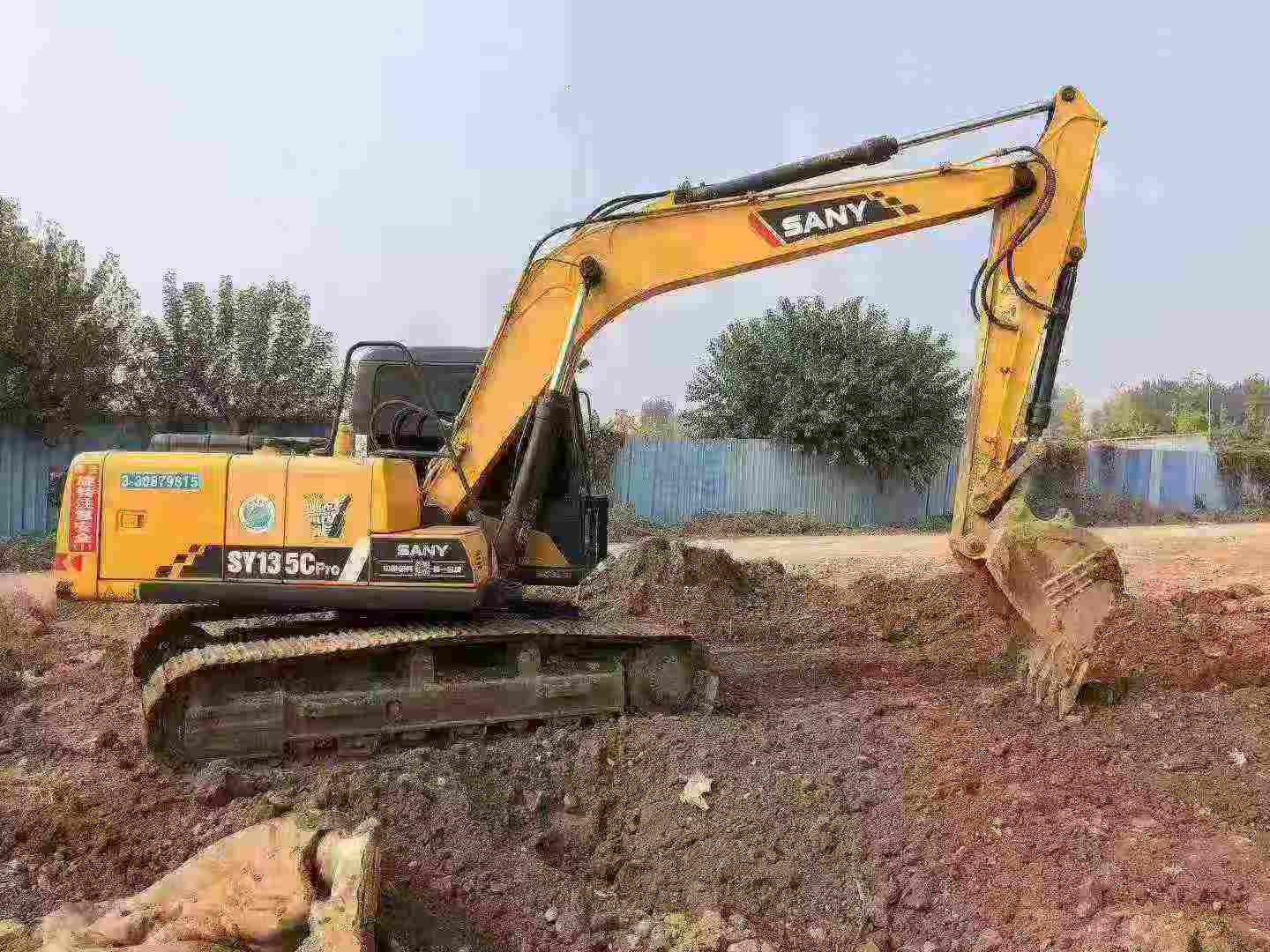

Used Sany SY135C Excavator 2020 Model / 3

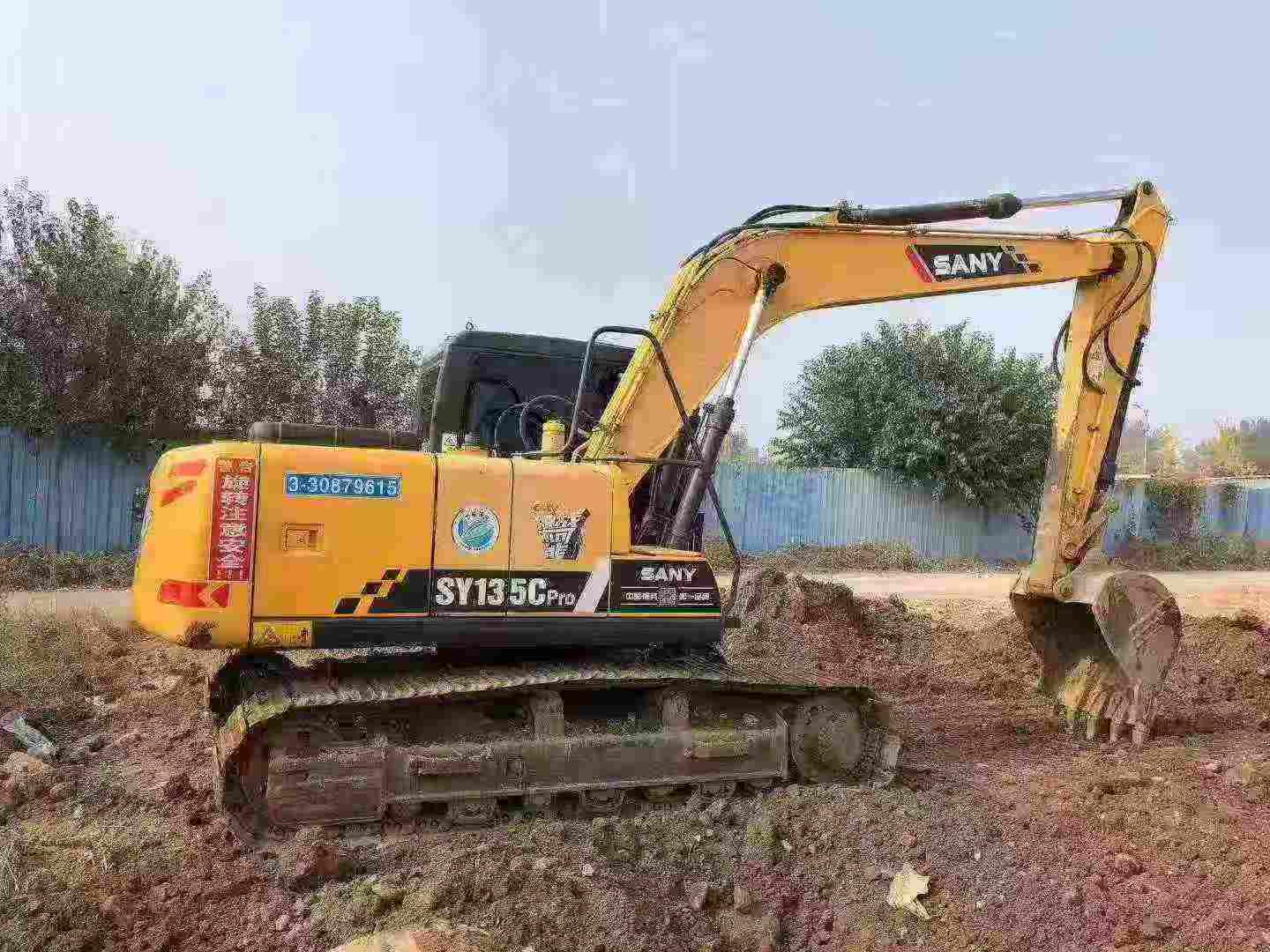

Used Sany SY135C Excavator 2020 Model / 4

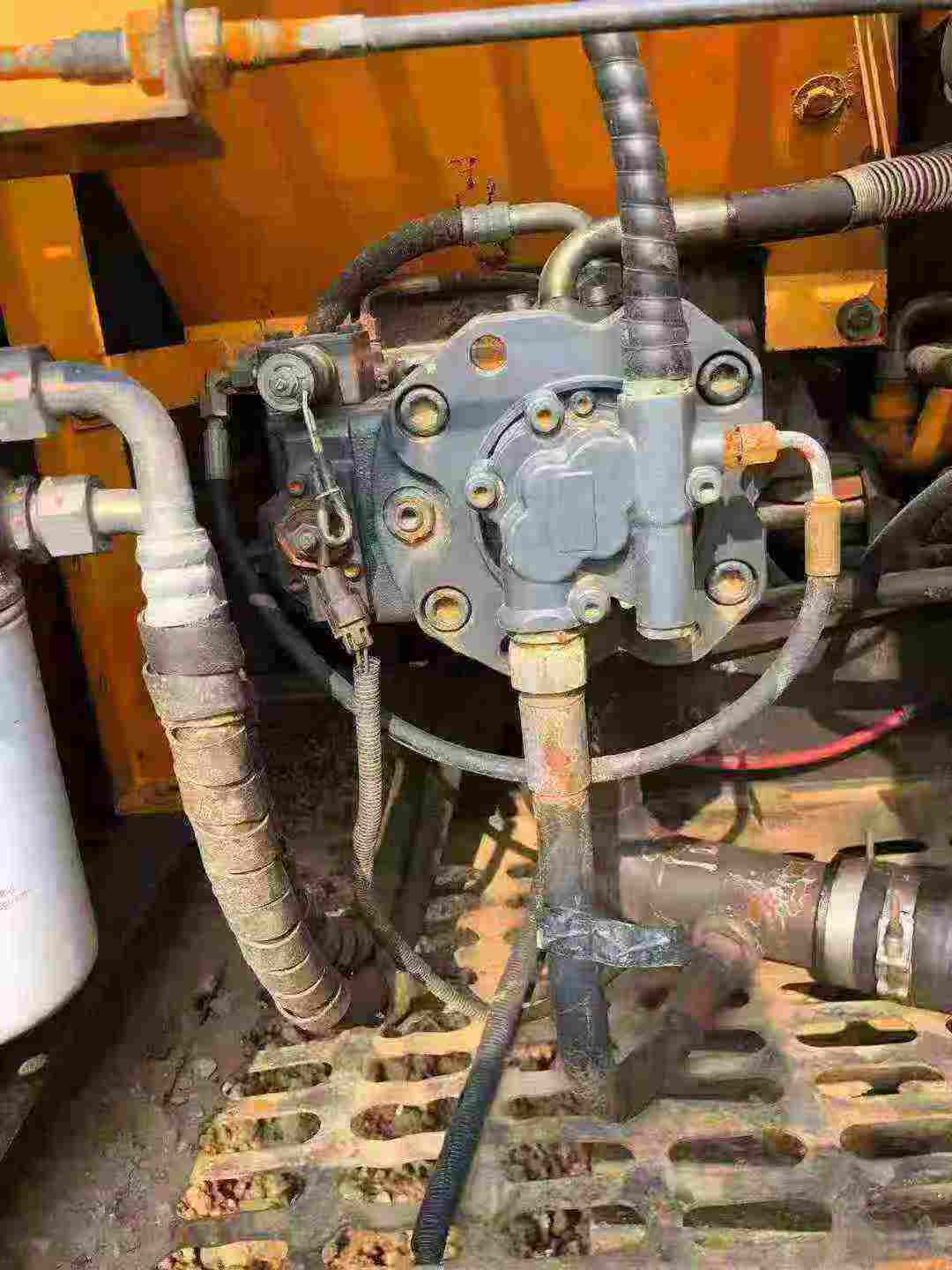

Used Sany SY135C Excavator 2020 Model / 5

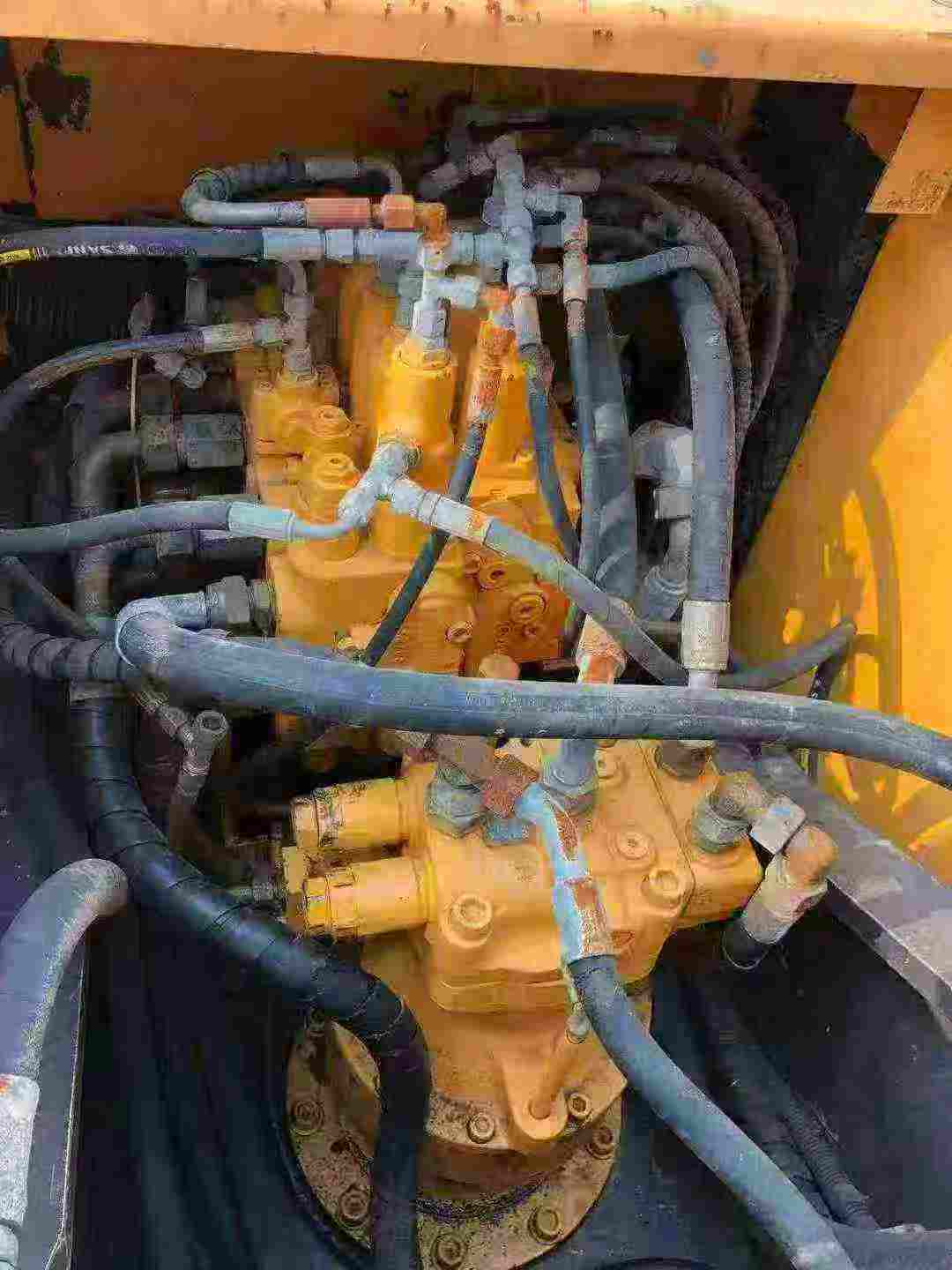

Used Sany SY135C Excavator 2020 Model / 6

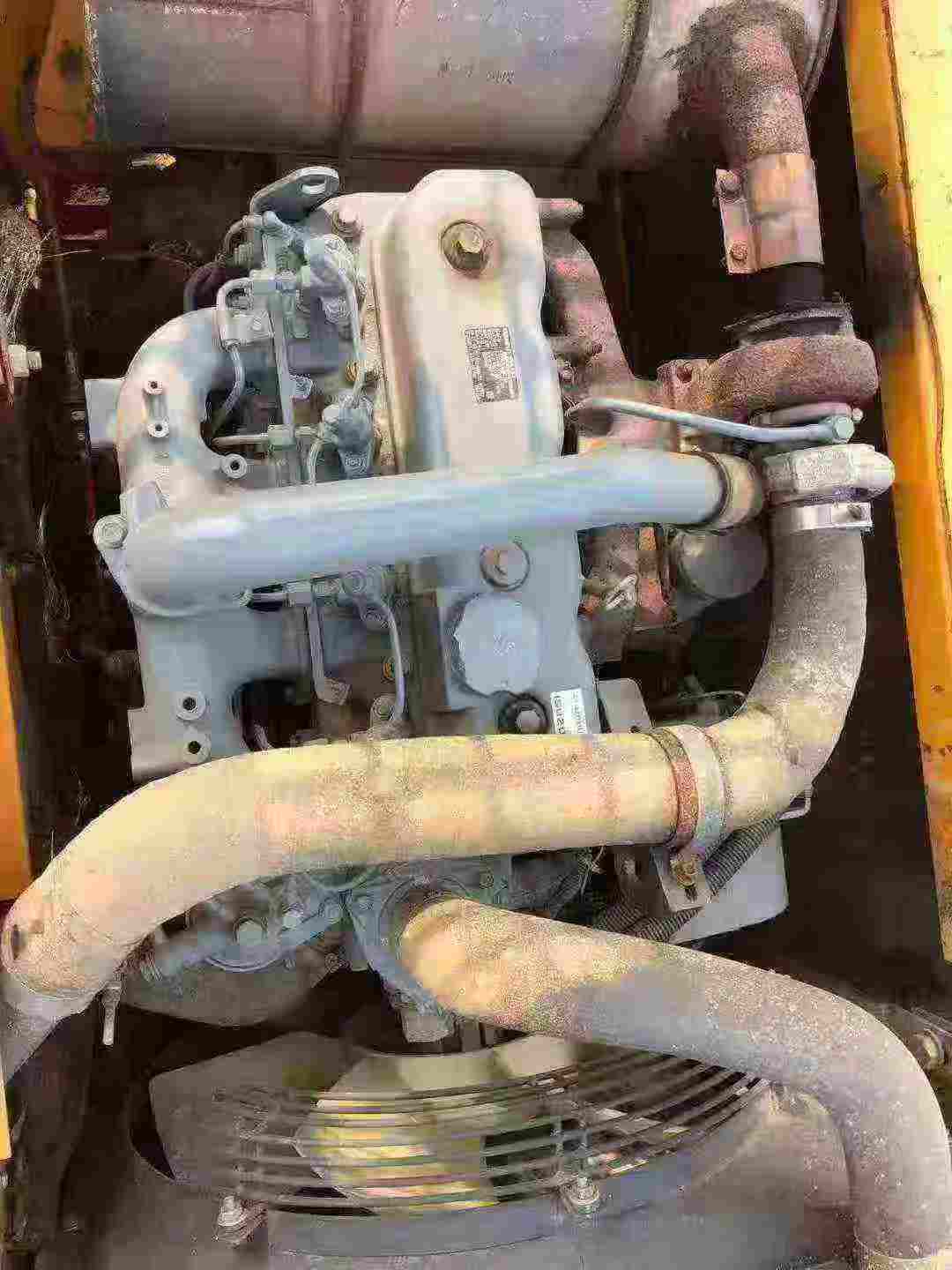

Used Sany SY135C Excavator 2020 Model / 7

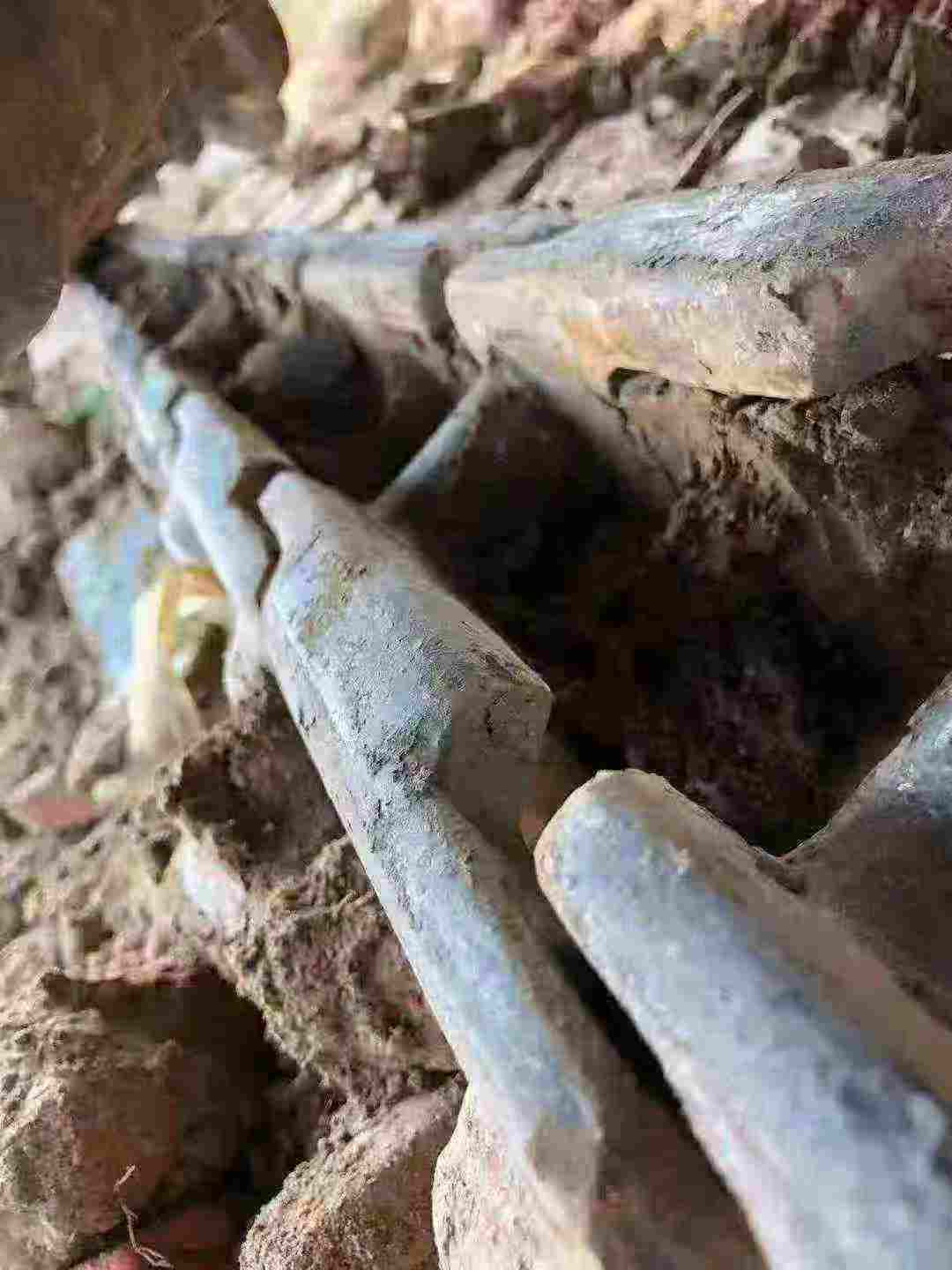

Used Sany SY135C Excavator 2020 Model / 8

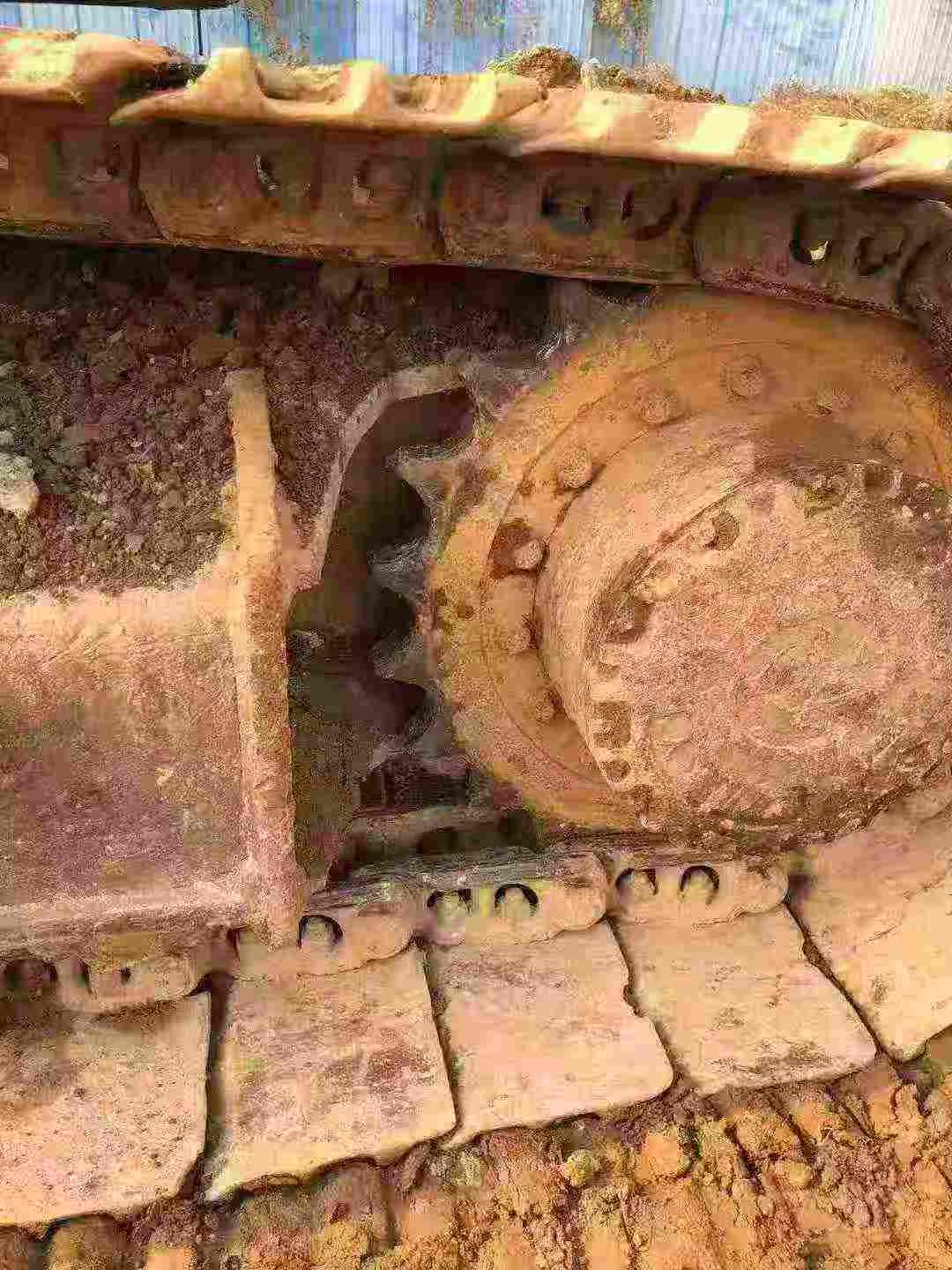

Used Sany SY135C Excavator 2020 Model / 9
Product Description
SpecificationsValue
No.961784
Tonnage (tons)13
Working weight (kg)13500
Bucket capacity (m³)0.22-0.7 (0.6)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeIsuzu 4JJ1-XDJAG-01-C3
Rated power (kw/rpm)73/2000
Cooling modewater-cooling
Maximum torque (N.m)365/1600
Displacement (L)2.999
Ground specific pressure (Kpa)41.7
Rotation speed (rpm)12
Climbing ability (%)70% (35°)
Bucket digging force (kN)92.7
Rod digging force (kN)66.13
Travel speed (km/h)5.5/3.5
Fuel Tank (L)240
Hydraulic Tank (L)150
Engine Oil changes (L)15
Total transport length (mm)7700
Total transport width (mm)2550
Total transport height (mm)2815
Full cab height (mm)2740
Minimum ground clearance (mm)425
Minimum turning radius of front working device (mm)2500
Back end turning radius (mm)2240
Onboard width (mm)2490
Total track length (mm)3665
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2930
Maximum height at minimum turning radius (mm)6500
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)44
Maximum digging radius (mm)8290
Maximum digging depth (mm)5510
Maximum excavation height (mm)8685
Maximum unloading height (mm)6180
Maximum vertical digging depth (mm)4890
see more

Description

【 Premium Recommendation 】 Second-hand Sany 135C excavator, in excellent condition and with an extremely high cost performance! This Sany 135C excavator has been in good maintenance since it left the factory, with a working time of only 2,000 hours, which is much shorter than the average usage time of similar equipment. It is equipped with a powerful power system and a high-performance engine, ensuring efficient operation under various complex working conditions. Whether it is earthwork excavation or stone crushing, it can handle them with ease, demonstrating outstanding dynamic performance and stability. In terms of the hydraulic system, this machine adopts an advanced load-sensitive control system, which can automatically adjust the oil volume according to the actual operation requirements. This not only improves work efficiency but also significantly reduces energy consumption and extends the service life of the machine. In addition, there is no leakage in all major components, ensuring the reliability and safety of long-term operation. In terms of appearance, the car body is clean and tidy with no obvious damage, and the internal structure is as good as new. It is almost impossible to tell that it is a second-hand device. We pro

Overview

No.961784

Brand Name:

Sany

Model Number:

SY135C

Year:

2020

Location:

Hebei China

Are you interested in this machine?

Please contact us

Why should you cooperate with us?

With over 7 years of experience in the construction machinery industry, you can say that we are professional practitioners in the machinery industry. Why cooperate with Global Used Excavator? Because we are only focused on the machinery industry. We have a large amount of first-hand equipment information. We contact direct sellers and there are no middlemen.

How do we work?

Tell us the brand, model, year, and operating hours of the equipment you need. Then we will start looking for the suitable equipment for you globally. It's as simple as that. Once we find the equipment that suits you, we will contact you and we can discuss any further steps.

Advantages when cooperating with us!

You can continue with your work without having to spend time and money traveling around and/or asking dealers and traders for quotes on your own. You don't need to visit multiple web portals to compare, evaluate, and find the mechanical equipment you need. We will do all of this for you! And jointly decide on any further steps.

Providing quality service for our customers!

We can offer a wide range of "additional" quality services. We can help you arrange equipment inspections, repairs, overhauls, painting, hydraulic pump and arm operations, and more.

Here are the ways you can purchase from Global Used Excavator!

Option 1: You can find a machine on our website and tell us which machine it is. We will contact the owner of the machine to obtain more information, pictures, and prices. We will send you a quotation and jointly decide on any further steps.
Option 2: We conduct a search for you. You tell us the brand, model, year, and maximum hours of the machine you need, and we will start serving you. We will send you a quotation and jointly decide on any further steps.
