| Specifications | Value |
|---|---|
| No. | 960474 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21800 |
| Bucket capacity (m³) | 0.93 (0.8~1.2) |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 46.5 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 2990 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3595 |
| Back end turning radius (mm) | 2890 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 (800/700 optional) |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3445 |
| Maximum digging radius (mm) | 9950 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9570 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5800 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 9885 |
Description

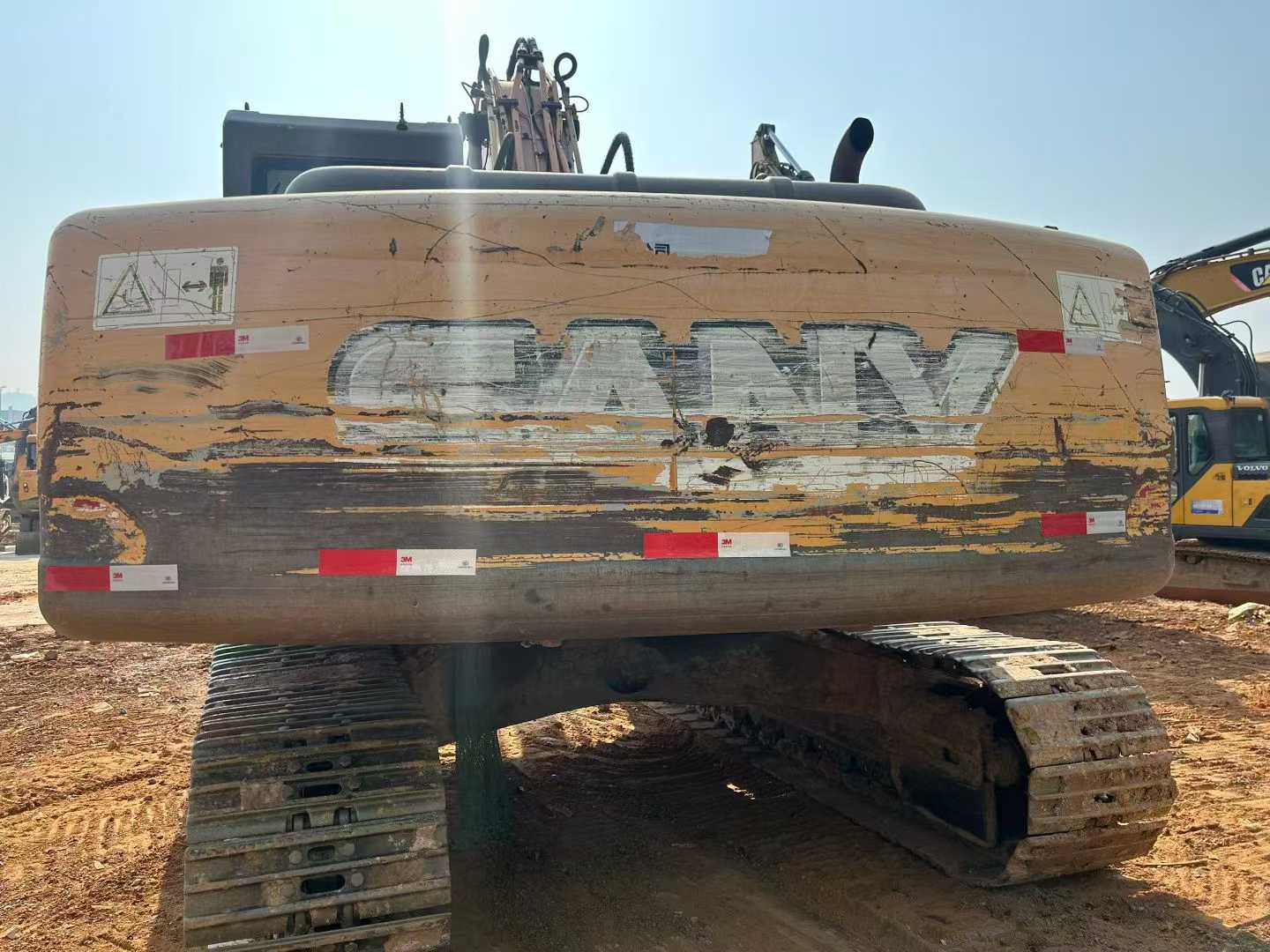

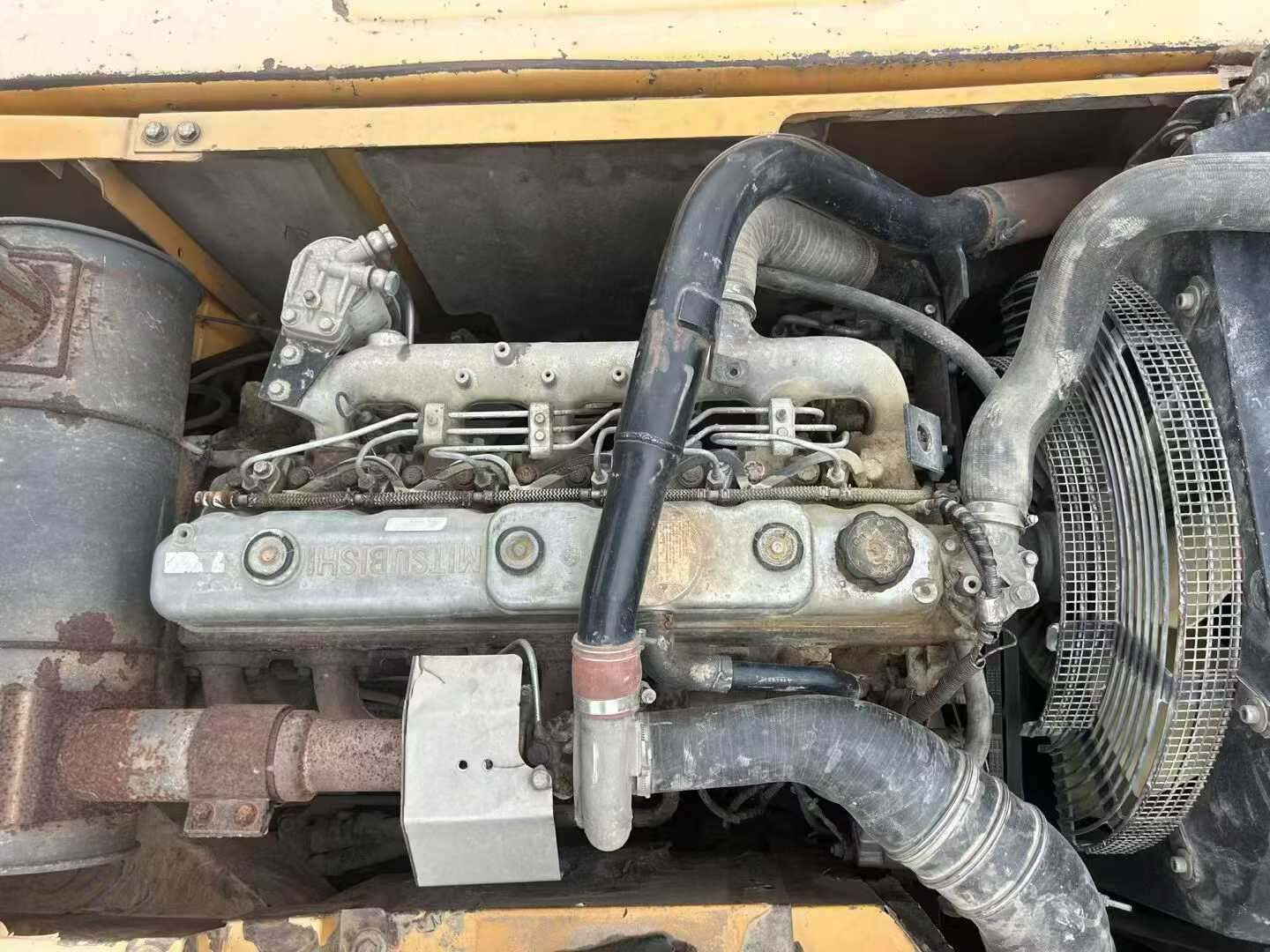

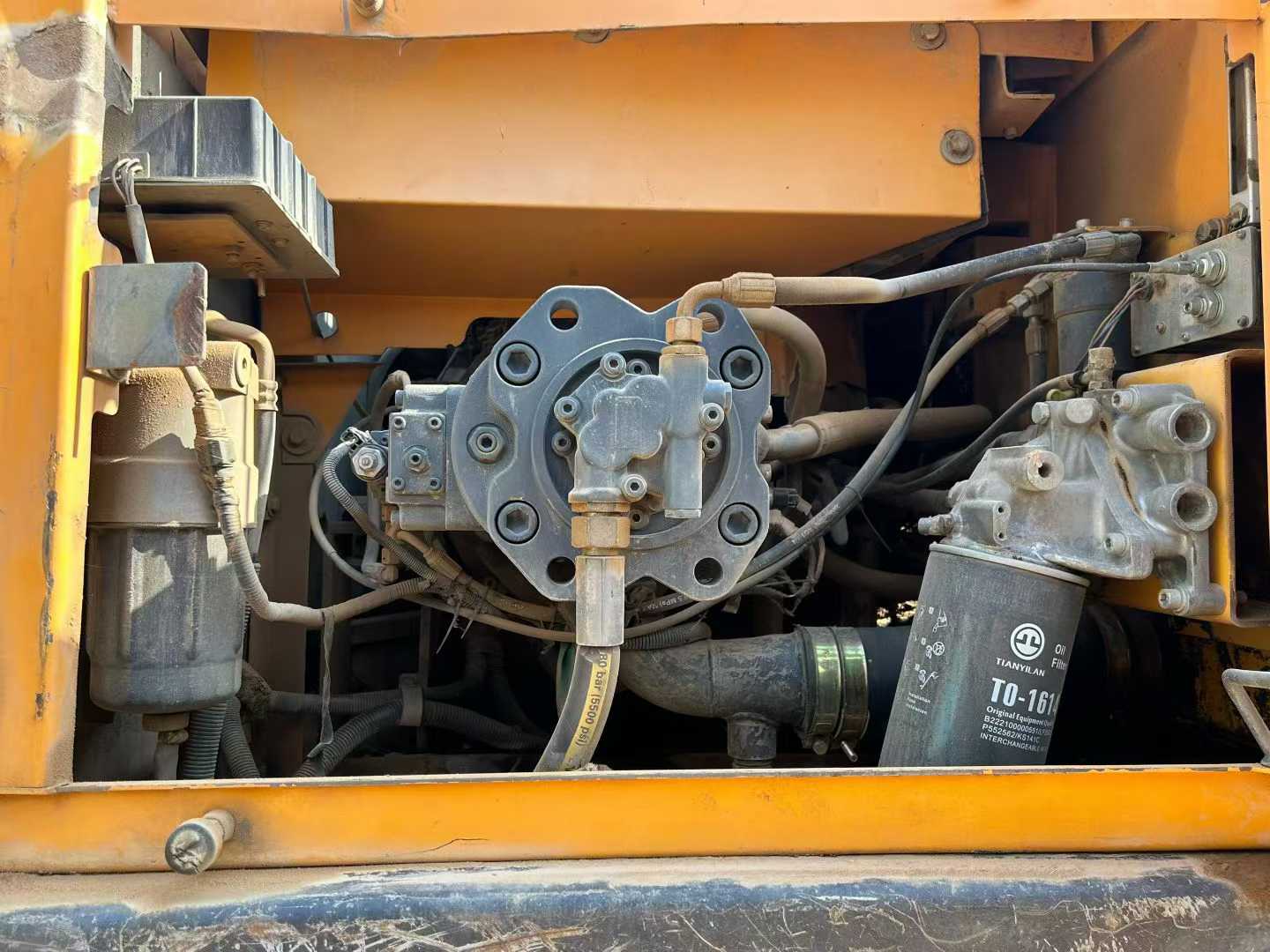

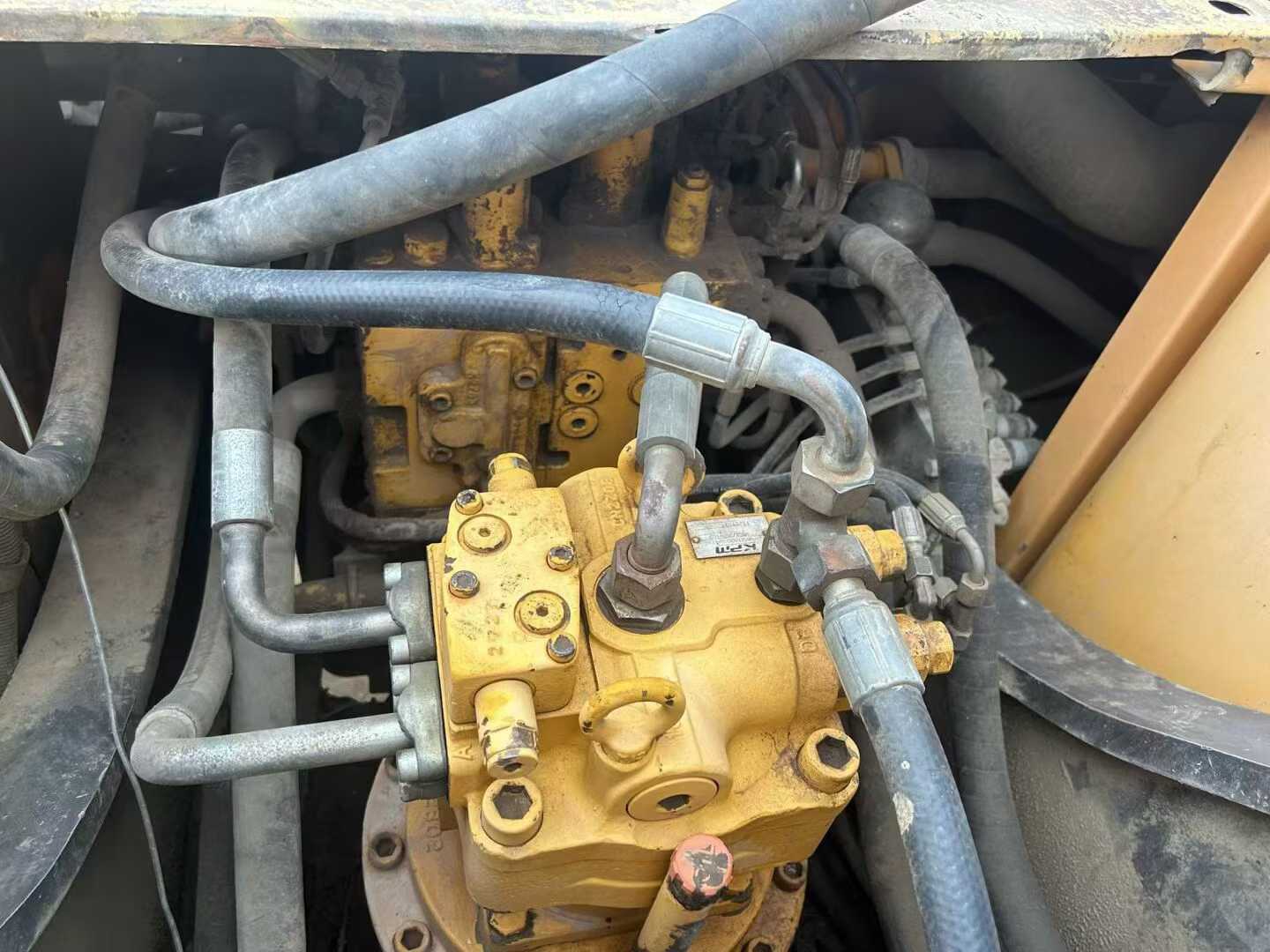

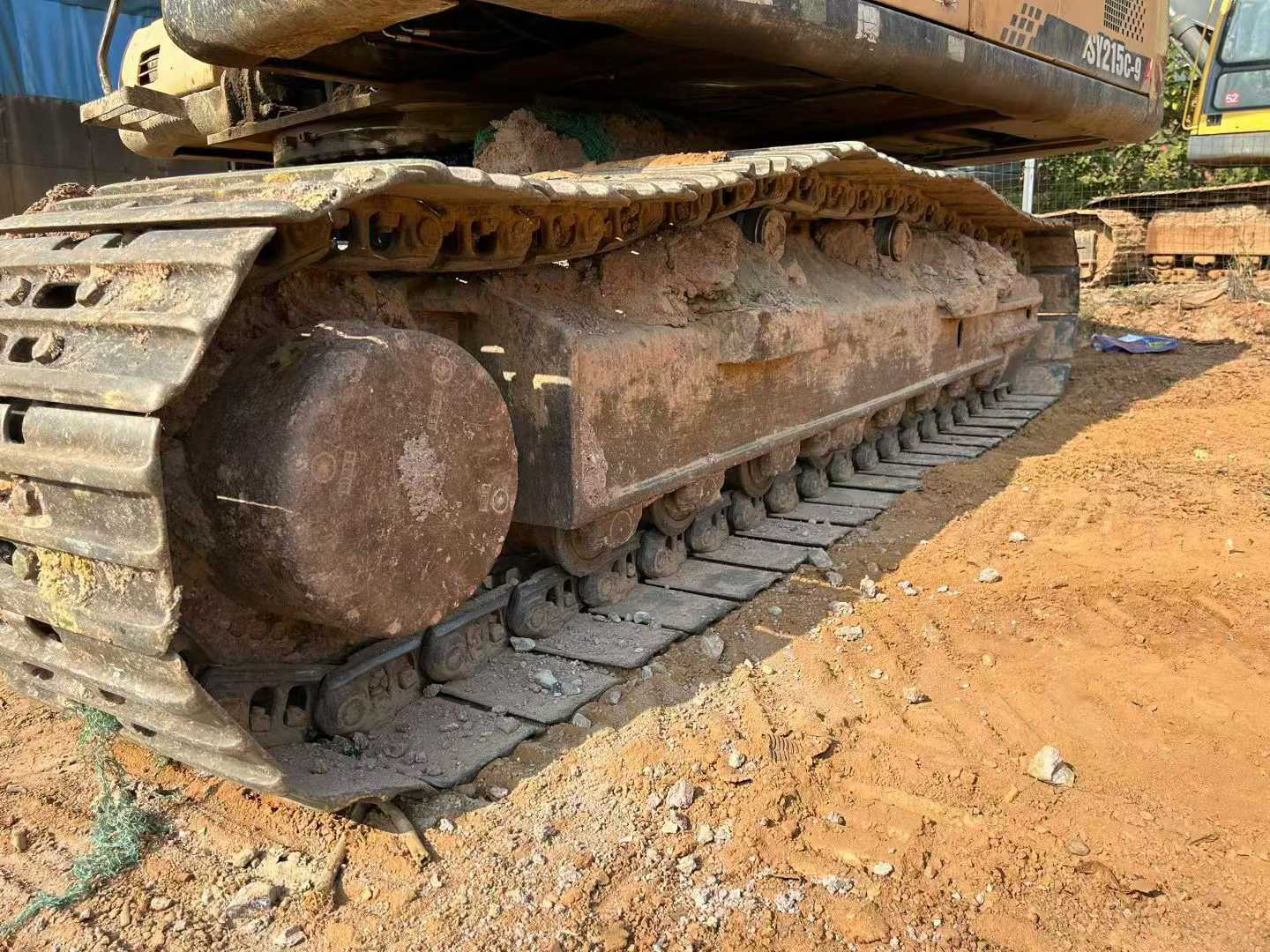

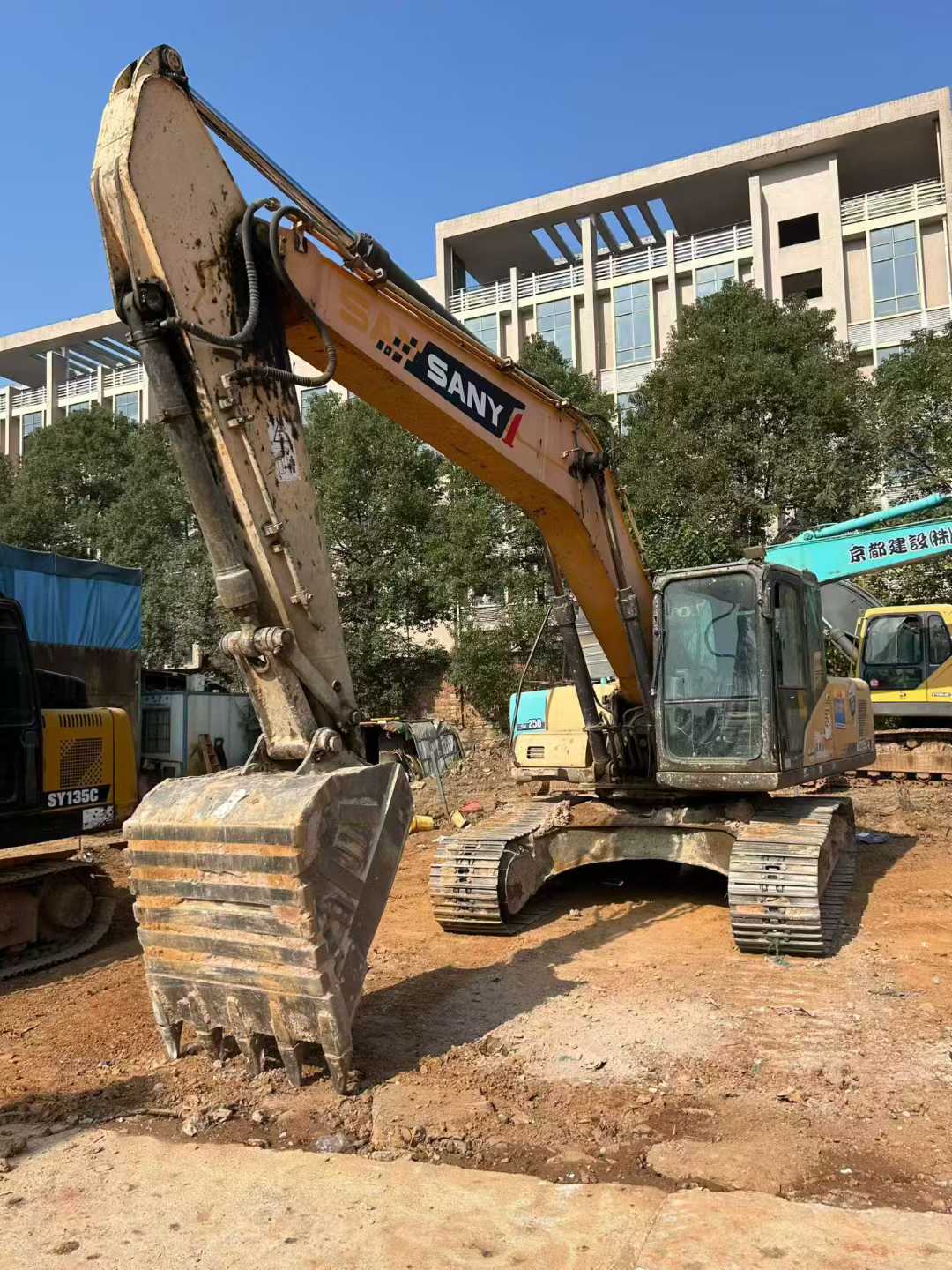

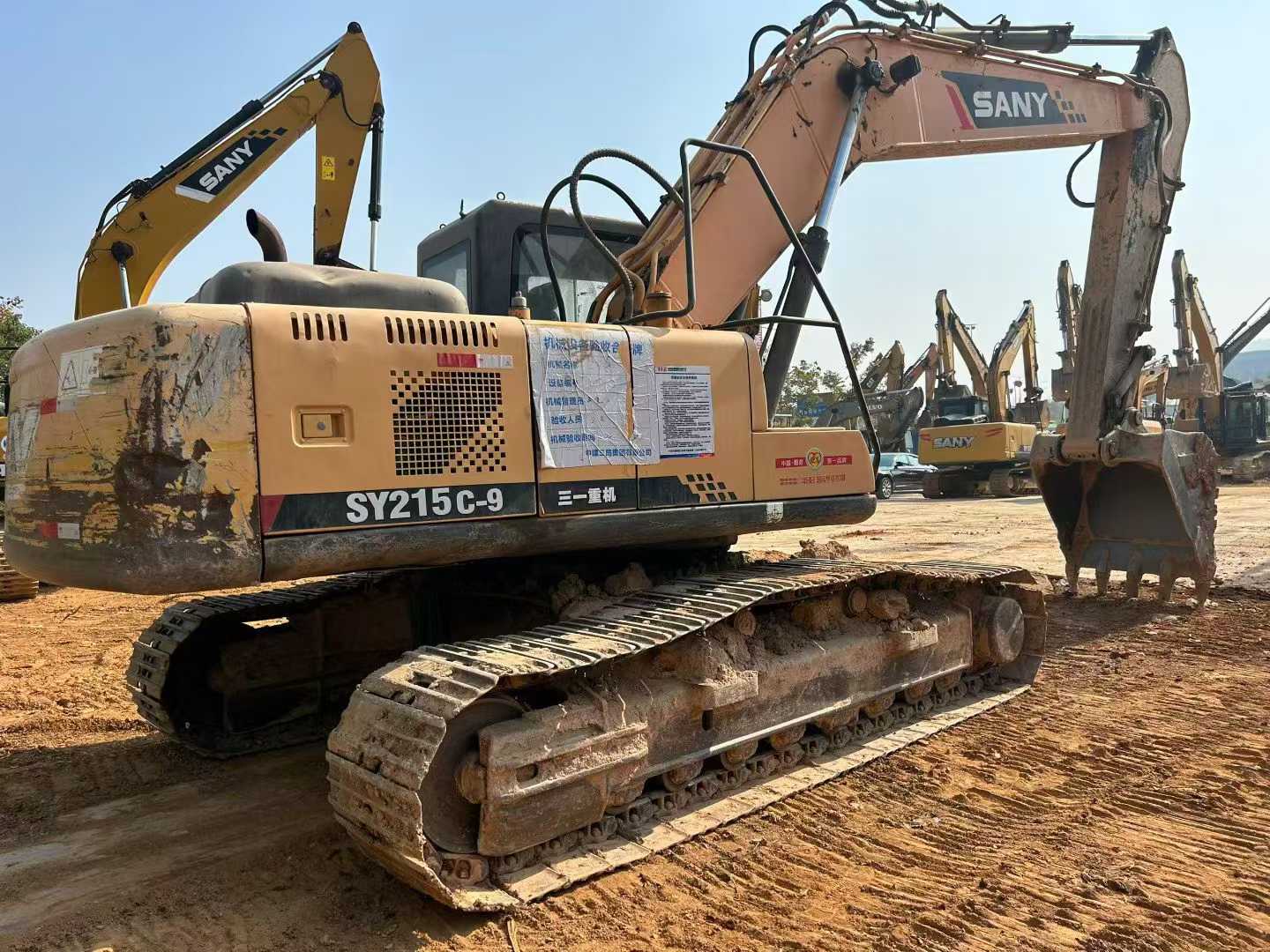

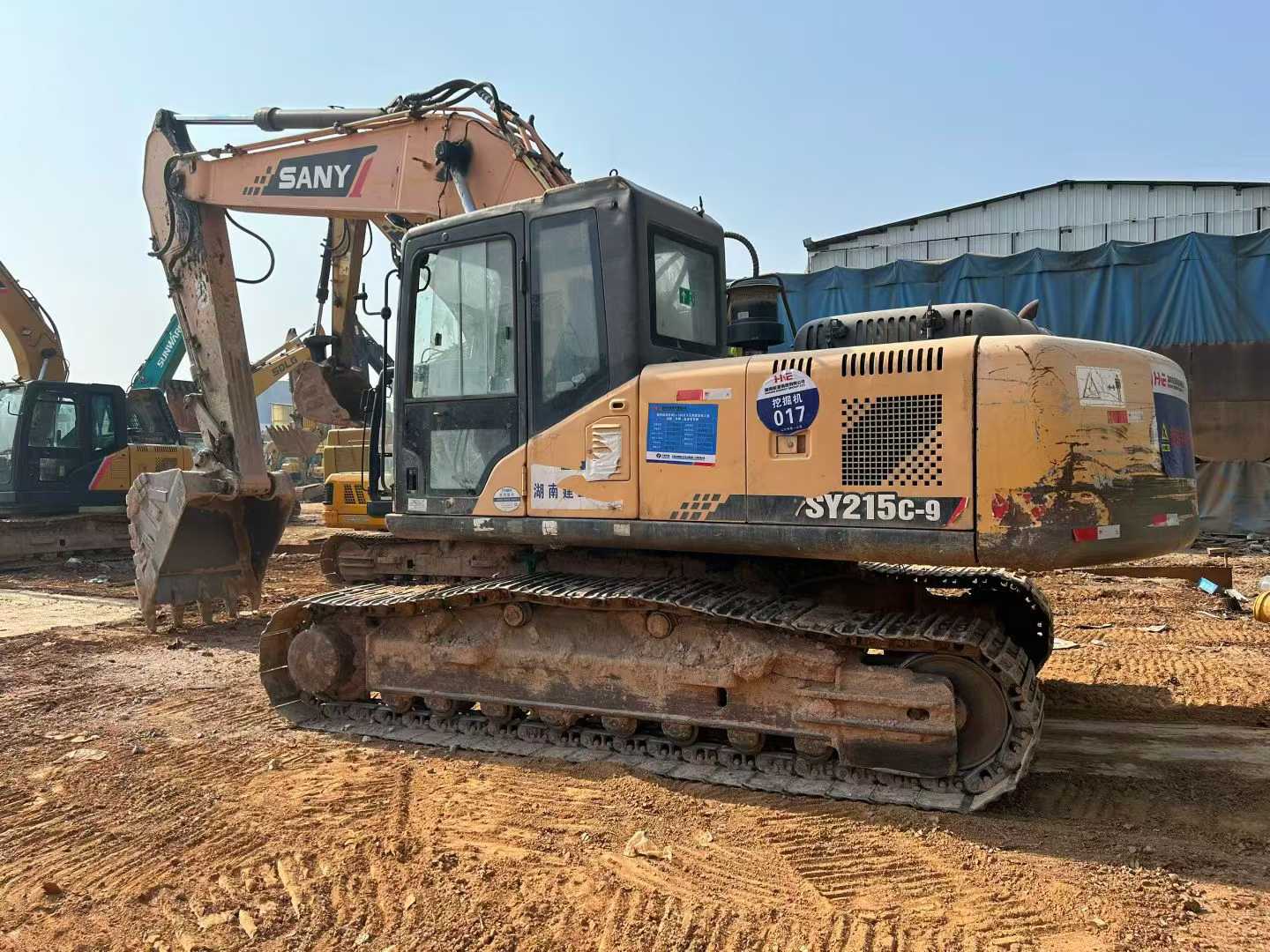

【 Premium Recommendation 】2014 Sany SY215-9 excavator, with a working time of only 3,500 hours, no inspection required for machine condition, outstanding quality, reasonable price, and extremely high cost performance! This Sany SY215-9 excavator has been in good maintenance since it was put into use in 2014. The overall working time of the machine is only 3,500 hours, which is far lower than the average usage time of similar equipment, indicating that it still has a long service life and high residual value. Whether it is mining, earthwork projects or municipal construction, they can all be handled with ease. In terms of the power system, this excavator is equipped with a high-performance Cummins engine, which not only has strong power but also excellent fuel economy, effectively reducing operating costs. Meanwhile, the engine, after regular maintenance, operates smoothly without any abnormal noise or oil leakage, ensuring the demand for long-term efficient operation. The hydraulic system adopts components of internationally renowned brands, featuring rapid response and precise movement. It performs exceptionally well in both excavation force and rotation speed. In addition, all hydraulic pipelines have undergone meticulous inspecti
