| Specifications | Value |
|---|---|
| No. | 968162 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 23000 |
| Bucket capacity (m³) | 1.35 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Deutz TCD5.7/ Isuzu 4HK1 |
| Rated power (kw/rpm) | 129/2100; 128/2000 |
| Emission standard | Country IV |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 107 |
| Travel speed (km/h) | 5.6/3.5 |
| Total transport length (mm) | 9635 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 442 |
| Minimum turning radius of front working device (mm) | 3662 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2813 |
| Total track length (mm) | 4446 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 7600 |
| Maximum digging radius (mm) | 9735 |
| Maximum digging depth (mm) | 6450 |
| Maximum excavation height (mm) | 9470 |
| Maximum unloading height (mm) | 6735 |
Description

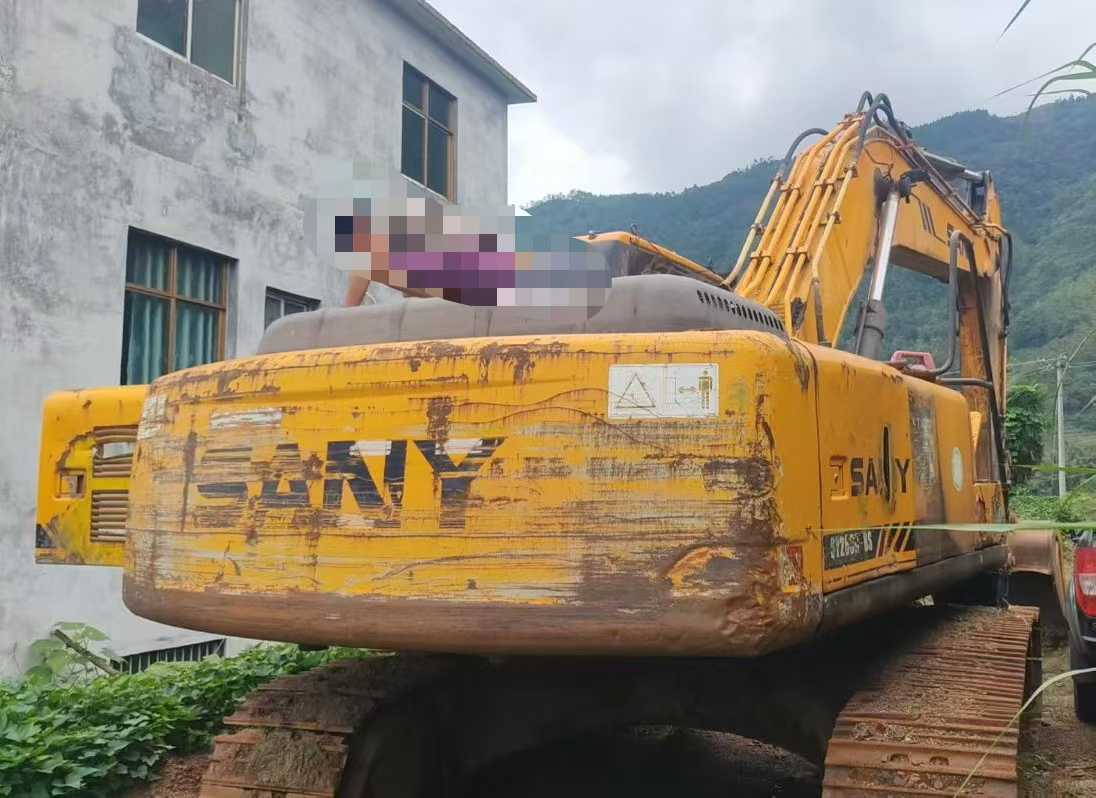

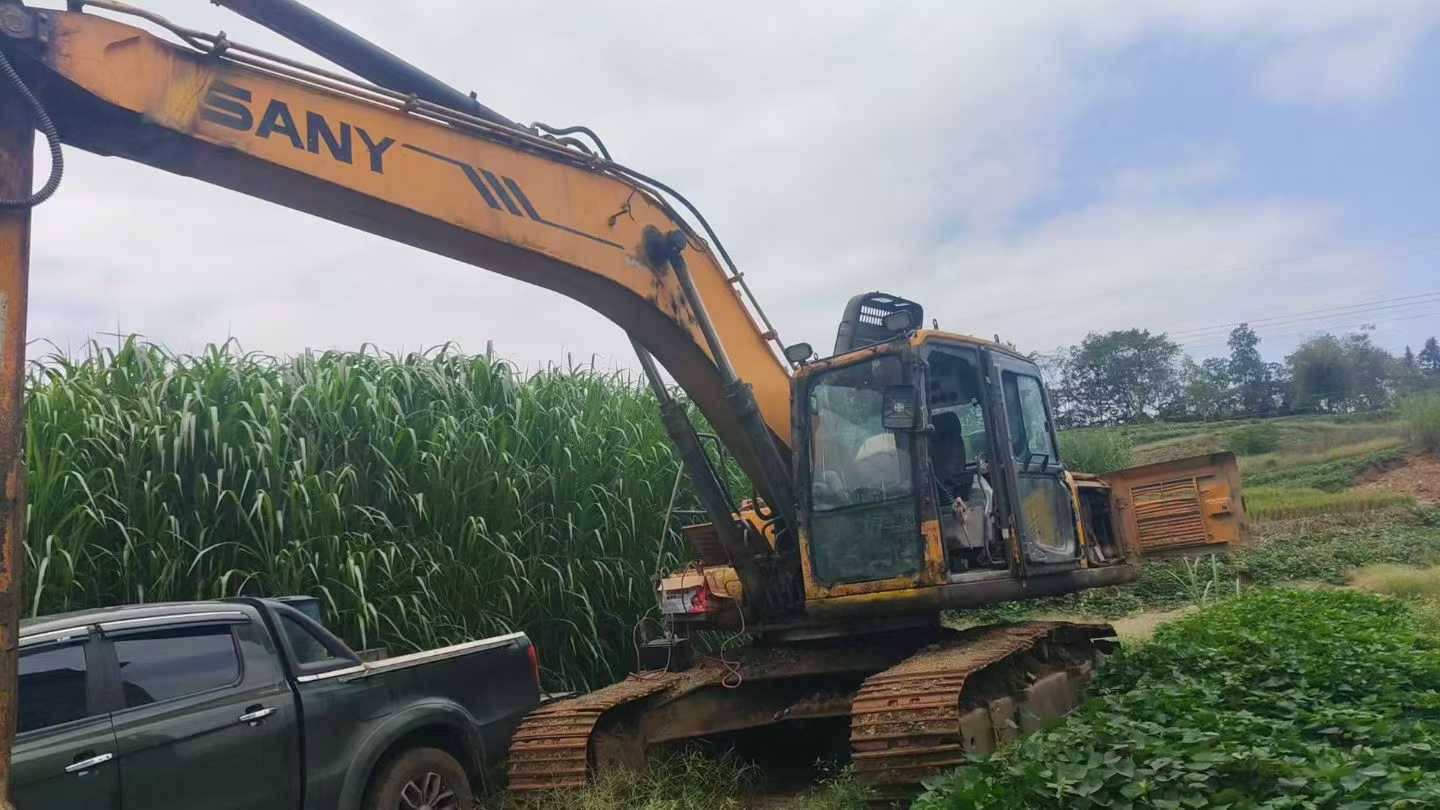

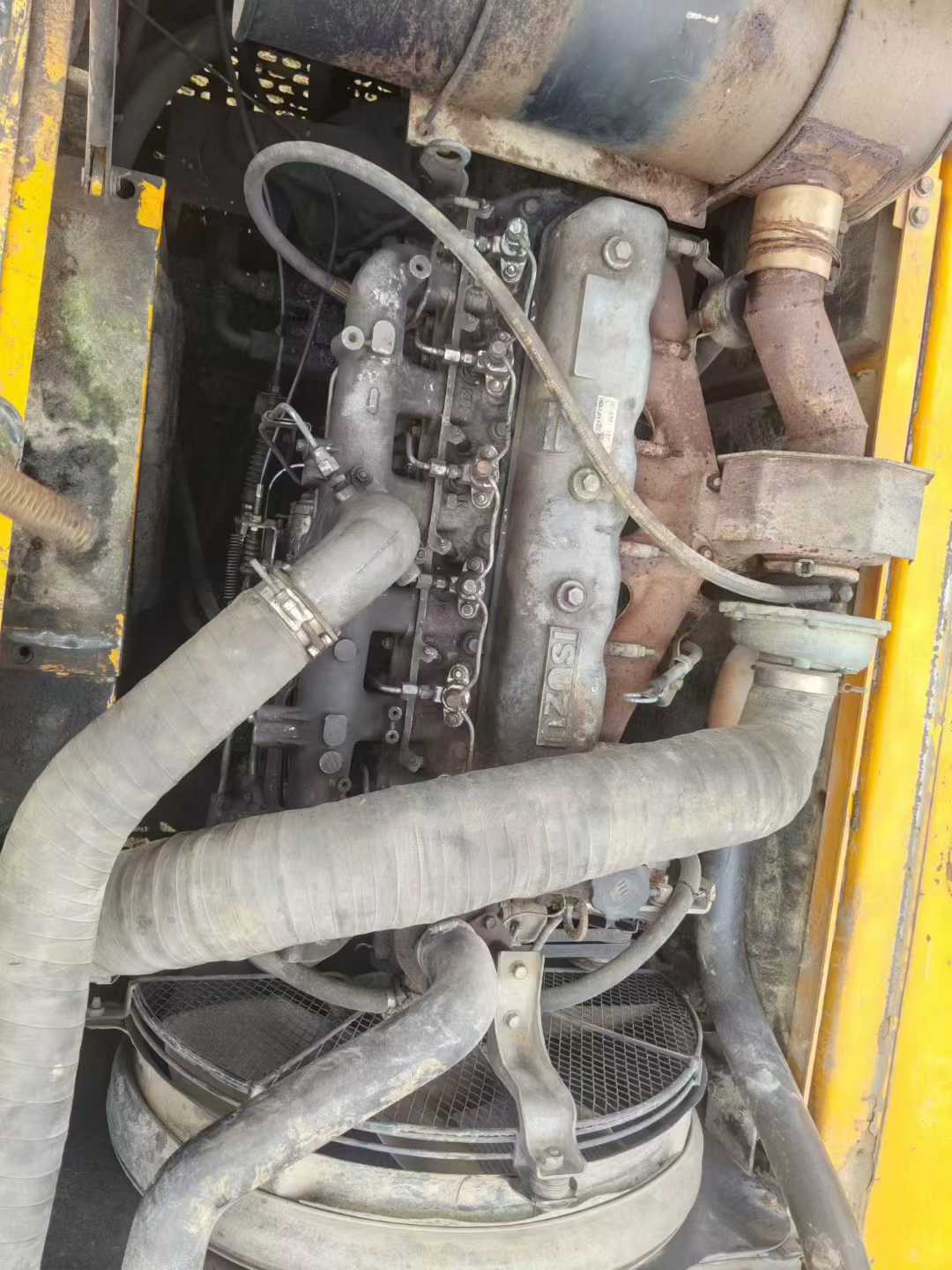

"Sany 235 second-hand excavator, local first-hand quality goods This Sany 235 excavator is one of the most favored medium-sized excavators in the market, featuring outstanding performance and durability. This machine is a local first-hand vehicle source with no accident records. It has been well maintained throughout the process and has only been in operation for 4,000 hours. It is currently in the best working condition. For such a high-quality device, its remaining service life is still very long, which can fully meet your long-term and high-intensity work requirements. This machine is equipped with a high-efficiency and energy-saving engine independently developed by Sany, which is powerful and has high fuel economy, and can easily handle various complex working conditions. Meanwhile, the advanced electronic control system makes the operation more precise and smooth, greatly improving work efficiency. In terms of the hydraulic system, core components of internationally renowned brands are adopted, ensuring the smooth and reliable operation of the entire machine. Both the digging force and the rotating speed have reached the leading level in the industry. In addition, this excavator is equipped with a reinforced chassis structure a
