| Specifications | Value |
|---|---|
| No. | 969736 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 36600 |
| Bucket capacity (m³) | 1.8 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AH-6HK1X |
| Rated power (kw/rpm) | 202/2000 |
| Displacement (L) | 7.790 |
| Ground specific pressure (Kpa) | 68 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 164 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/3.5 |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | Variable capacity piston pump |
| Working Hydraulic Circuit (Mpa) | 34.3/37.3 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 175 |
| Hydraulic System (L) | 350 |
| Total transport length (mm) | 11050 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3260 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4980 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Maximum digging radius (mm) | 11170 |
| Maximum digging depth (mm) | 7340 |
| Maximum excavation height (mm) | 10370 |
| Maximum unloading height (mm) | 7230 |
| Maximum vertical digging depth (mm) | 6350 |
Description

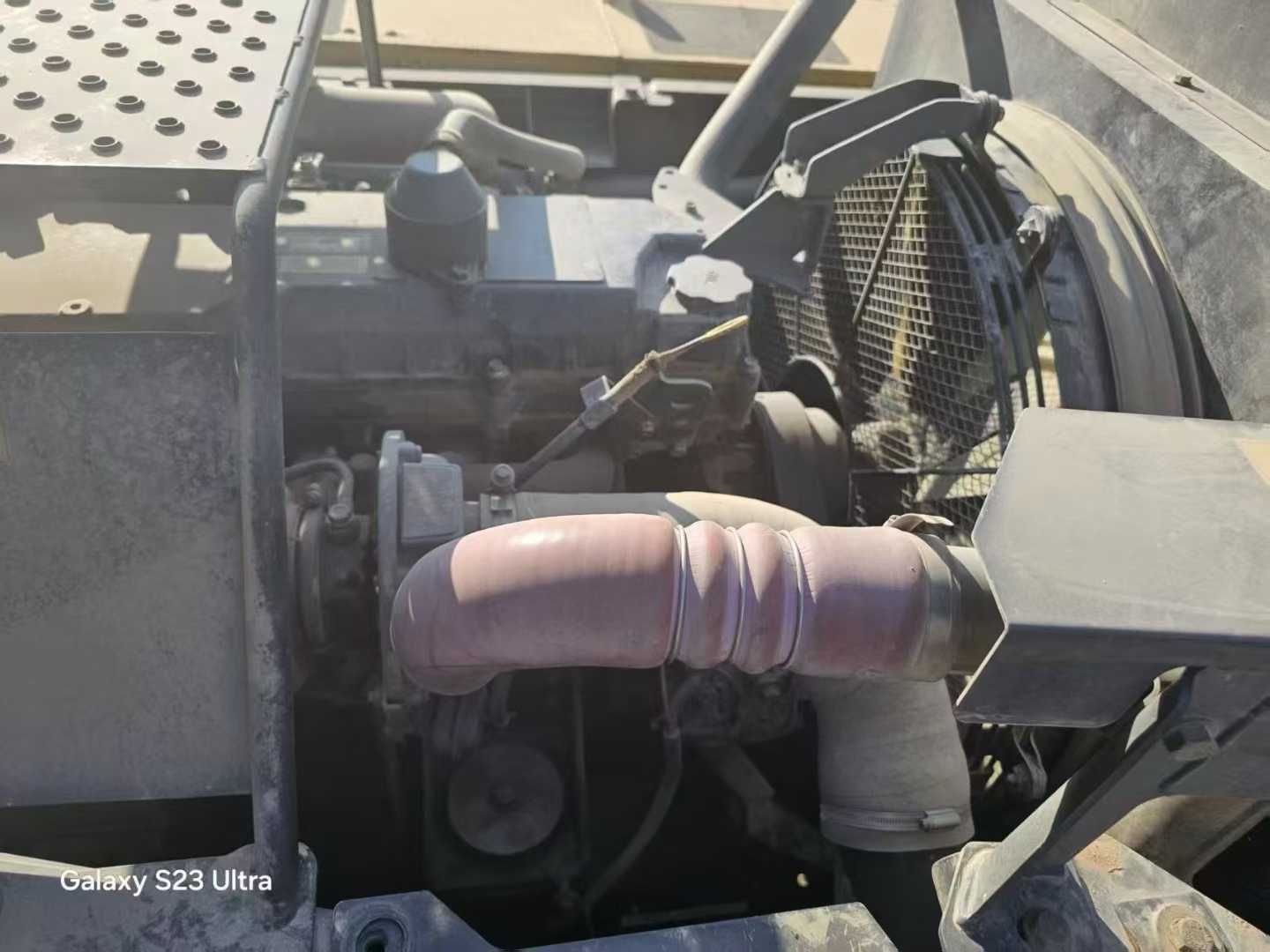

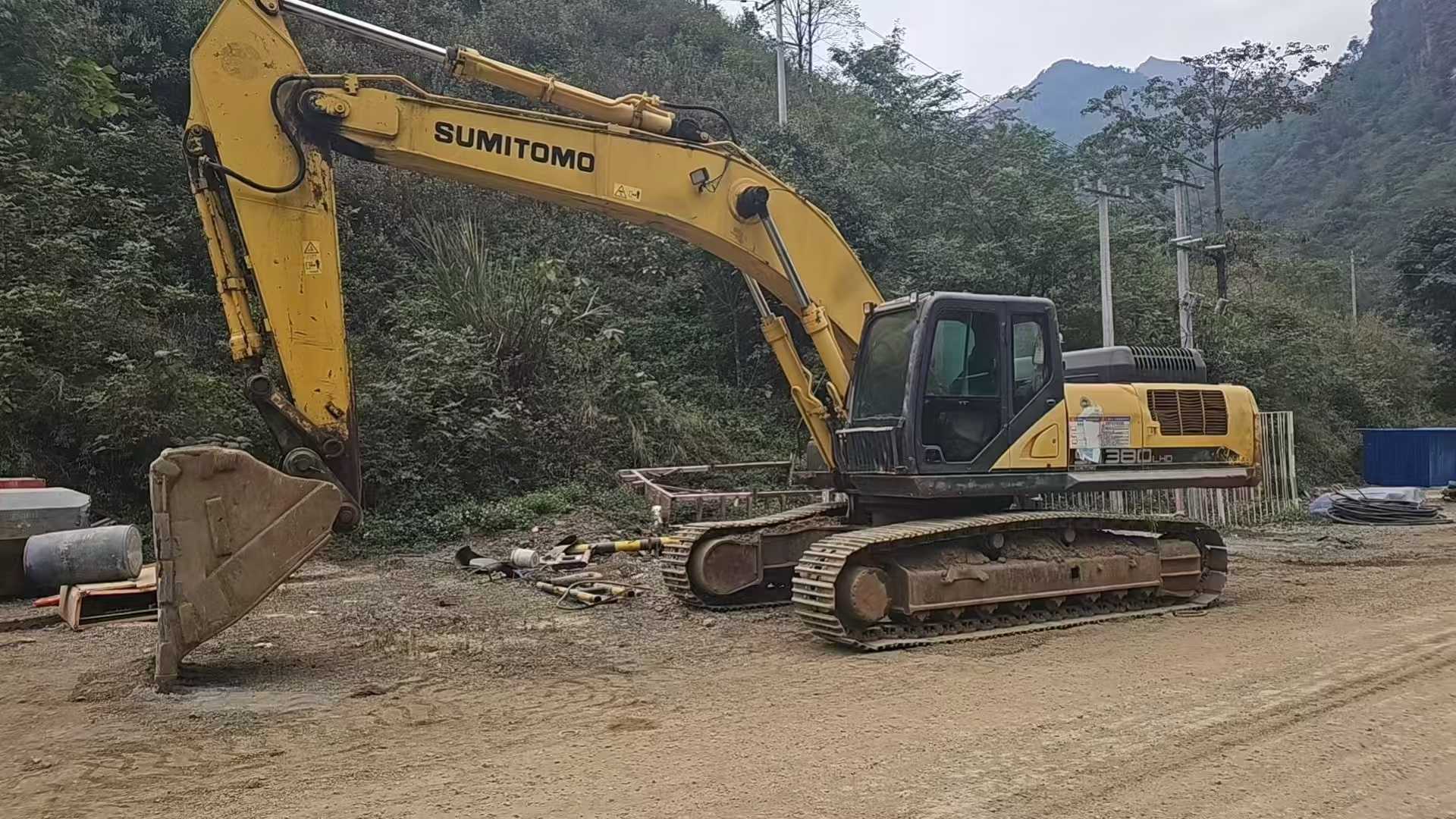

【 Premium Recommendation 】 Second-hand Sumitomo 380 excavator from 2018, in stock, available for on-site viewing at any time! This Sumitomo SH380-6 hydraulic excavator from 2018 is one of the most popular medium and large-sized excavators in the market. Since leaving the factory, the cumulative working time of this equipment has only been 4,500 hours. It is in the best working condition, well maintained and has stable and reliable performance. Whether it is earthwork, mining or urban construction, it can handle them all with ease. In terms of the power system, this excavator is equipped with a Cummins QSB6.7 engine, with a maximum power output of 228kW (approximately 305 horsepower). It not only has strong power but also good fuel economy, maintaining efficient operation even under heavy loads. In addition, its advanced electronic control system can automatically adjust the rotational speed according to the operation requirements, further saving fuel consumption and reducing operating costs. The hydraulic system adopts Sumitomo's unique HIOS III technology, ensuring rapid and precise operation response, while also featuring excellent digging force and lifting capacity. The matching degree between the main pump and the control valve
