Product Description

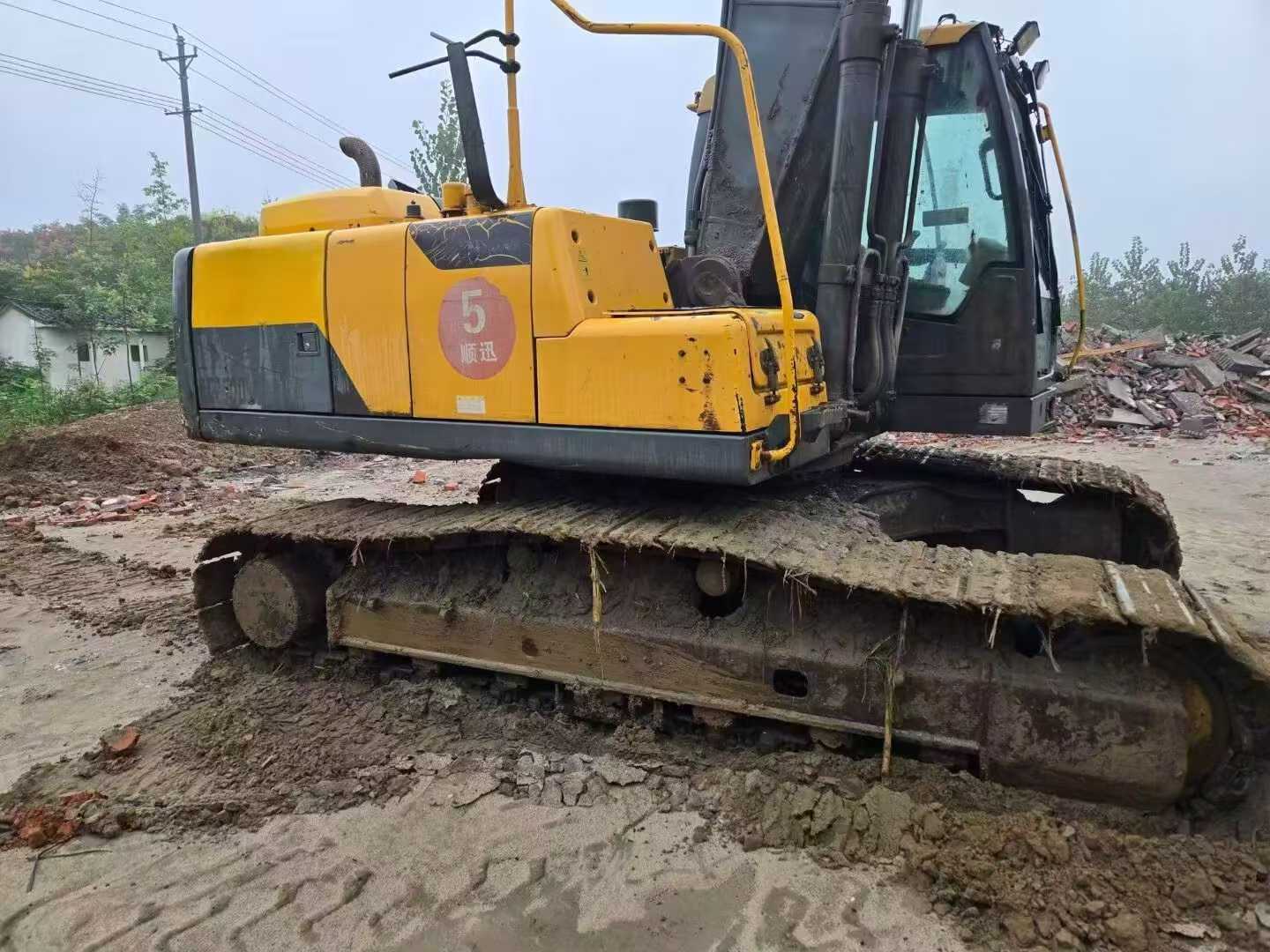

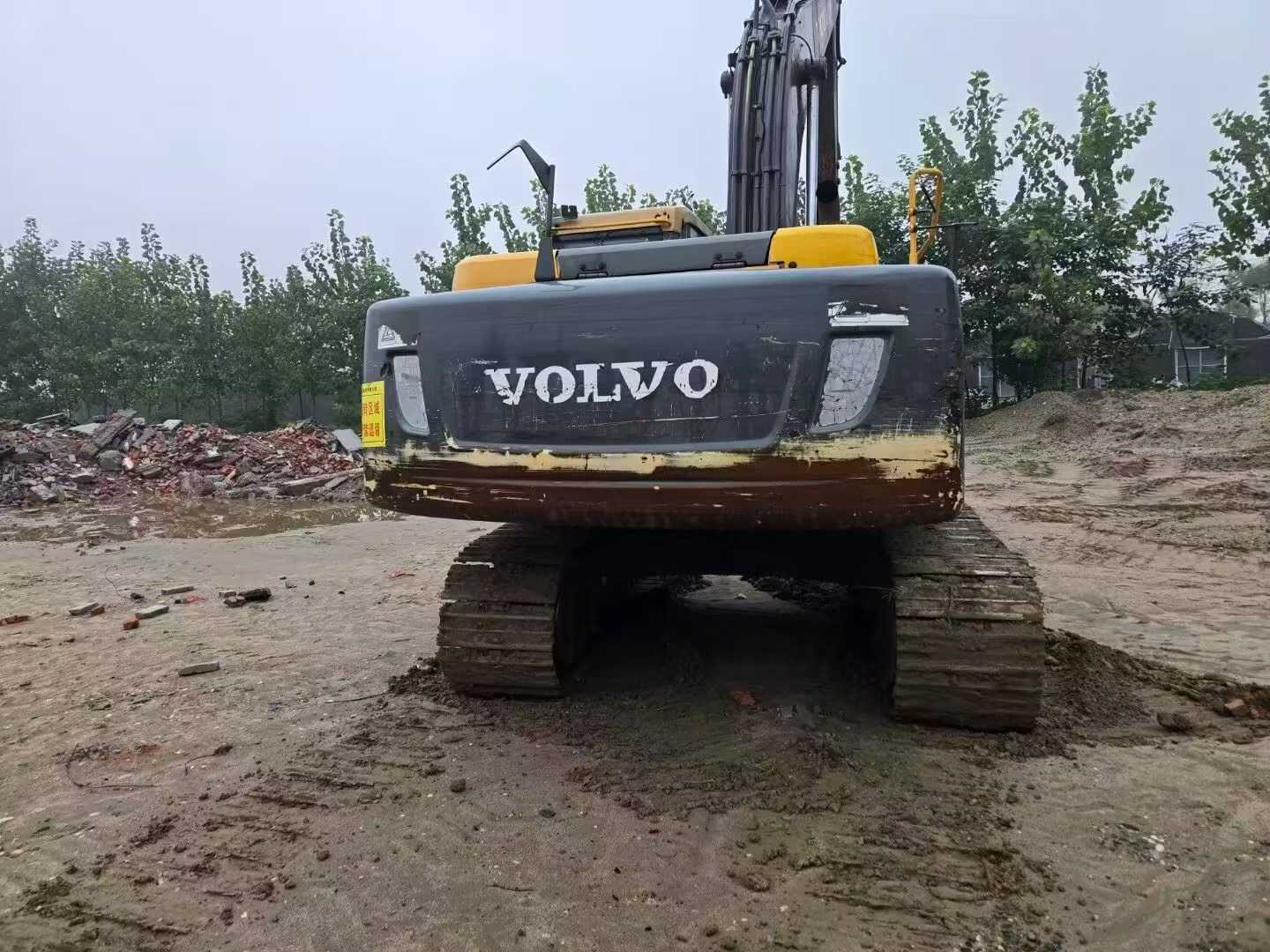

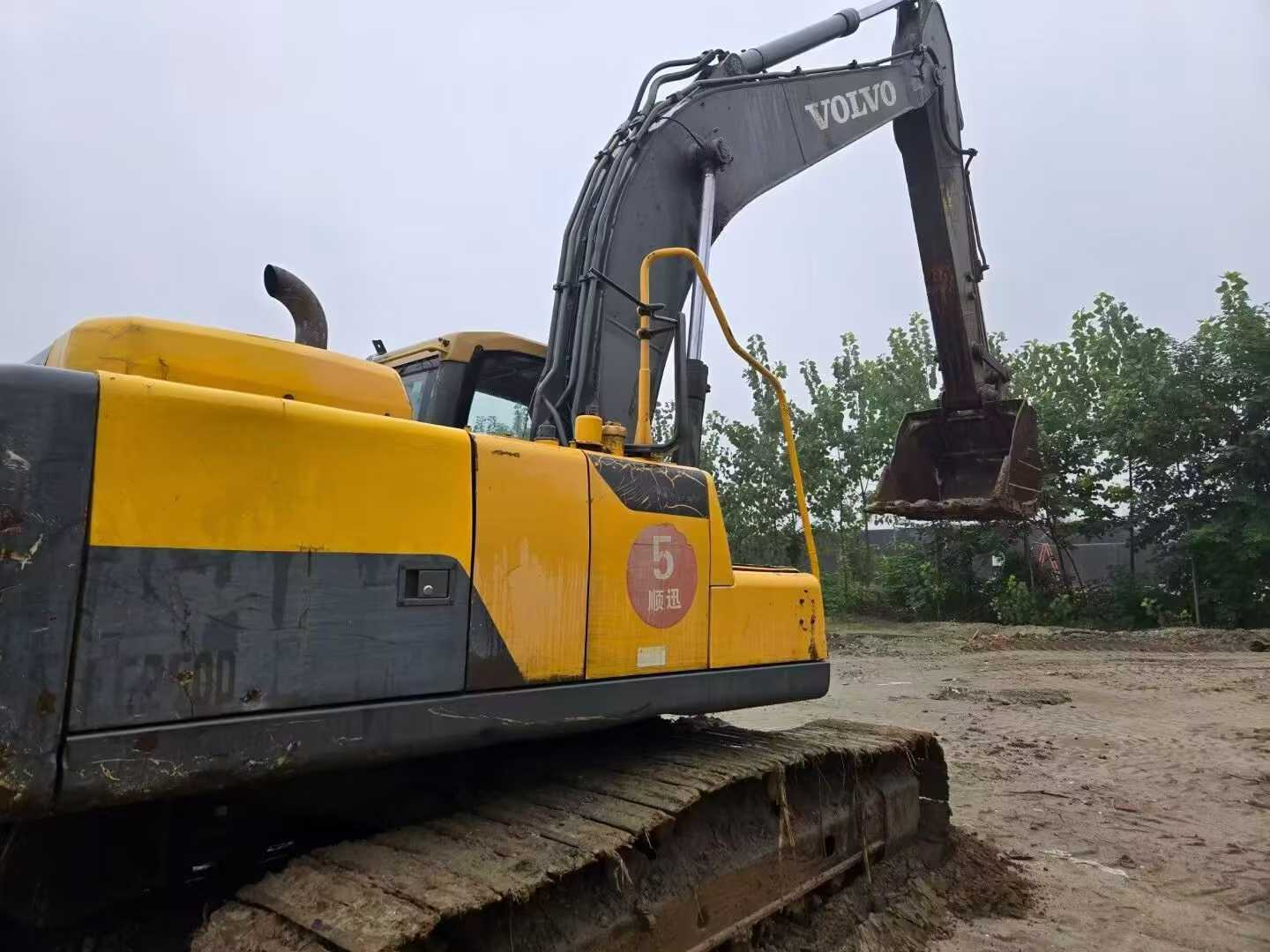

The 2014 Volvo 220D costs 93,000 yuan
| Specifications | Value |
|---|---|
| No. | 930269 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 20900-24400 |
| Bucket capacity (m³) | 0.48 - 1.44 |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

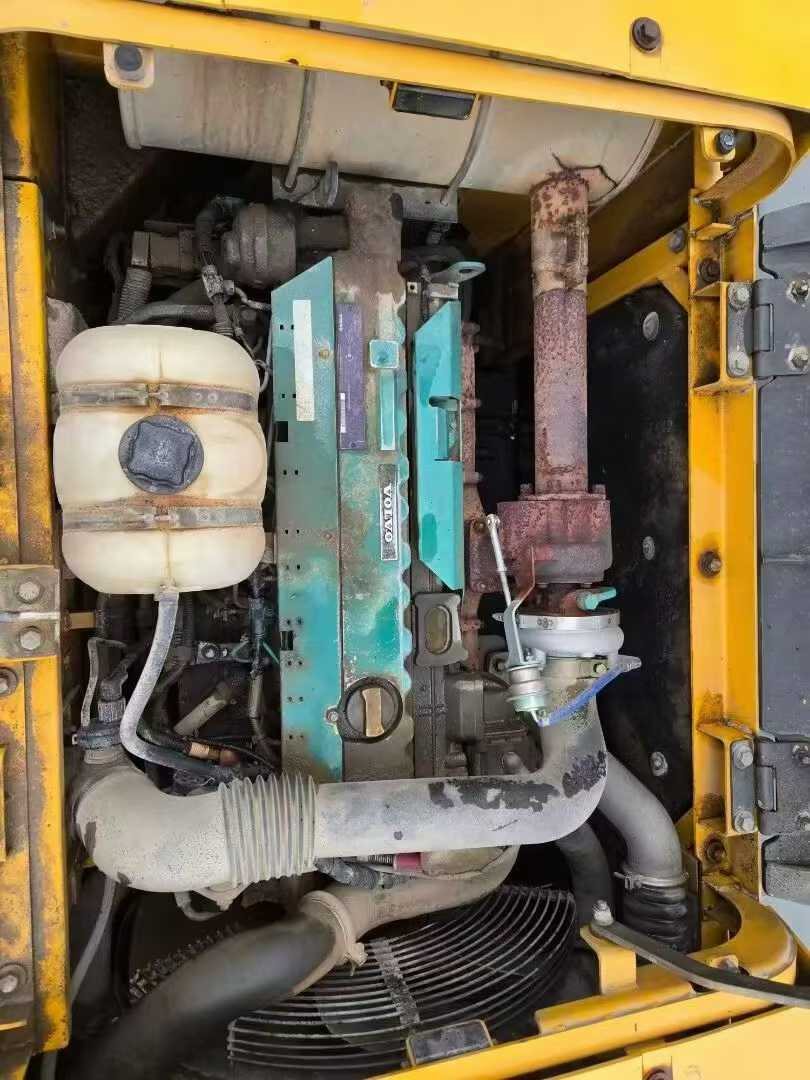

| Engine type | Volov D6H |
| Rated power (kw/rpm) | 123/1800 |
| Cylinder diameter × stroke (mm) | 98 x 126 |
| Maximum torque (N.m) | 849/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5.7 |
| Rotation speed (rpm) | 12.1 |
| Bucket digging force (kN) | 127 |
| Rod digging force (kN) | 93 |
| Maximum tractive force (kN) | 183 |
| Travel speed (km/h) | 3.5/5.7 |
| Turning torque (Nm) | 76.7 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Working Hydraulic Circuit (Mpa) | 34.3/36.2 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 375 |
| Hydraulic Tank (L) | 140 |
| Coolant (L) | 32 |
| Hydraulic System (L) | 295 |
| Total transport length (mm) | 9795 |
| Total transport width (mm) | 2700 |
| Full cab height (mm) | 2930 |
| Counterweight ground clearance (mm) | 1025 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2750 |
| Onboard width (mm) | 2700 |

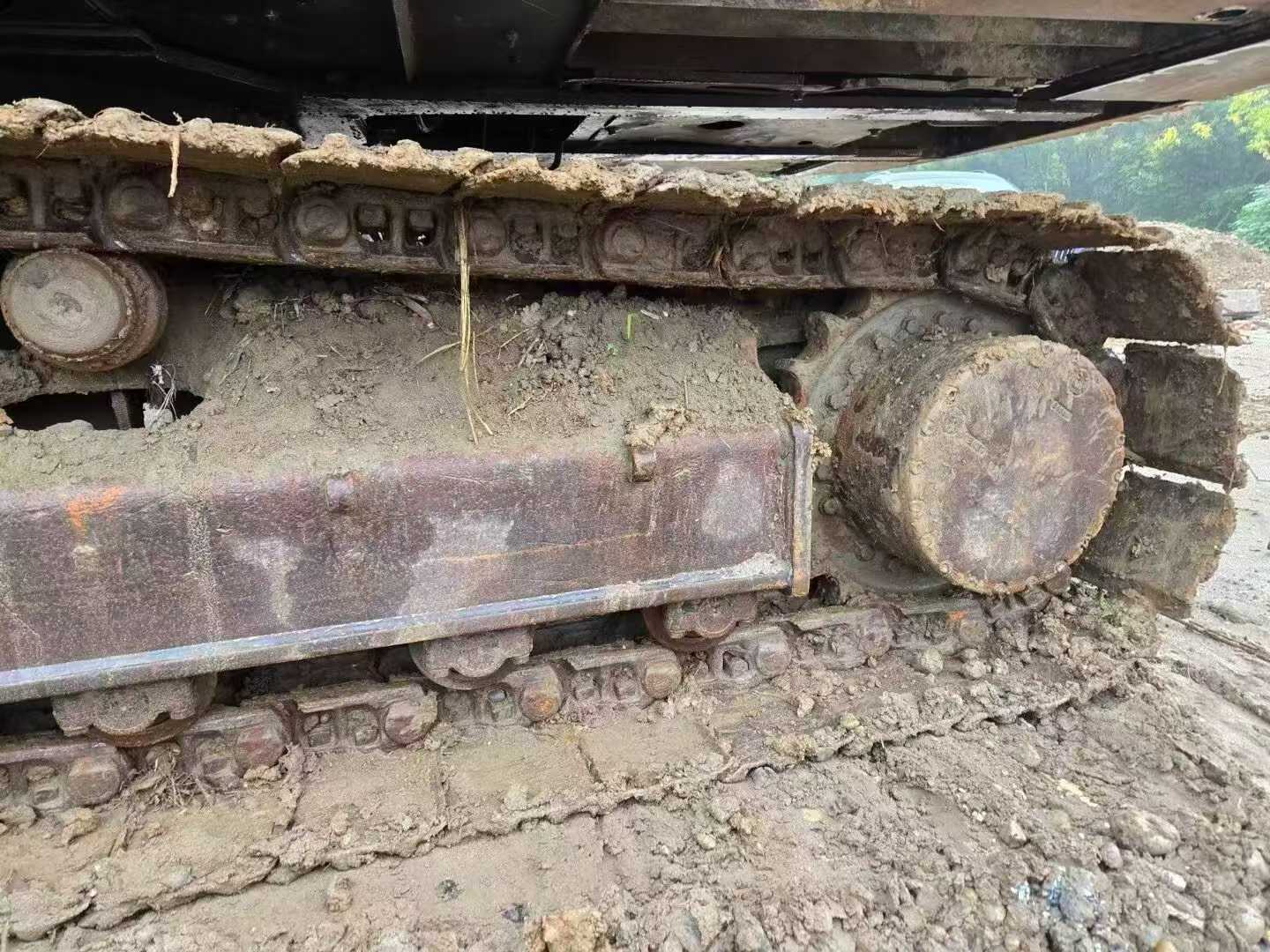

| Total track length (mm) | 4160 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2200 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 9970 |
| Maximum digging depth (mm) | 6760 |
| Maximum excavation height (mm) | 9470 |
| Maximum unloading height (mm) | 6620 |
