2016 Volvo EC60D

1/9
Used Volvo EC60D Excavator 2016 Model / 1

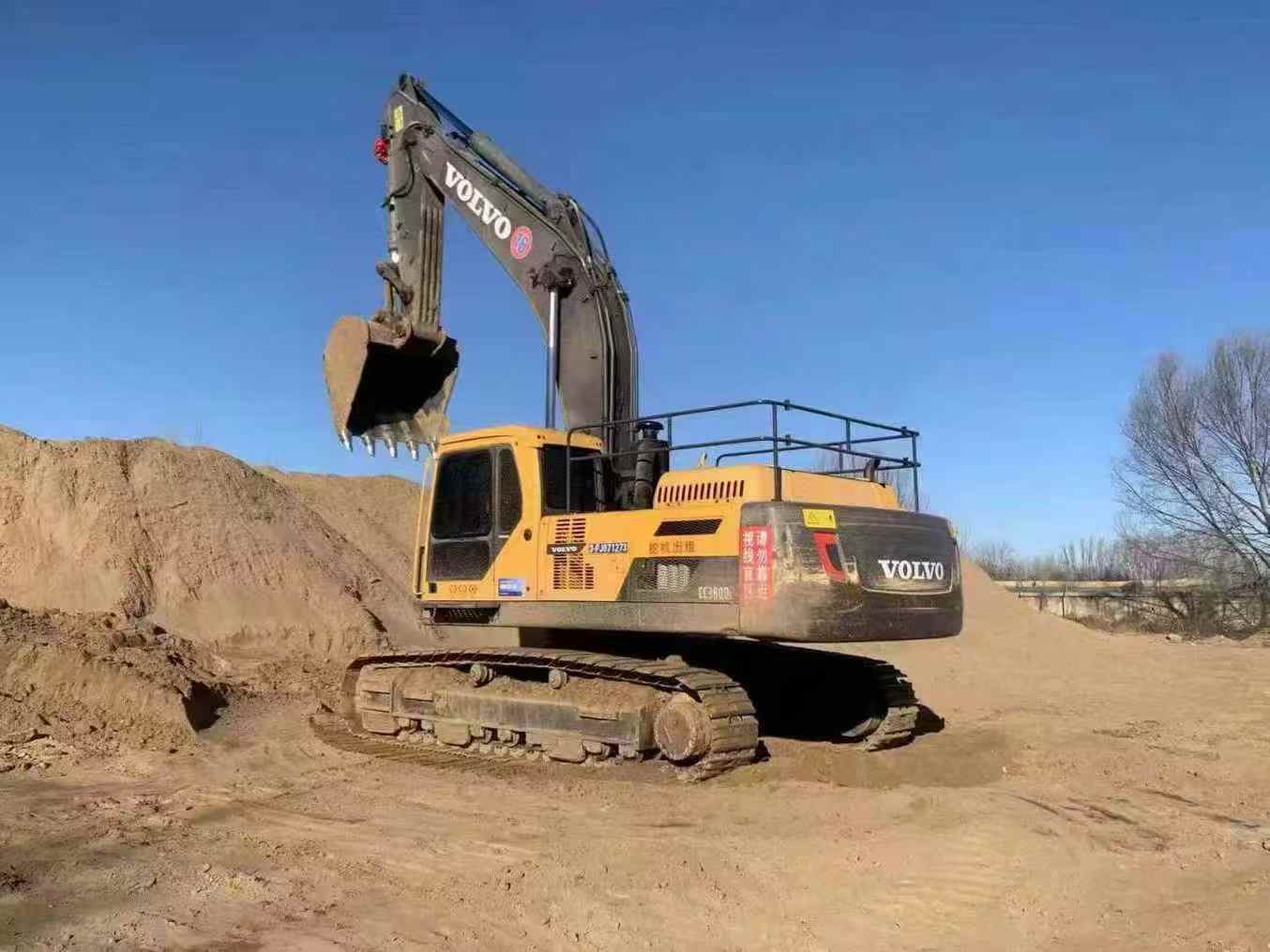

Used Volvo EC60D Excavator 2016 Model / 2

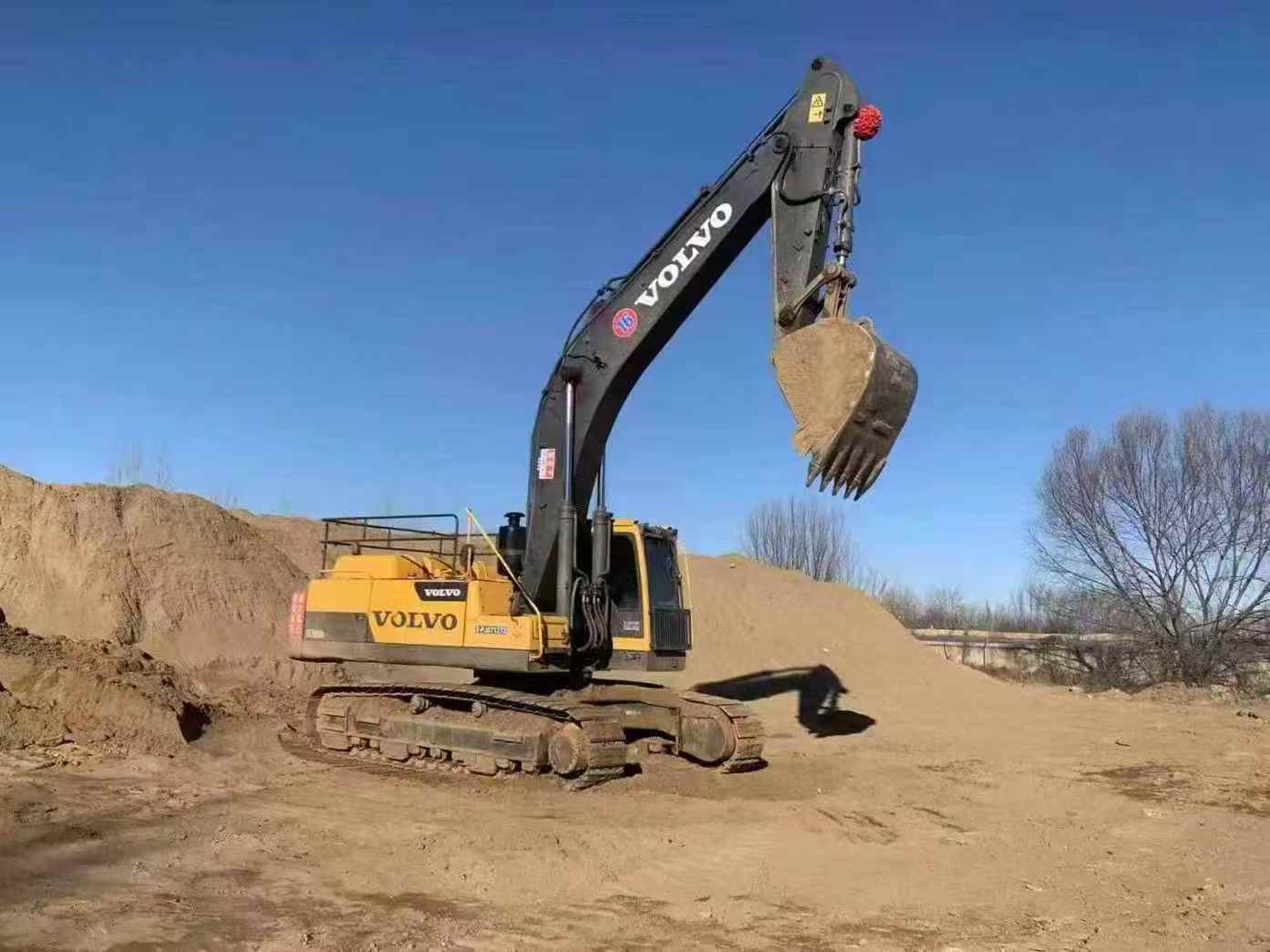

Used Volvo EC60D Excavator 2016 Model / 3

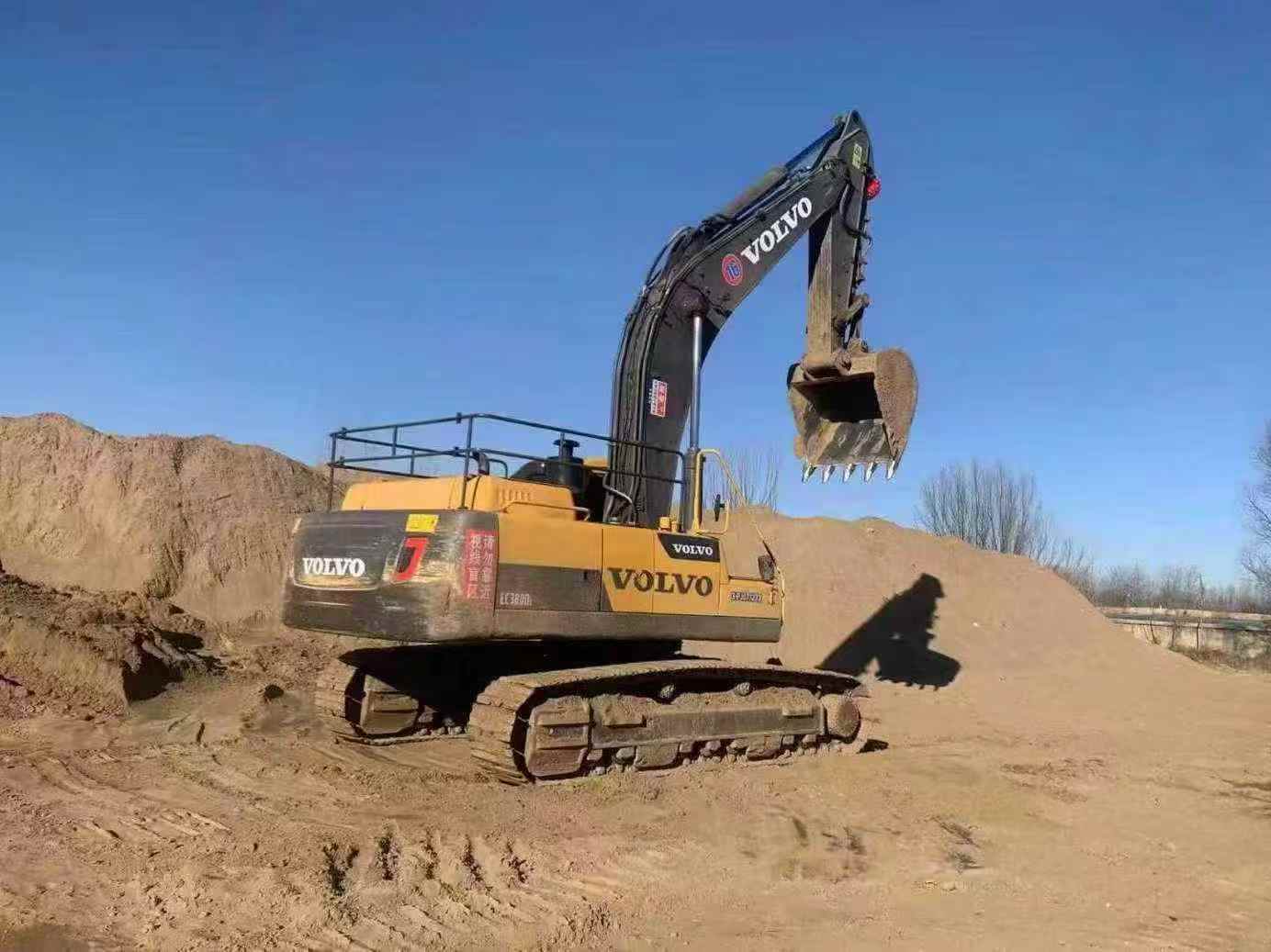

Used Volvo EC60D Excavator 2016 Model / 4

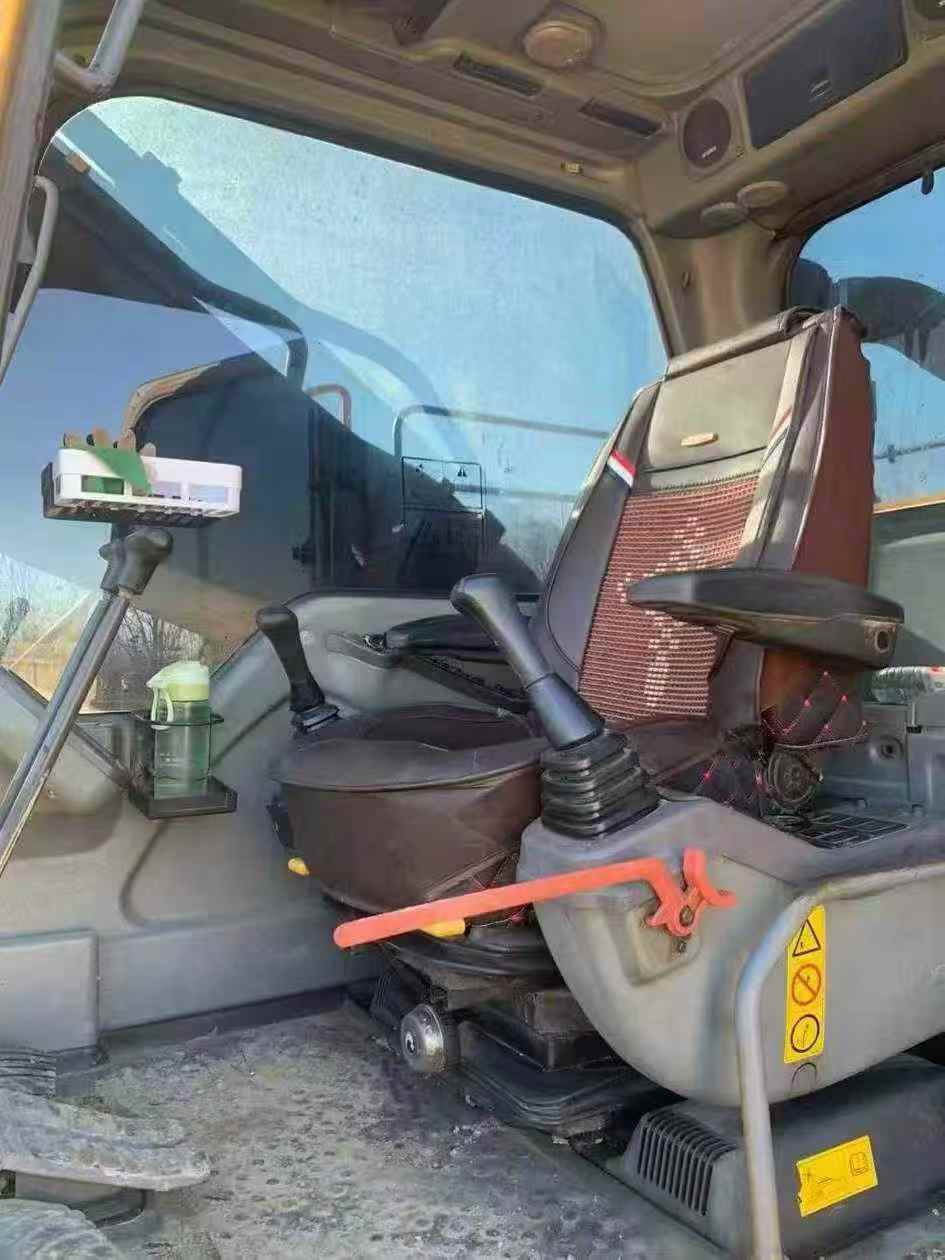

Used Volvo EC60D Excavator 2016 Model / 5

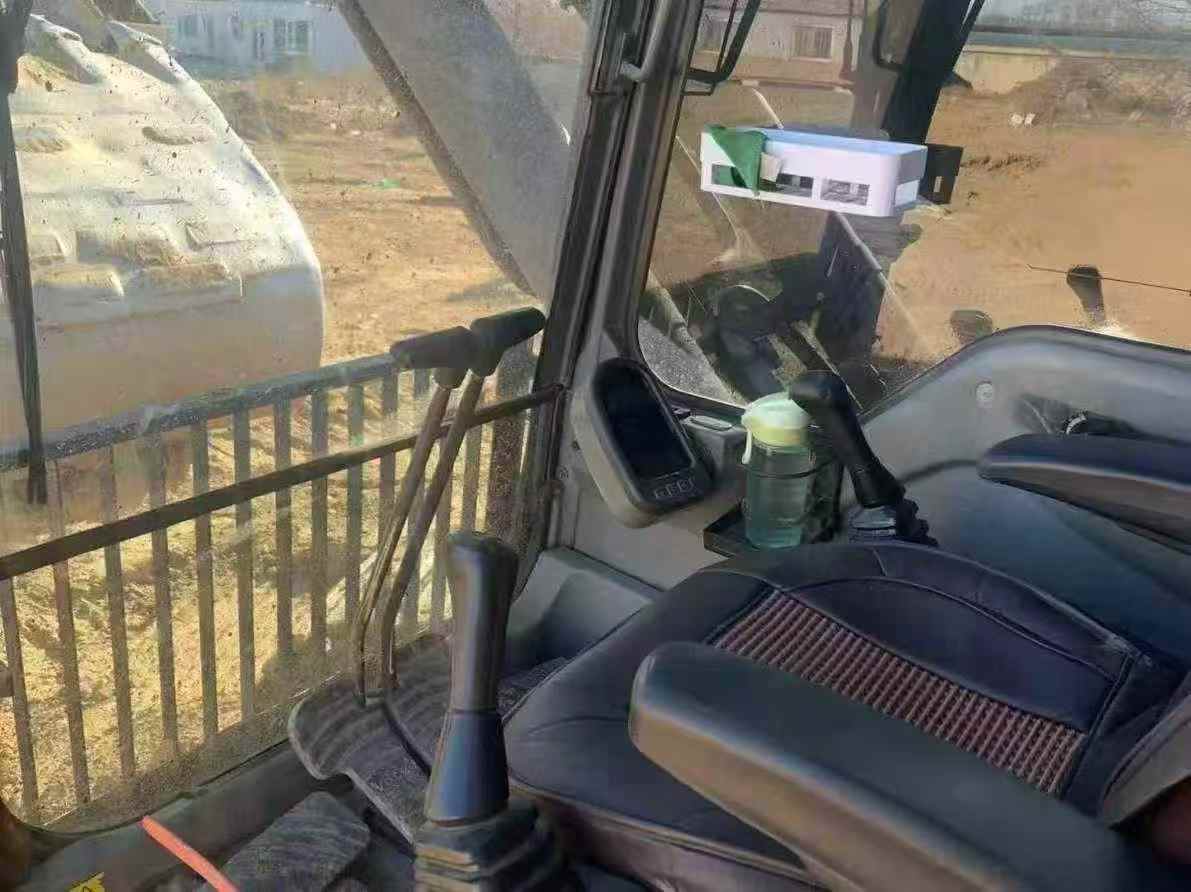

Used Volvo EC60D Excavator 2016 Model / 6

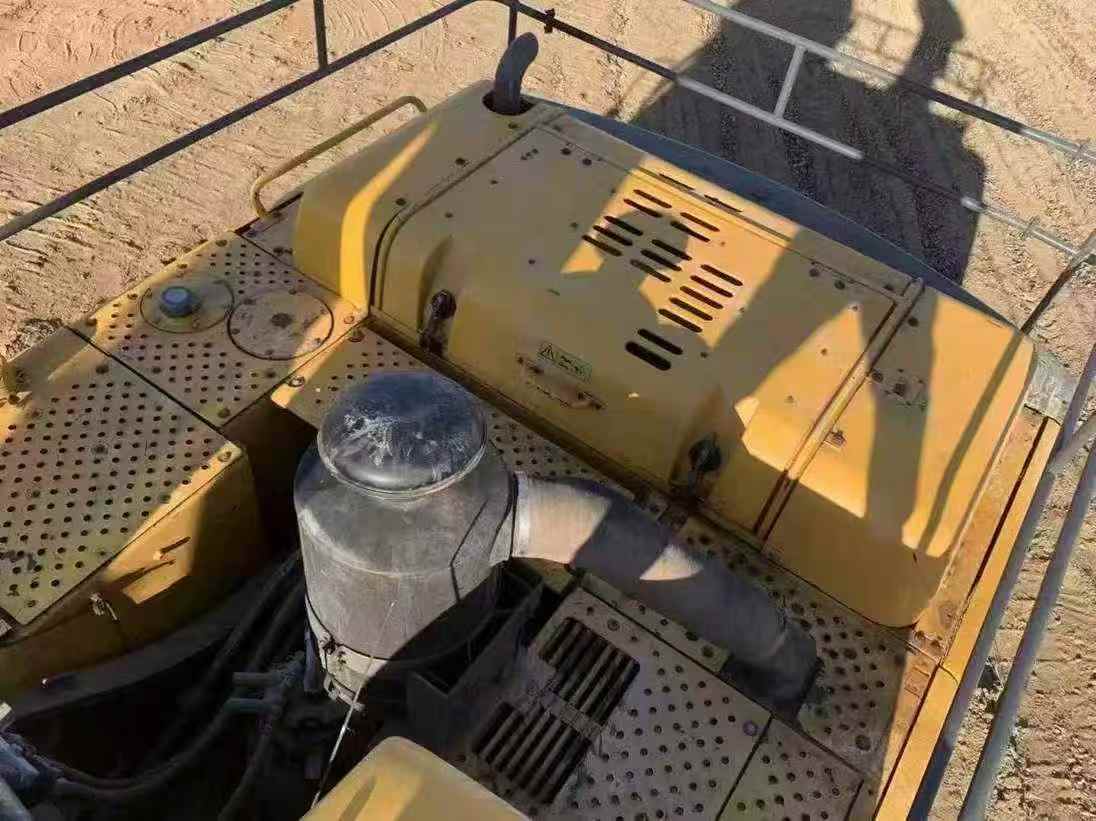

Used Volvo EC60D Excavator 2016 Model / 7

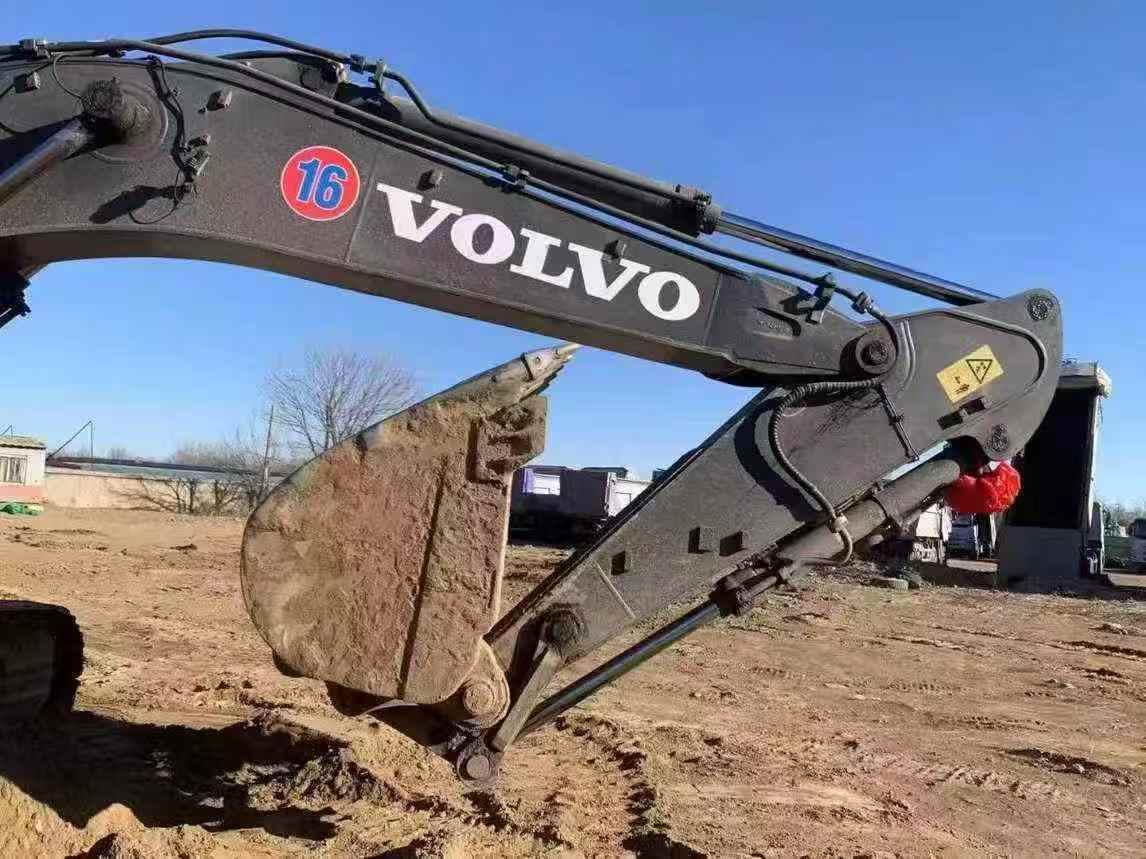

Used Volvo EC60D Excavator 2016 Model / 8

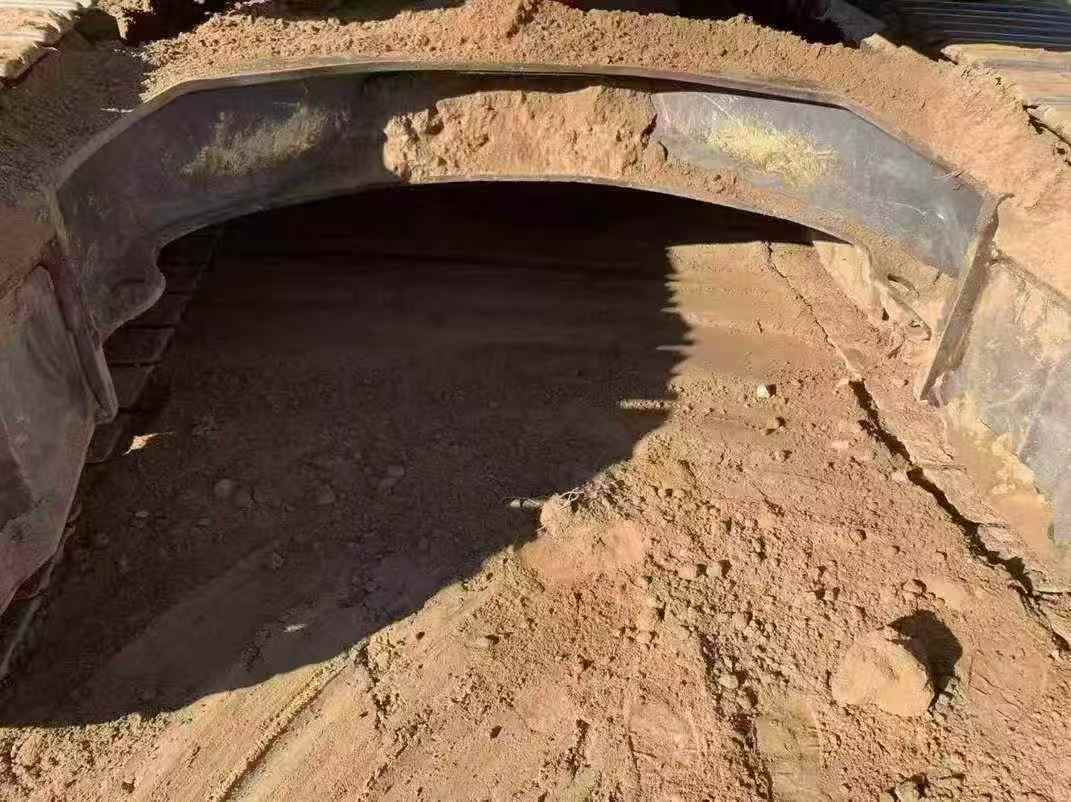

Used Volvo EC60D Excavator 2016 Model / 9

Product Description

"Top-quality original Volvo 360DL second-hand excavator This second-hand Volvo 360DL excavator, with its outstanding performance and reliable quality, has become the first choice for high-end users. The overall condition of the vehicle is upright, the appearance is clean and tidy, the internal structure is intact, and the working time is only 2,800 hours, ensuring that its mechanical components are still in the best condition. In terms of the power system, this aircraft is equipped with an original imported Volvo engine, which features strong power output and smooth operation characteristics. Whether in plain or mountainous areas, it can easily handle various complex working conditions. The hydraulic system adopts an advanced closed-loop design, which not only responds quickly and controls precisely, but also greatly improves operational efficiency and reduces energy consumption. The earthwork excavation capacity is particularly outstanding. The original vehicle is equipped with a sturdy and durable earthwork bucket, which can dig powerfully. Whether it is soft soil or hard rock, it can complete the task efficiently. More importantly, there is no oil leakage in the three major components (engine, pump, and motor), which proves its exc

SpecificationsValue
No.972255
Tonnage (tons)6
Working weight (kg)5580
Bucket capacity (m³)0.23
Bucket width (mm)850
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeD2.6A
Rated power (kw/rpm)36.5/2000
Cylinder diameter × stroke (mm)87/110
Maximum torque (N.m)210/1000
Number of cylinders (PCS)4
Displacement (L)2.62
Ground specific pressure (Kpa)31.8
Rotation speed (rpm)9
Bucket digging force (kN)42.3
Rod digging force (kN)28.5
Maximum tractive force (kN)43
Travel speed (km/h)2.6/4.3
Turning torque (Nm)11
Main overflow set pressure (Mpa)21.6
Maximum flow of main pump (l/min)142.4
Traveling Hydraulic Circuit (Mpa)20.6
Rotary Hydraulic Circuit (Mpa)18.6
Working Hydraulic Circuit (Mpa)21.6
Fuel Tank (L)100
Hydraulic Tank (L)90
Engine Oil changes (L)10
Coolant (L)7.8
Hydraulic System (L)130
Total transport length (mm)5885
Total transport width (mm)1940
Full cab height (mm)2560
Counterweight ground clearance (mm)690
Minimum ground clearance (mm)380
Minimum turning radius of front working device (mm)2360
Back end turning radius (mm)1680
Onboard width (mm)1840
Total track length (mm)2500
Track gauge (mm)1540
Track plate width (mm)400
Track ground length (mm)1950
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)39
Maximum digging radius (mm)6115
Maximum digging depth (mm)3800
Maximum excavation height (mm)5780
Maximum unloading height (mm)4100
Maximum vertical digging depth (mm)2765
Maximum excavation radius of stop surface (mm)5980
see more

Overview

No.972255

Brand Name:

Volvo

Model Number:

EC60D

Year:

2016

Location:

Hebei China
