| Specifications | Value |
|---|---|
| No. | 966909 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13200 |
| Bucket capacity (m³) | 0.32-0.61 (0.52) |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSF3.8 |
| Rated power (kw/rpm) | 86/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 470/1300 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.8 |
| Working form | Efi, Direct injection, 4-stroke, turbocharged |
| Ground specific pressure (Kpa) | 40.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 99.1 |
| Rod digging force (kN) | 68 |
| Maximum tractive force (kN) | 134 |
| Travel speed (km/h) | 5.2/2.9 |
| Maximum flow of main pump (l/min) | 125.4*2 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Working Hydraulic Circuit (Mpa) | 31.4/34.3 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 105 |
| Engine Oil changes (L) | 11 |
| Total transport length (mm) | 7795 |
| Total transport width (mm) | 2525 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 931 |
| Minimum ground clearance (mm) | 466 |
| Minimum turning radius of front working device (mm) | 2445 |
| Back end turning radius (mm) | 2325 |
| Total track length (mm) | 3648 |
| Track gauge (mm) | 1990 |
| Total track width (mm) | 500 |
| Maximum digging radius (mm) | 8304 |
| Maximum digging depth (mm) | 5546 |
| Maximum excavation height (mm) | 8638 |
| Maximum unloading height (mm) | 6174 |
| Maximum vertical digging depth (mm) | 4698 |
| Maximum effective digging depth (mm) | 5335 |
Description

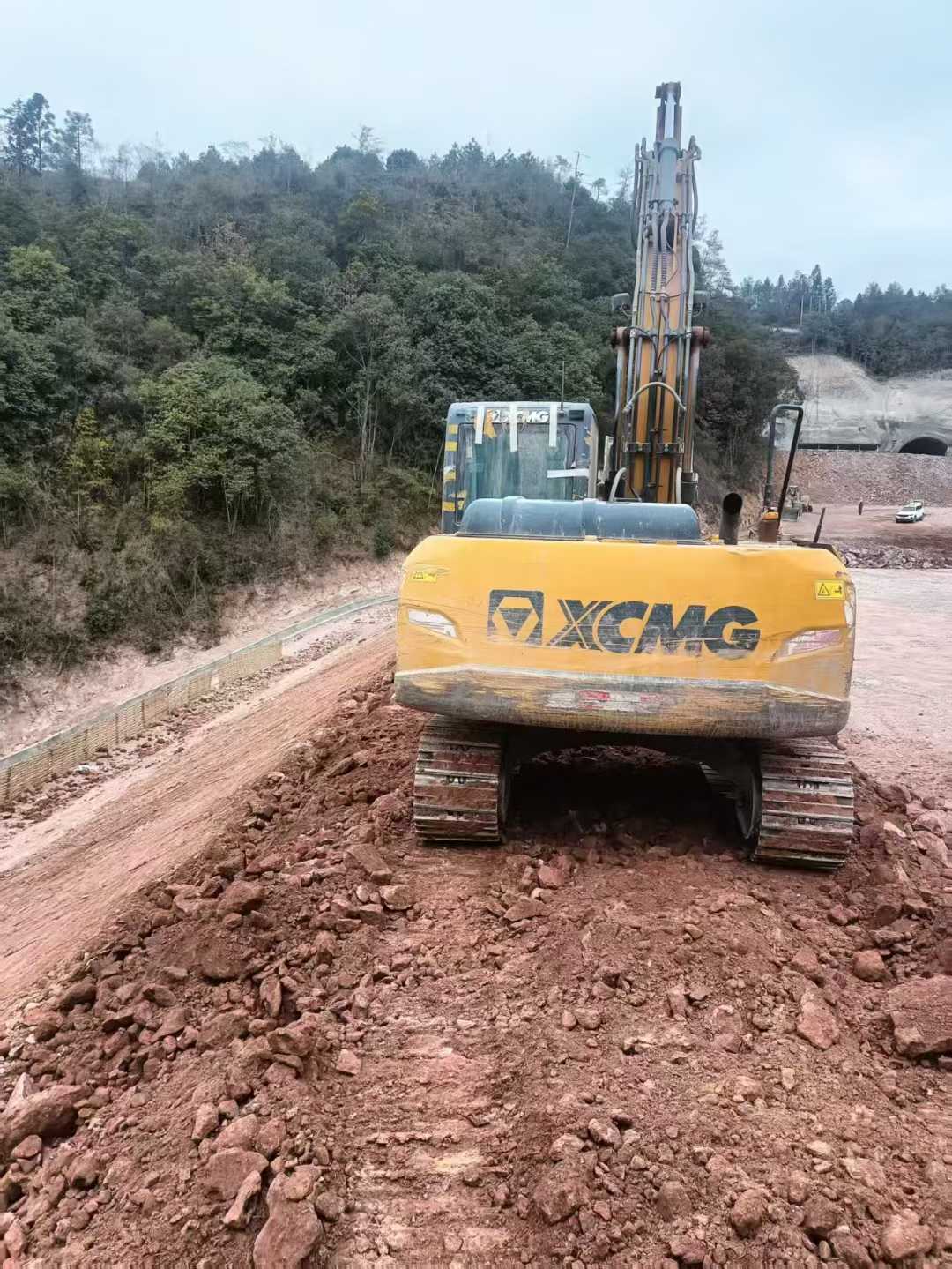

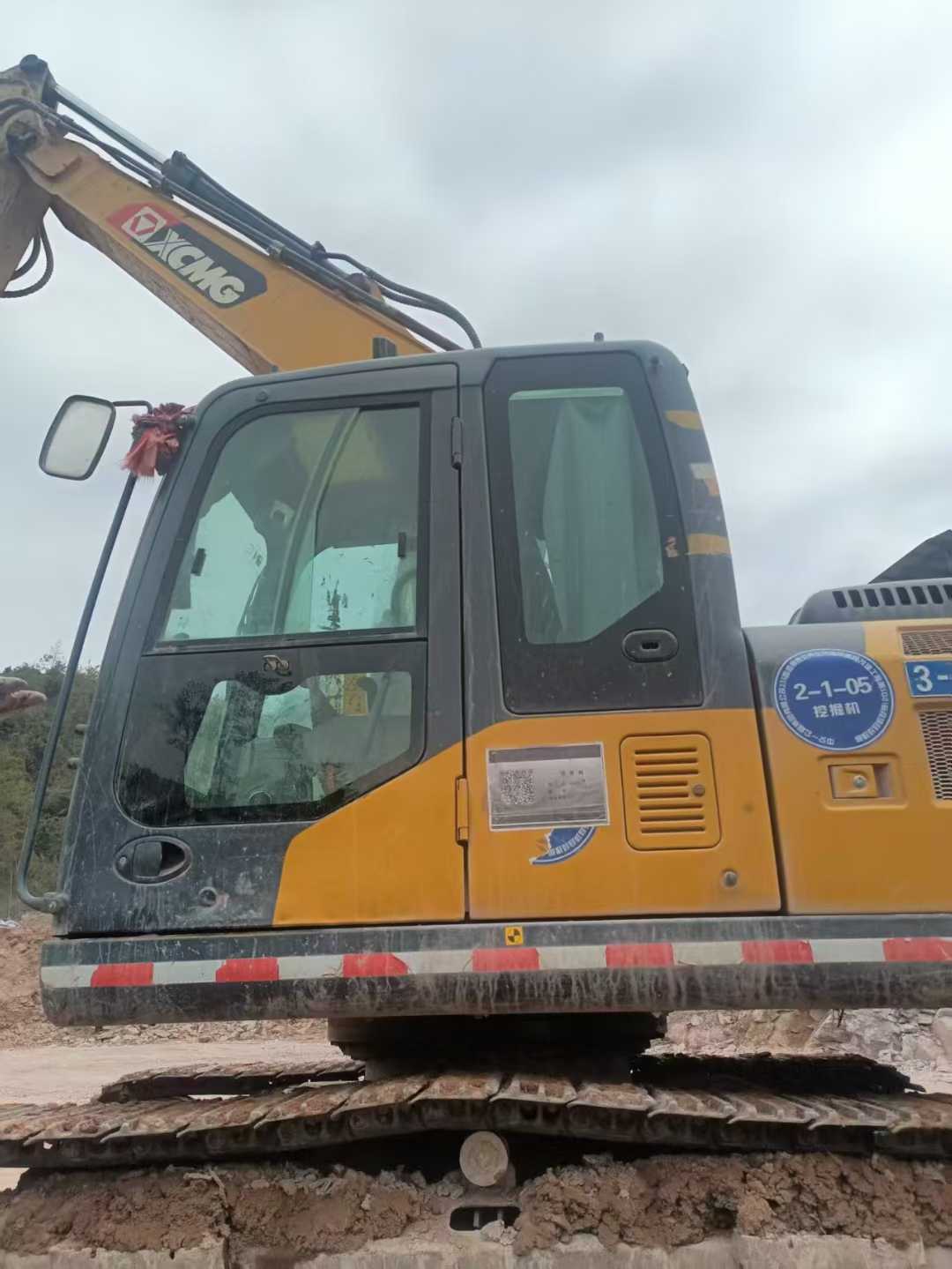

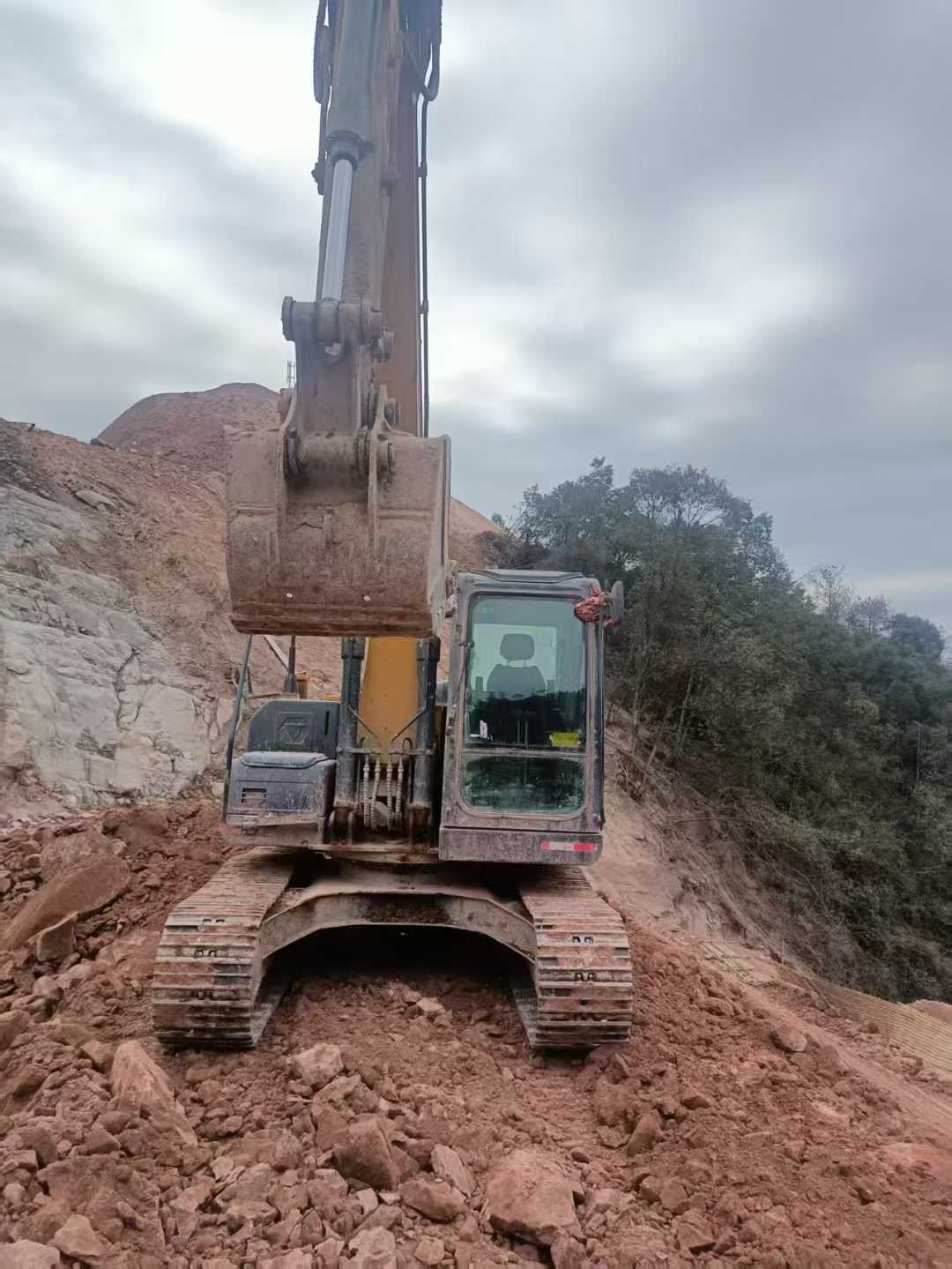

【 Premium Recommendation 】2021 XCMG XE135DA second-hand excavator, only 153,000 yuan! This XCMG XE135DA excavator is a model from 2021 and its overall condition is excellent. Its working time is only 1,600 hours, almost in brand new condition, suitable for all kinds of engineering operation requirements. This machine is equipped with an efficient Cummins engine, which is powerful and has good fuel economy, ensuring efficient and stable operation under various working conditions. Meanwhile, its hydraulic system adopts an advanced negative flow control system, which not only has a fast response speed but also operates precisely, greatly enhancing work efficiency. From the outside, the paint surface of this excavator is well maintained, with no obvious scratches or rust. The interior is also very clean. The cab is spacious and comfortable, equipped with an air conditioning system, providing a good working environment for the operator. In addition, we have provided detailed pictures and video materials for your reference, allowing you to have a more intuitive understanding of the actual condition of this machine. This is a rare opportunity for both small businesses that need to add equipment and individual users. To purchase such a seco
