| Specifications | Value |
|---|---|
| No. | 961392 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1795 |
| Bucket capacity (m³) | 0.044 |
| Boom length (mm) | 1828 |
| Rod length (mm) | 950 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D782-E3B-CBH-1 |
| Rated power (kw/rpm) | 9.8/2300 |
| Maximum torque (N.m) | 44.5/1800 |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 0.778 |
| Ground specific pressure (Kpa) | 28.5 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 30 |
| Bucket digging force (kN) | 16 |
| Rod digging force (kN) | 10 |
| Maximum tractive force (kN) | 15.6 |
| Travel speed (km/h) | 3.9/1.9 |
| Maximum flow of main pump (l/min) | 56.8 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Rotary Hydraulic Circuit (Mpa) | 11 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 17 |
| Hydraulic Tank (L) | 18 |
| Engine Oil changes (L) | 3.8 |
| Total transport length (mm) | 3560 |
| Total transport width (mm) | 990/1240 |
| Total transport height (mm) | 2350 |
| Counterweight ground clearance (mm) | 450 |
| Minimum ground clearance (mm) | 145 |
| Onboard width (mm) | 990 |
| Track gauge (mm) | 760/1010 |
| Track ground length (mm) | 1270 |
| Maximum digging radius (mm) | 3900 |
| Maximum digging depth (mm) | 2290 |
| Maximum excavation height (mm) | 3475 |
| Maximum unloading height (mm) | 2415 |
| Maximum vertical digging depth (mm) | 1750 |
| Bulldozer lift or depth (mm) | 260/180 |
| Dodging plate width × height (mm) | 1240 x 258 |
Description

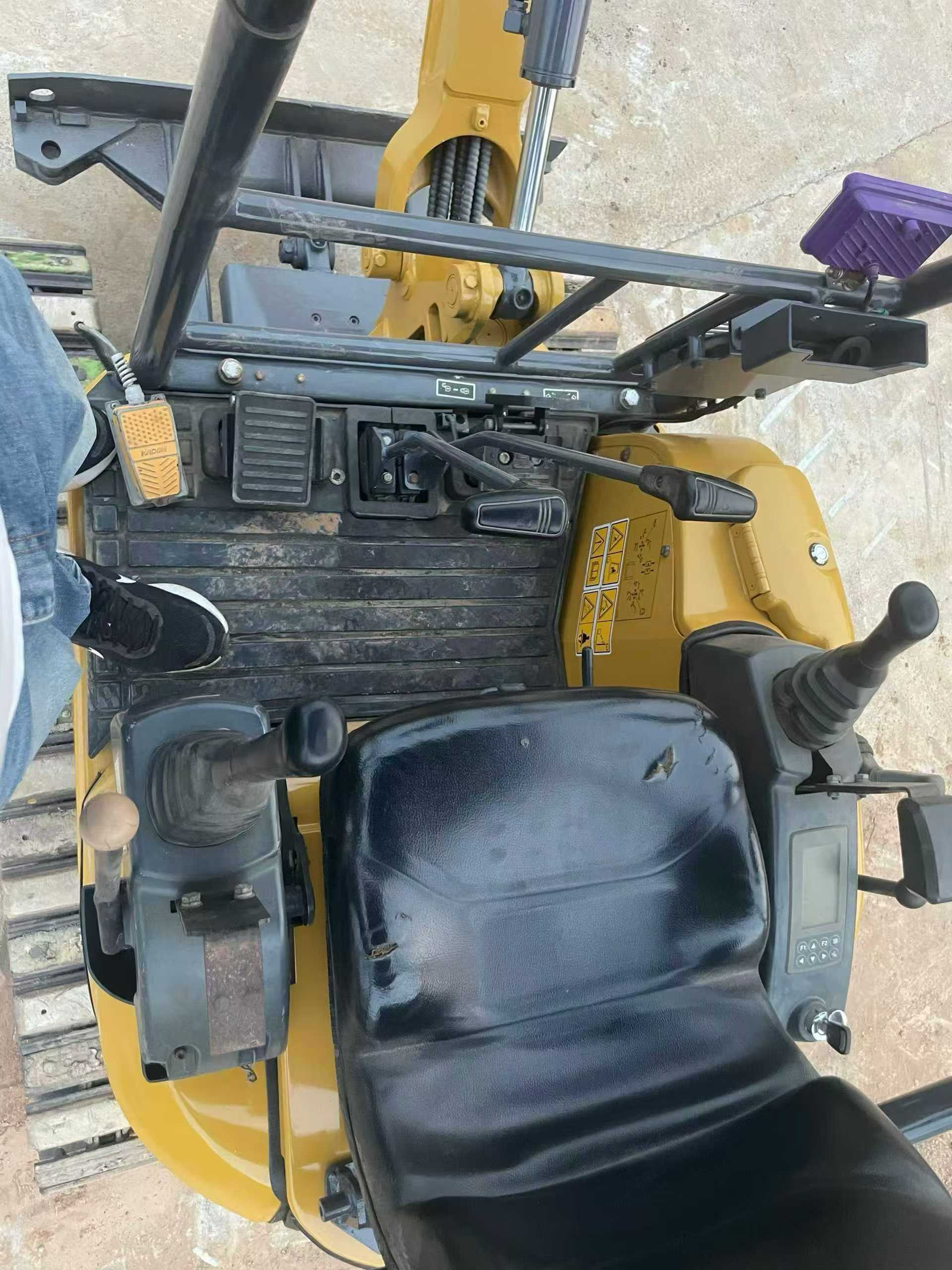

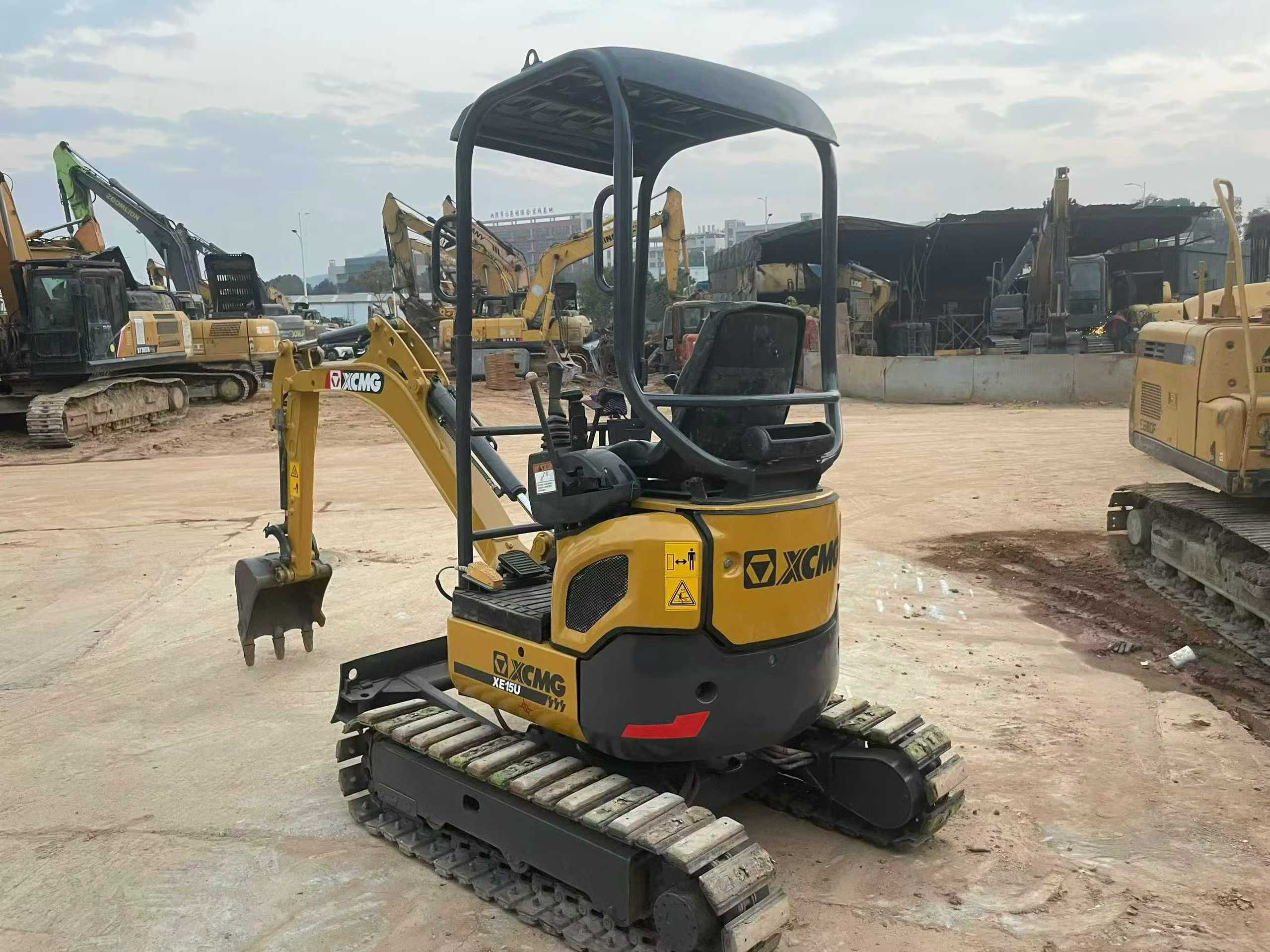

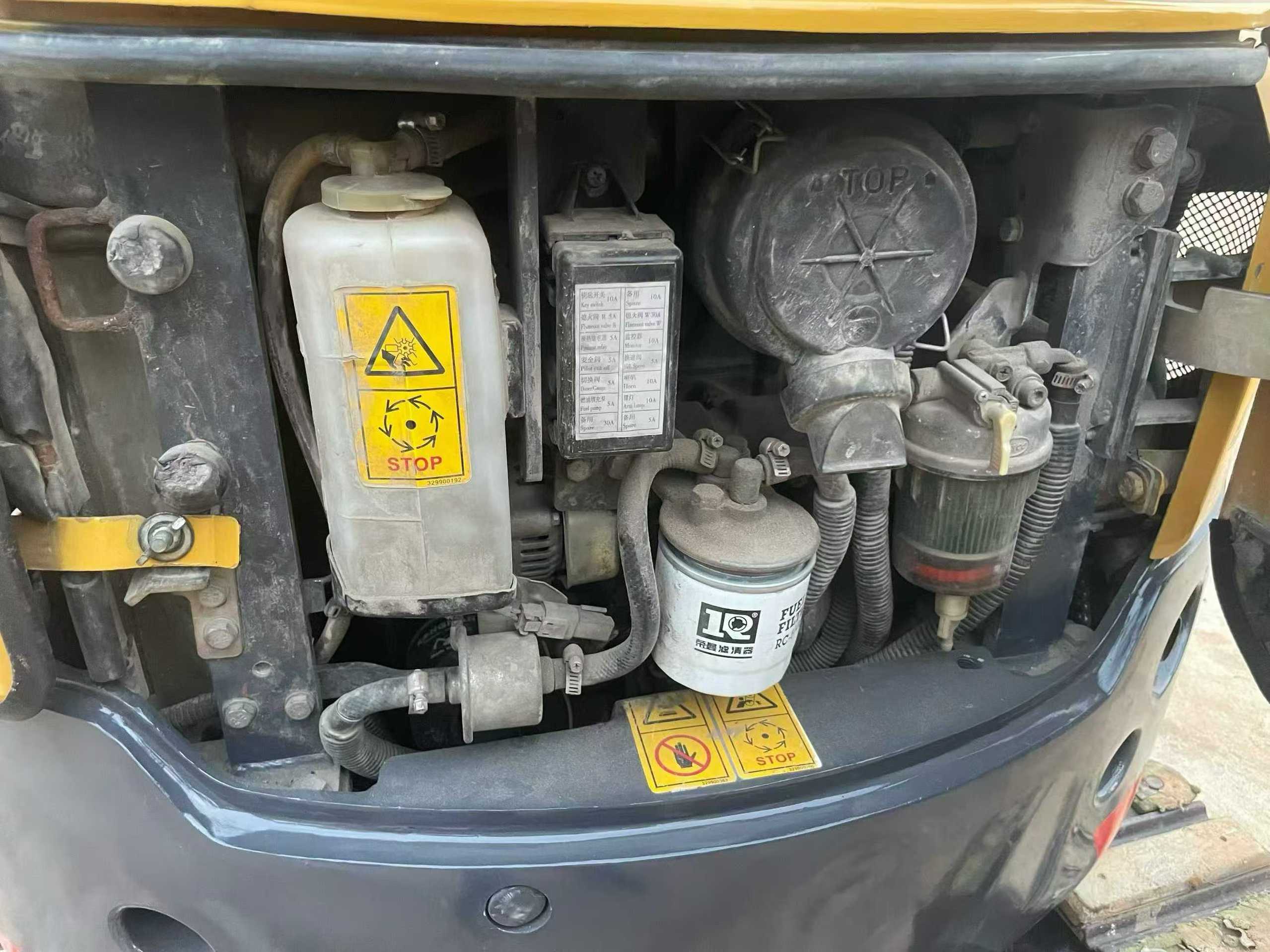

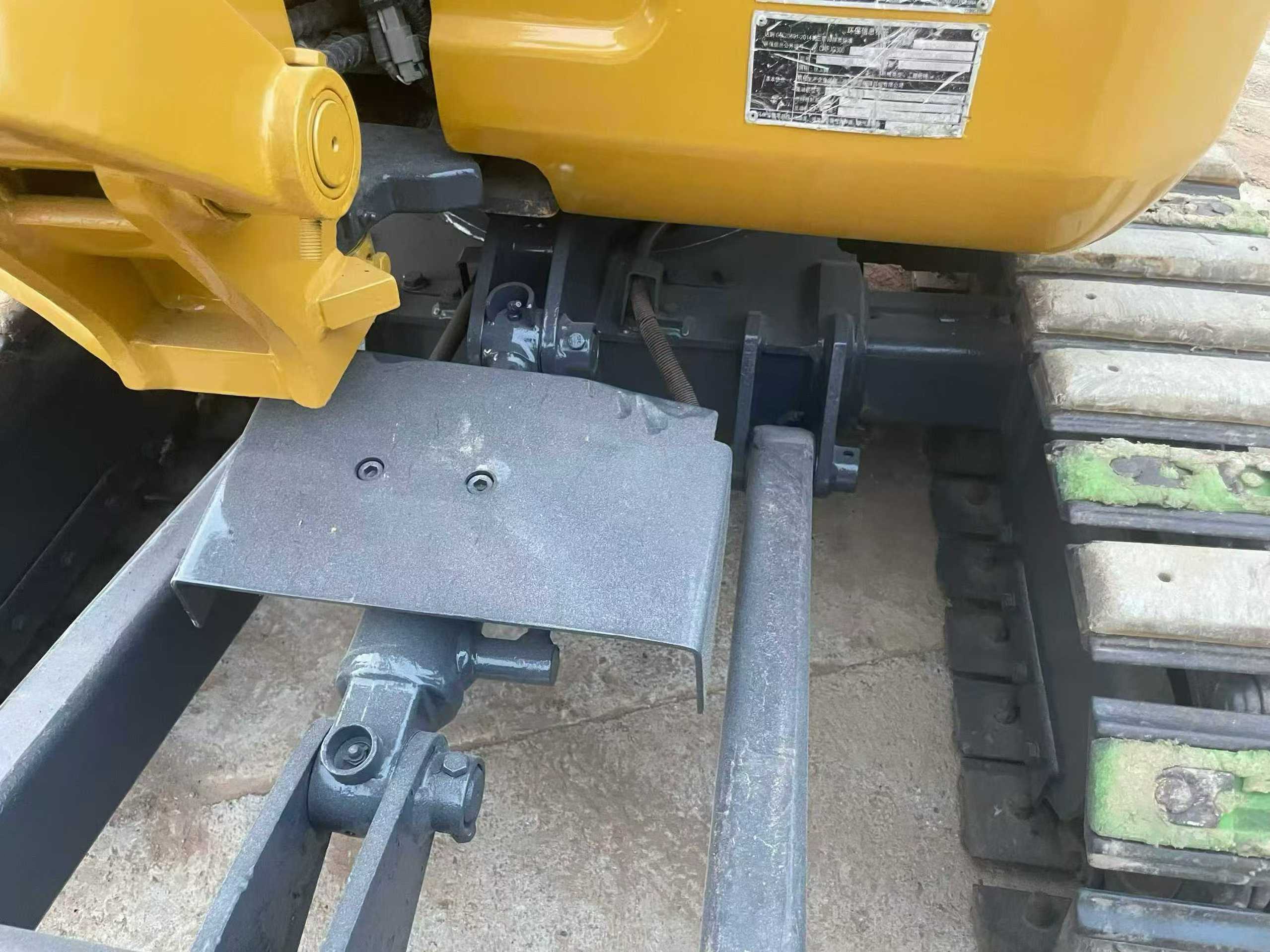

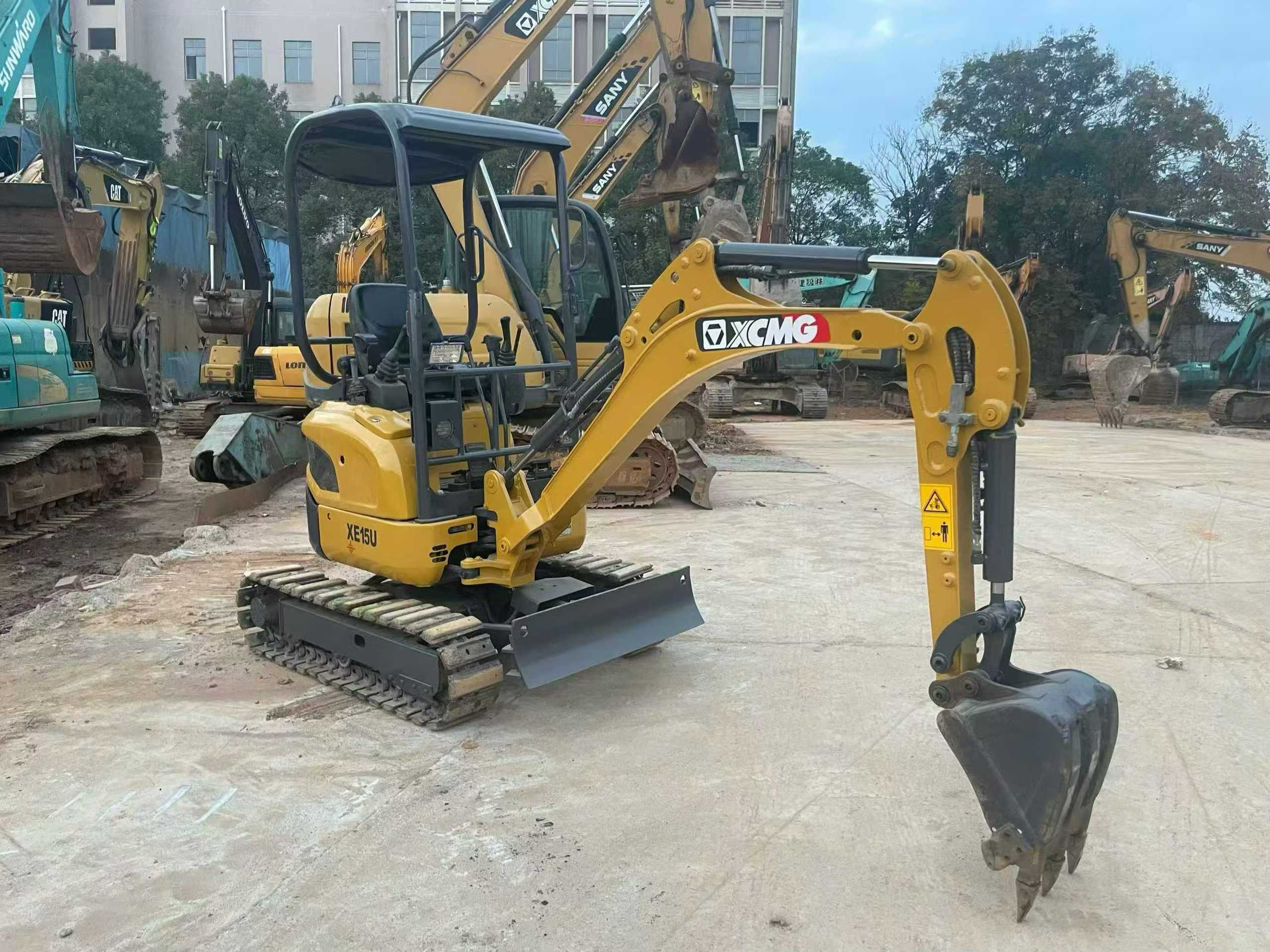

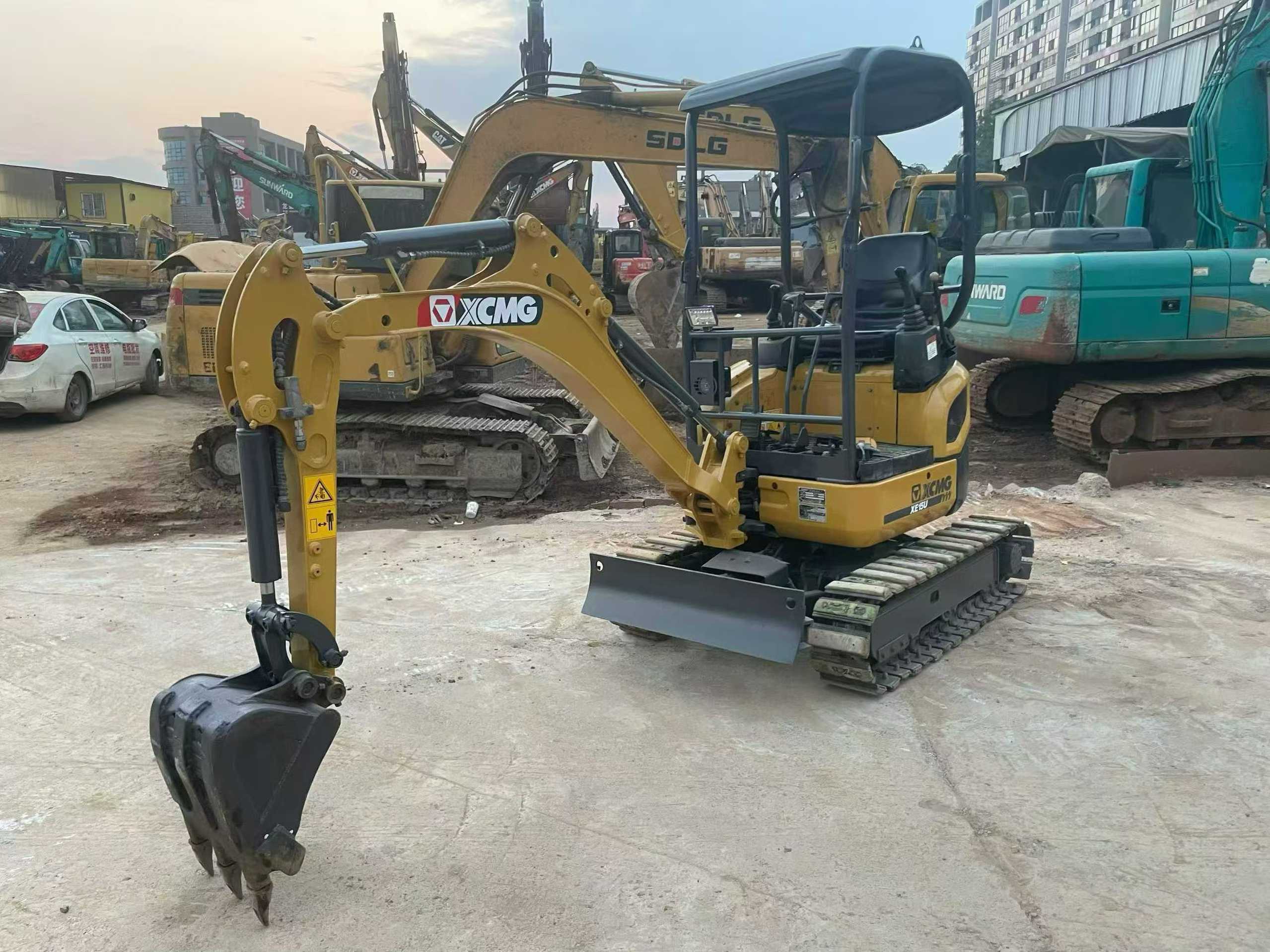

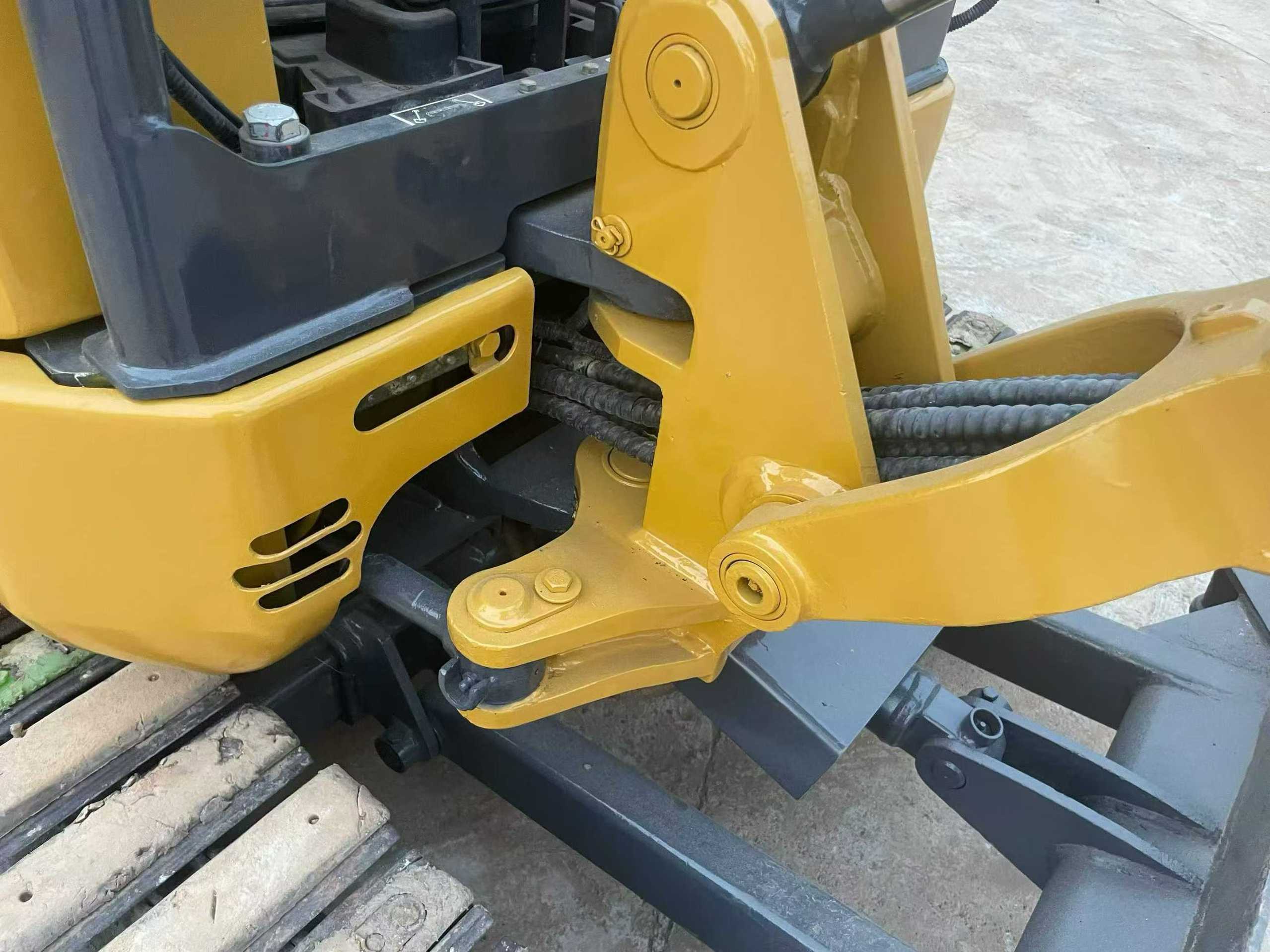

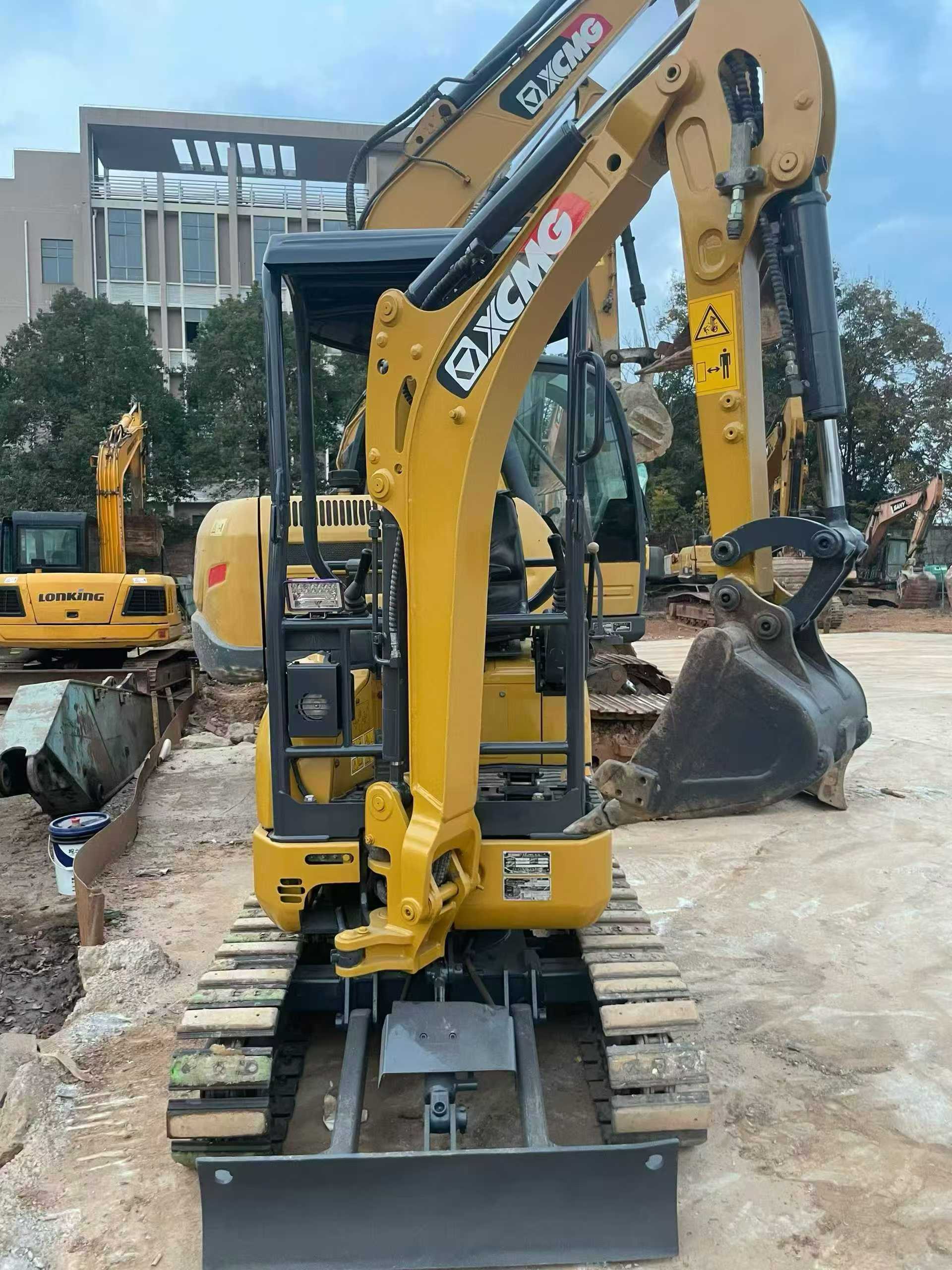

Detailed description of XCMG XE15U second-hand Excavator This XCMG XE15U mini excavator was manufactured at the end of 2020. It has been in operation for only 1,200 hours so far and is in excellent condition with proper maintenance. This machine is equipped with an original imported Yanmar engine, which is powerful, stable and reliable, has good fuel economy, low noise and meets the National III emission standards. The hydraulic system adopts components of internationally renowned brands, ensuring smooth operation and rapid response of the entire machine. It can handle both excavation force and precise operations with ease. It is worth mentioning that this excavator is specially equipped with a swivel arm and a telescopic chassis design, which greatly enhances the flexibility and adaptability of operation: the swivel arm function enables the machine to complete complex Angle tasks in a narrow space; The telescopic chassis can be adjusted in width according to actual needs, which not only facilitates transportation but also enhances stability on different terrains. In addition, this equipment also features a spacious and comfortable cab with a wide field of vision and a well-performing air conditioning system, providing the operator wi
