| Specifications | Value |
|---|---|
| No. | 961383 |
| Tonnage (tons) | 4 |
| Working weight (kg) | 4200/4100 |
| Bucket capacity (m³) | 0.12 |
| Boom length (mm) | 2560 |
| Rod length (mm) | 1350 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 3TNV88-B |
| Rated power (kw/rpm) | 22.2/2400 |
| Cooling mode | water-cooling |
| Displacement (L) | 1.642 |
| Working form | Direct injection, 4 strokes |
| Ground specific pressure (Kpa) | 36.6 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 30 |
| Bucket digging force (kN) | 28.6 |
| Rod digging force (kN) | 20.3 |
| Maximum tractive force (kN) | 31.6 |
| Travel speed (km/h) | 3.6/2.2 |
| Maximum flow of main pump (l/min) | 108 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 16.7 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 40 |
| Hydraulic Tank (L) | 45 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 4970 |
| Total transport width (mm) | 1740 |
| Total transport height (mm) | 2535 |
| Counterweight ground clearance (mm) | 587 |
| Minimum ground clearance (mm) | 297 |
| Minimum turning radius of front working device (mm) | 870 |
| Track gauge (mm) | 1440 |
| Total track width (mm) | 300 |
| Center distance of support wheel (mm) | 1721 |
| Maximum digging radius (mm) | 5300 |
| Maximum digging depth (mm) | 3060 |
| Maximum excavation height (mm) | 5000 |
| Maximum unloading height (mm) | 3600 |
| Maximum vertical digging depth (mm) | 2260 |
| Bulldozer lift or depth (mm) | 305/360 |
| Dodging plate width × height (mm) | 1740*358 |
Description

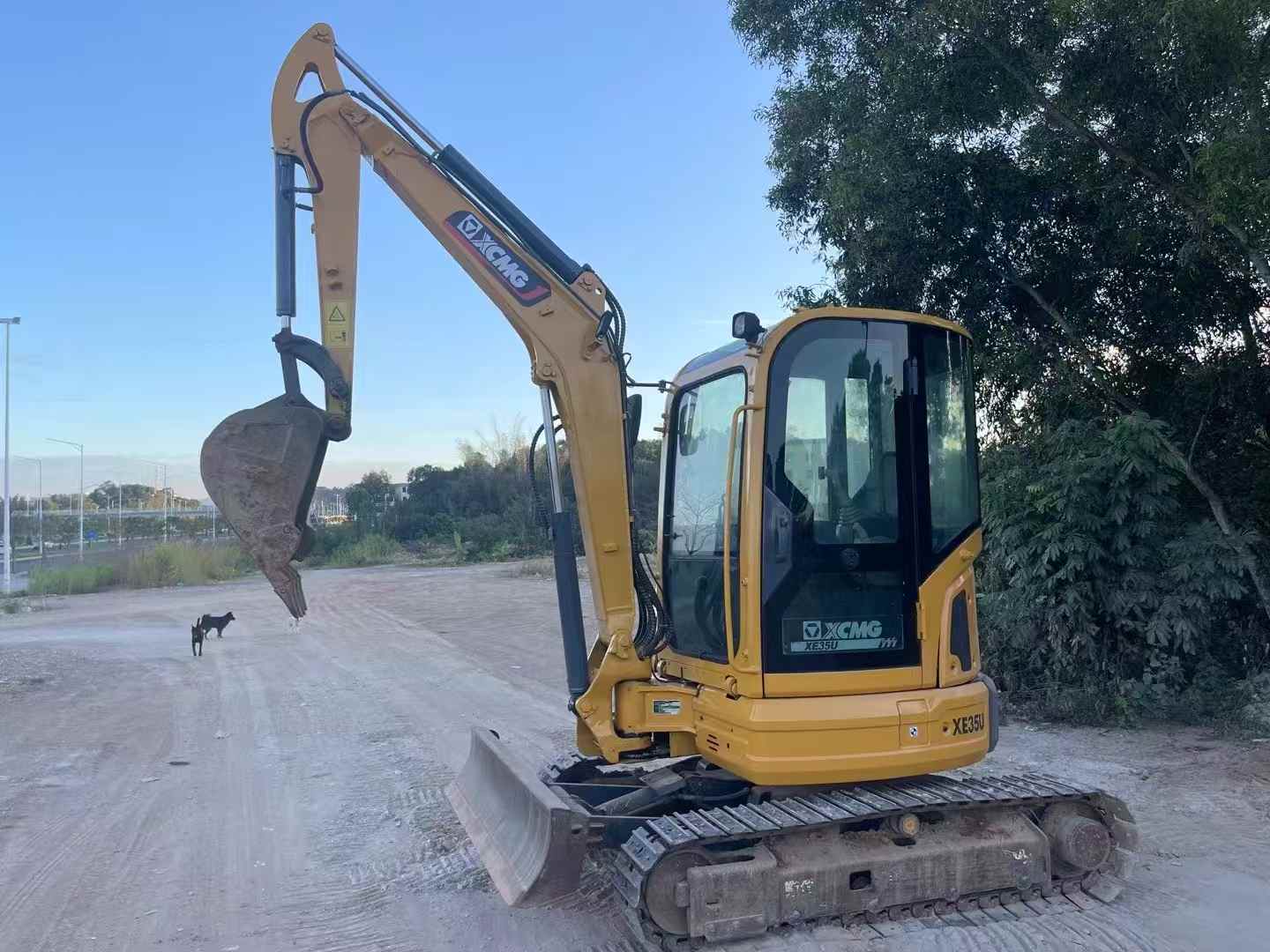

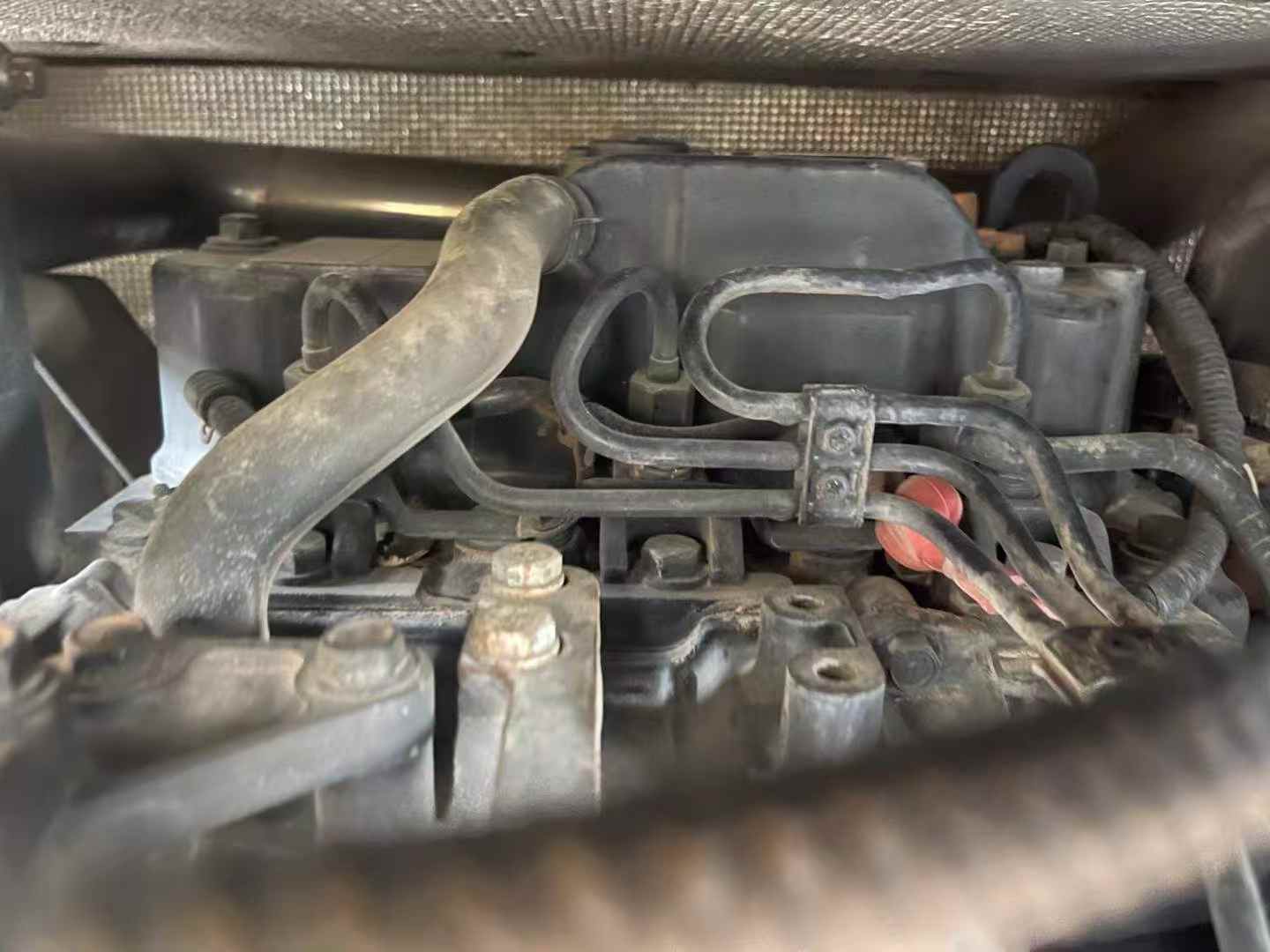

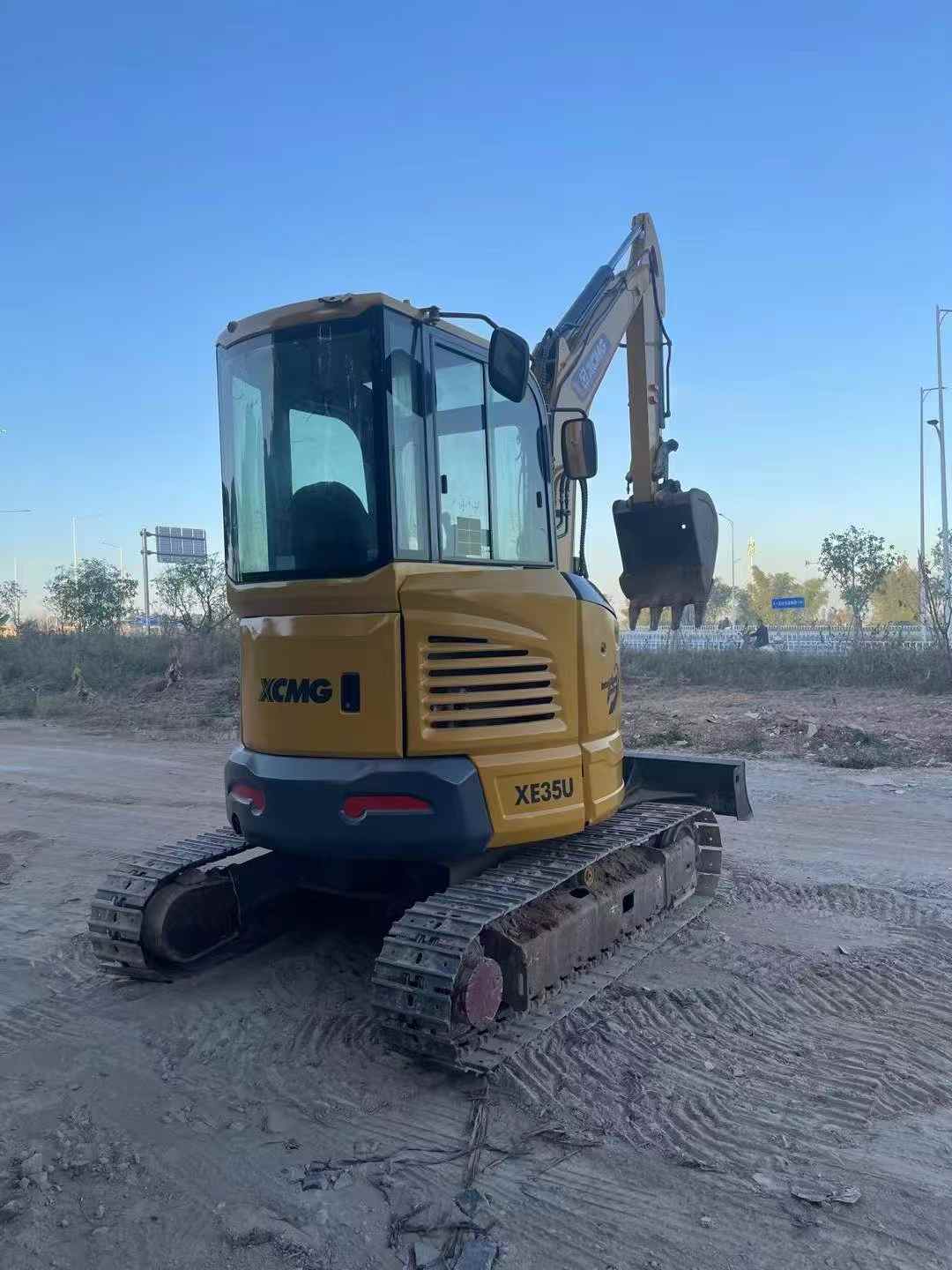

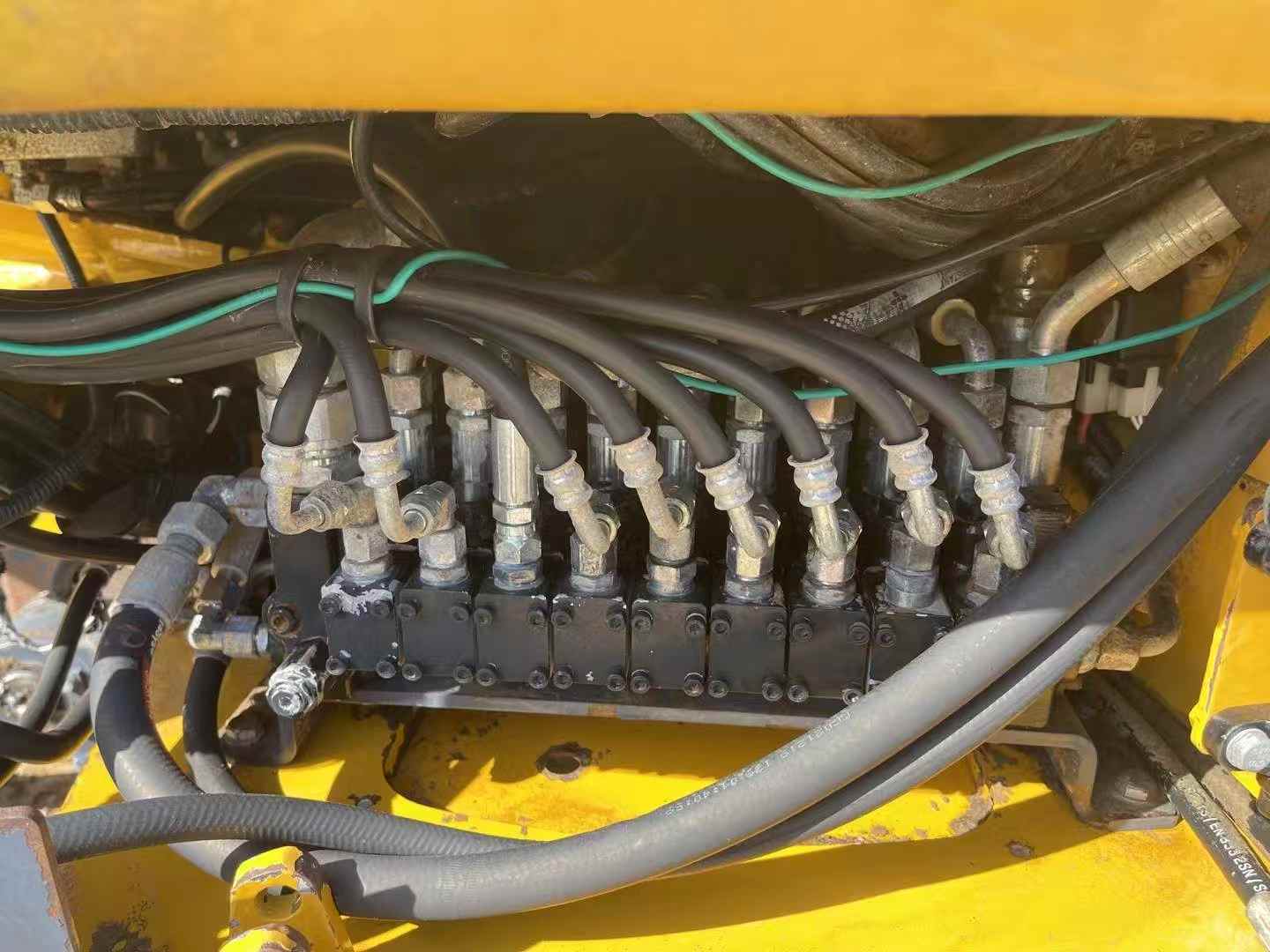

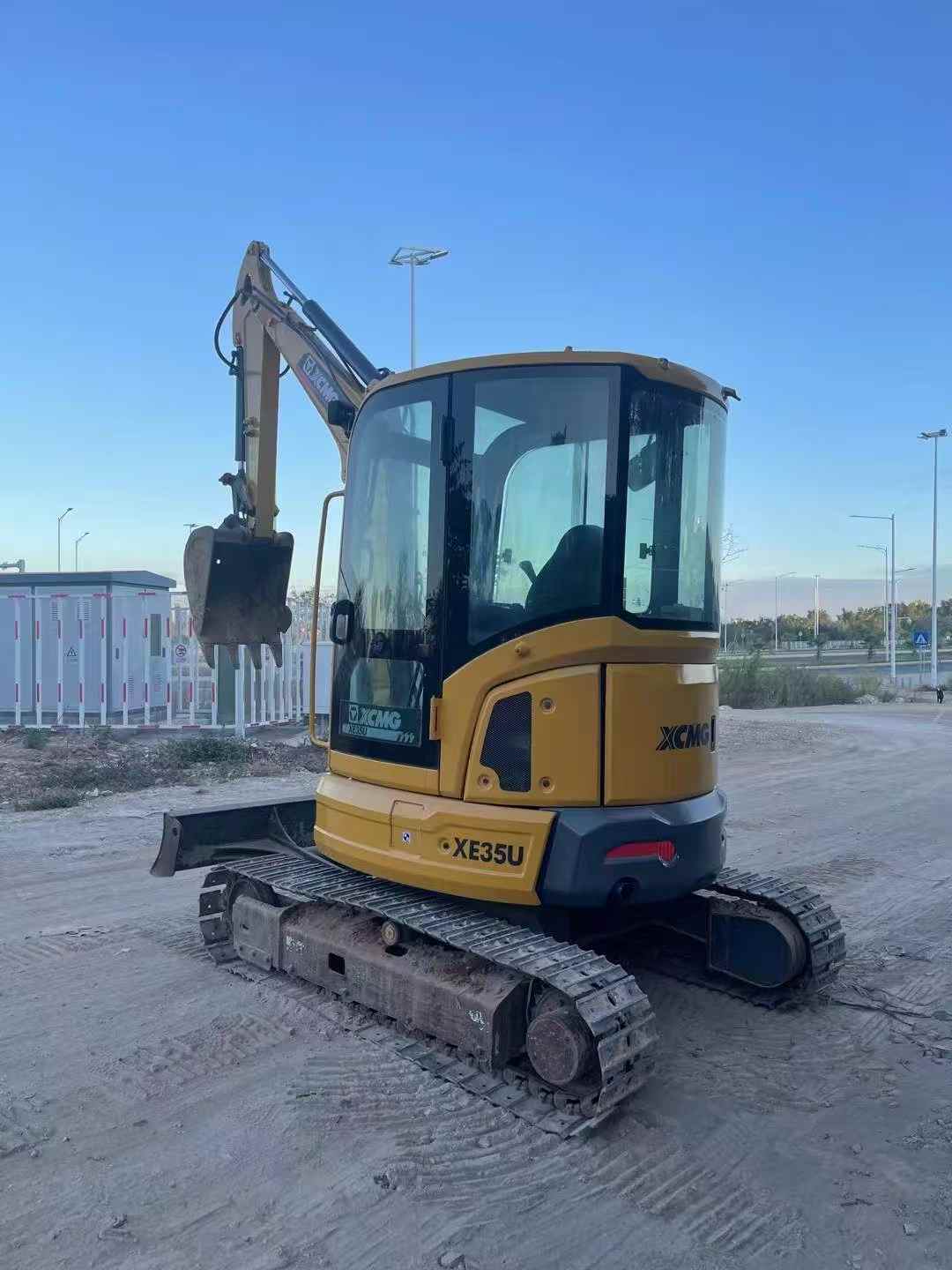

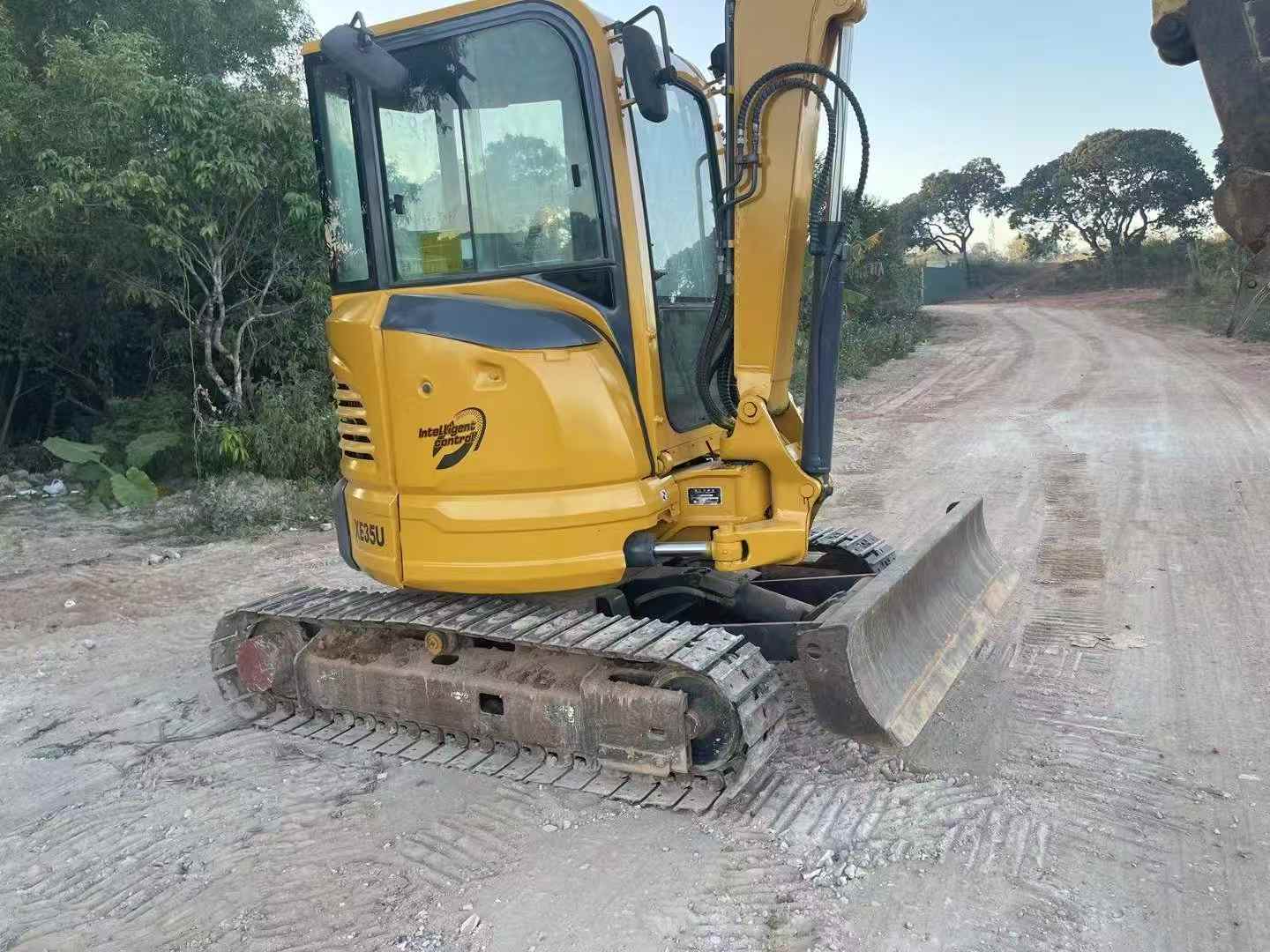

"Premium Second-hand XCMG 35U excavator This XCMG 35U excavator was purchased in 2020 and has only been in use for about 1,500 hours. It is well maintained and in excellent condition. It is equipped with an imported Yanmar engine, which is powerful, stable and reliable. Whether facing complex construction environments or long-term high-intensity operations, it can handle them with ease. In addition, this model adopts an advanced hydraulic system design, which is flexible and smooth to operate, responds quickly, and ensures high working efficiency. It is worth mentioning that there is no oil leakage in the large components of this excavator (such as the main pump, distribution valve and other key parts), ensuring the stability and safety of the equipment's long-term operation. In terms of appearance, the car body has a smooth and bright paint finish, and the overall structure remains intact, demonstrating the owner's good maintenance habits for the machine. The specially equipped crank arm function enables this excavator to operate flexibly even in confined Spaces, making it highly suitable for use in urban construction sites or landscaping projects. In conclusion, this XCMG 35U not only has outstanding performance but also offers an
