| Specifications | Value |
|---|---|
| No. | 961922 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

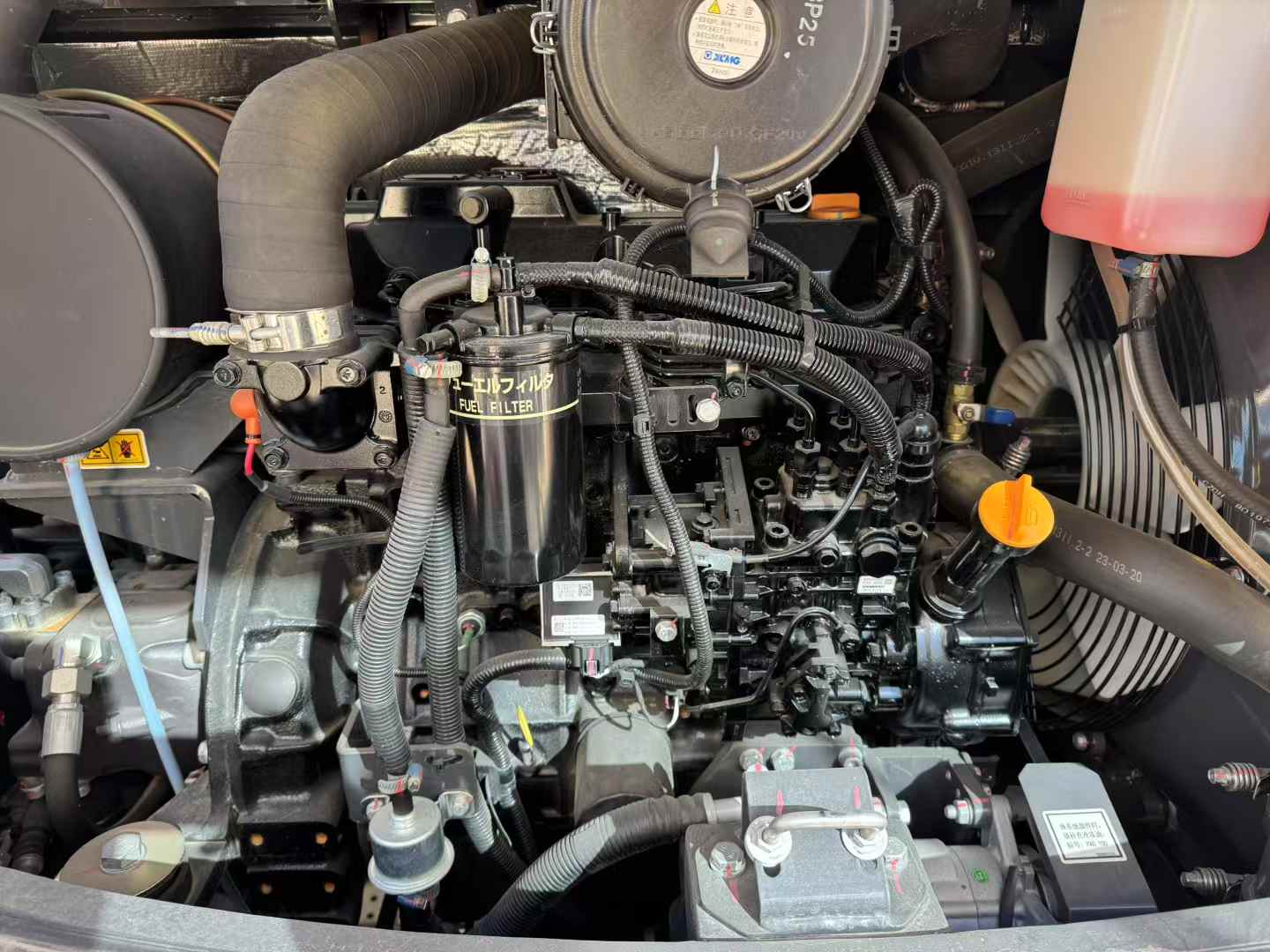

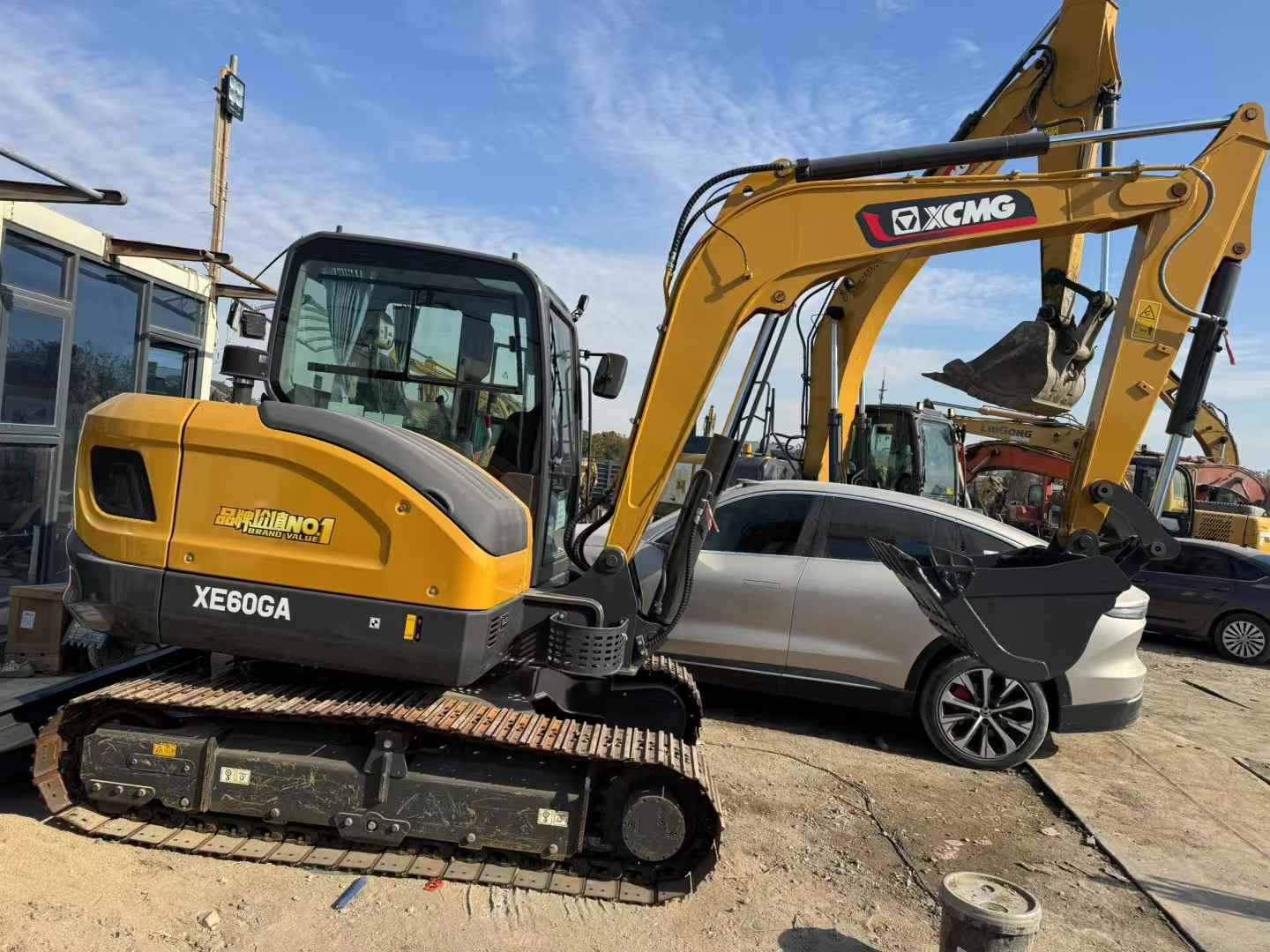

【 Premium Recommendation 】 XCMG XE60 Hydraulic excavator. This is an extremely rare construction machine, and its uniqueness lies in being equipped with a Yanmar engine that is extremely rare on the market. The working time of this excavator is only over 100 hours, which can almost be regarded as a nearly brand-new condition. It maintains an excellent performance both in appearance and performance. 【 Power System 】 This machine is equipped with the imported Japanese Yanmar 4TNV98-ZS engine. This engine is renowned for its high efficiency and durability and enjoys an extremely high reputation in the industry. It features powerful output and smooth operation characteristics, capable of easily meeting the operational demands under various complex working conditions. Meanwhile, due to the relatively short working time, the wear and tear of each internal component of the engine is minimal, ensuring long-term stable performance. The hydraulic system is equipped with an advanced negative flow control hydraulic system, ensuring the smoothness and accuracy of the entire machine during operation. Both the digging force and the rotating speed are very ideal, which greatly improves the work efficiency. In addition, this system also has a good en
