| Specifications | Value |
|---|---|
| No. | 961579 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

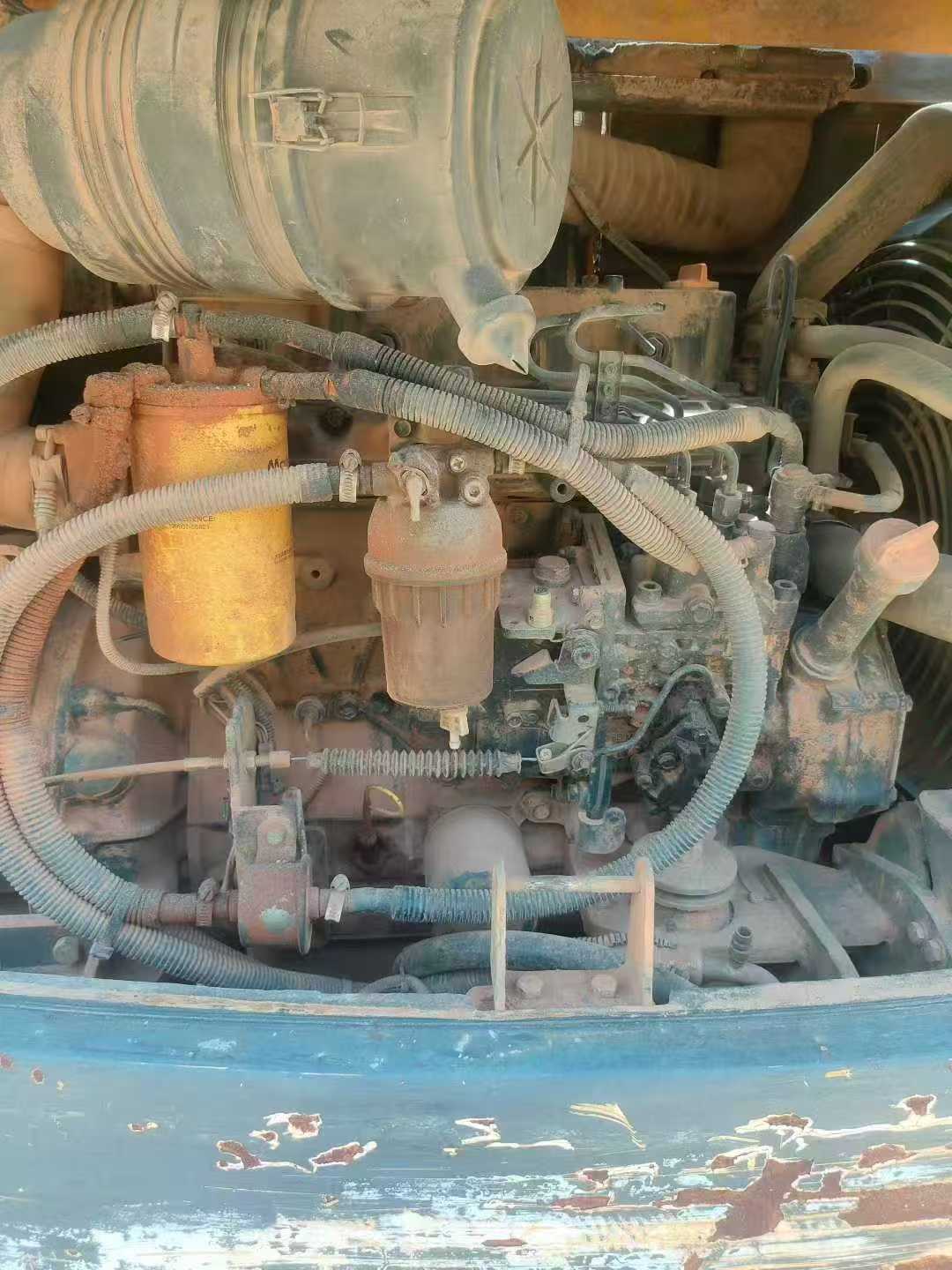

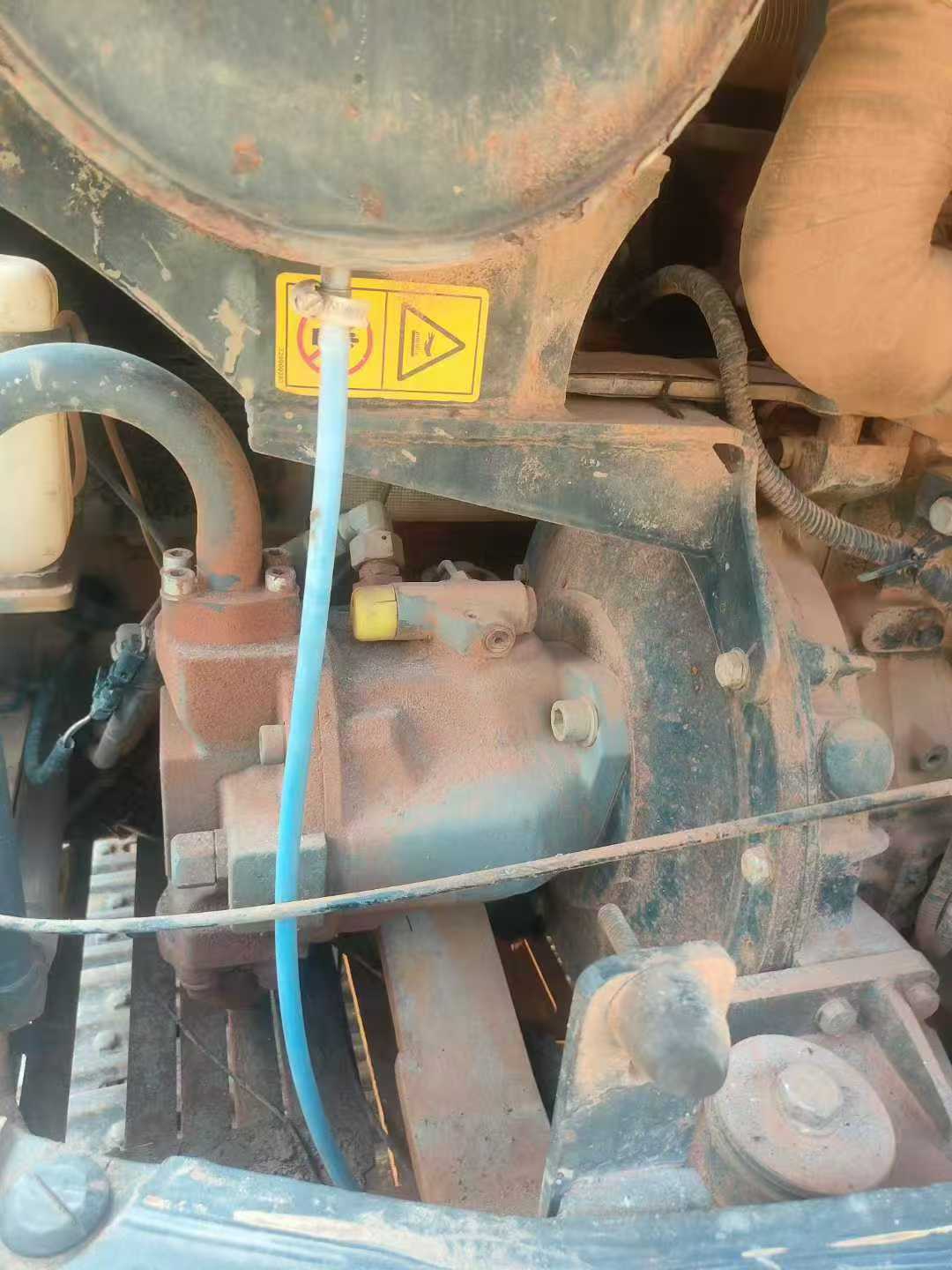

【 Premium Recommendation 】 The XCMG XE60 hydraulic excavator from 2018 has a working time of only 2,500 hours. It is in excellent condition. The three major components (engine, main pump, and main valve) are dry and beautiful, with no leakage at all. The overall maintenance condition is very good. The power system of this equipment adopts the high-quality Yanmar 4TNV98 four-cylinder water-cooled direct injection turbocharged engine, which features strong power output and smooth operation performance. It can maintain efficient operation even in harsh working environments. The hydraulic system adopts an advanced load-sensitive control system, ensuring the accuracy and flexibility of operation. Whether it is excavation, loading or crushing operations, it can handle them with ease. In addition, this excavator is equipped with a reinforced chassis and extended tracks, which significantly enhance the stability and passability of the entire machine. It is particularly suitable for construction needs under various complex terrain conditions. Most notably, the price of this XCMG XE60 is very reasonable, with an extremely high cost performance. It is definitely a good choice for friends who want to quickly recover their investment and obtain st
