| Specifications | Value |
|---|---|
| No. | 961840 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

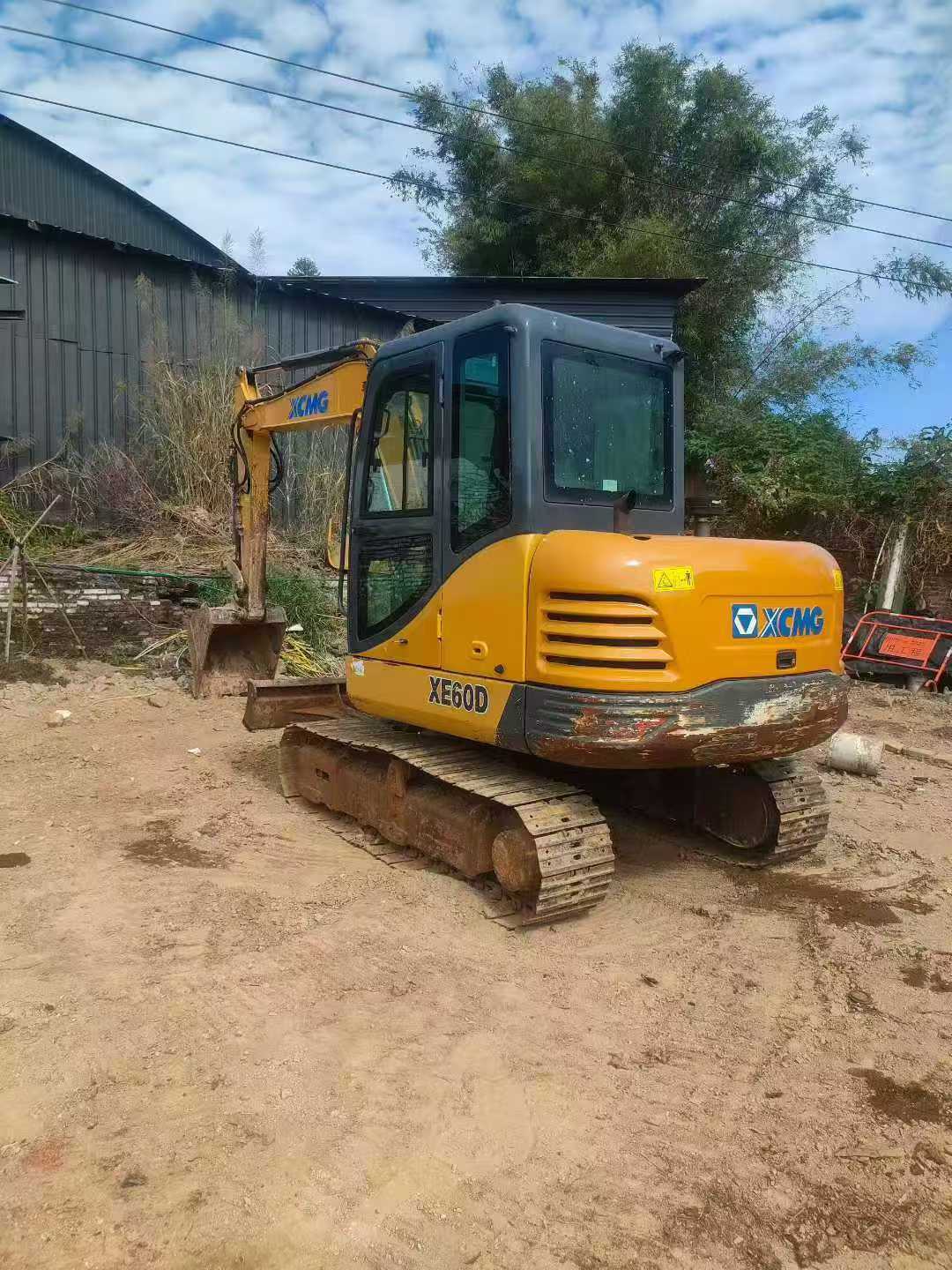

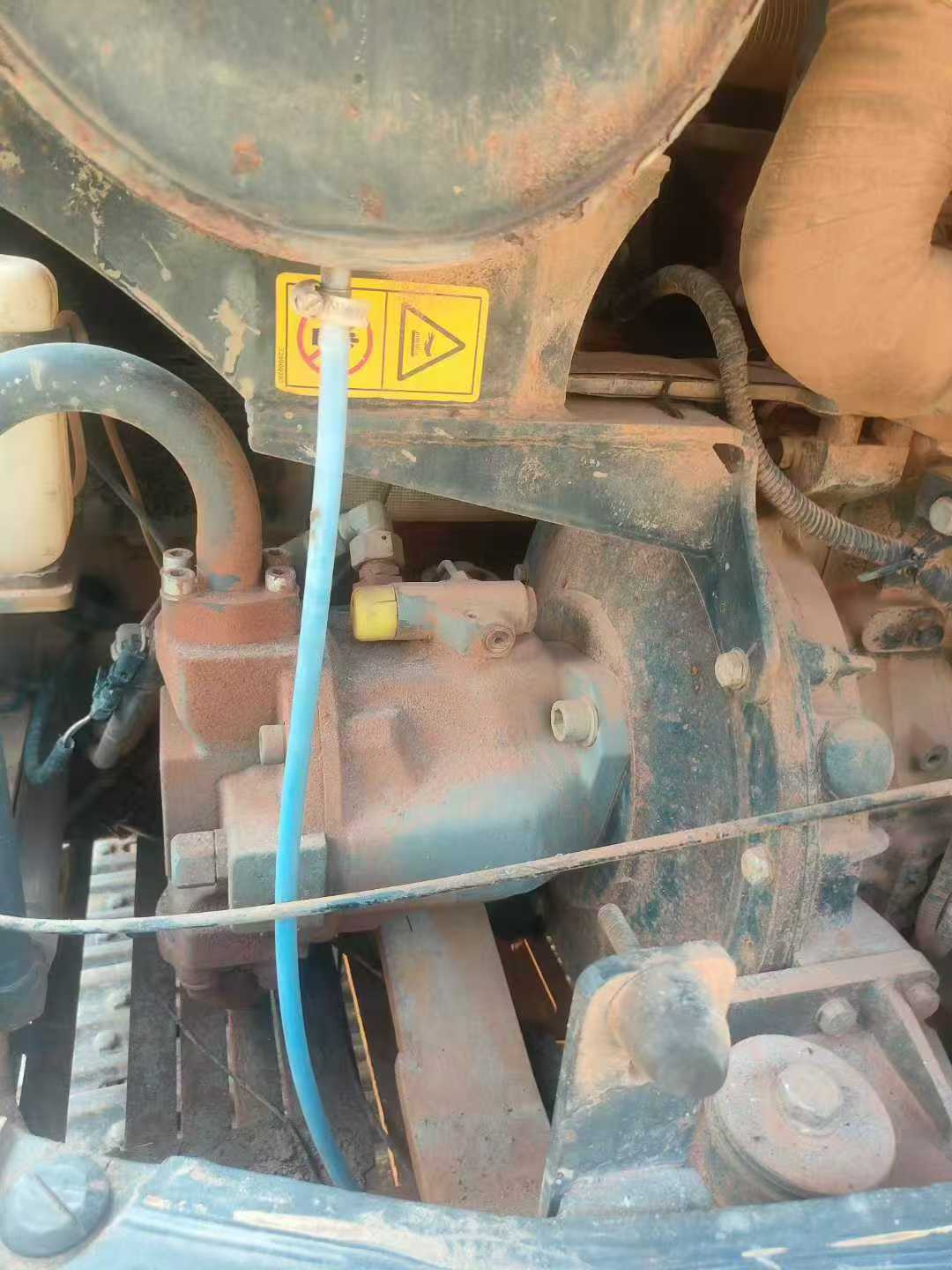

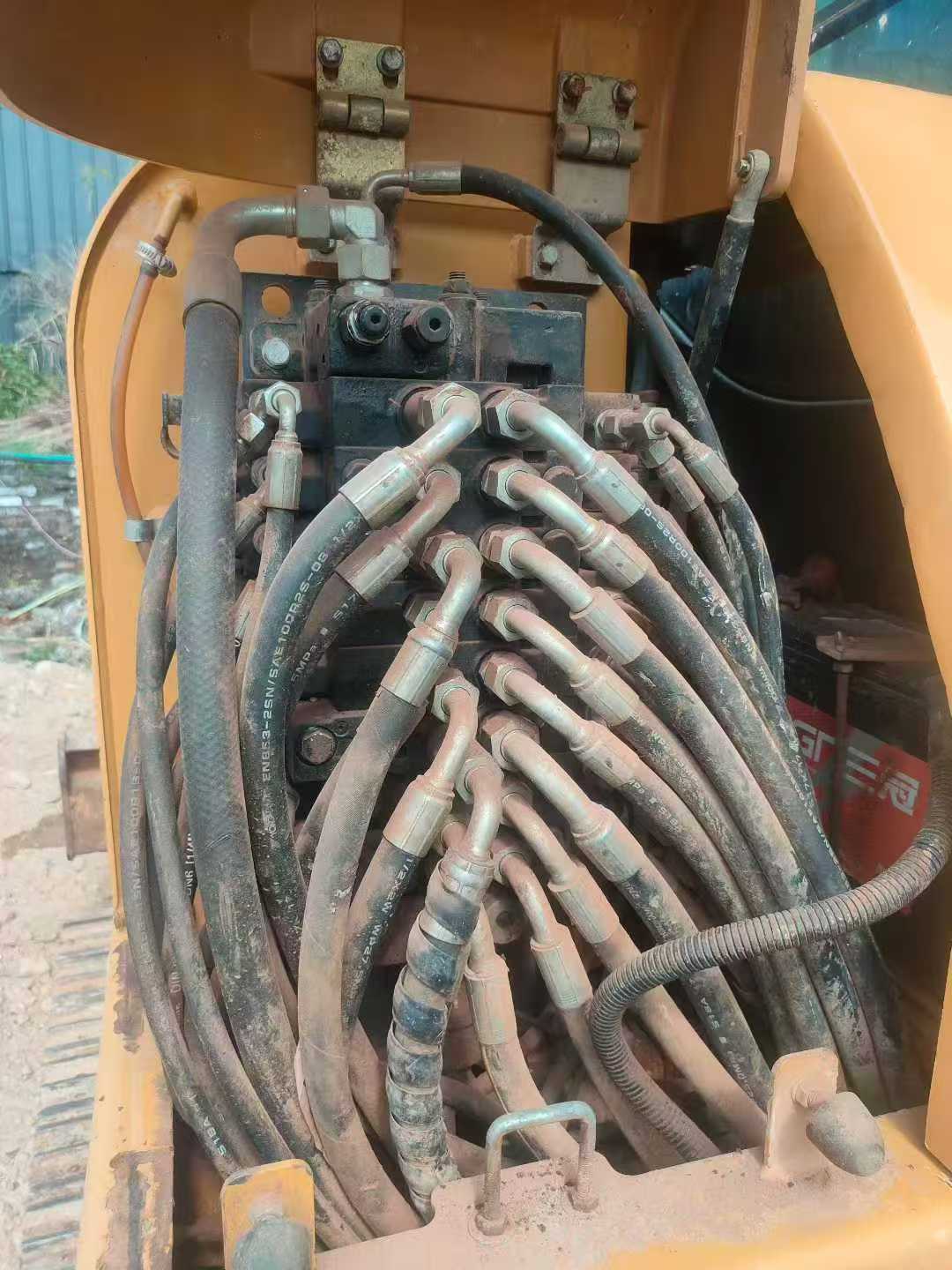

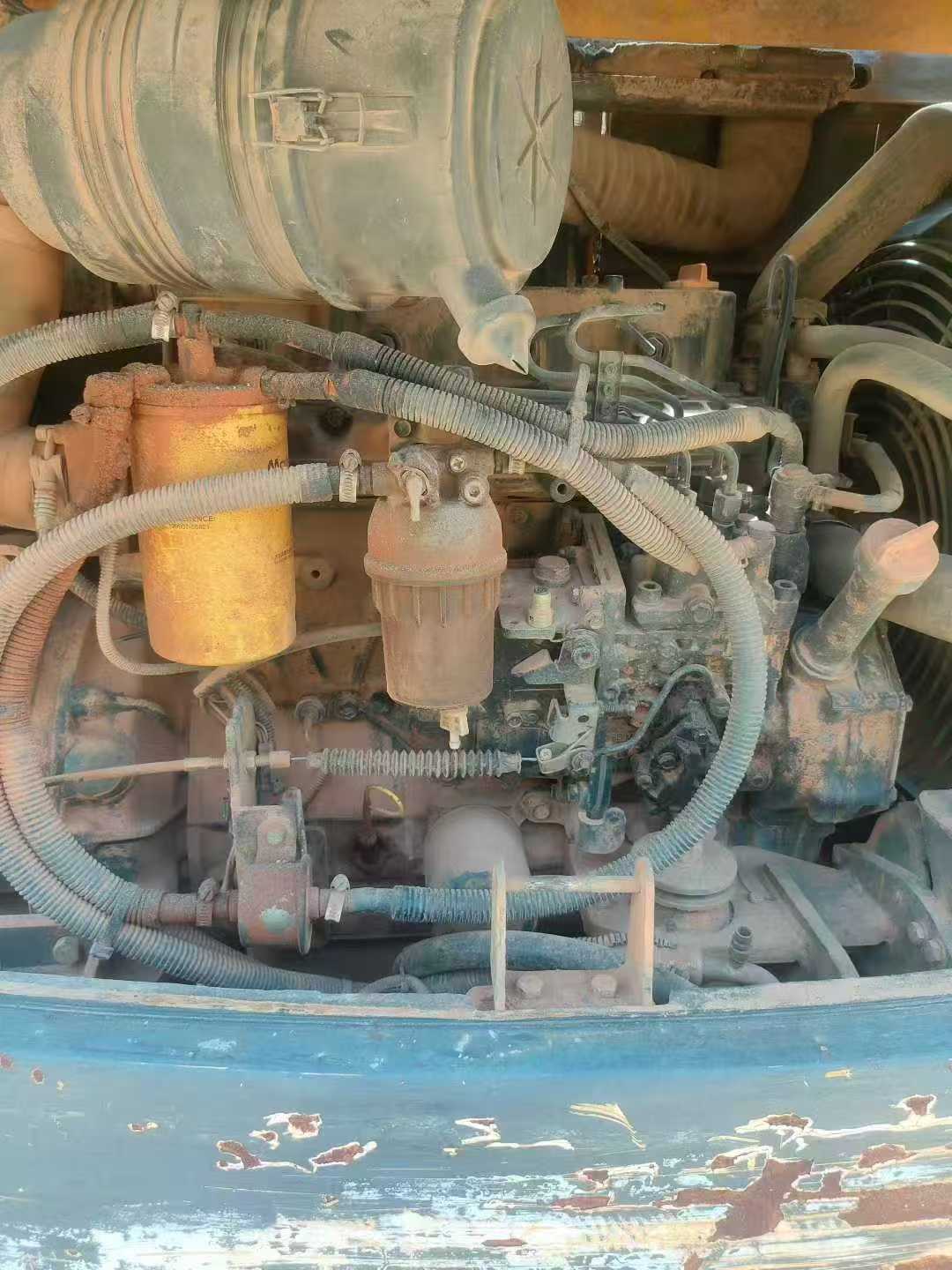

【 Premium Recommendation 】 This is a top-quality second-hand XCMG XE60D excavator from 2018, with a total working time of only 3,500 hours. With proper maintenance, its performance remains at its peak. This machine is equipped with the Yanmar 4TNV98 four-cylinder direct injection turbocharged intercooled diesel engine, which has been well-tested in the market. It is powerful, stable and reliable, and can maintain efficient operation even under harsh working conditions. Its unique low-noise design and excellent fuel economy have won high praise from many users. In terms of the hydraulic system, this excavator is equipped with an advanced load-sensitive control system, ensuring more precise and smooth operation of the entire machine. Whether it is excavation, loading or crushing operations, it can handle them with ease. It is worth mentioning that after comprehensive inspection and maintenance by a professional team, the three major components of this machine (namely the engine, pump and main control valve) are all in excellent working condition at present. The interior is dry without any leakage, and the appearance is as clean as new. It will definitely win your heart at first sight! In addition, the walking mechanism also performed o
