| Specifications | Value |
|---|---|
| No. | 960486 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
Description

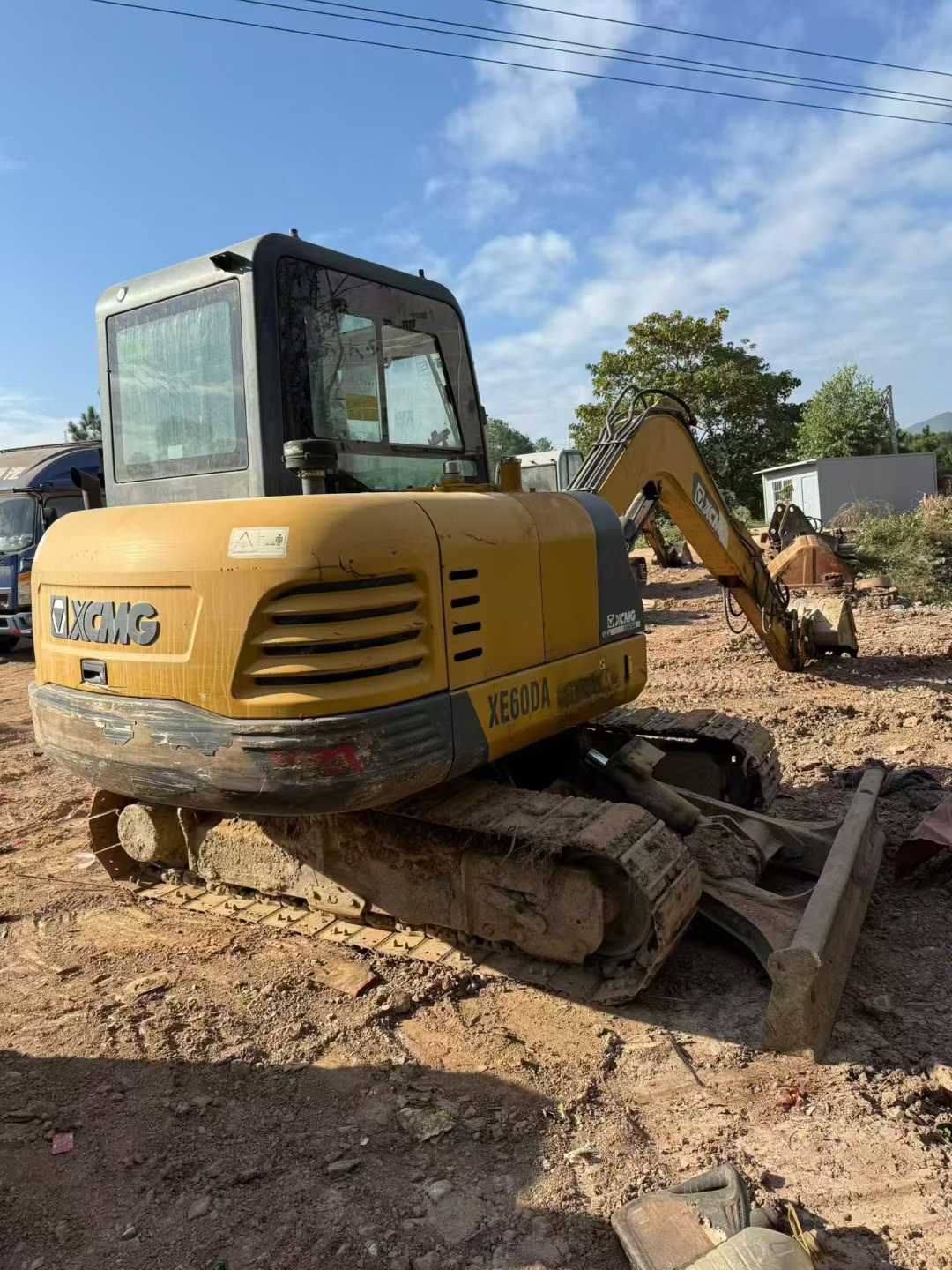

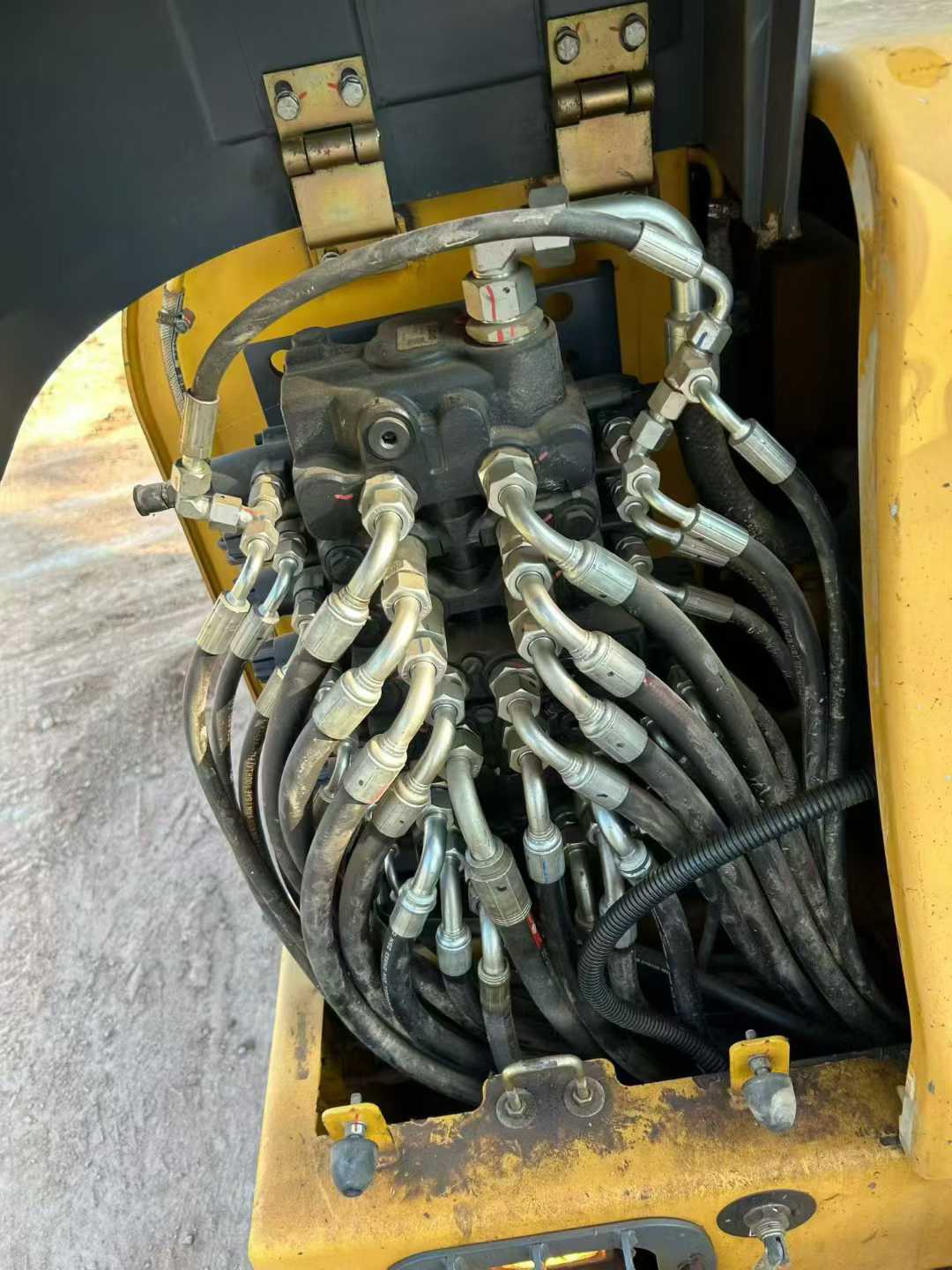

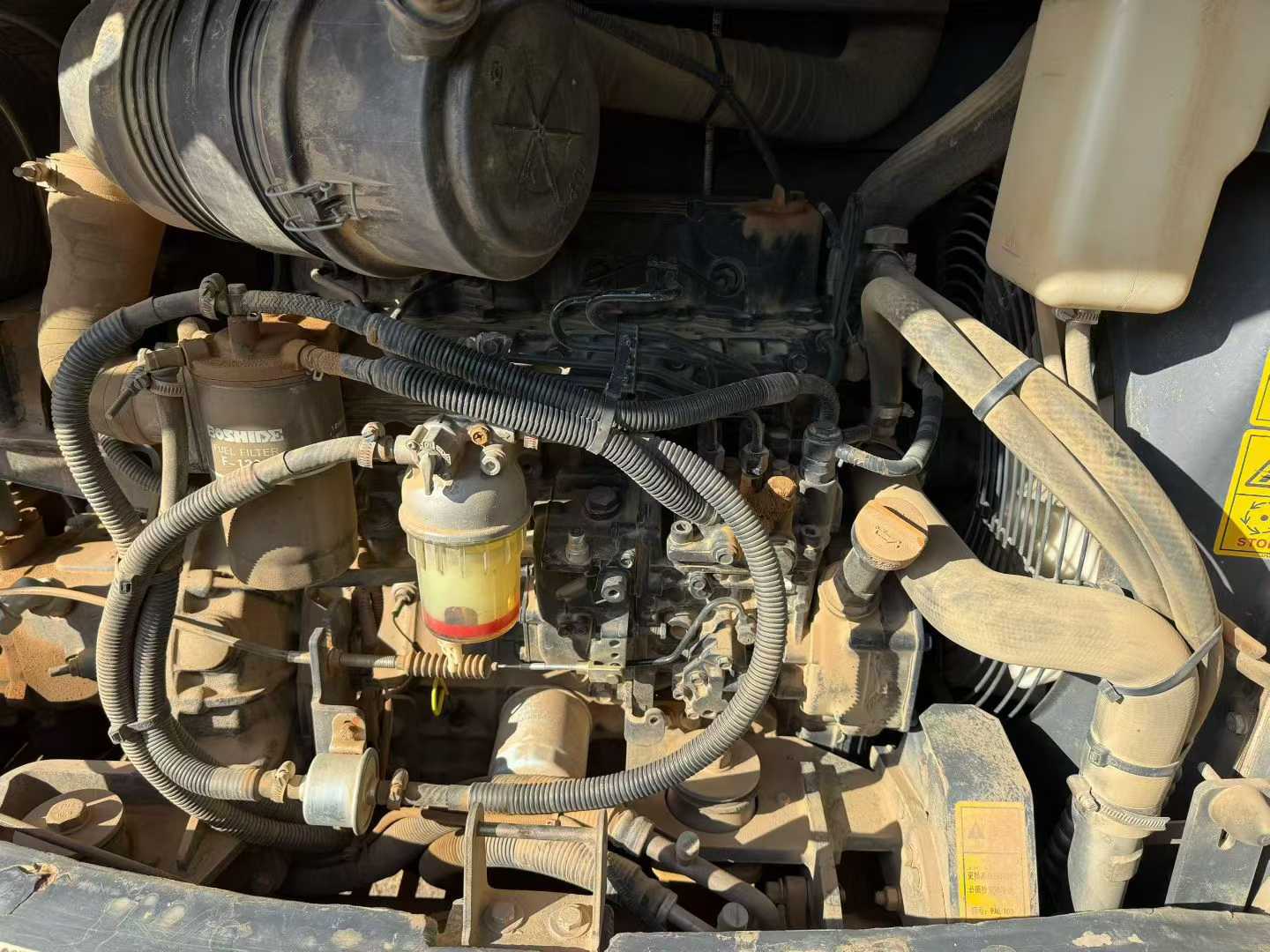

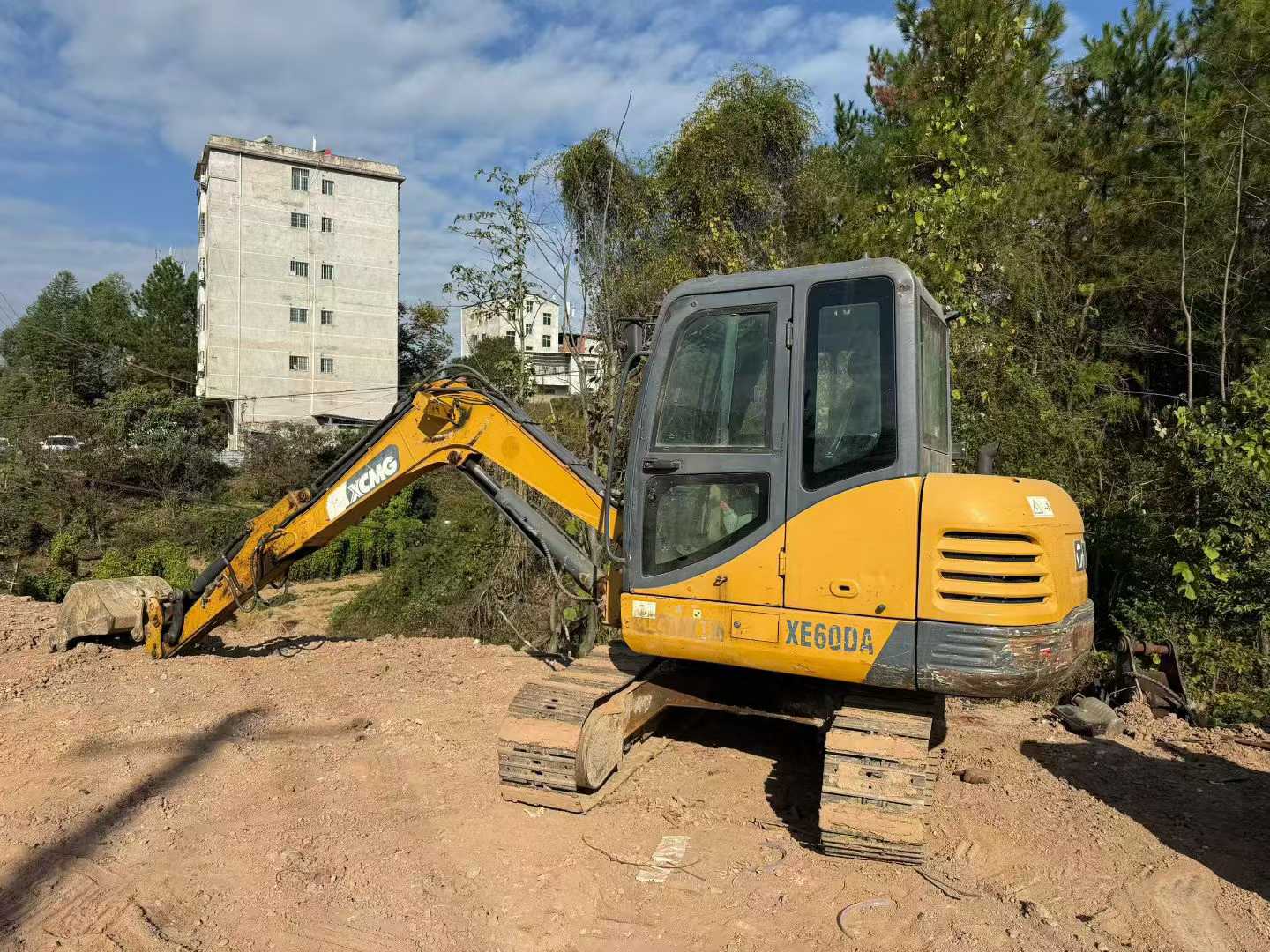

This second-hand XCMG XE60 excavator was produced in 2019, with a total working time of only 2,500 hours. It is well maintained and in excellent overall condition. It is equipped with a complete set of equipment and can be put into operation directly without the need to purchase additional accessories, which greatly saves your time and cost. In terms of the power system, this excavator is equipped with the well-tested Yanmar 4TNV98 engine, which is powerful and has excellent fuel economy. This engine features outstanding reliability and durability, providing stable and efficient power output under various operating conditions. Meanwhile, its low-noise design also provides you with a more comfortable working environment. The hydraulic system is a major highlight of this excavator. It adopts an advanced negative flow control system, ensuring the accuracy and smoothness of operation. Whether it is excavation, loading or crushing operations, they can all be handled with ease. In addition, this system also features an automatic energy-saving function, which can reduce fuel consumption while ensuring work efficiency and further enhance economic benefits. In conclusion, this XCMG XE60 excavator not only has outstanding performance but also
