| Specifications | Value |
|---|---|
| No. | 961764 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
Description

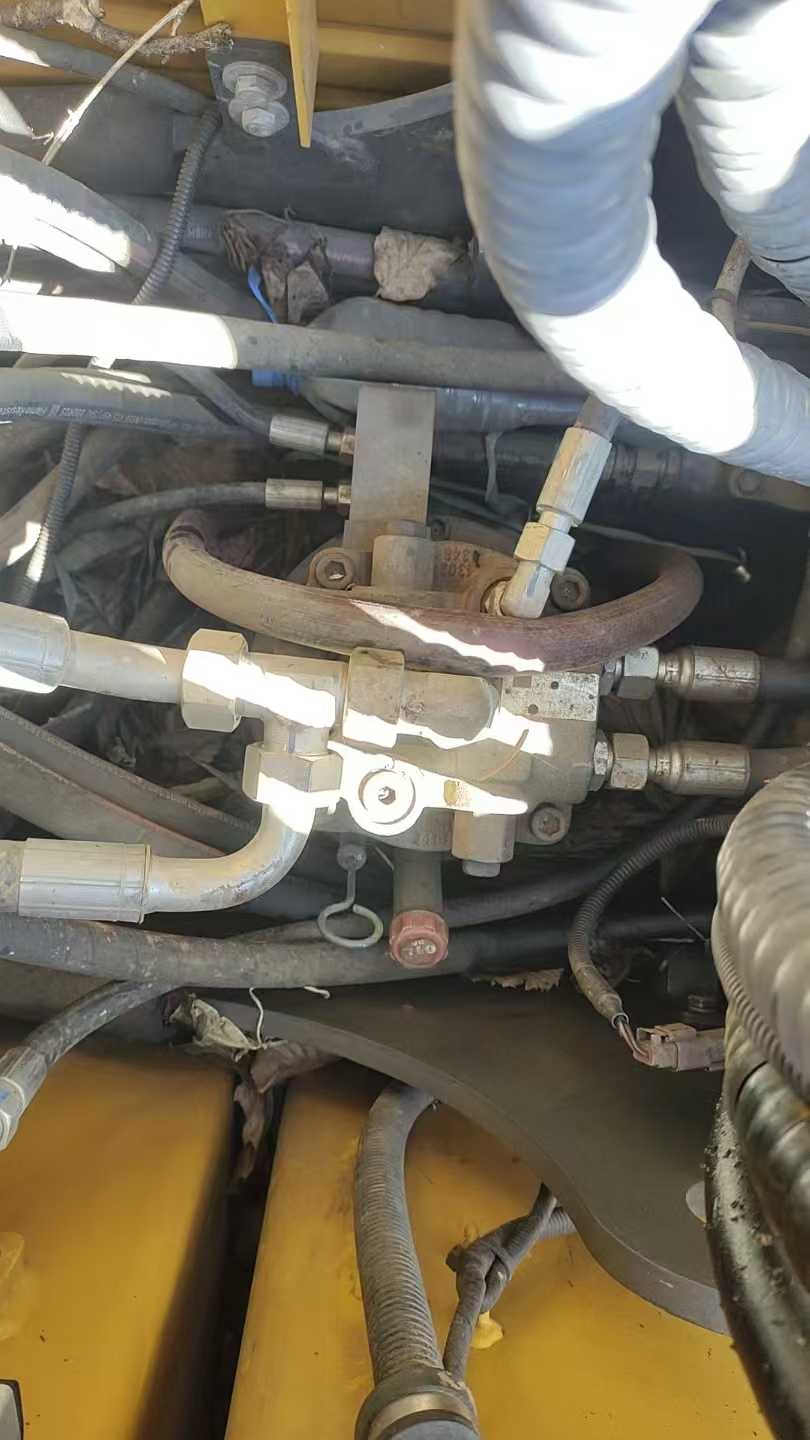

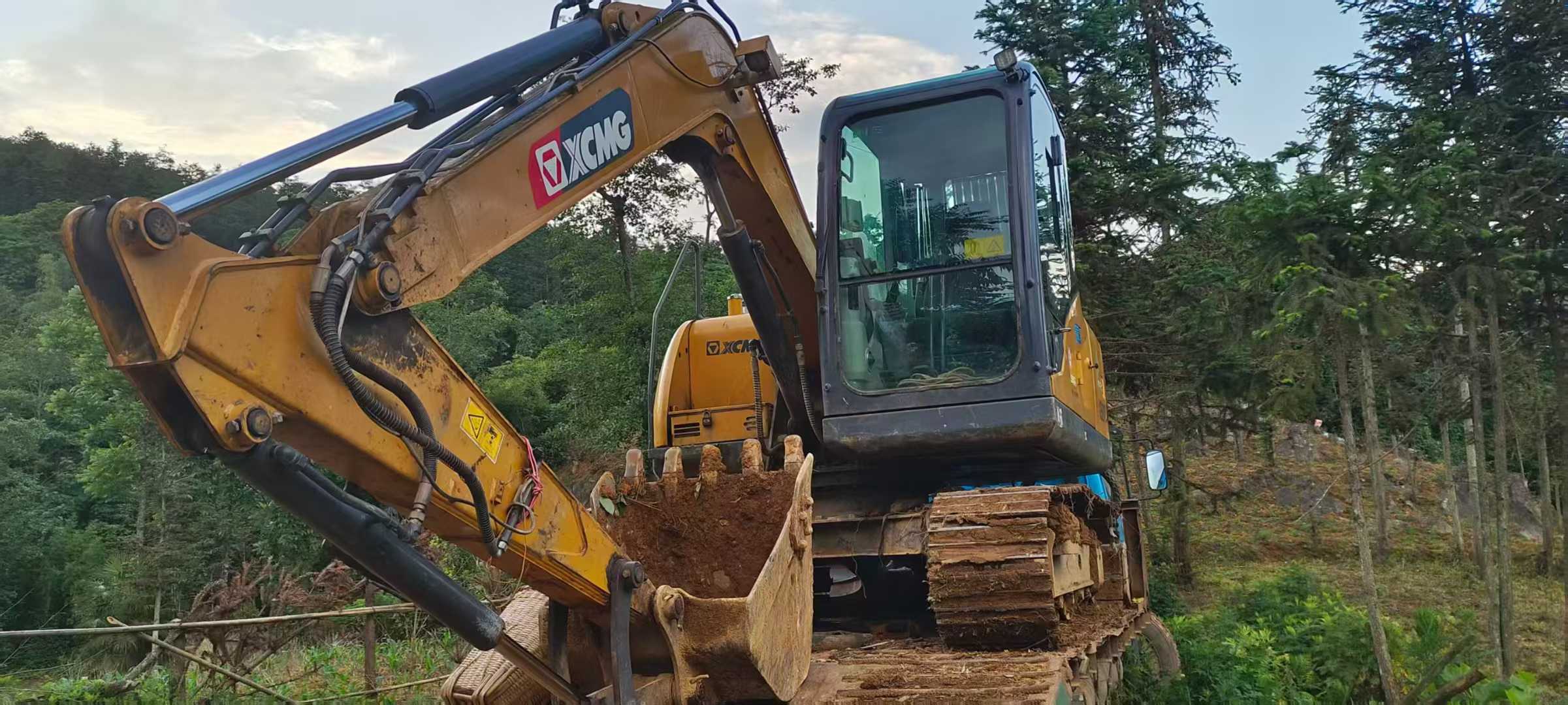

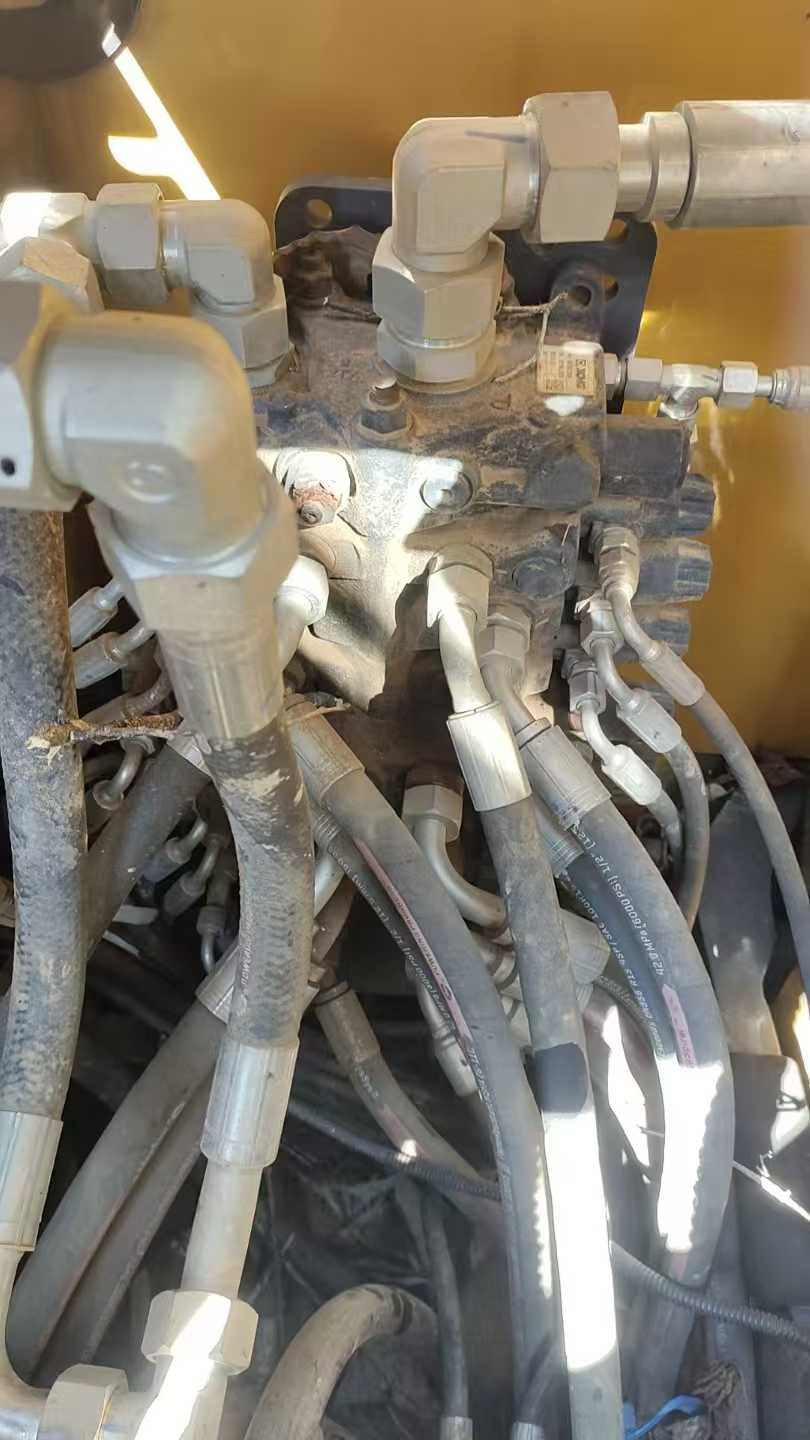

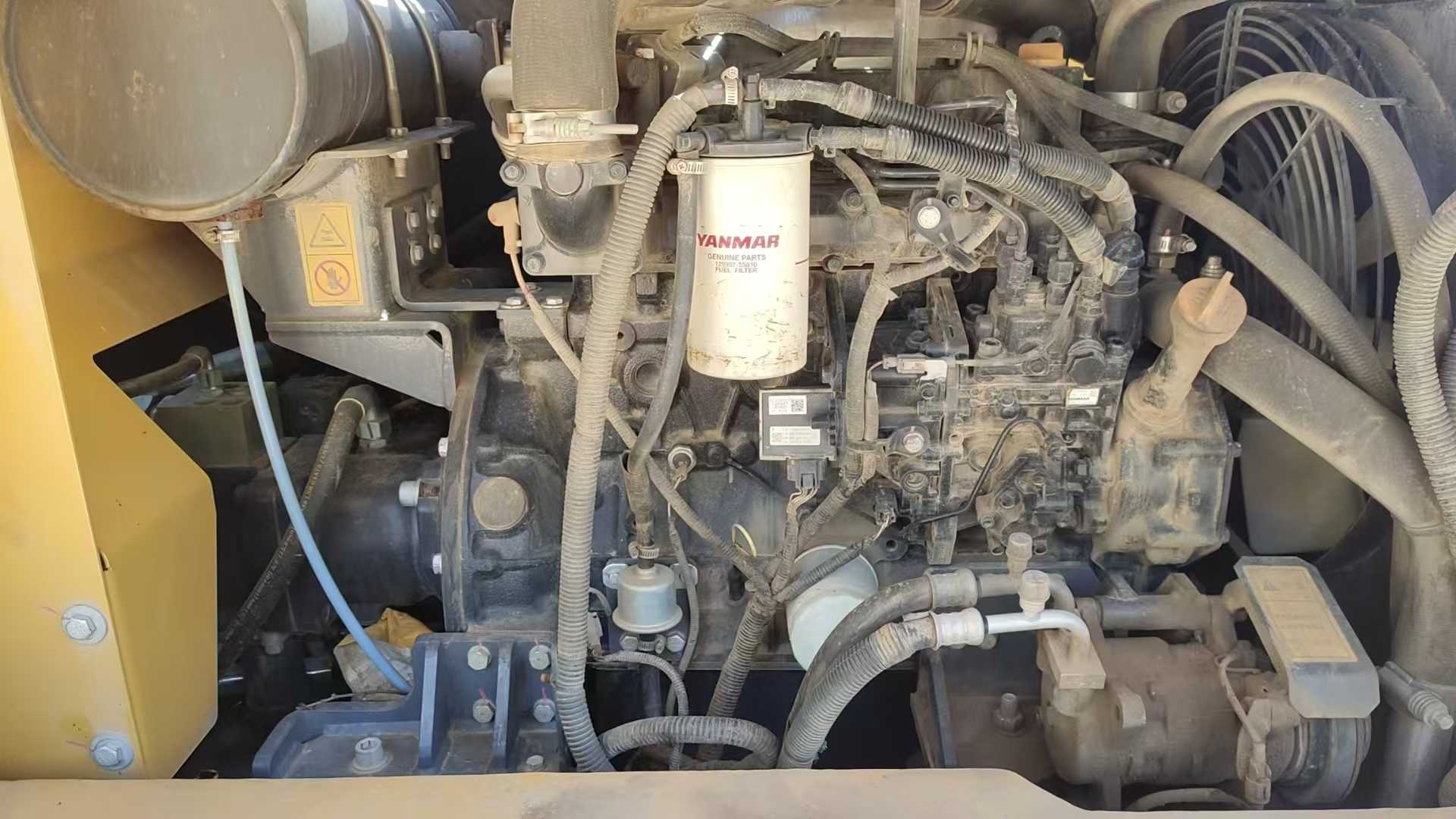

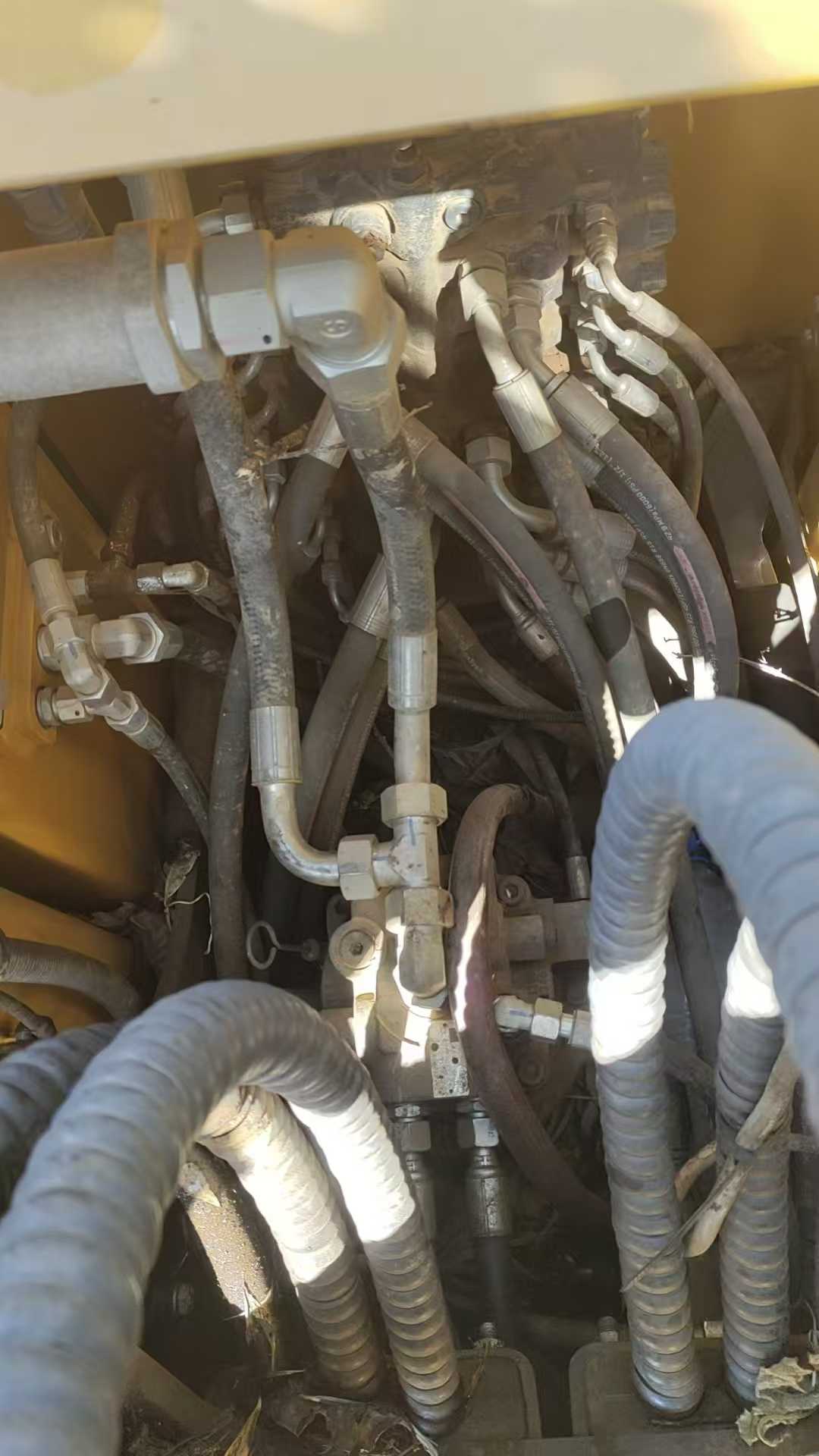

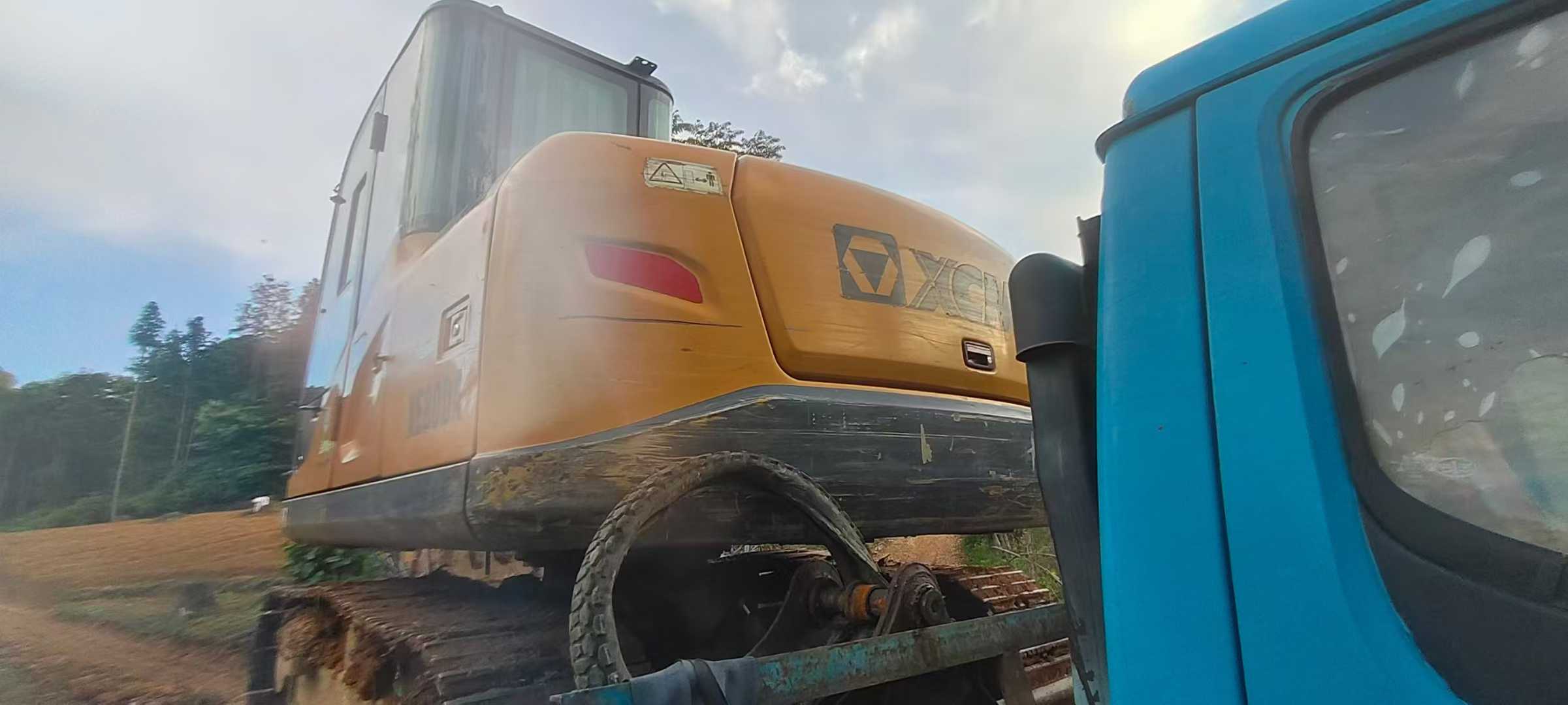

Detailed description of XCMG XE80D second-hand Excavator Dear customer, hello! It's a great pleasure to introduce to you this high-quality second-hand XCMG XE80D excavator. This device was manufactured in 2022 and has been in use for only 1,500 hours. It is well maintained and in excellent condition. All the necessary documents are complete and it can be transferred at any time. "Power System This excavator is equipped with a Cummins B3.3 turbocharged engine, with a rated power of 40.5 kilowatts at 2,200 revolutions per minute, featuring strong power output and excellent fuel economy. It can maintain an efficient and stable working state even in a complex working environment. The engine has undergone professional testing and has no record of any faults, ensuring its reliability during long-term operation. "Hydraulic System Equipped with an advanced load-sensitive hydraulic control system, it can automatically adjust the oil volume according to the actual working requirements, ensuring both excavation efficiency and reducing energy consumption. Both the main pump and the motor are imported brands, with reliable quality and a long service life. In addition, special protective measures for key parts have been strengthened, effectively
