| Specifications | Value |
|---|---|
| No. | 961671 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

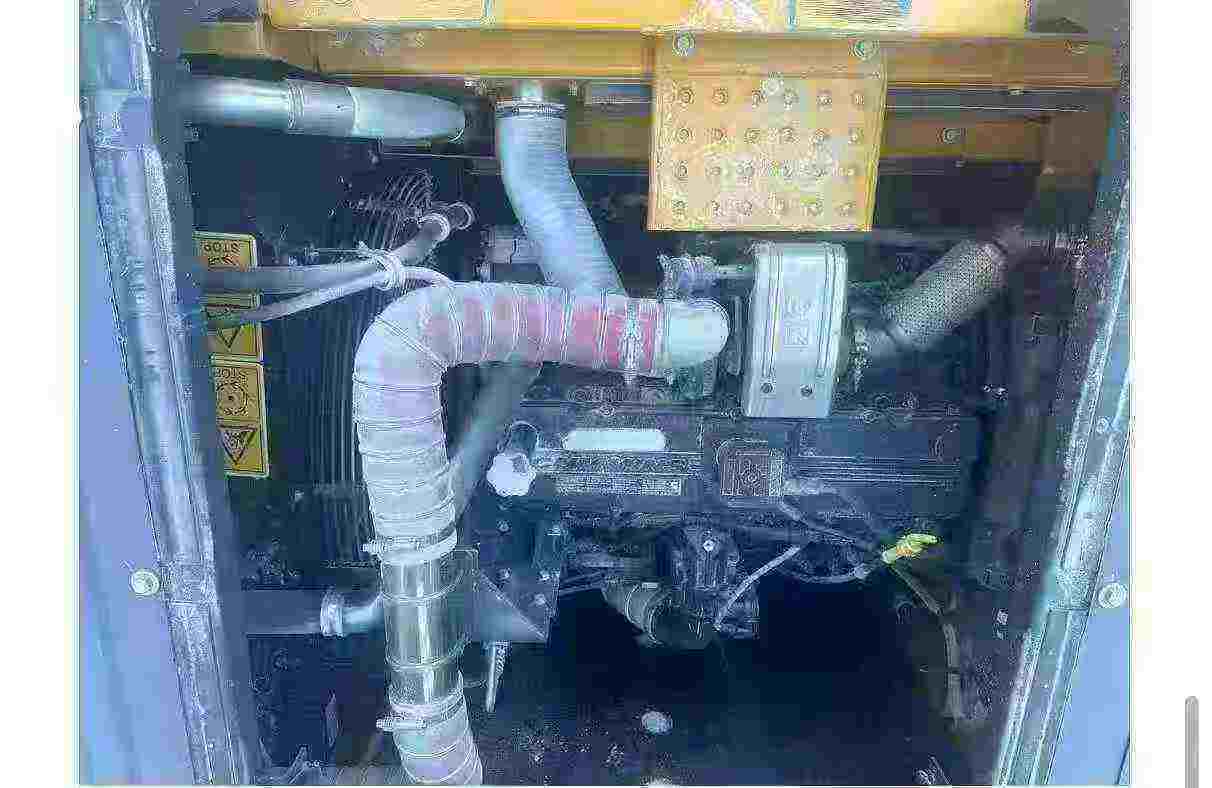

| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |

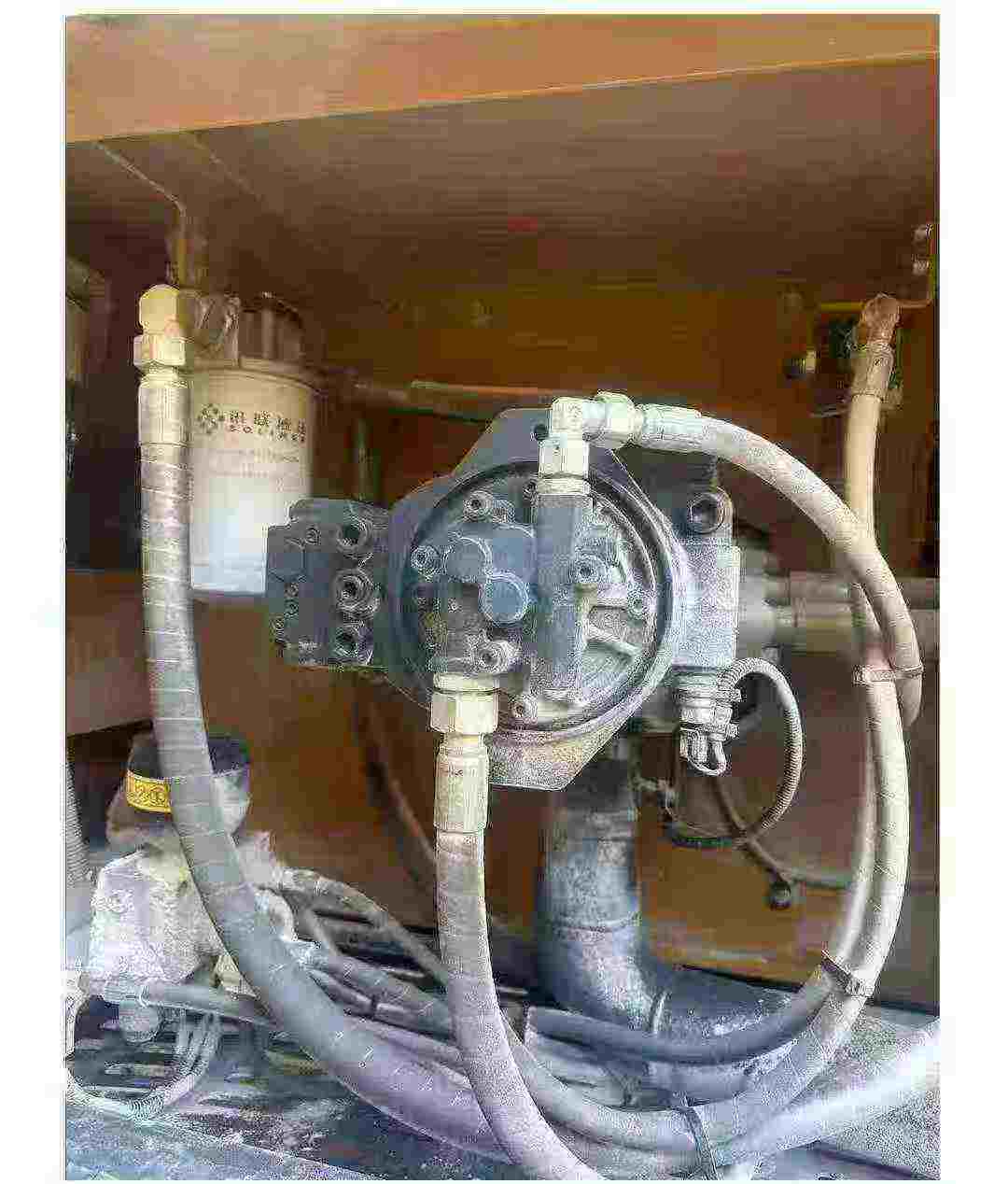

| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
Description
【 Premium Recommendation 】 XCMG XE380 excavator in 2023, with a low usage rate of 5,000 hours This 2023 XCMG XE380 excavator has a total working time of only 5,000 hours and is a rare high-quality second-hand device on the market. As a medium to large-sized excavator, it performs particularly well in fields such as mining, road construction, and earthwork projects. Its power system adopts a high-performance diesel engine, which not only has strong power but also good fuel economy, ensuring stable output during long-term operation. In addition, this model is equipped with an advanced hydraulic control system, which makes the operation more precise and smooth, greatly improving work efficiency and construction quality. This excavator also has the following major advantages: 1. ** High efficiency and energy saving ** : The optimized power system is perfectly matched with the hydraulic system, achieving a balance between high efficiency and low energy consumption. 2. ** Durable and reliable ** : The key components made of high-strength materials ensure that the equipment can maintain a good working condition even in harsh environments. 3. ** Easy maintenance ** : The design fully takes into account the needs of later maintenance. All par
