| Specifications | Value |
|---|---|
| No. | 969687 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1700 |
| Bucket capacity (m³) | 0.05 |
| Bucket width (mm) | 450 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 3TNV70-XBV |
| Rated power (kw/rpm) | 10.1/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 3 |
| Working form | Vertical water cooling; 3 cylinders; Direct injection |
| Ground specific pressure (Kpa) | Rubber track 28/ Steel 29 |
| Rotation speed (rpm) | 9.5 |
| Bucket digging force (kN) | 15.2 |
| Travel speed (km/h) | High 3.8 Low 1.9 |
| Main overflow set pressure (Mpa) | 20.6 * 2 + 16.7 * 1 |
| Maximum flow of main pump (l/min) | 17.6 * 2 + 13.2 |
| Fuel Tank (L) | 20 |
| Total transport length (mm) | 3450 |
| Total transport width (mm) | 1280 (950) |
| Total transport height (mm) | 2370 |
| Full cab height (mm) | 2370 |
| Minimum ground clearance (mm) | 175 |
| Minimum turning radius of front working device (mm) | 1520 |
| Back end turning radius (mm) | 640 |
| Total track length (mm) | 1525 |
| Track gauge (mm) | 1050 |
| Track plate width (mm) | 230 |
| Total track width (mm) | 1280 |
| Maximum digging radius (mm) | 3710 |
| Maximum digging depth (mm) | 2200 |
| Maximum excavation height (mm) | 3690 |
| Maximum unloading height (mm) | 2630 |
| Maximum vertical digging depth (mm) | 1850 |
| Bulldozer lift or depth (mm) | 260/205 |
| Dodging plate width × height (mm) | 950/1280 x 235 |
| Boom turning Angle (left/right °) | 42/75 |
Description

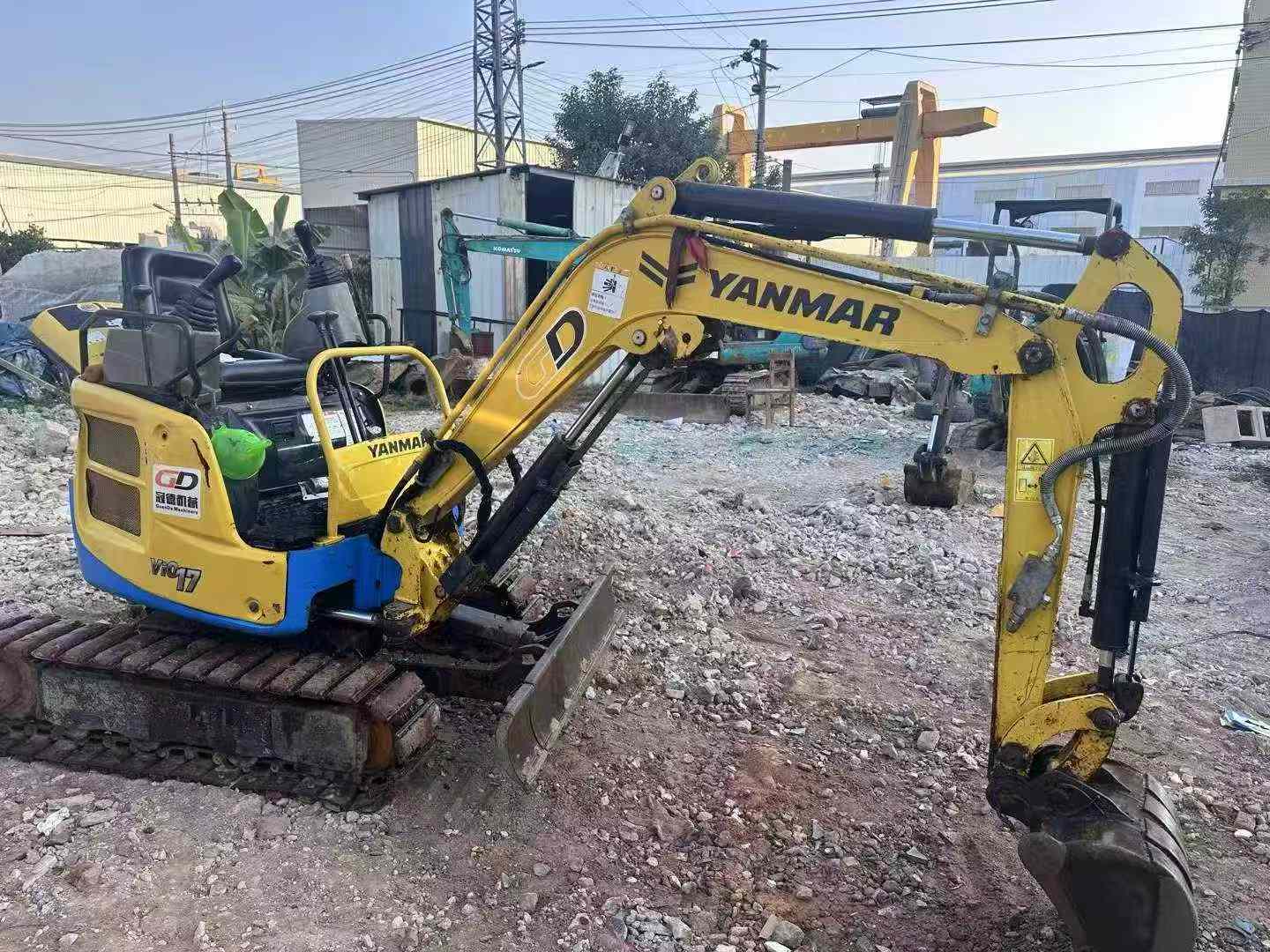

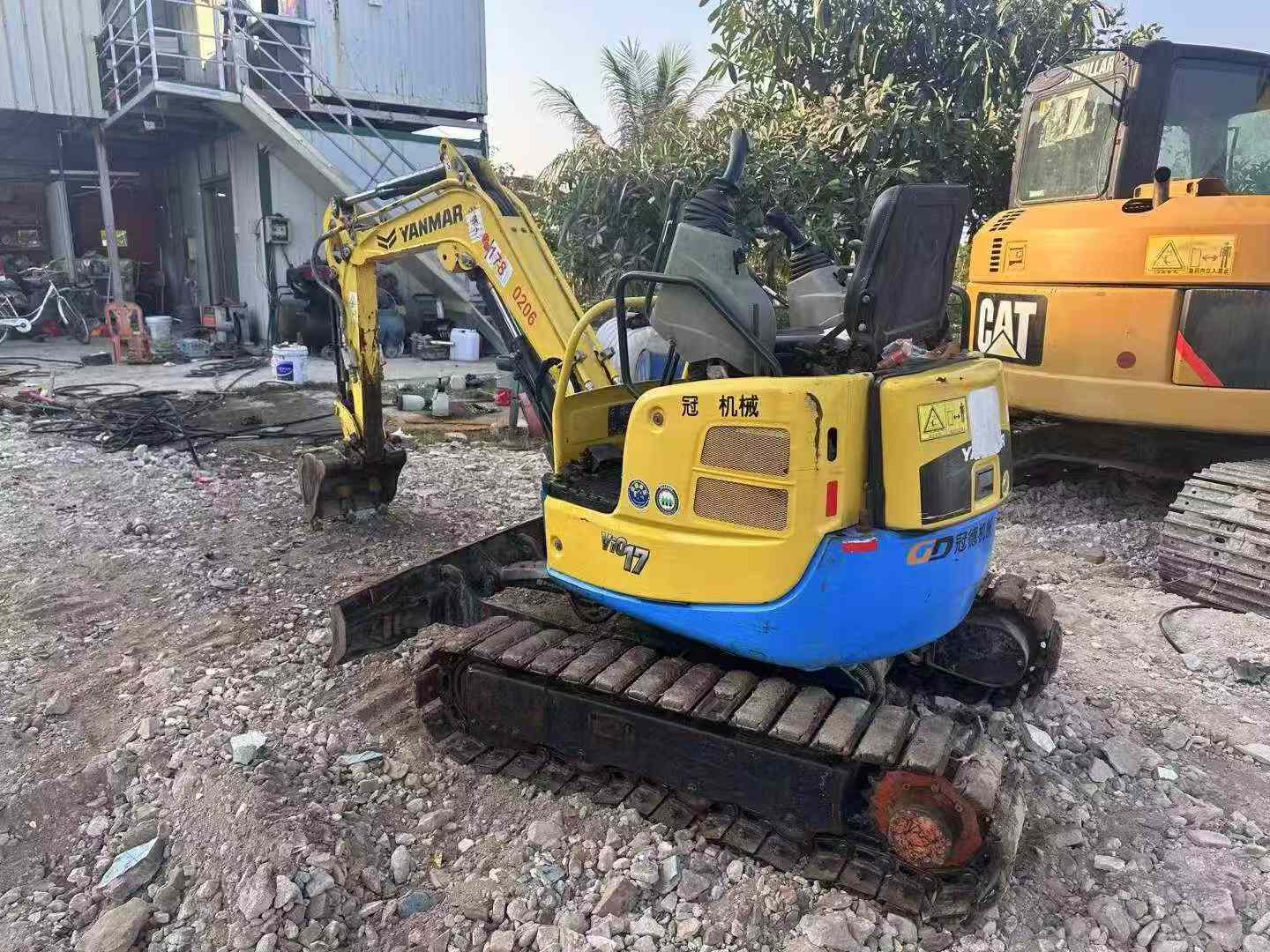

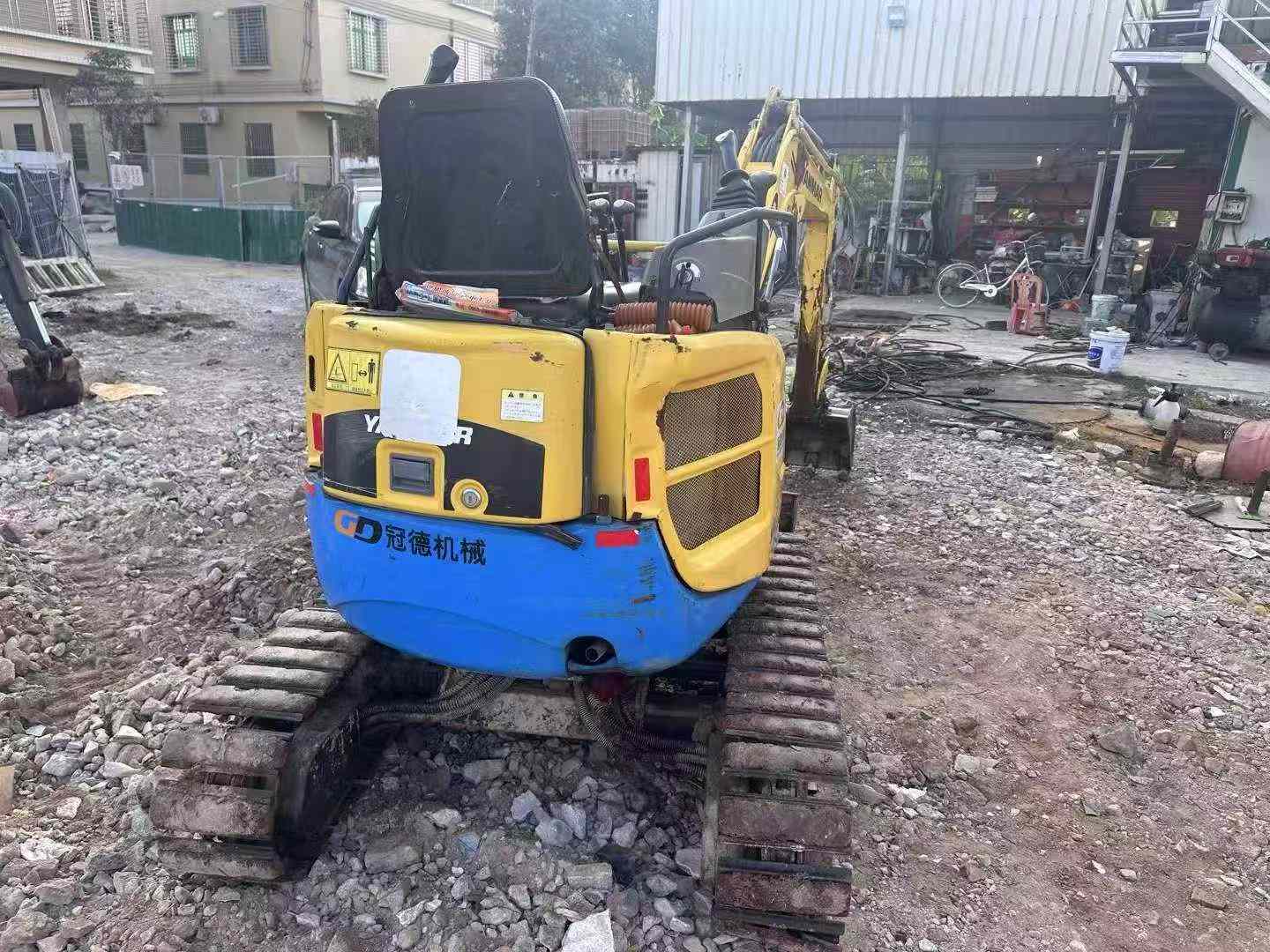

【 Premium Recommendation 】 A second-hand Yanmar 17 excavator purchased at the Machinery City in 2024. The vehicle condition is exempt from inspection and can be tested at any time without being expensive! This Yanmar 17 excavator was purchased from our Machinery City in 2024. After comprehensive inspection and meticulous maintenance, the overall condition of the vehicle is excellent. Up to now, the cumulative working time of this equipment is only 1,500 hours, which is far lower than the average usage time of similar equipment, ensuring its excellent performance and long service life. In terms of the power system, this machine is equipped with an efficient and reliable original Yanmar engine, which features strong power output and smooth operation characteristics. Whether facing complex terrains or high-intensity working environments, it can handle them with ease and perform outstandingly. In addition, the advanced fuel management system effectively reduces fuel consumption and enhances economic benefits. The hydraulic system is one of the key indicators for measuring the performance of excavators. This Yanmar 17 adopts advanced hydraulic technology, ensuring precise control and smooth response during operation. Whether in operation
