Product Description
Built for demanding construction environments, this 2019 Sany SY215C excavator delivers reliable 21-ton performance with exceptional operator control. Powered by a robust Mitsubishi 4M50 engine producing 118kW at 2000 rpm, this machine combines proven hydraulic efficiency with superior maneuverability on job sites.
Operators benefit from enhanced cabin visibility and ergonomic controls that reduce fatigue during extended work cycles. With 138kN bucket digging force and 103kN rod digging force, this excavator handles heavy-duty excavation tasks while maintaining precise control for detailed work. The water-cooled engine system ensures consistent performance across varying operating conditions.
- Maximum digging reach: 10.28m with 6.6m depth capability
- Compact transport dimensions: 9.68m length, 2.98m width
- Fuel-efficient operation with 390L tank capacity
- Stable 2.38m track gauge for enhanced job site mobility
- Located in Beijing with comprehensive service history
This well-maintained unit represents solid value for contractors requiring dependable mid-size excavation equipment with proven Chinese manufacturing quality.
| Specifications | Value |
|---|---|
| No. | 984078 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

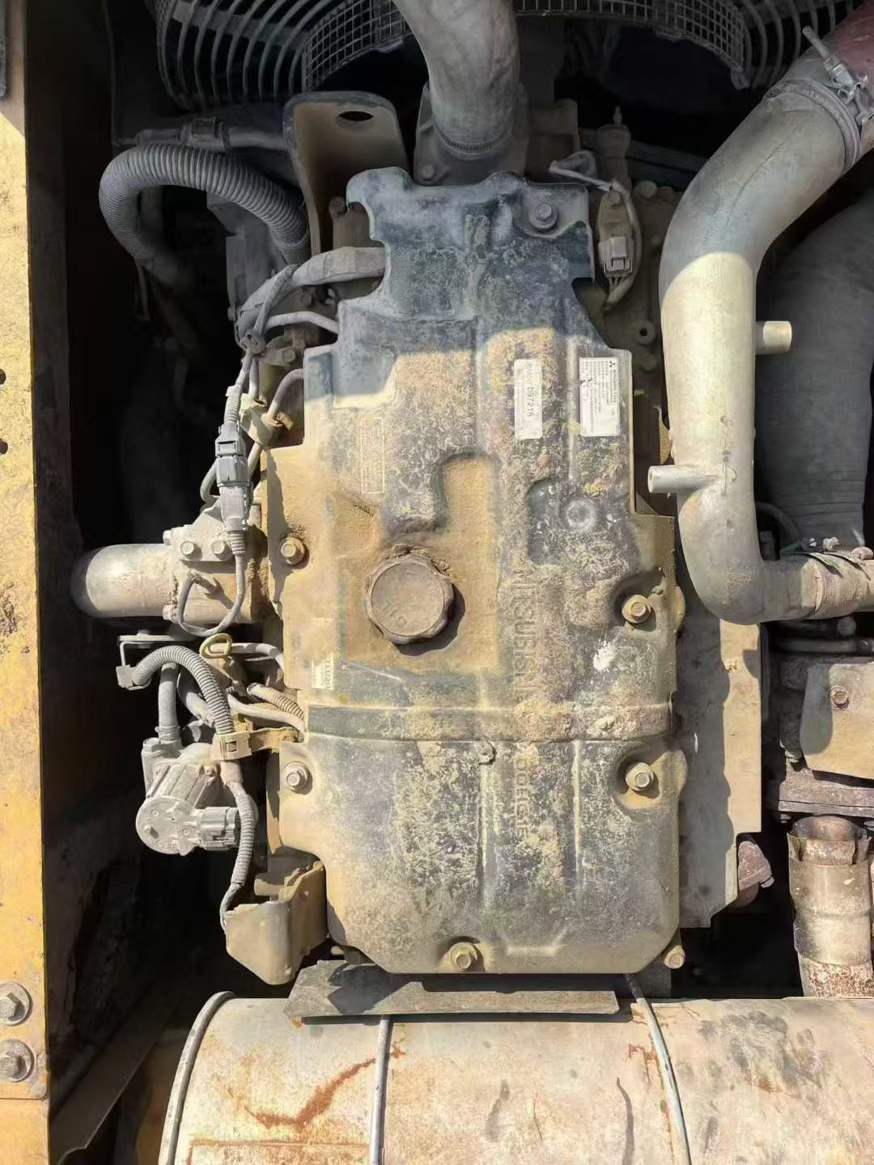

| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
