HOME>>Brands>>Caterpillar 320B

2016 Caterpillar 320B

1/9
Used Caterpillar 320B Excavator 2016 Model / 1
Used Caterpillar 320B Excavator 2016 Model / 2

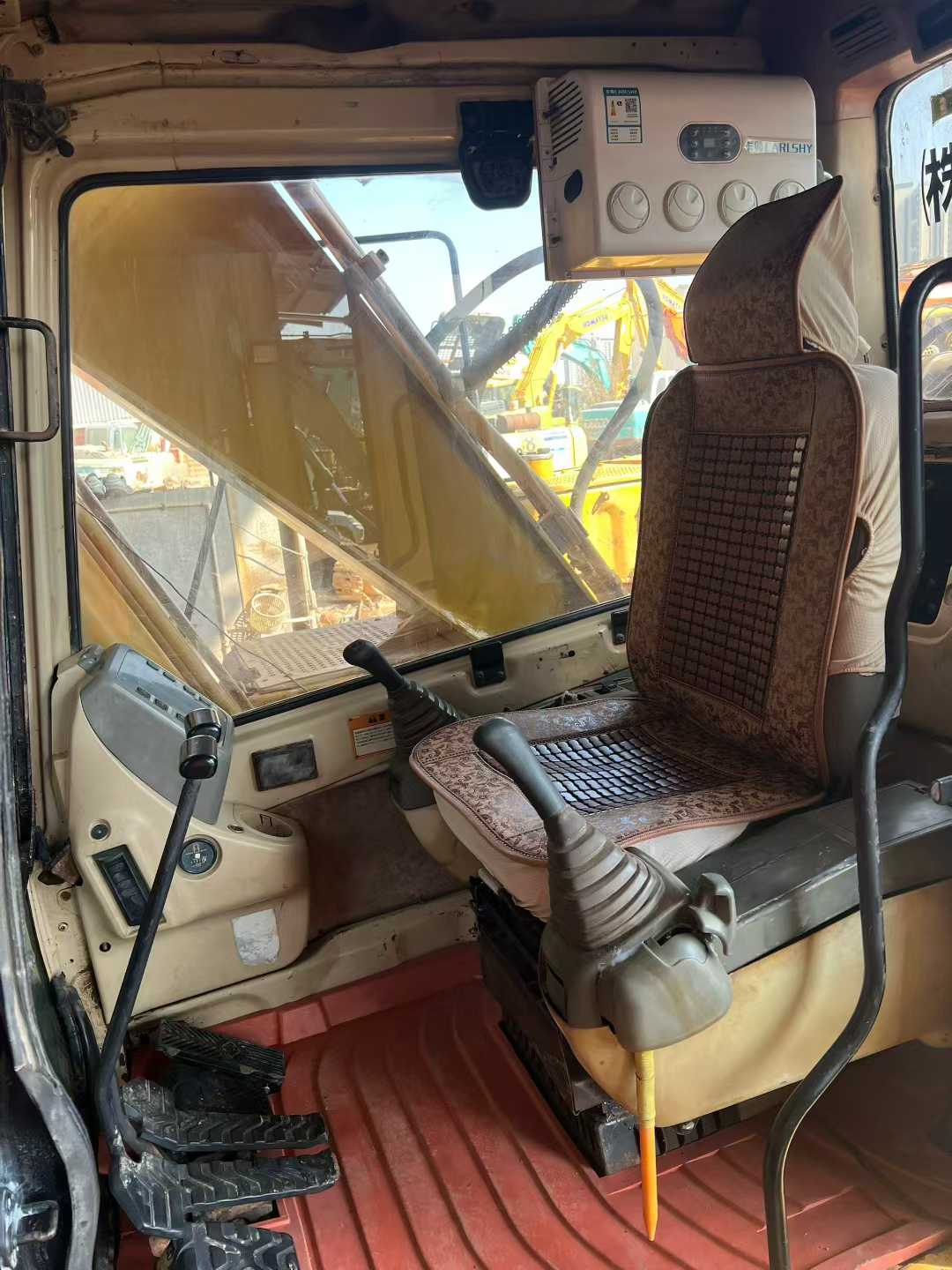

Used Caterpillar 320B Excavator 2016 Model / 3

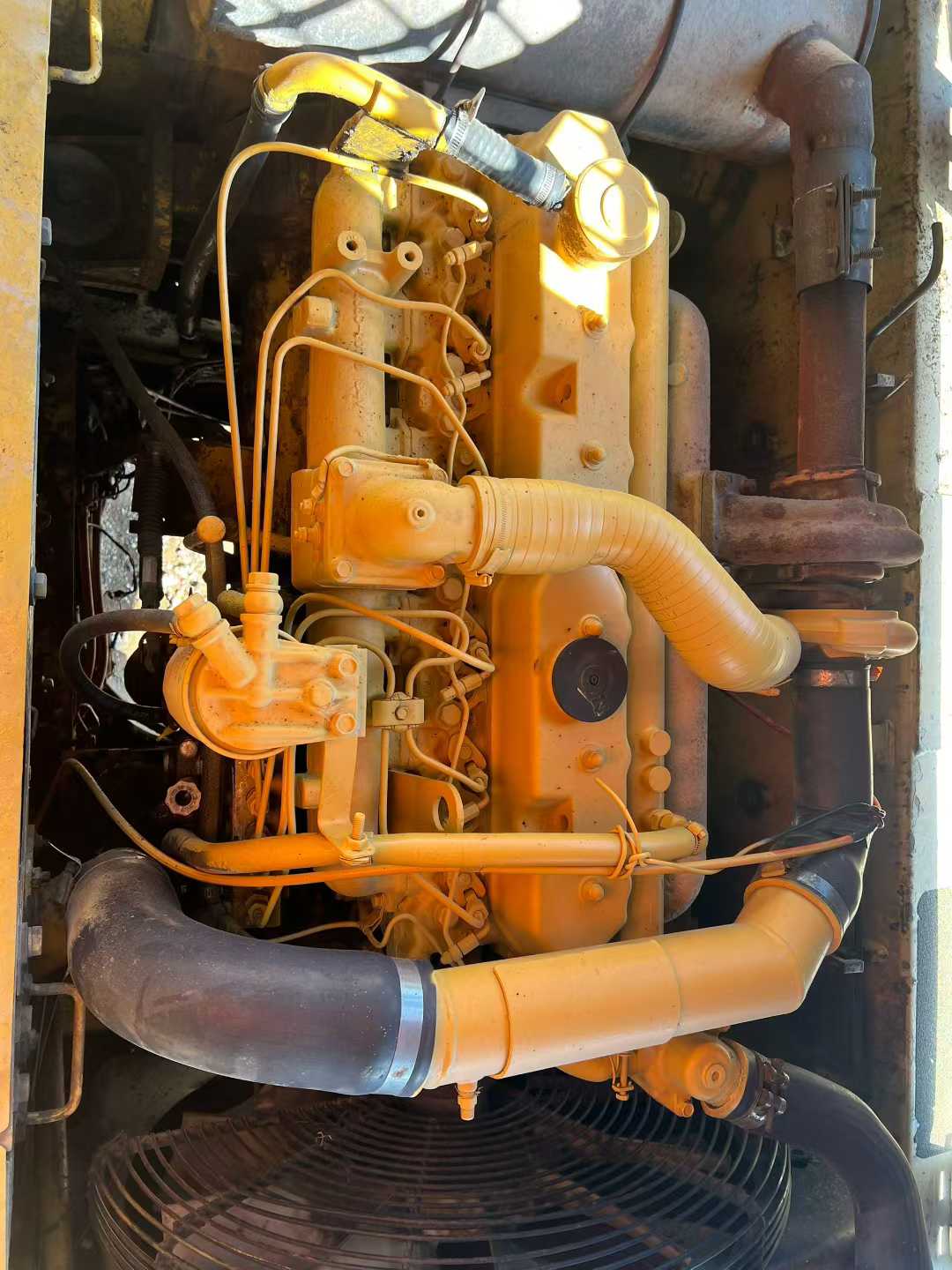

Used Caterpillar 320B Excavator 2016 Model / 4

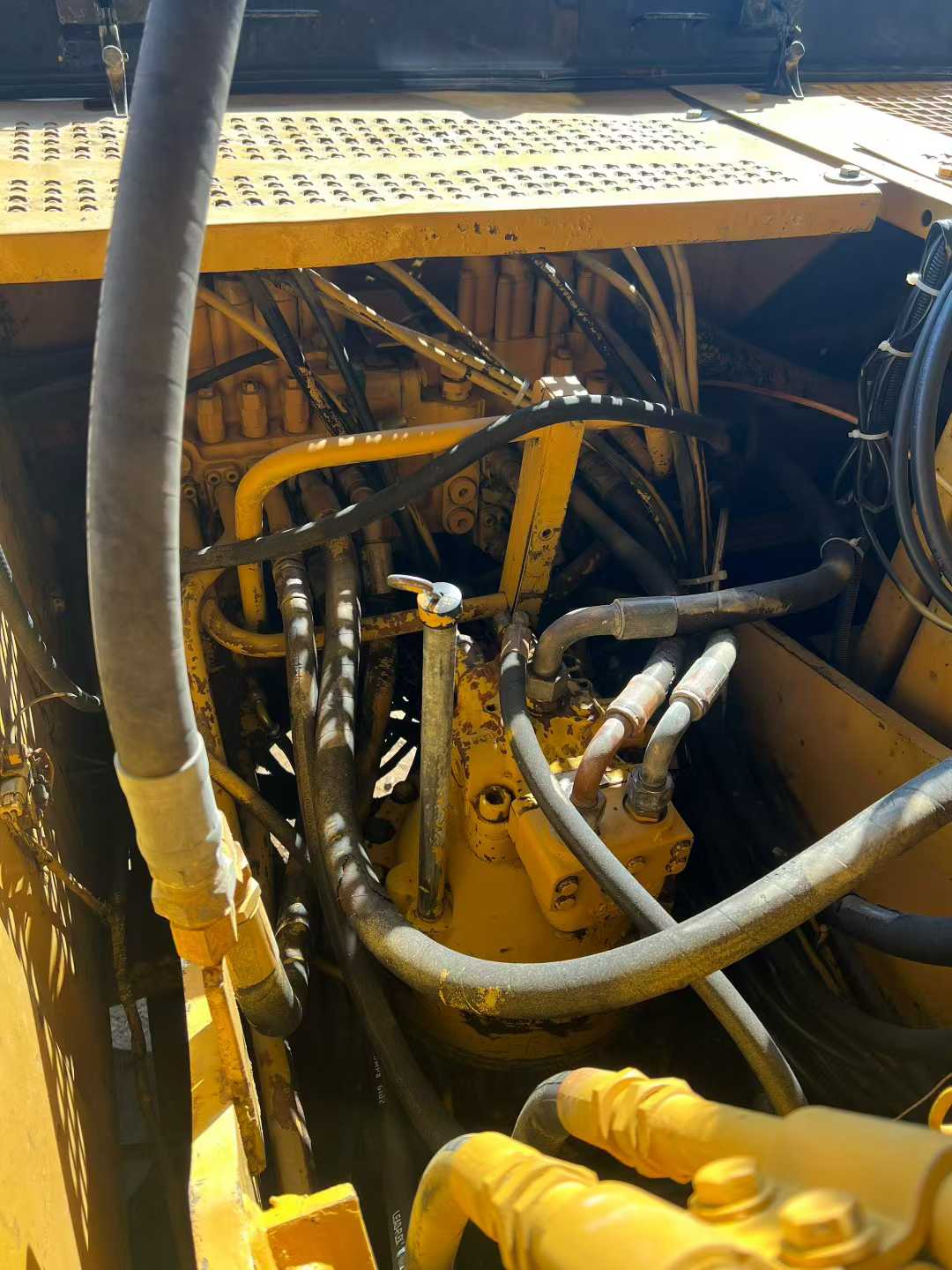

Used Caterpillar 320B Excavator 2016 Model / 5

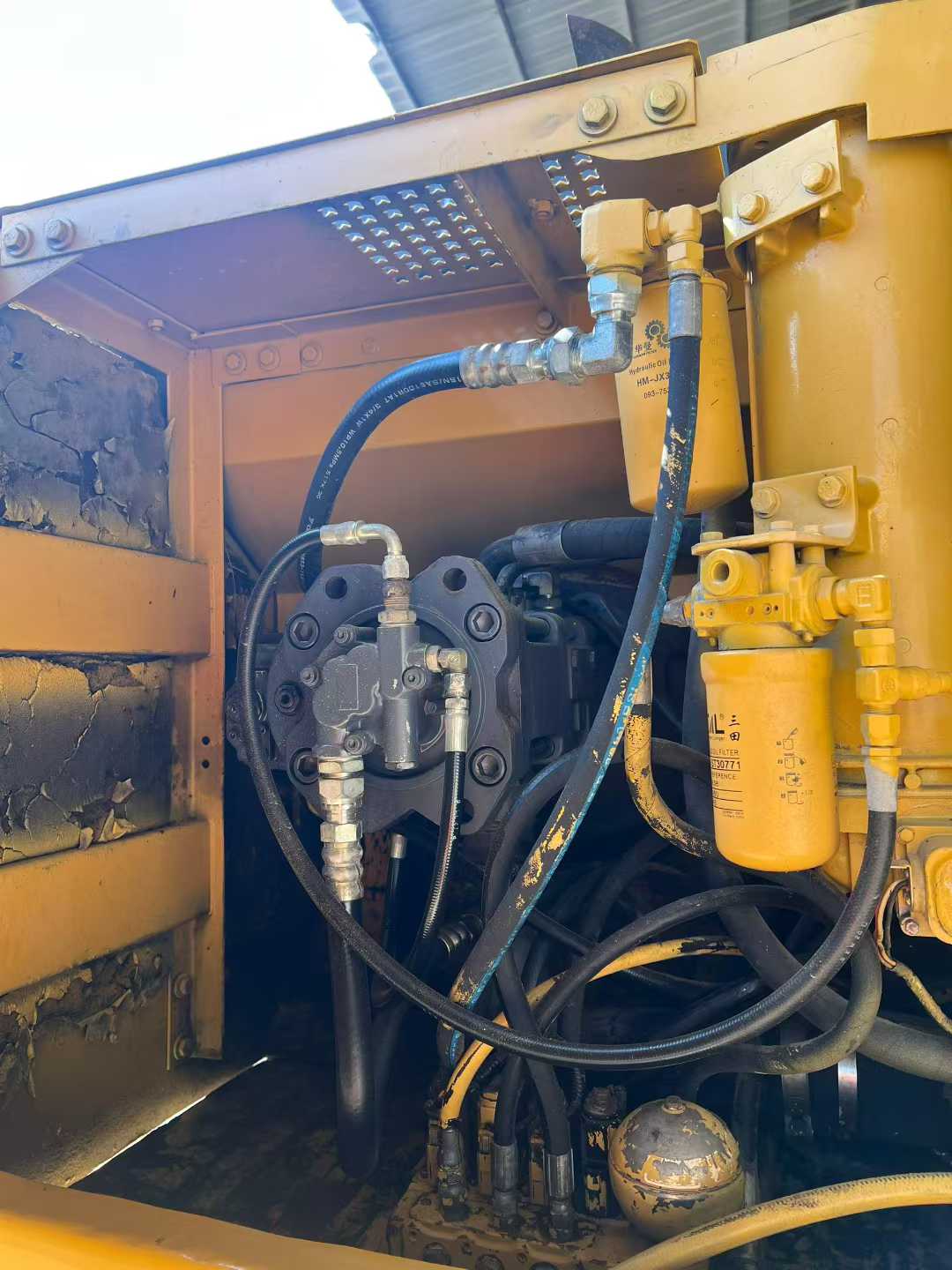

Used Caterpillar 320B Excavator 2016 Model / 6
Used Caterpillar 320B Excavator 2016 Model / 7
Used Caterpillar 320B Excavator 2016 Model / 8

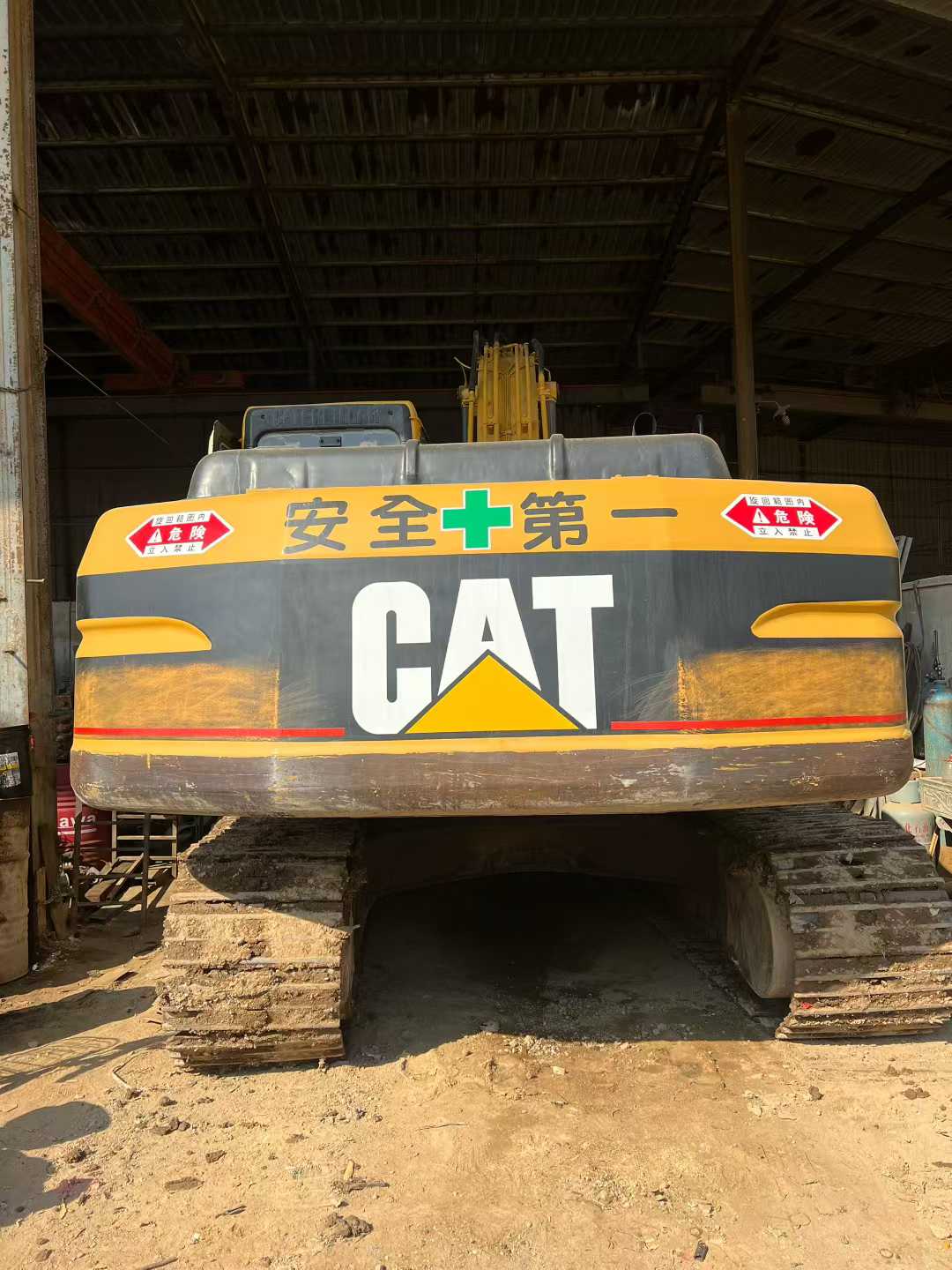

Used Caterpillar 320B Excavator 2016 Model / 9

Product Description

【 Premium Caterpillar 320B second-hand excavator, the best choice for cost performance 】 This Caterpillar 320B excavator is a rare gem in the market. Not only is it in excellent condition, but it is also reasonably priced, making it an ideal choice for users with limited budgets who still pursue high-quality equipment. The cumulative working time of this machine is only 5,000 hours, which is far lower than the average service life of the same model. This means that it still has a long service life to be excavated. In terms of the power system, it adopts the original imported C7.1 engine from Caterpillar, which is stable and reliable in performance. Even under harsh working conditions, it can maintain strong power output, and at the same time, it has good fuel economy, reducing long-term operating costs. After comprehensive inspection and maintenance by professional technicians, it is ensured that there are no potential faults and it can be put into high-intensity operation at any time. The hydraulic system adopts advanced load sensing technology, which can automatically adjust the flow and pressure according to actual needs. This ensures operational flexibility while significantly enhancing work efficiency. All key components such a

SpecificationsValue
No.964010
Tonnage (tons)20
Working weight (kg)19400
Bucket capacity (m³)0.92
Boom length (mm)5680
Rod length (mm)2900
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCaterpillar CAT 3066T
Rated power (kw/rpm)99.9/1800
Cylinder diameter × stroke (mm)102 x 130
Displacement (L)6.4
Rotation speed (rpm)10.7
Travel speed (km/h)3.4/5.5
Maximum flow of main pump (l/min)185
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)23
Working Hydraulic Circuit (Mpa)34.3
Pilot Oil Circuit (MPa)4.12
Bucket cylinders - Number × diameter × stroke (mm)1-120 x 1030
Bucket rod cylinders - Number × diameter × stroke (mm)1-140 x 1430
Boom cylinders - Number × diameter × stroke (mm)2-120 x 1260
Fuel Tank (L)340
Hydraulic Tank (L)130
Engine Oil changes (L)20.5
Coolant (L)25
Hydraulic System (L)220
Total transport length (mm)9440
Total transport width (mm)2800
Total transport height (mm)2940
Full cab height (mm)2940
Minimum ground clearance (mm)475
Back end turning radius (mm)2750
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3265
Maximum digging depth (mm)6640
Maximum excavation height (mm)9470
Maximum unloading height (mm)6570
Maximum vertical digging depth (mm)6040
Maximum excavation radius of stop surface (mm)9780
see more

Overview

No.964010

Brand Name:

Caterpillar

Model Number:

320B

Year:

2016

Location:

Fujian China
