2016 Caterpillar CT18
Product Description

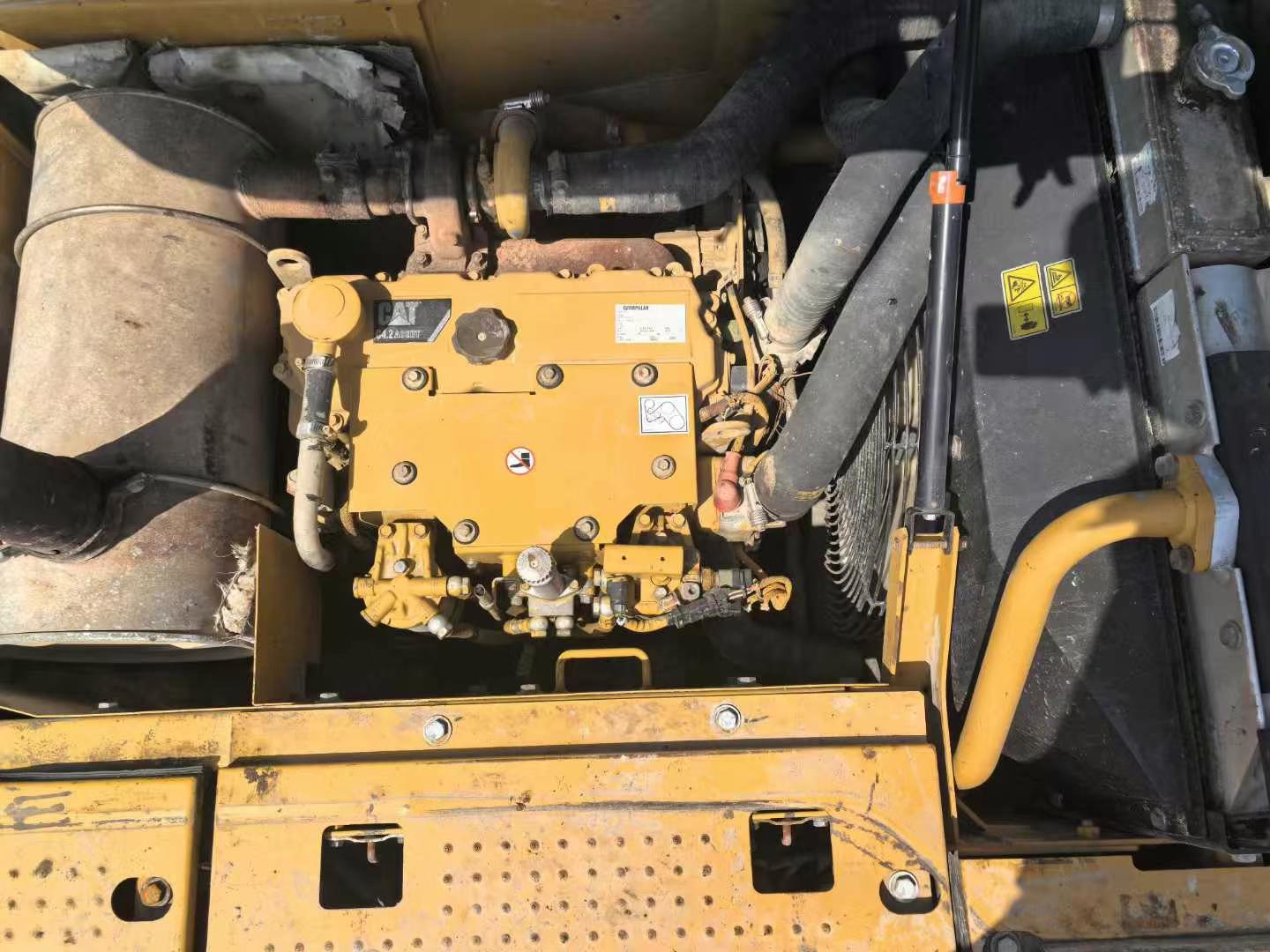

The Caterpillar CT18 is a compact excavator built for light earthwork and urban construction environments. This 2016 model is in stable condition and ready to work. The CT18's small size lets it access tight job sites while still delivering strong digging power and solid efficiency. Our team at Fair Trade Machinery has inspected this machine—engine, hydraulics, and electrical systems are all in good shape. Great value for buyers who want quality on a budget. Request a quote today!
| Specifications | Value |
|---|---|
| No. | 861206 |
| Tonnage (tons) | 18 |
| Working weight (kg) | 17690-17840 |
| Bucket capacity (m³) | 0.8 Universal /0.73 standard |
| Boom length (mm) | 5100 |
| Rod length (mm) | 2600 (Heavy bucket pole) |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C4.2 ACERT |
| Rated power (kw/rpm) | 86 (Net power) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | Meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC. |
| Ground specific pressure (Kpa) | 42.0-42.3 |
| Rotation speed (rpm) | 10.2 |
| Bucket digging force (kN) | 114.5 |
| Rod digging force (kN) | 80.4 |
| Maximum tractive force (kN) | 157 |
| Travel speed (km/h) | 5.6 |
| Maximum flow of main pump (l/min) | 150 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 22.55 |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Pilot pump flow (L/min) | 26.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 100 x 1048 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1331 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1193 |
| Fuel Tank (L) | 300 |
| Hydraulic Tank (L) | 106 |
| Engine Oil changes (L) | 17.5 |
| Coolant (L) | 22 |
| Hydraulic System (L) | 190 (including fuel tank) |
| Total transport length (mm) | 8540 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 3030 (to the top of the boom) |
| Full cab height (mm) | 2870 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2500 |
| Total track length (mm) | 3970 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2590 |
| Maximum digging depth (mm) | 6070 |
| Maximum excavation height (mm) | 8920 |
| Maximum unloading height (mm) | 6310 |
| Maximum vertical digging depth (mm) | 5350 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 8750 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 5840 |
see more
Overview
No.861206
Brand Name：
CaterpillarModel Number：
CT18Year：
2016
Location：
Zhejiang China
