2010 Hyundai R215-7

1/9
Used Hyundai R215-7 Excavator 2010 Model / 1

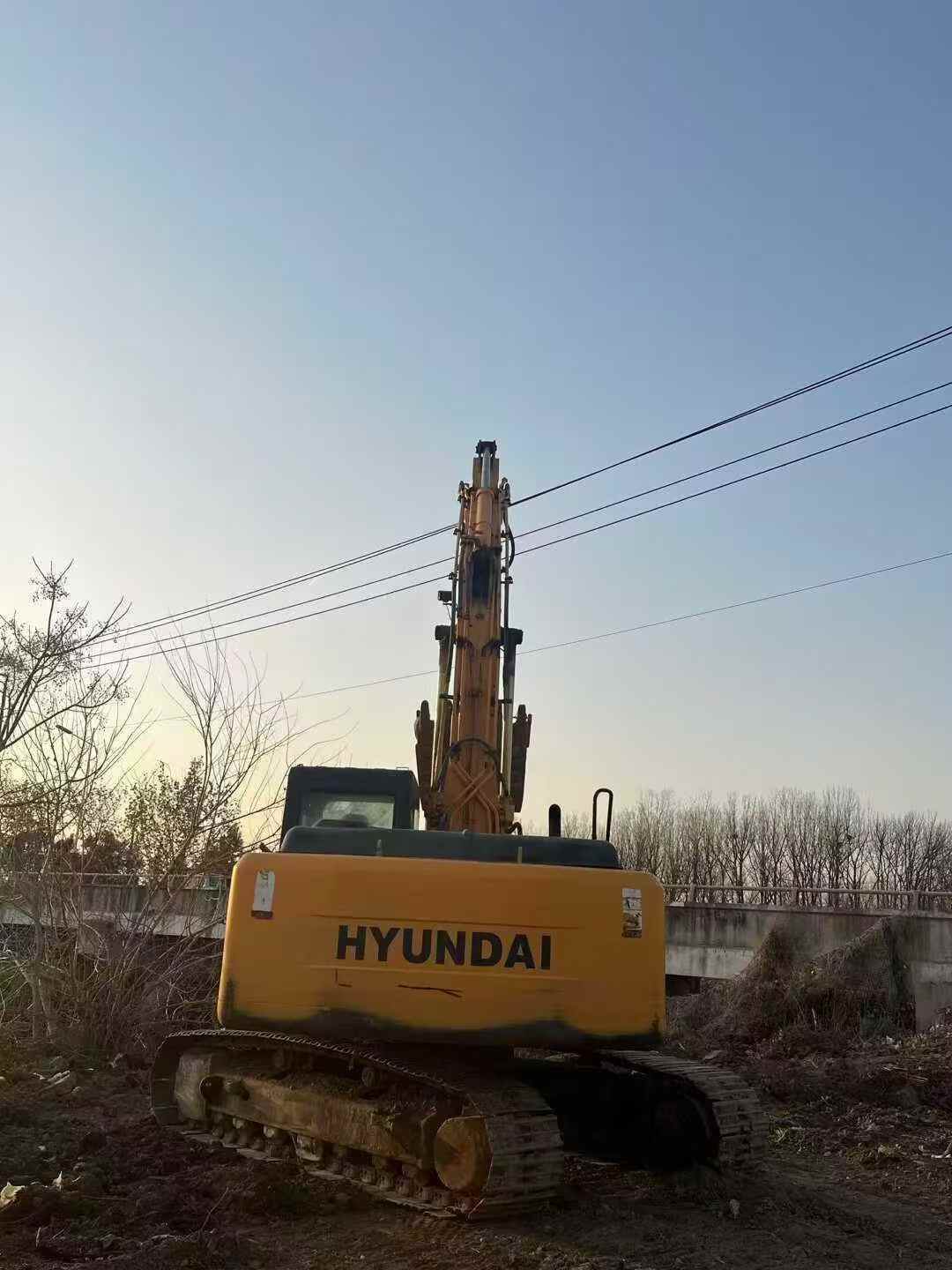

Used Hyundai R215-7 Excavator 2010 Model / 2
Used Hyundai R215-7 Excavator 2010 Model / 3

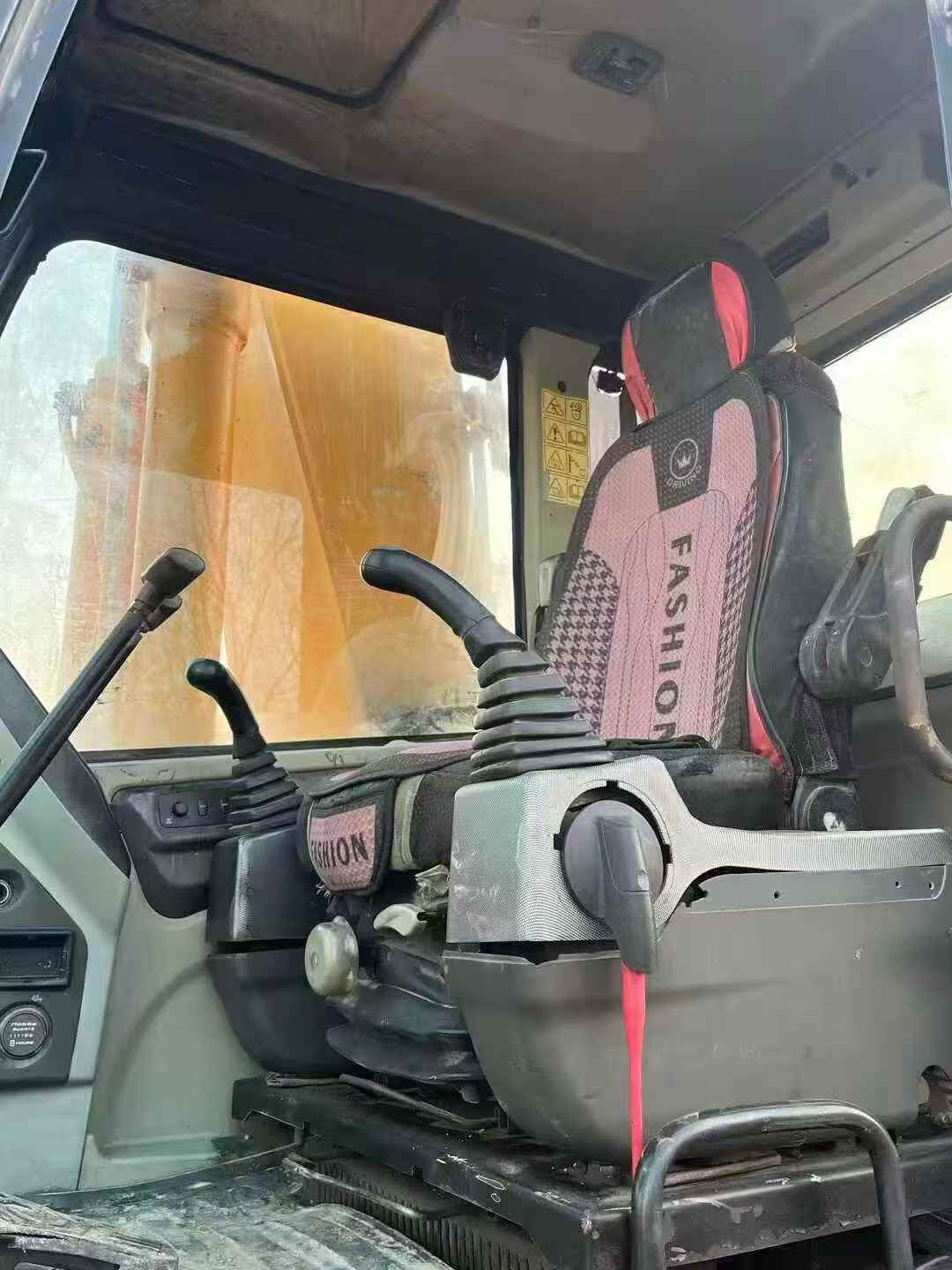

Used Hyundai R215-7 Excavator 2010 Model / 4

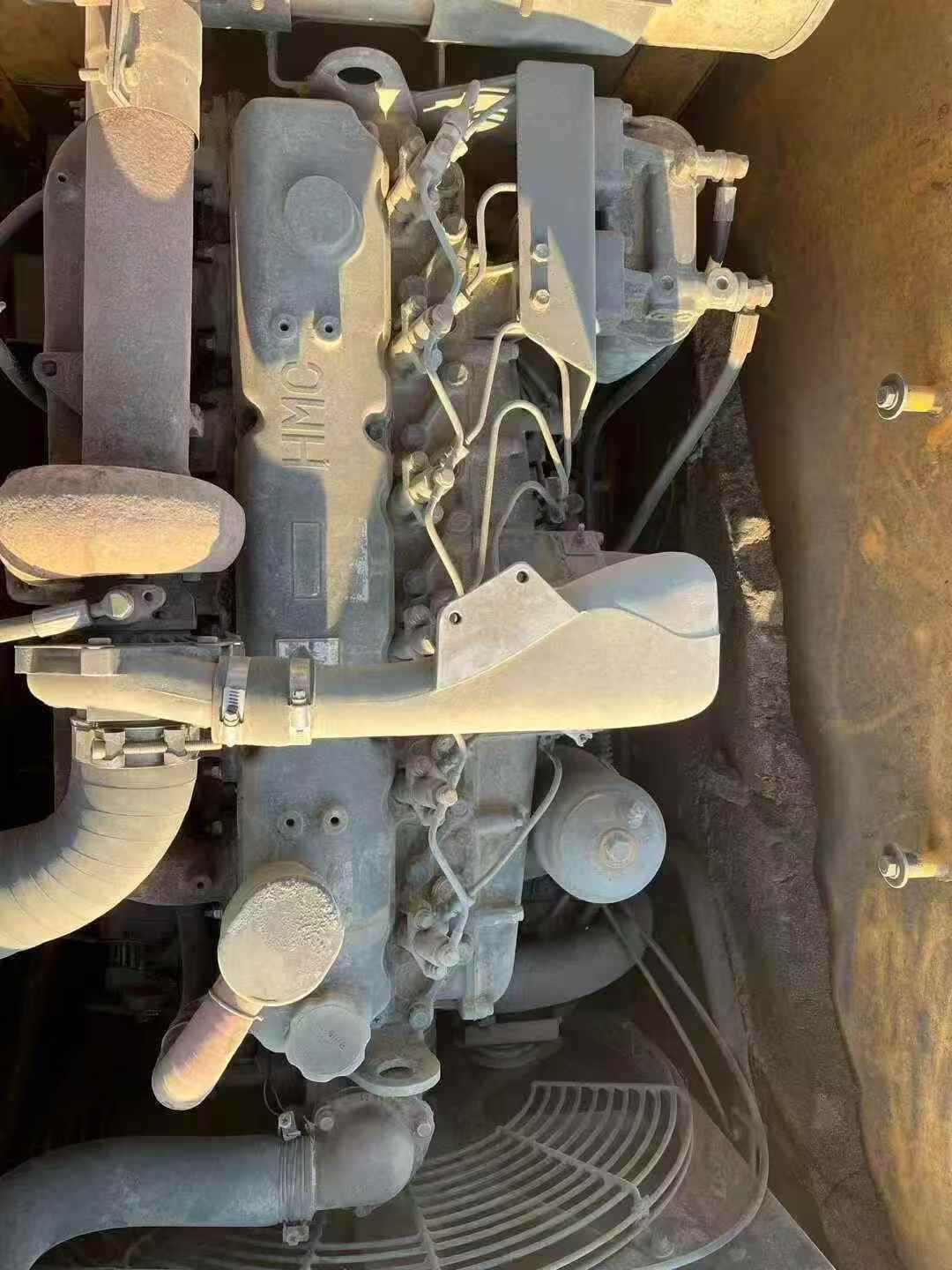

Used Hyundai R215-7 Excavator 2010 Model / 5

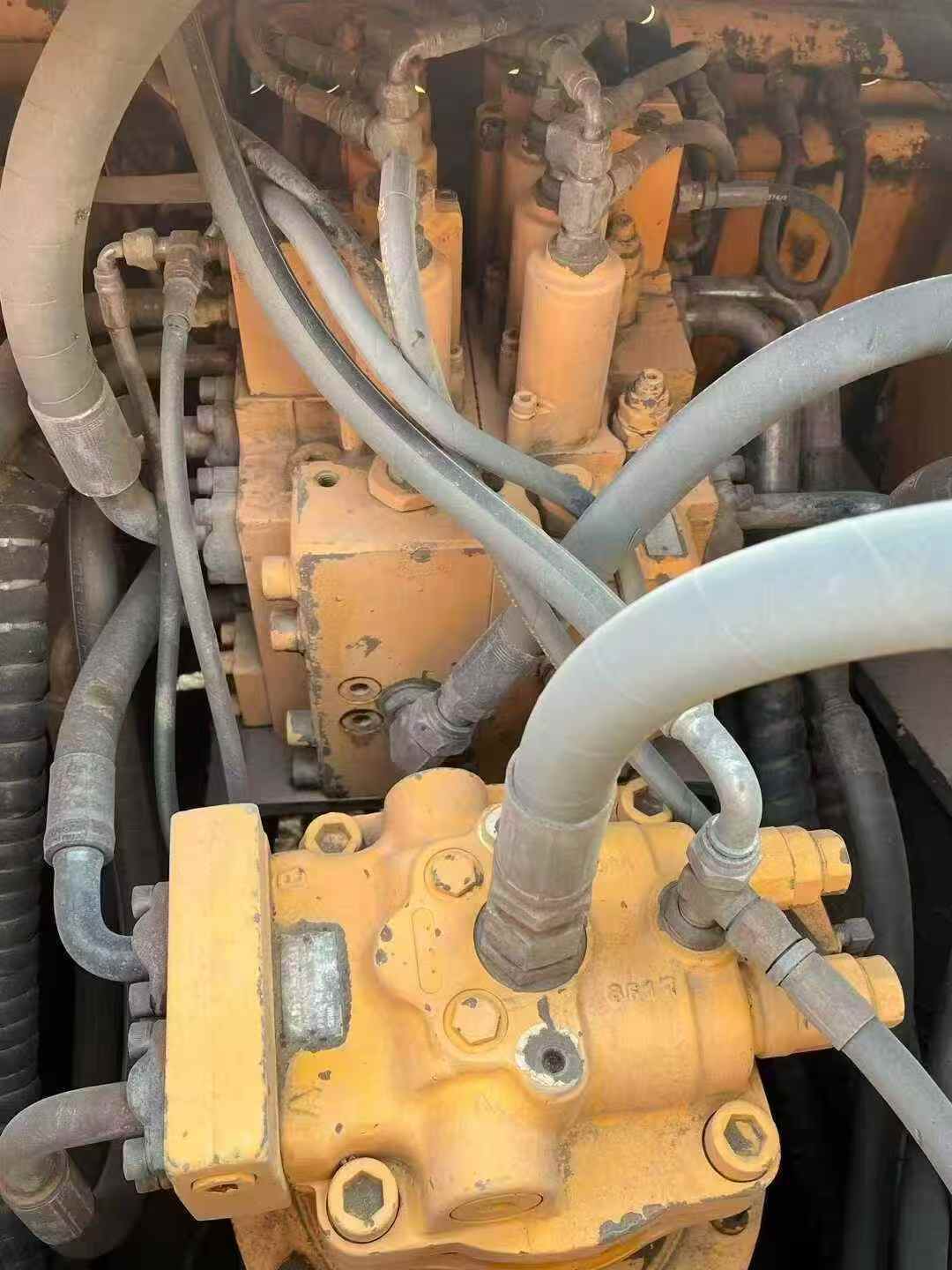

Used Hyundai R215-7 Excavator 2010 Model / 6

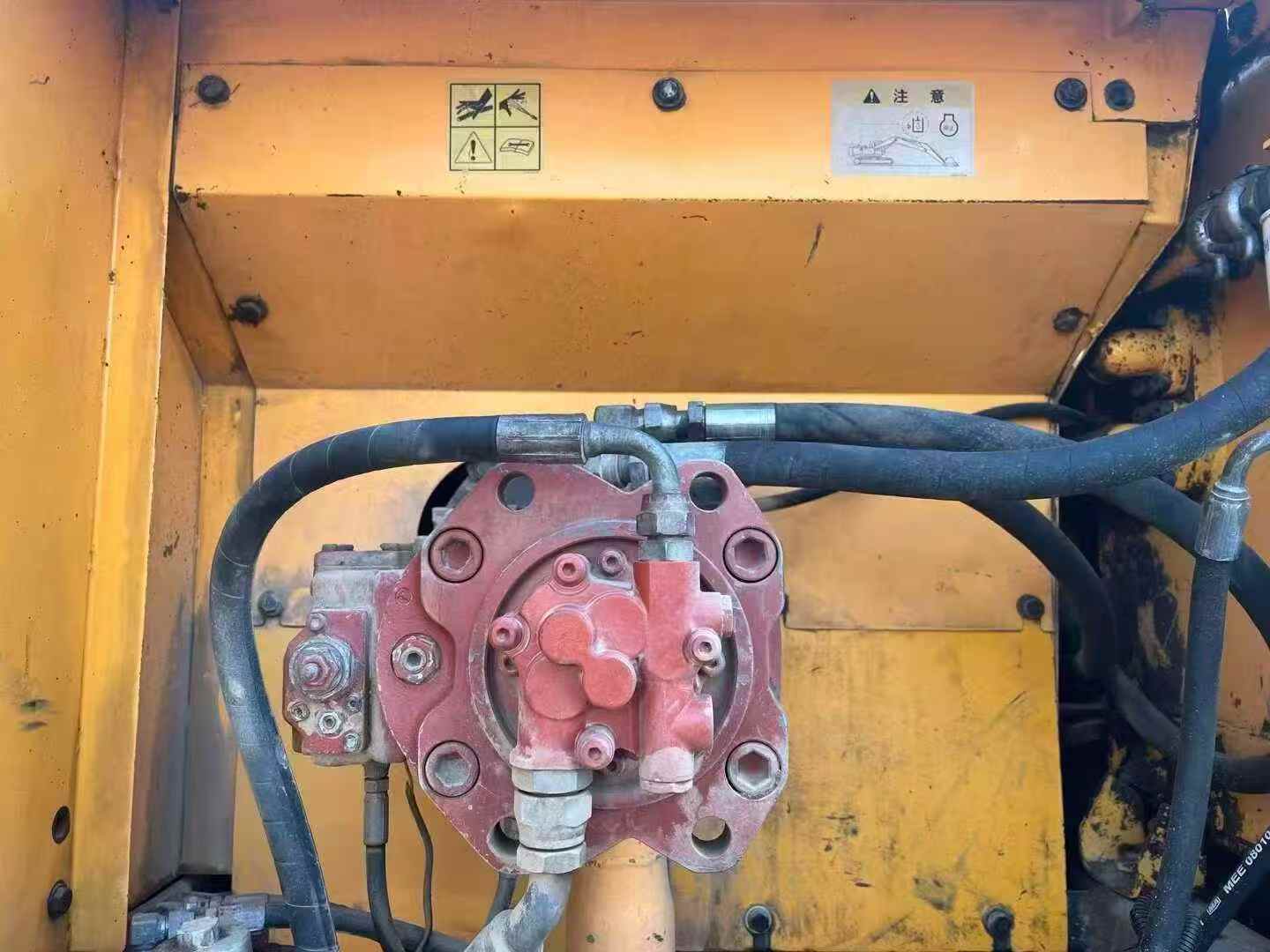

Used Hyundai R215-7 Excavator 2010 Model / 7

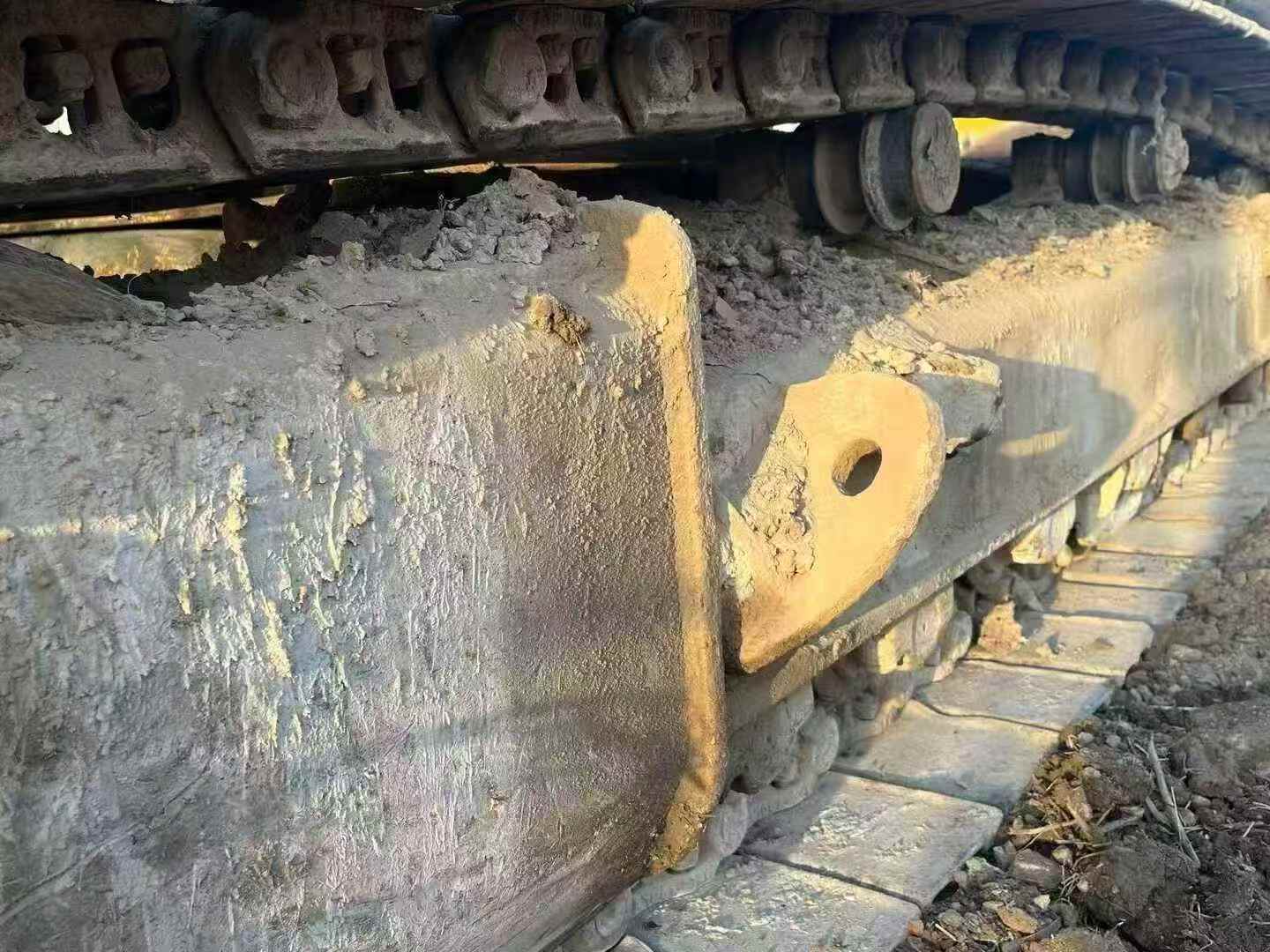

Used Hyundai R215-7 Excavator 2010 Model / 8
Used Hyundai R215-7 Excavator 2010 Model / 9

Product Description

【 Premium Recommendation 】 A 10-year-old Hyundai R215-7 second-hand excavator, in excellent condition and with outstanding performance, is your ideal choice for engineering operations. Since its manufacture, this excavator has only recorded 4,800 hours of working time, which is far lower than the average usage time of similar equipment, indicating that it still has a long service life to wait for excavation. In terms of the power system, this machine is equipped with an original imported engine, which operates stably and reliably with abundant power. After professional testing, the engine has no exhaust emissions at all. Not only does it meet environmental protection standards, but it also proves that its internal structure is good and the degree of wear is low, ensuring long-term working efficiency. In addition, this engine also features excellent fuel economy, which can effectively reduce your operating costs. The hydraulic system also performed exceptionally well, with flexible and precise operation and a rapid response. Both the digging force and the lifting force remained in the best condition. The entire set of hydraulic components has undergone strict inspection and maintenance, ensuring the efficient operation of the equipmen

SpecificationsValue
No.963606
Tonnage (tons)21
Working weight (kg)20700
Bucket capacity (m³)0.92
Boom length (mm)5650
Rod length (mm)2920
Country of originJiangsu (Province)
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHyundai D6BT-C
Rated power (kw/rpm)110/1950
Cooling modewater-cooling
Cylinder diameter × stroke (mm)118 x 115
Number of cylinders (PCS)6
Displacement (L)7
Working formSix-cylinder four-stroke turbocharged direct injection engine
Ground specific pressure (Kpa)47
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)123.3
Rod digging force (kN)95.1
Travel speed (km/h)3.5/5.2
Main overflow set pressure (Mpa)47
Rotary hydraulic motor typeQuantitative swash plate axial piston motor
Type of walking hydraulic motorVariable swash plate axial piston motor
Maximum flow of main pump (l/min)2 x 220
Traveling Hydraulic Circuit (Mpa)280
Rotary Hydraulic Circuit (Mpa)240
Main pump type2× variable axial piston pump + gear pump
Working Hydraulic Circuit (Mpa)280
Pilot Oil Circuit (MPa)35
Bucket cylinders - Number × diameter × stroke (mm)120 * 80 * 1120
Bucket rod cylinders - Number × diameter × stroke (mm)140 * 95 * 1570
Boom cylinders - Number × diameter × stroke (mm)125 * 85 * 1320
Fuel Tank (L)320
Hydraulic Tank (L)165
Engine Oil changes (L)16.3
Coolant (L)32.7
Hydraulic System (L)270
Total transport length (mm)9510
Total transport width (mm)2800
Total transport height (mm)2990
Full cab height (mm)2920
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)480
Back end turning radius (mm)2830
Total track length (mm)4160
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3360
Maximum digging radius (mm)9930
Maximum digging depth (mm)6800
Maximum excavation height (mm)9730
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6060
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Maximum excavation radius of stop surface (mm)9760
Maximum effective digging depth (mm)6610
see more

Overview

No.963606

Brand Name:

Hyundai

Model Number:

R215-7

Year:

2010

Location:

Jiangsu China
