HOME>>Brands>>Sany SY215C-9

2013 Sany SY215C-9

1/9
Used Sany SY215C-9 Excavator 2013 Model / 1

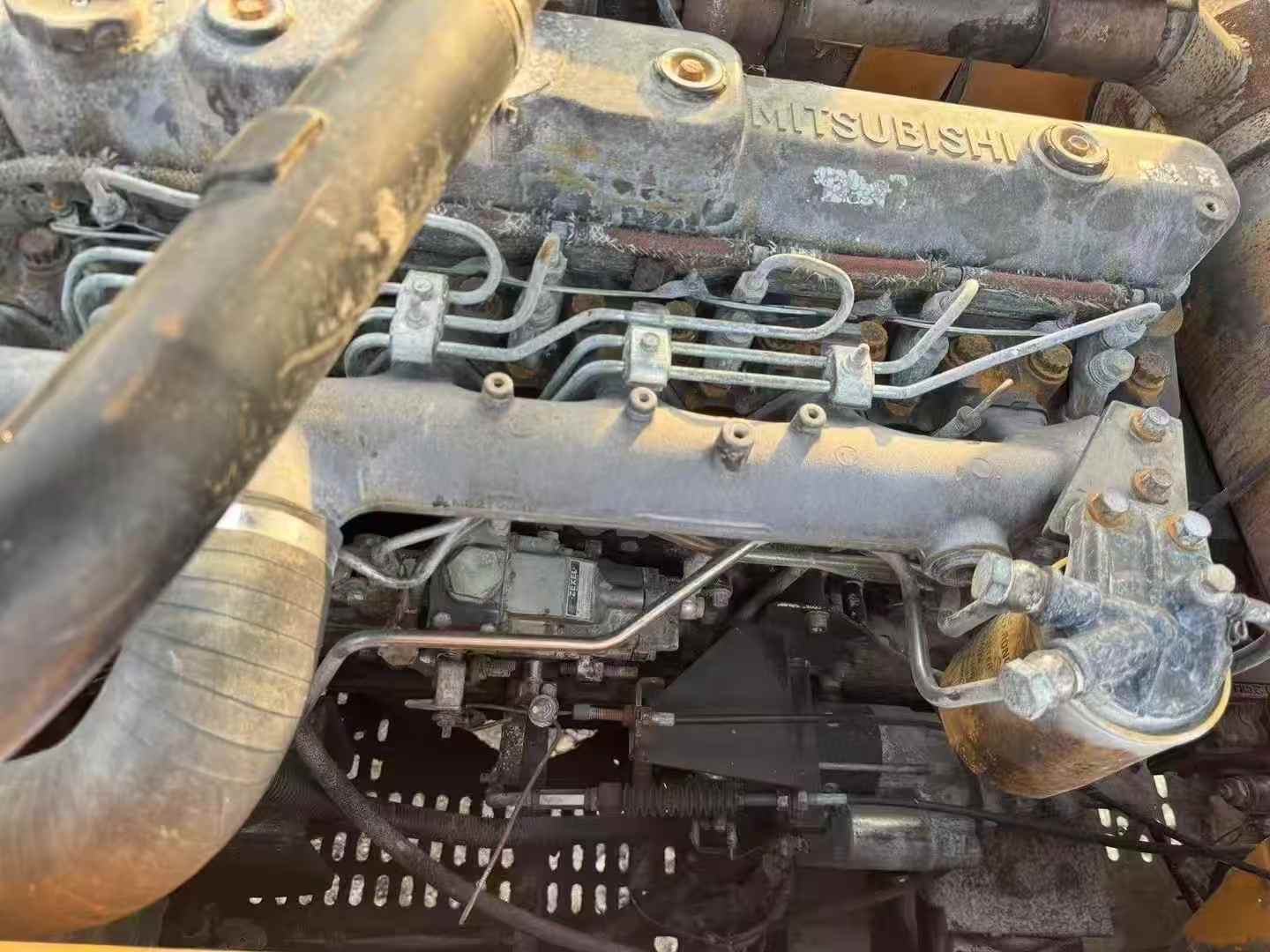

Used Sany SY215C-9 Excavator 2013 Model / 2

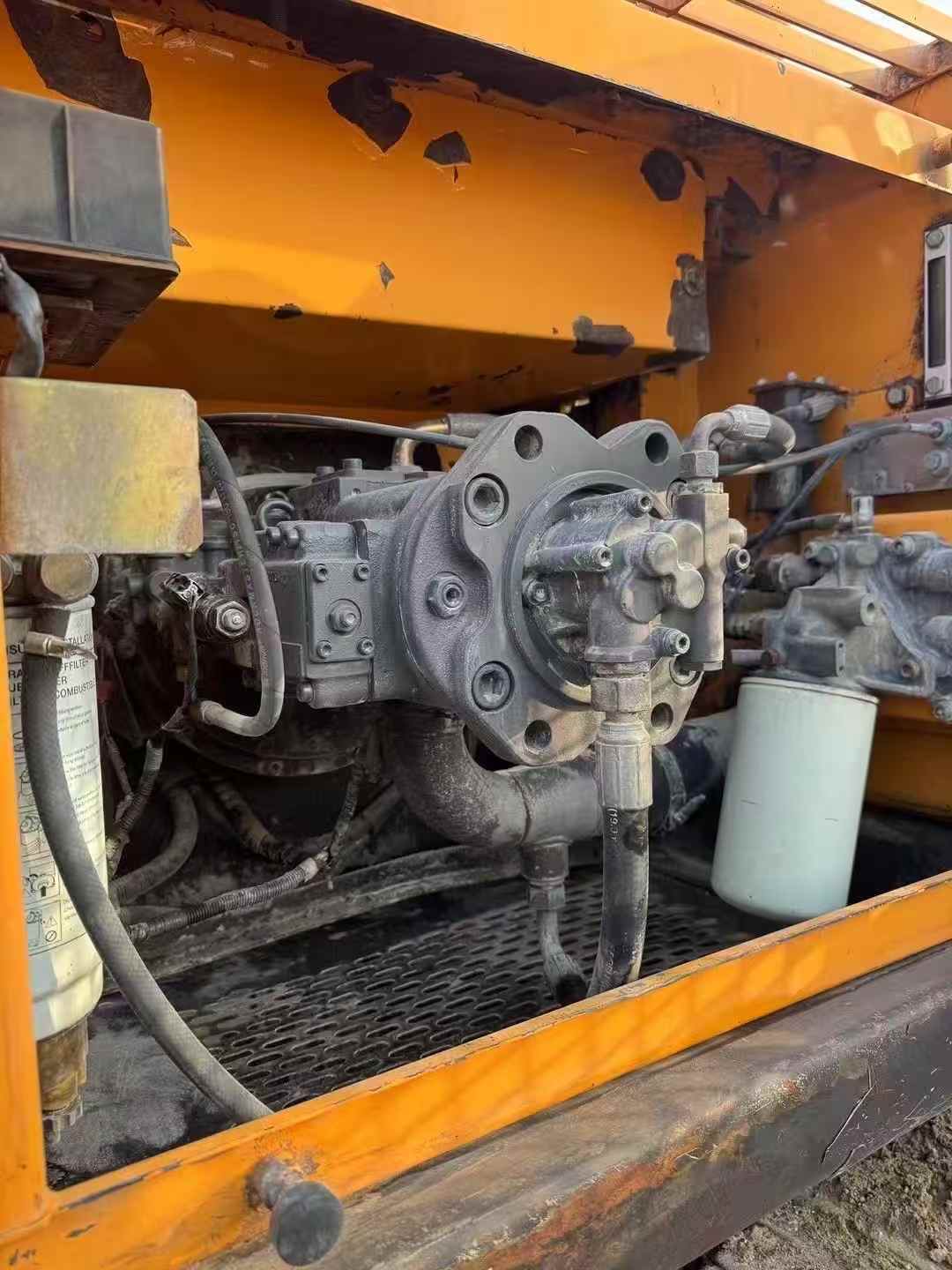

Used Sany SY215C-9 Excavator 2013 Model / 3

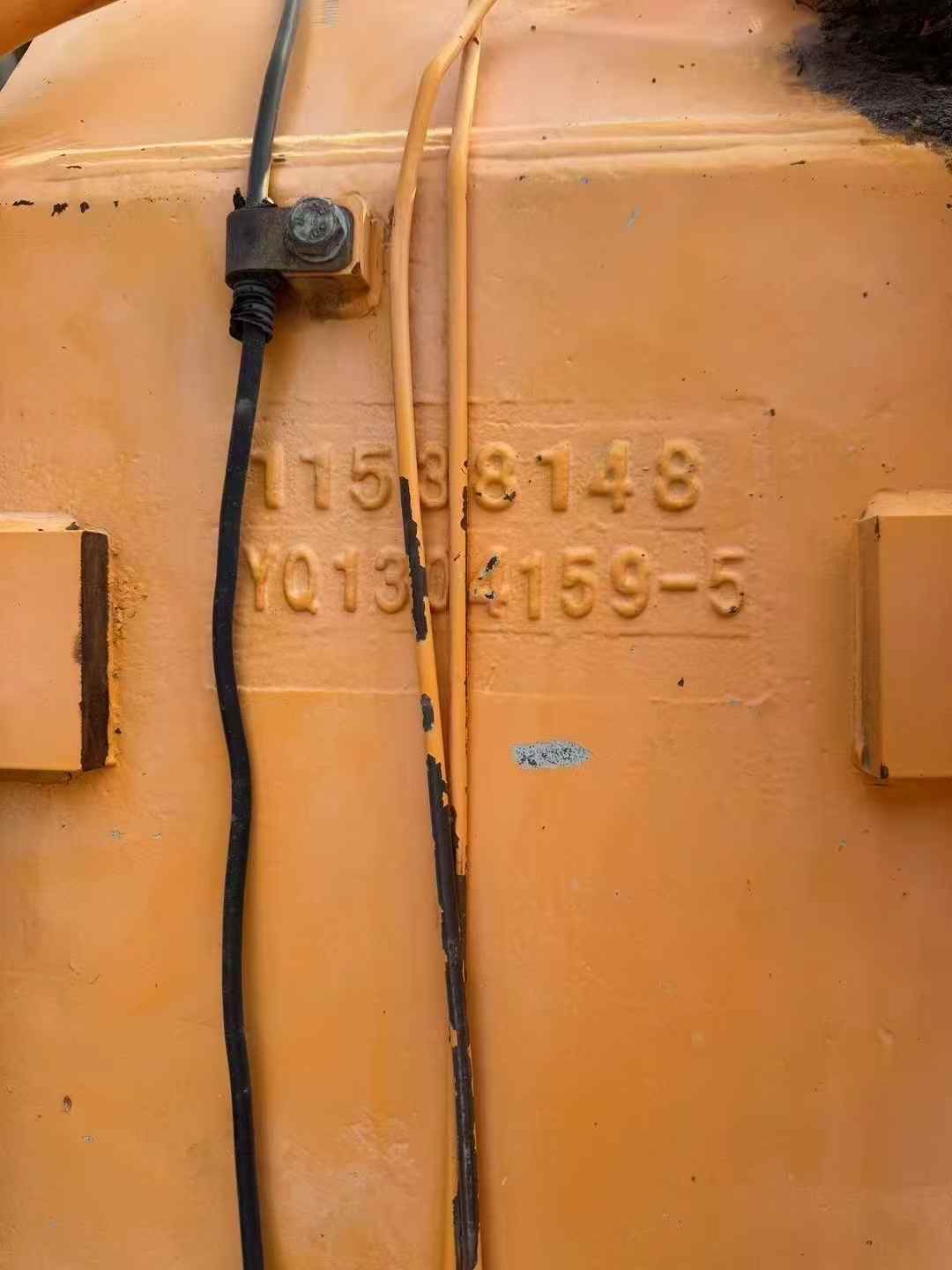

Used Sany SY215C-9 Excavator 2013 Model / 4

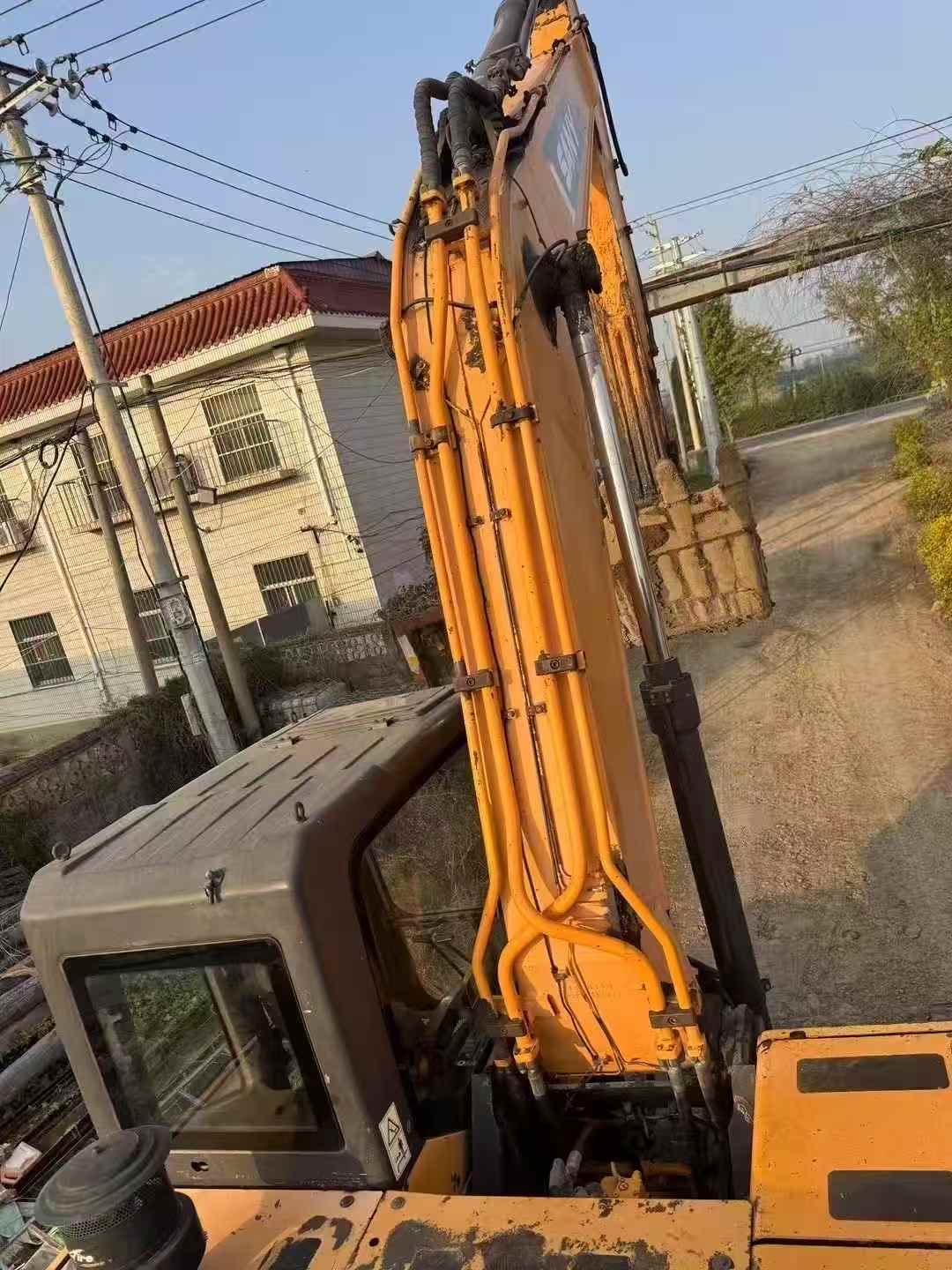

Used Sany SY215C-9 Excavator 2013 Model / 5
Used Sany SY215C-9 Excavator 2013 Model / 6

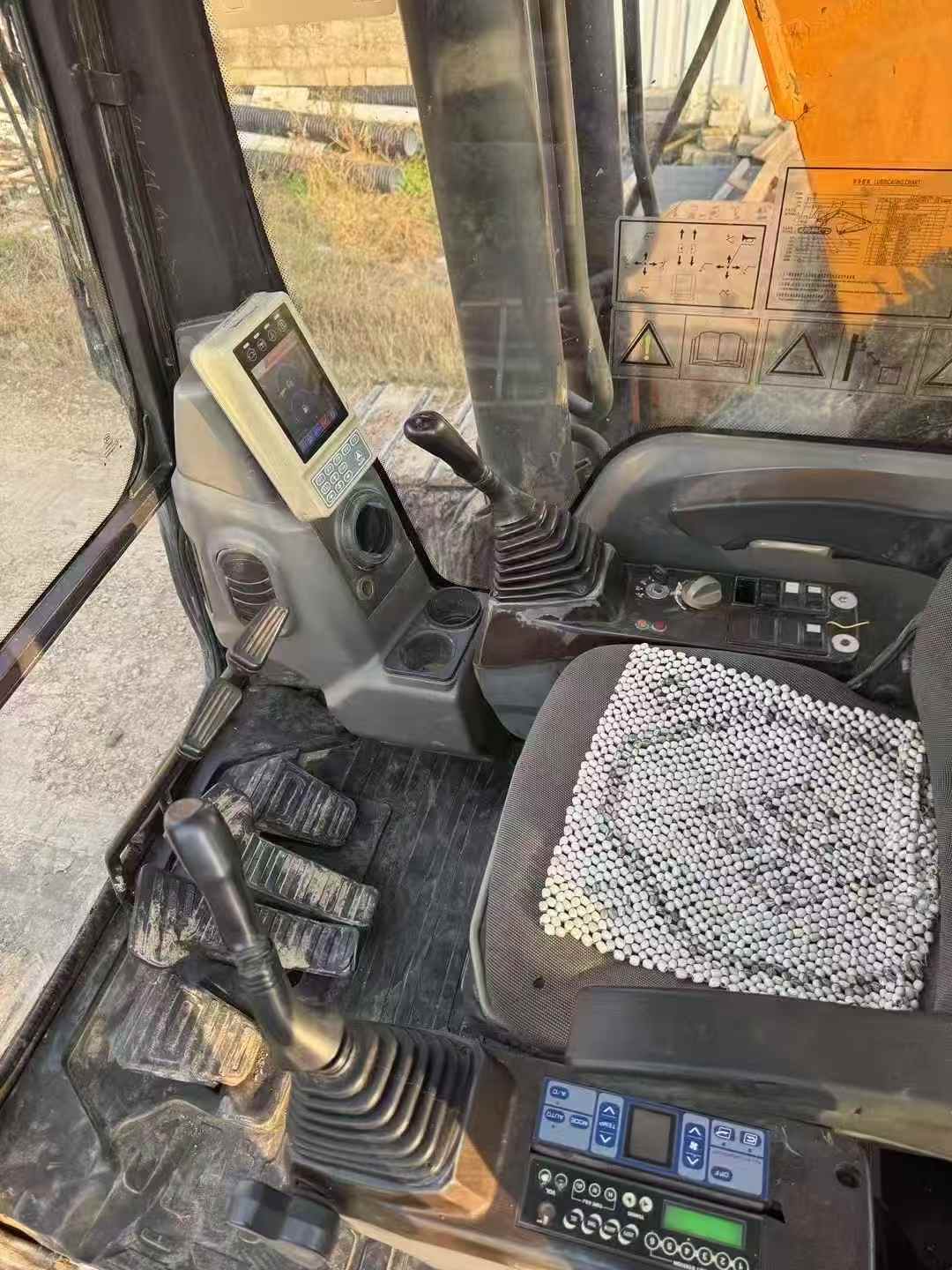

Used Sany SY215C-9 Excavator 2013 Model / 7

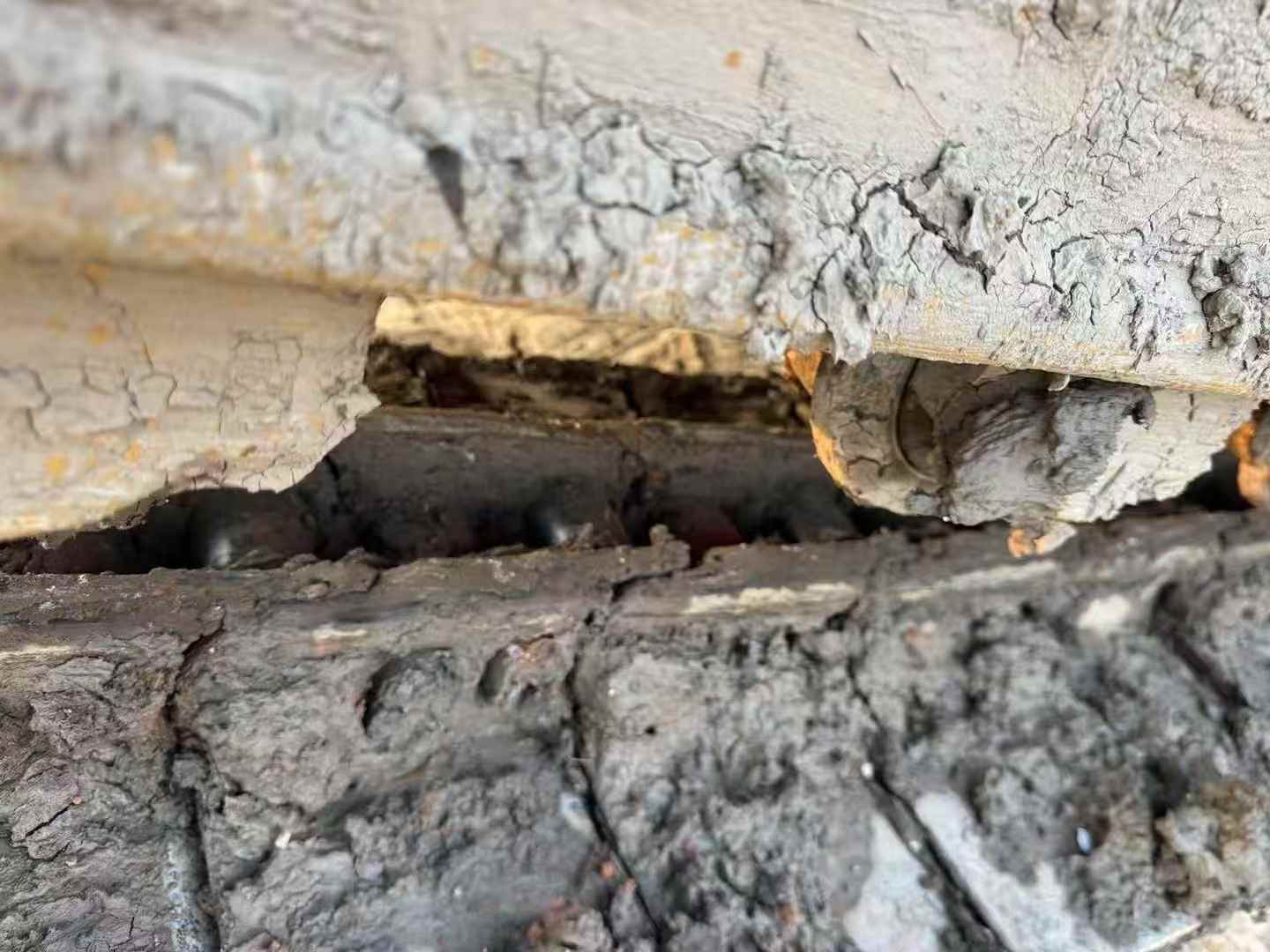

Used Sany SY215C-9 Excavator 2013 Model / 8

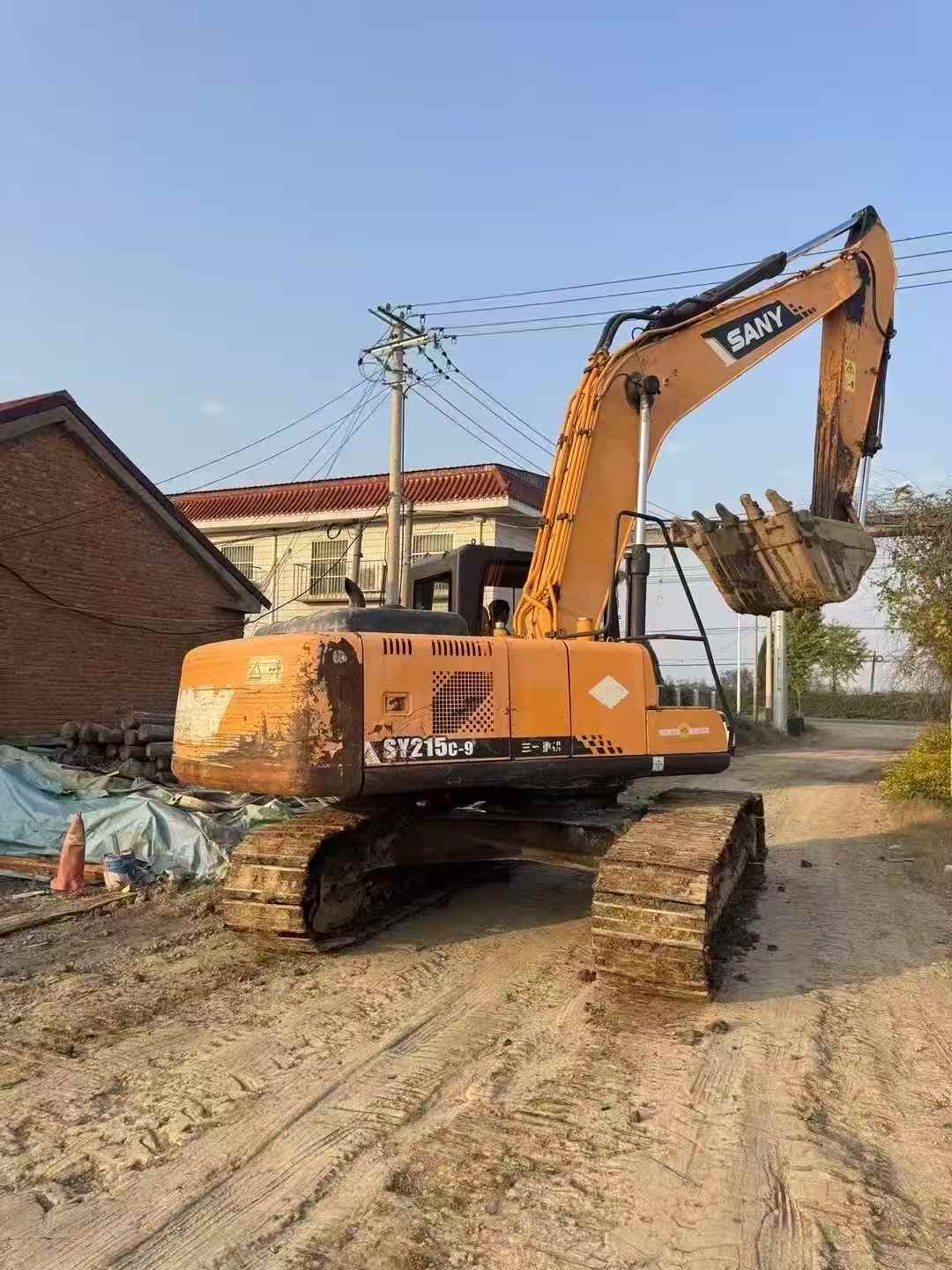

Used Sany SY215C-9 Excavator 2013 Model / 9

Product Description

【 Premium Recommendation 】 The Sany SY215-9 excavator, manufactured at the end of 2013, has a working time of only 4,000 hours and is in excellent condition, making it a top choice in earthwork operations. This device is equipped with a well-tested Isuzu engine that is powerful, stable and reliable. It can handle complex terrains and high-intensity operations with ease. Its fuel economy is also excellent, significantly reducing the cost of use. In terms of the hydraulic system, this machine is equipped with an advanced negative flow control system, ensuring the accuracy and flexibility of operation. At the same time, it has excellent digging and lifting forces, and can efficiently complete various earthwork engineering tasks. In addition, the circuit system of this machine operates normally with no fault records, ensuring the smooth progress of daily work. It is particularly worth mentioning that the turntable of this excavator is in good condition and there is no gap problem at all. The boom is tightly and firmly connected. The feature of "no boom dropping" makes the construction process safer and more reassuring. Overall, this is a second-hand excavator that is exempt from performance inspection, fast in speed and highly efficient

SpecificationsValue
No.960841
Tonnage (tons)21
Working weight (kg)21800
Bucket capacity (m³)0.93 (0.8~1.2)
Country of originShanghai
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)114/2050
Cooling modewater-cooling
Ground specific pressure (Kpa)46.5
Rotation speed (rpm)11
Climbing ability (%)70/35 °
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Main overflow set pressure (Mpa)34.3
Maximum flow of main pump (l/min)2 x 210
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25.5
Control Hydraulic Circuit (Mpa)3.9
Hydraulic crushing pipeline is standardno
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)2990
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3595
Back end turning radius (mm)2890
Onboard width (mm)2710
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600 (800/700 optional)
Total track width (mm)2980
Track ground length (mm)3445
Maximum digging radius (mm)9950
Maximum digging depth (mm)6600
Maximum excavation height (mm)9570
Maximum unloading height (mm)6700
Maximum vertical digging depth (mm)5800
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Maximum excavation radius of stop surface (mm)9885
see more

Overview

No.960841

Brand Name:

Sany

Model Number:

SY215C-9

Year:

2013

Location:

Jiangsu China

Are you interested in this machine?

Please contact us
