Product Description

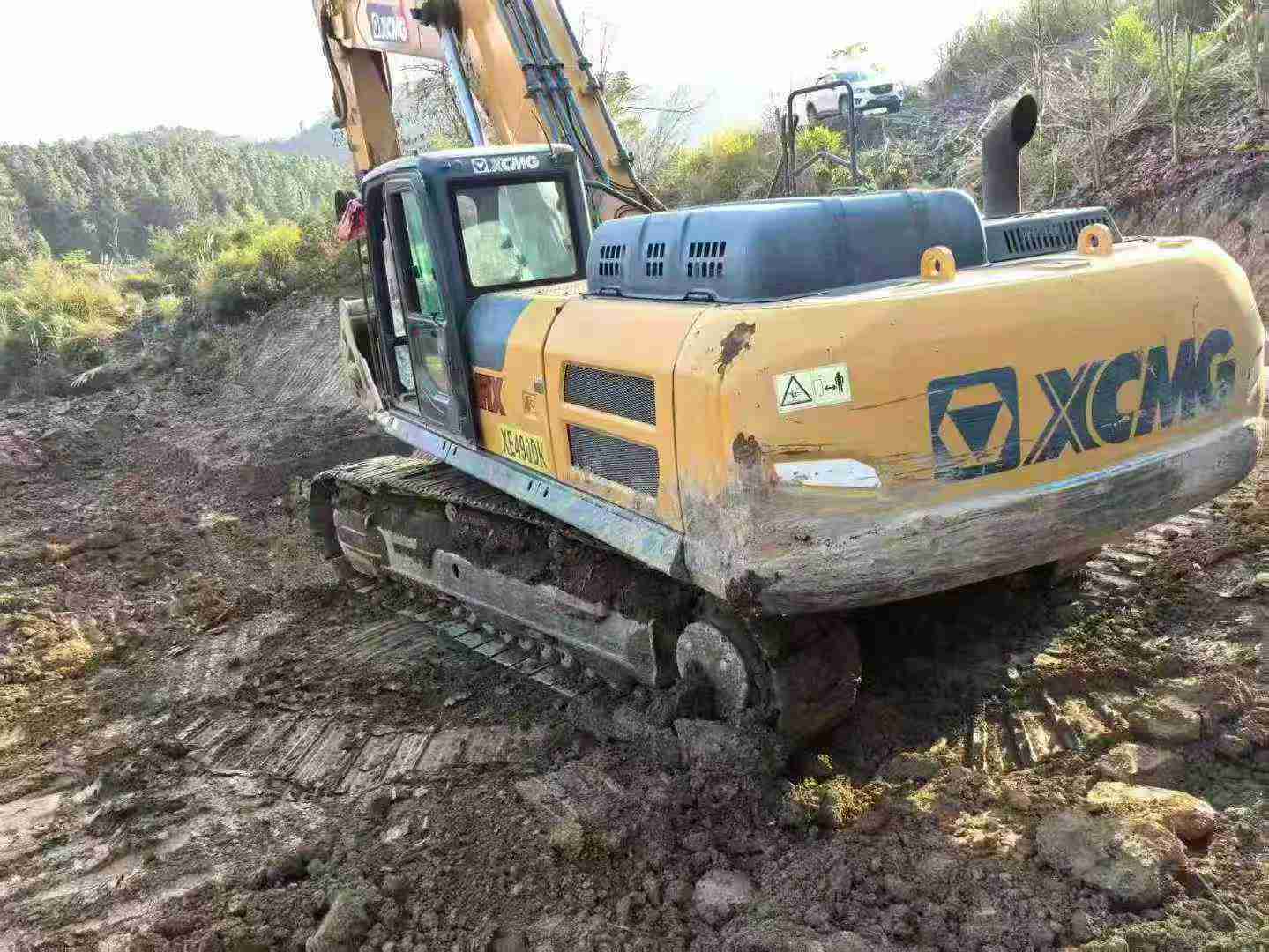

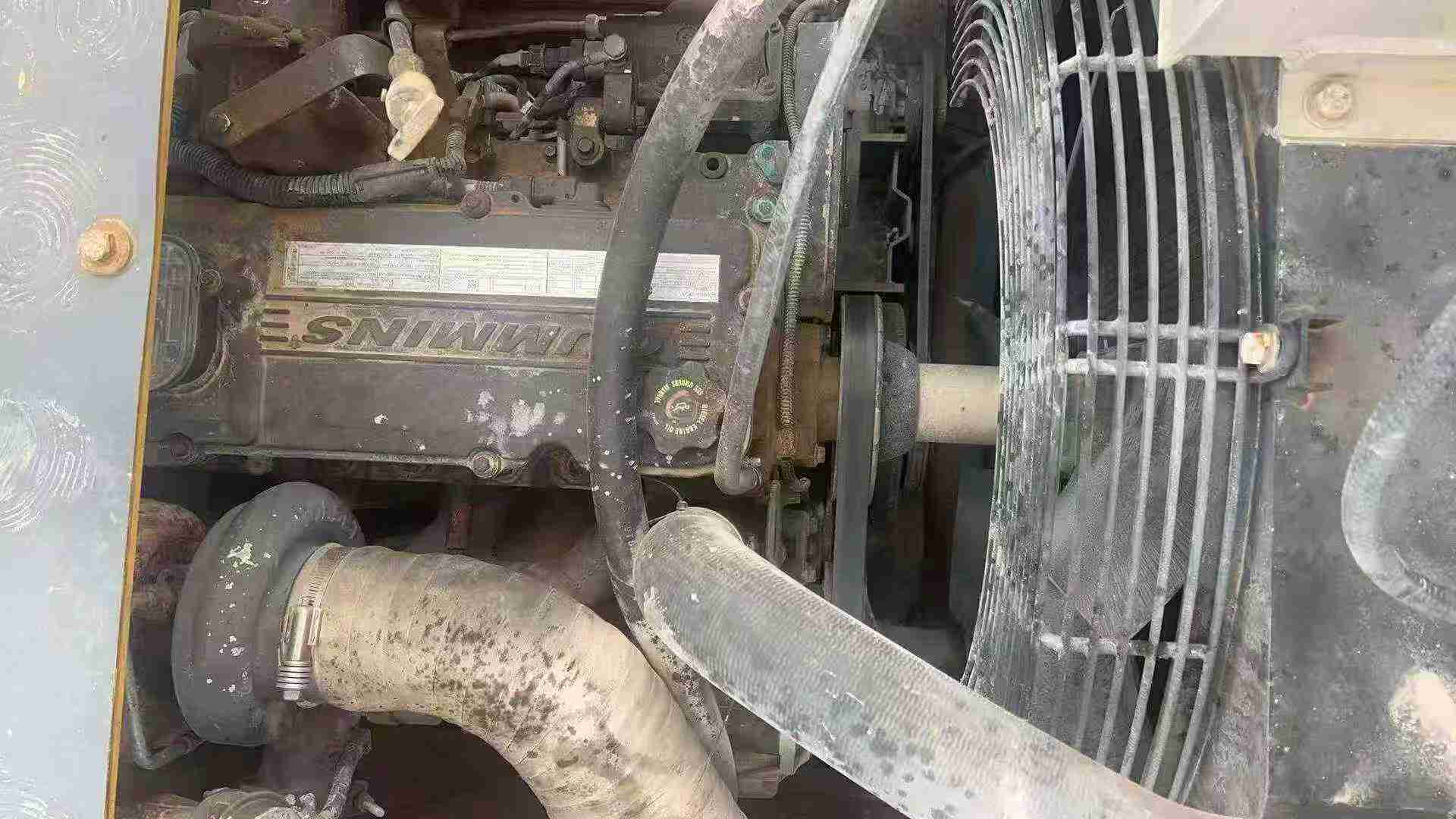

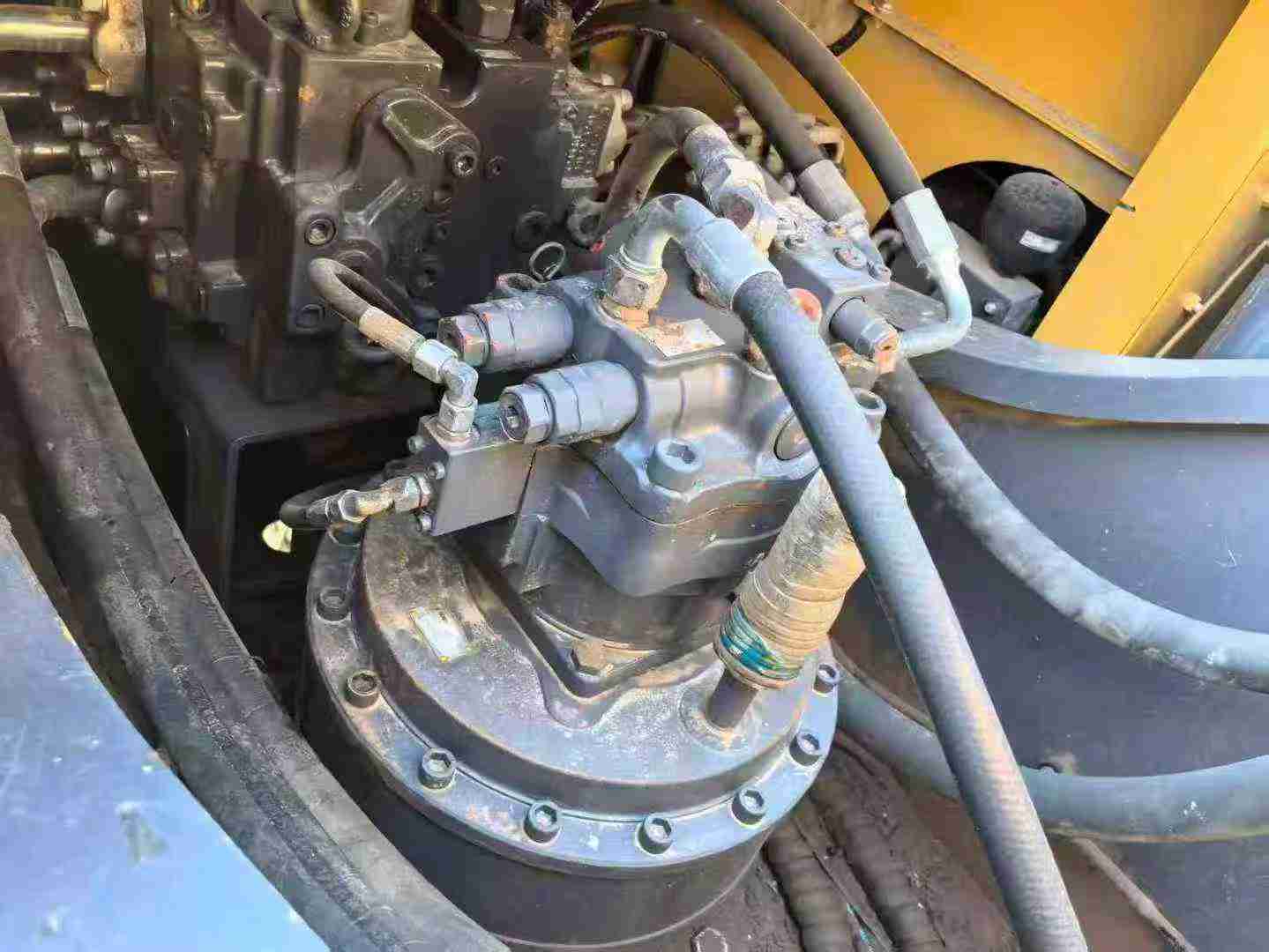

【 Premium Recommendation 】 Second-hand XCMG XE380 excavator from 2020 This second-hand XCMG XE380 excavator produced in 2020 has a total working time of only 2,600 hours. It is well maintained, has stable performance and a clean appearance with no obvious damage. It is equipped with an advanced Cummins QSB6.7-C240 engine, which is powerful and has good fuel economy, and can easily meet the operation requirements under various complex working conditions. This engine not only meets the National III emission standards, but also features low noise and low vibration, providing operators with a more comfortable working environment. In terms of the hydraulic system, this machine is equipped with Kawasaki's negative flow control hydraulic system, which features a fast response speed, smooth operation, strong digging force, and excellent micro-motion performance, making it suitable for precise operations. In addition, its unique energy-saving mode design can effectively reduce fuel consumption without affecting work efficiency, further enhancing economic benefits. This machine also features a spacious and comfortable cab, equipped with air conditioning for both heating and cooling as well as a suspended seat, significantly enhancing the driv
| Specifications | Value |
|---|---|
| No. | 966723 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
