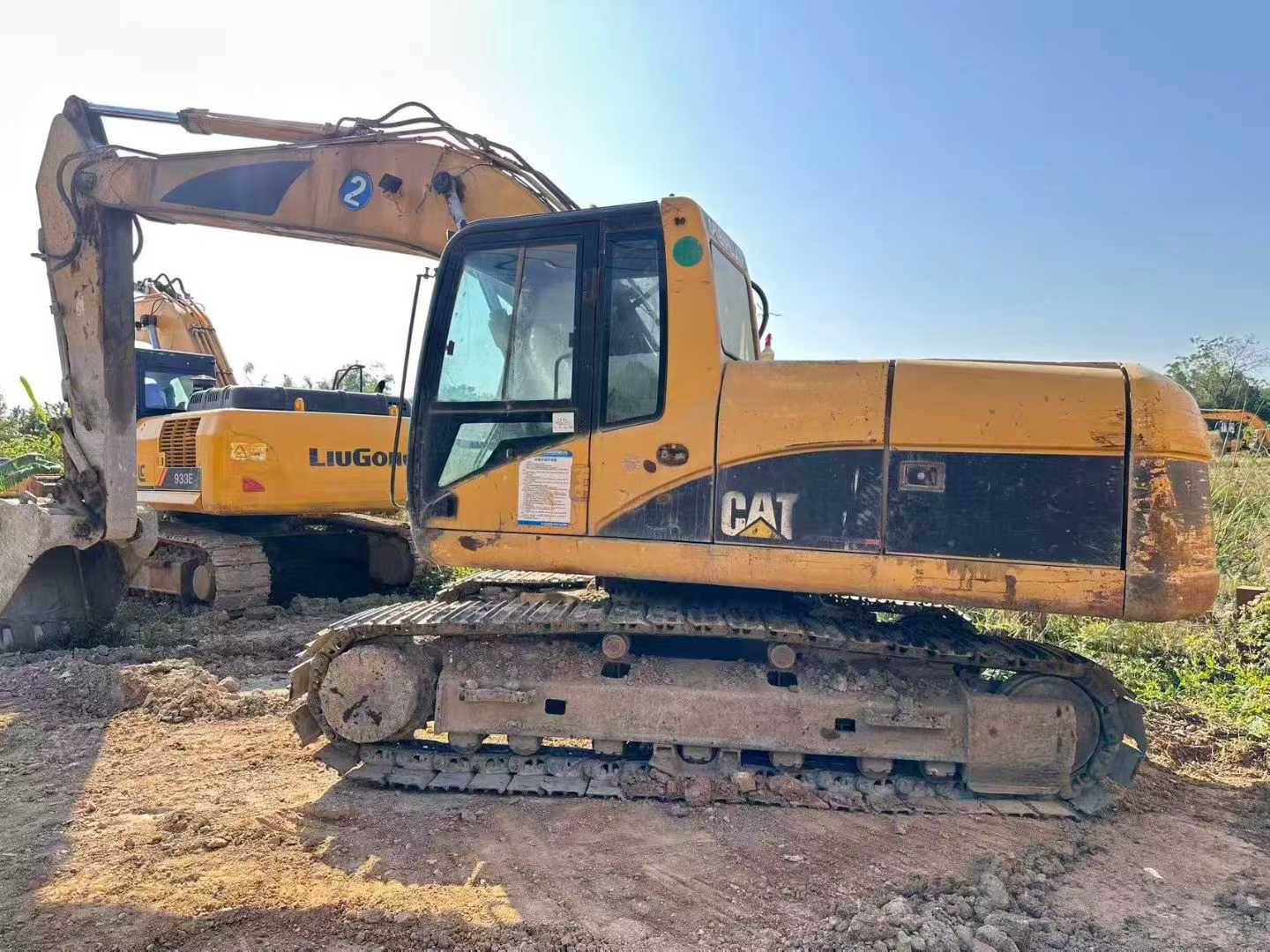

2016 Caterpillar 320C

1/9
Used Caterpillar 320C Excavator 2016 Model / 1
Used Caterpillar 320C Excavator 2016 Model / 2
Used Caterpillar 320C Excavator 2016 Model / 3
Used Caterpillar 320C Excavator 2016 Model / 4
Used Caterpillar 320C Excavator 2016 Model / 5
Used Caterpillar 320C Excavator 2016 Model / 6
Used Caterpillar 320C Excavator 2016 Model / 7
Used Caterpillar 320C Excavator 2016 Model / 8
Used Caterpillar 320C Excavator 2016 Model / 9

Product Description

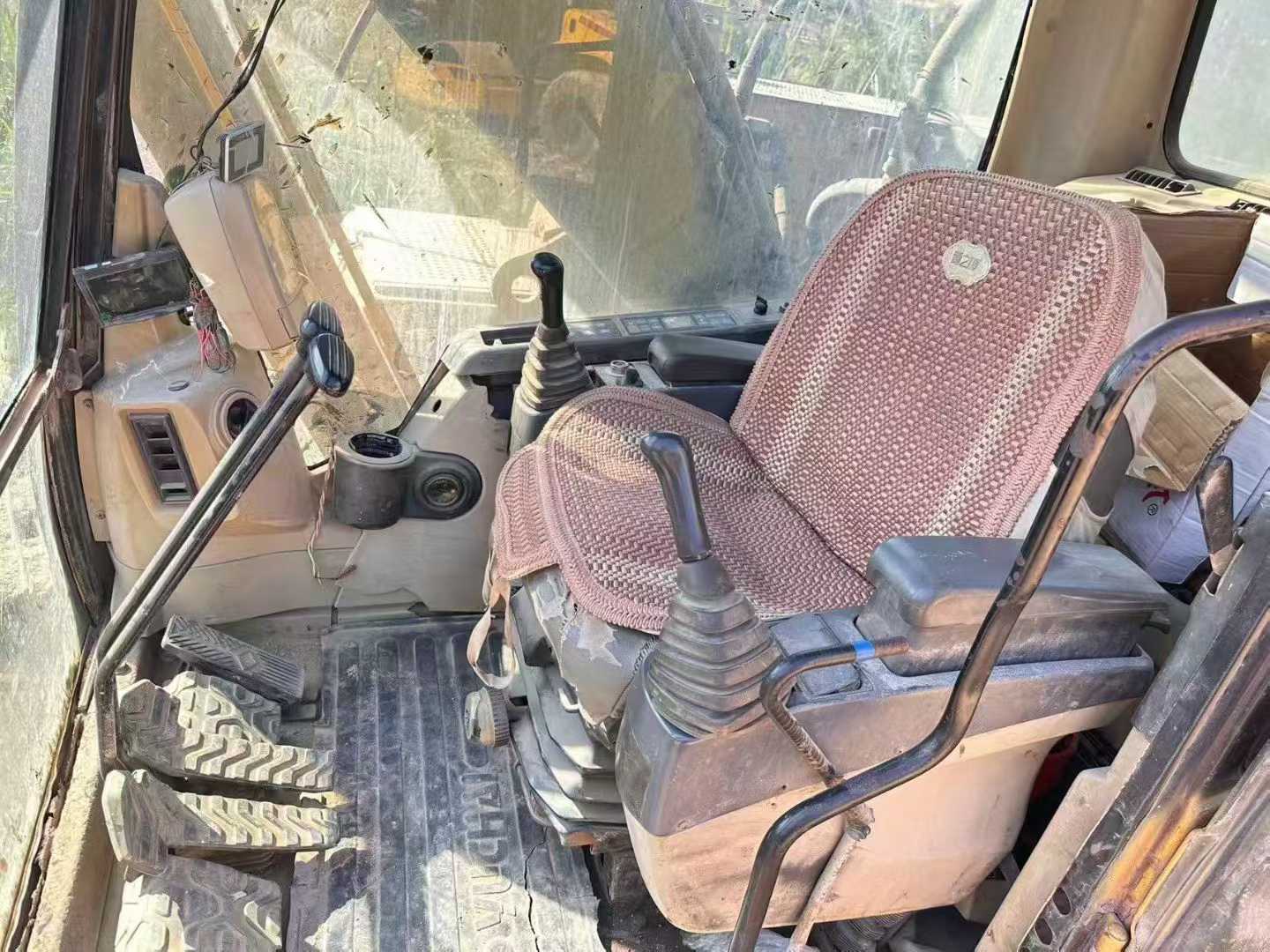

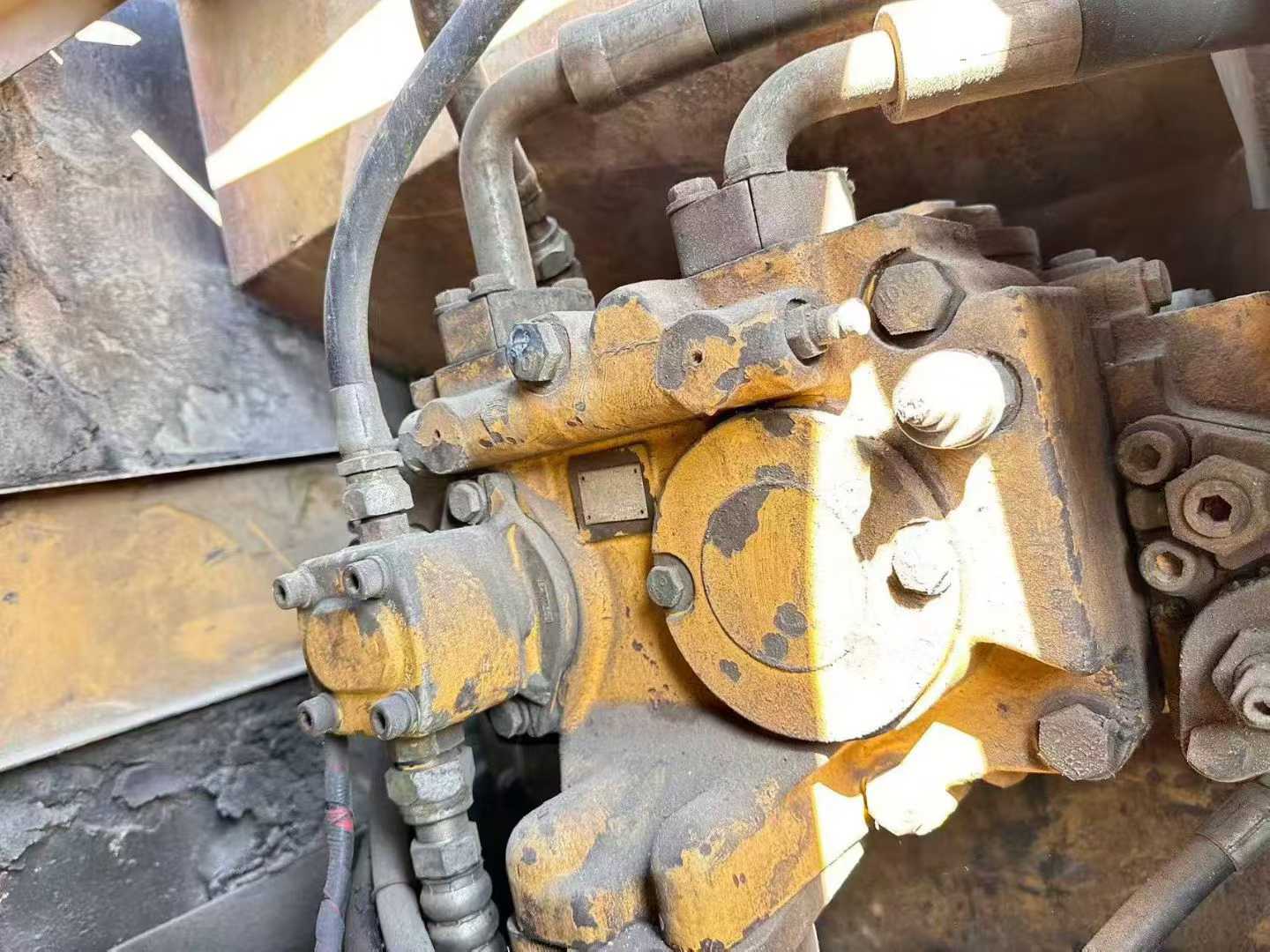

The second-hand Caterpillar 320C excavator has a cumulative working time of approximately 60,000 hours. With stable and reliable performance, it is your ideal choice for engineering operations. This equipment is equipped with a Caterpillar C7.1 ACERT engine, with a maximum power output of 140 kilowatts (190 horsepower). It features strong power output and excellent fuel economy, ensuring efficient operation under various working conditions. In terms of the hydraulic system, the 320C is equipped with an advanced variable displacement plunger pump and a highly efficient hydraulic motor, providing precise control and a smooth operating experience. Its hydraulic system is compactly designed and highly efficient, capable of meeting the demands of complex working environments. Whether it is excavation, loading or crushing, it can handle them with ease. In addition, this excavator also has the following significant advantages: The adoption of reinforced structural components has enhanced the durability and reliability of the entire machine. The cab is spacious and comfortable, with a wide field of vision. The operation interface is intuitive and easy to use, reducing the driver's workload. It is convenient and fast to maintain and service,

SpecificationsValue
No.978263
Tonnage (tons)20
Working weight (kg)21115
Bucket capacity (m³)0.8
Boom length (mm)5680
Rod length (mm)2900
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

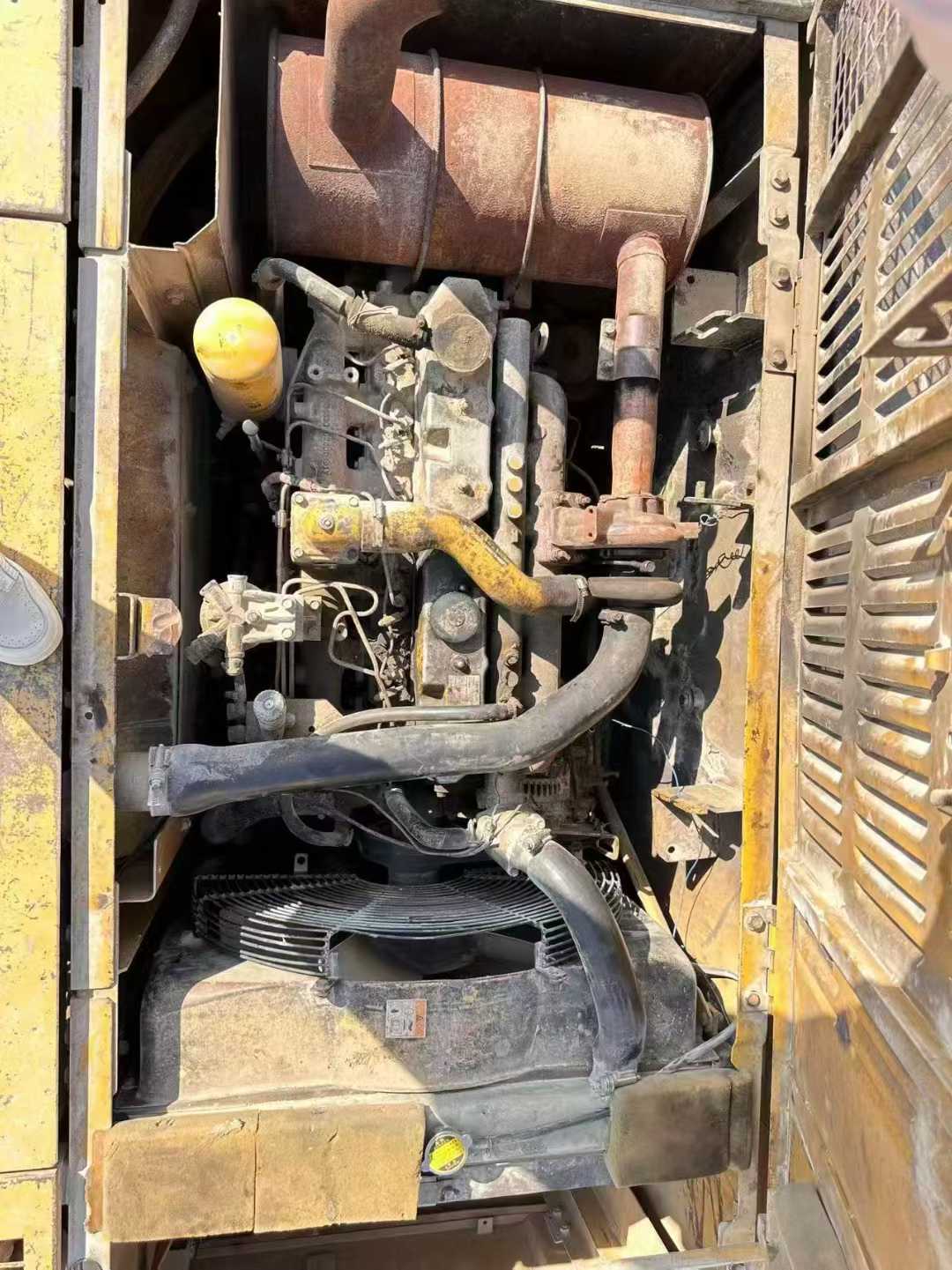

Engine typeCaterpillar CAT 3066 ATAAC
Rated power (kw/rpm)110/1800
Cooling modewater-cooling
Cylinder diameter × stroke (mm)102 x 130
Displacement (L)6.4
Ground specific pressure (Kpa)48.02
Rotation speed (rpm)11.5
Bucket digging force (kN)132
Rod digging force (kN)99
Travel speed (km/h)5.5
Maximum flow of main pump (l/min)205
Traveling Hydraulic Circuit (Mpa)34.4
Rotary Hydraulic Circuit (Mpa)26
Working Hydraulic Circuit (Mpa)34.3
Pilot Oil Circuit (MPa)4.12
Bucket cylinders - Number × diameter × stroke (mm)1-120 x 1030
Bucket rod cylinders - Number × diameter × stroke (mm)1-140 x 1430
Boom cylinders - Number × diameter × stroke (mm)2-120 x 1260
Fuel Tank (L)320
Hydraulic Tank (L)120
Engine Oil changes (L)30
Coolant (L)24
Hydraulic System (L)200
Total transport length (mm)9390
Total transport width (mm)2800
Total transport height (mm)3050
Full cab height (mm)3050
Minimum ground clearance (mm)460
Back end turning radius (mm)2770
Total track length (mm)4070
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3260
Maximum digging depth (mm)6550
Maximum excavation height (mm)9440
Maximum unloading height (mm)6770
Maximum vertical digging depth (mm)5440
Maximum excavation radius of stop surface (mm)9710
see more

Overview

No.978263

Brand Name:

Caterpillar

Model Number:

320C

Year:

2016

Location:

Guangdong China
