HOME>>Brands>>Doosan DH70

2016 Doosan DH70

1/9
Used Doosan DH70 Excavator 2016 Model / 1
Used Doosan DH70 Excavator 2016 Model / 2
Used Doosan DH70 Excavator 2016 Model / 3
Used Doosan DH70 Excavator 2016 Model / 4
Used Doosan DH70 Excavator 2016 Model / 5
Used Doosan DH70 Excavator 2016 Model / 6
Used Doosan DH70 Excavator 2016 Model / 7
Used Doosan DH70 Excavator 2016 Model / 8
Used Doosan DH70 Excavator 2016 Model / 9

Product Description

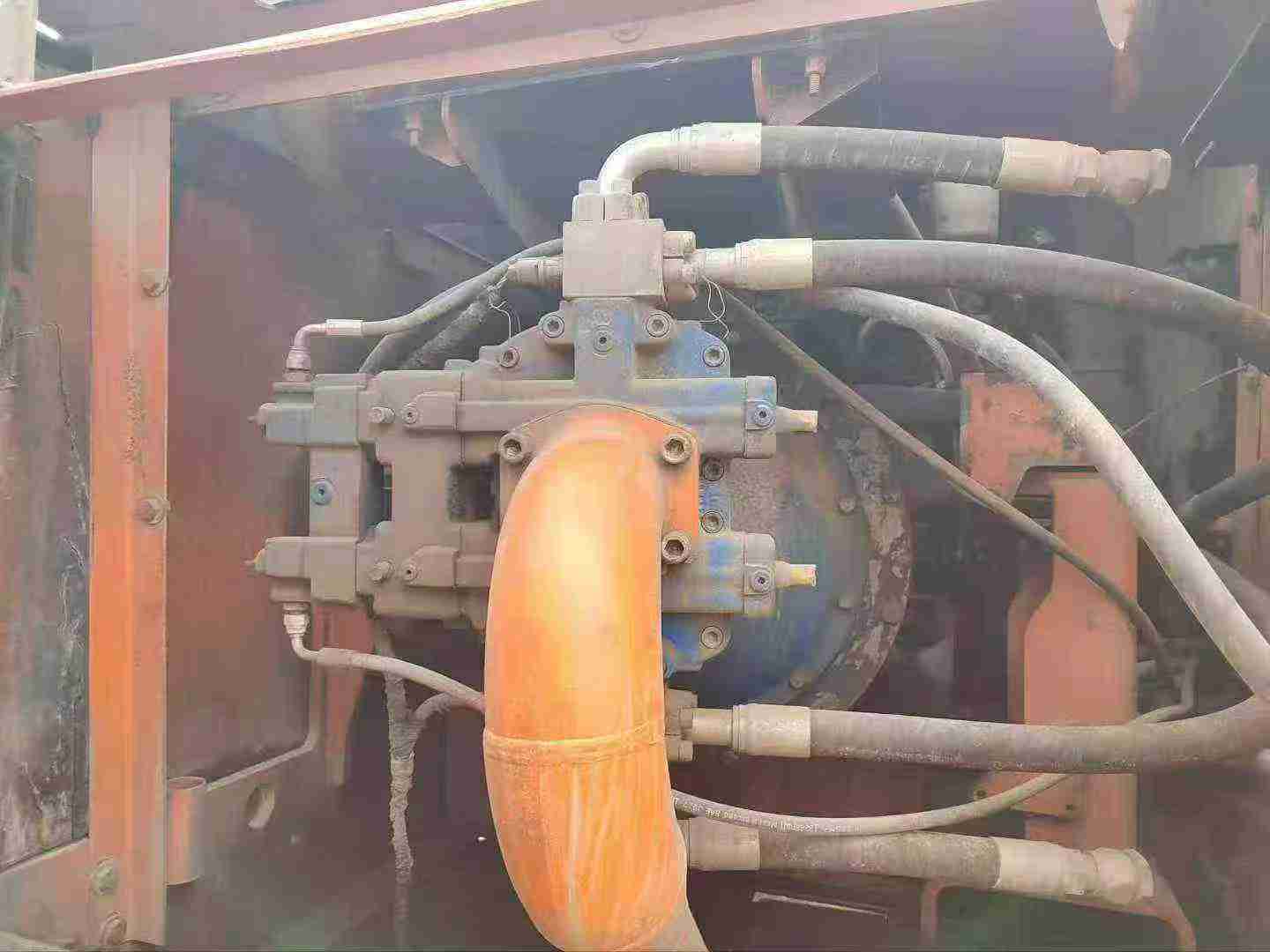

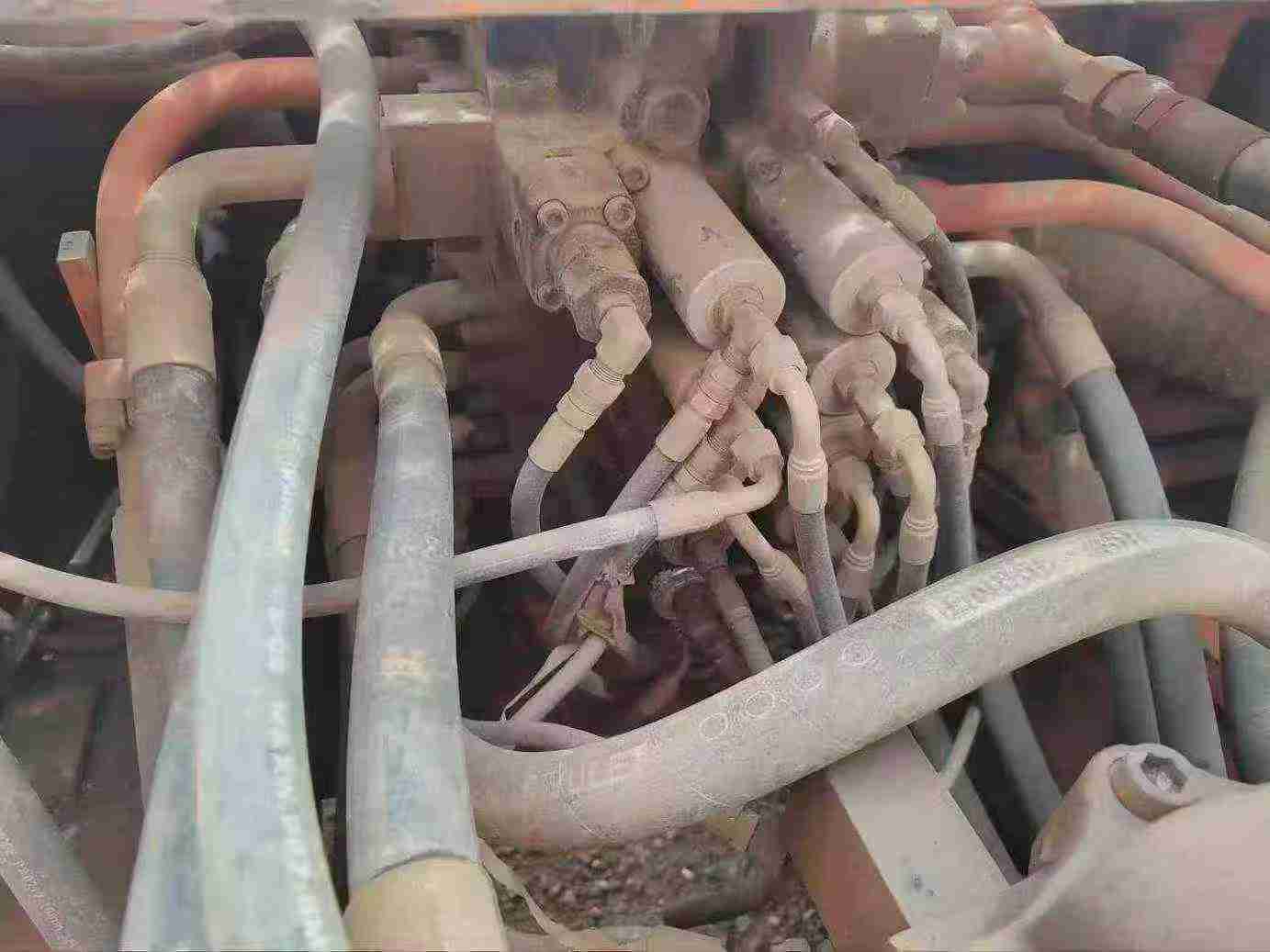

Doosan 370 excavator, equipped with a breaker, is in good overall condition and can be inspected on site at any time. The cumulative working time of this device may be approximately 10,000 hours, yet it still maintains excellent operational performance. In terms of the power system, it adopts the high-performance Doosan DL08 engine with a rated power of 250kW, ensuring strong and stable power output. The hydraulic system is equipped with a high-efficiency variable piston pump and a hydraulic motor combination, which makes the operation more sensitive and accurate, while ensuring the reliability of long-term operation. The main advantages of the Doosan 370 excavator lie in its outstanding working efficiency and durability. The robust structural design and high-quality material selection enable this machine to perform outstandingly in all kinds of harsh environments. In addition, the humanized design concept is reflected in every detail, such as the spacious and comfortable cab and the easy-to-maintain service points, which greatly enhance the user experience. For users who need to handle hard rock or concrete demolition tasks, the professional-grade breaker that comes with the vehicle is an indispensable helper, which can significantly

SpecificationsValue
No.978119
Tonnage (tons)7
Working weight (kg)6980
Bucket capacity (m³)0.28
Boom length (mm)3620
Rod length (mm)1600
Country of originYantai
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeKubota KubotaV3300-DI
Rated power (kw/rpm)45.8/2200
Cooling modewater-cooling
Displacement (L)3.318
Working formFuel consumption is 163g/ps.hr
Rotation speed (rpm)10.5
Bucket digging force (kN)5.3ton
Rod digging force (kN)3.7ton
Travel speed (km/h)2.8/4.5
Maximum flow of main pump (l/min)162.8
Traveling Hydraulic Circuit (Mpa)250
Rotary Hydraulic Circuit (Mpa)190
Hydraulic crushing pipeline is standardis
Bucket cylinders - Number × diameter × stroke (mm)85*55*715
Bucket rod cylinders - Number × diameter × stroke (mm)95*60*850
Boom cylinders - Number × diameter × stroke (mm)110*65*865
Total transport length (mm)5920
Total transport width (mm)2200
Total transport height (mm)2585
Full cab height (mm)2585
Counterweight ground clearance (mm)764
Back end turning radius (mm)1710
Total track length (mm)2568
Track gauge (mm)1650
Track plate width (mm)400
Total track width (mm)2050
Track ground length (mm)1990
Maximum digging radius (mm)6170
Maximum digging depth (mm)4060
Maximum excavation height (mm)6918
Maximum unloading height (mm)5032
see more

Overview

No.978119

Brand Name:

Doosan

Model Number:

DH70

Year:

2016

Location:

Jiangsu China
