Product Description

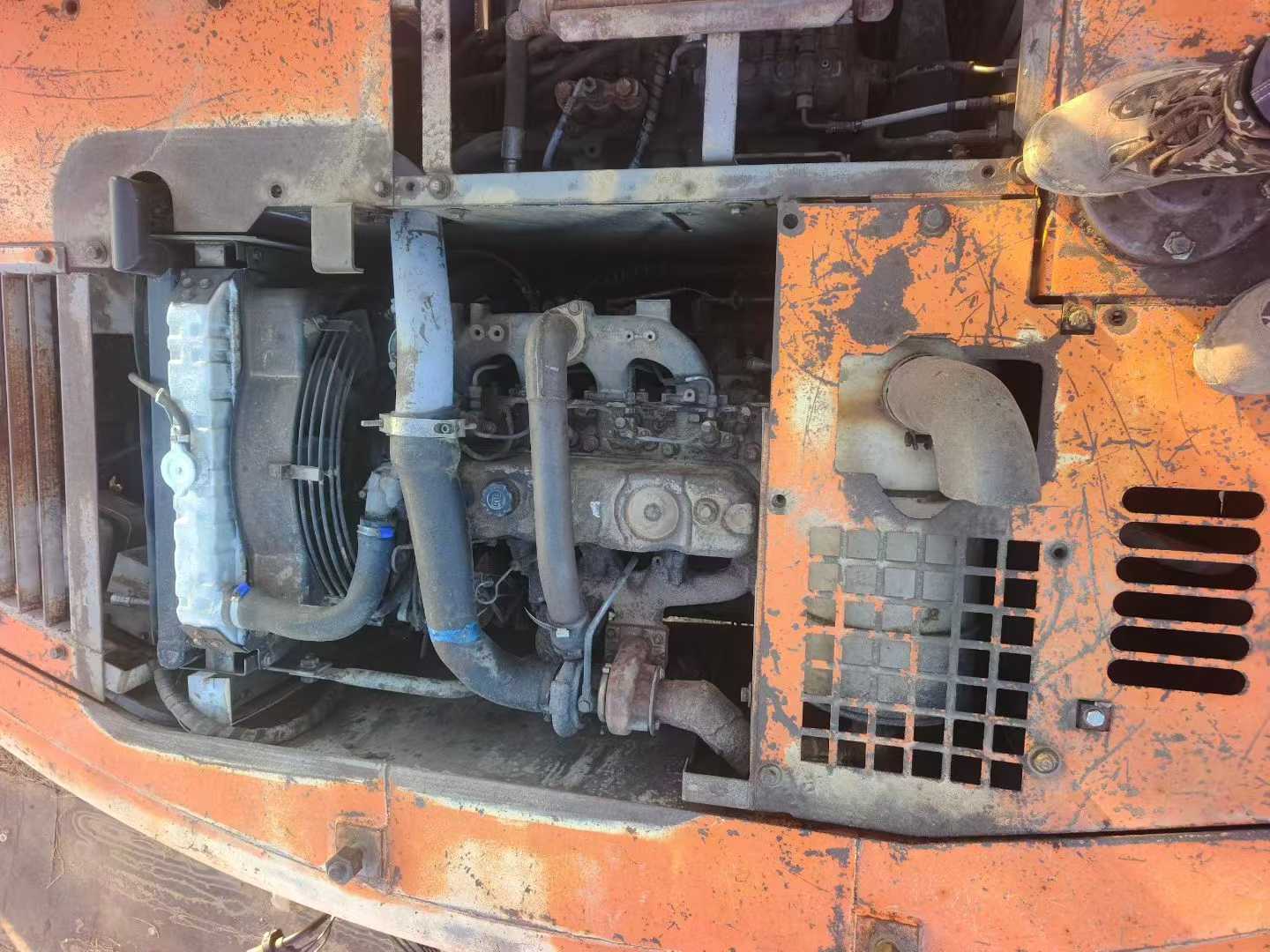

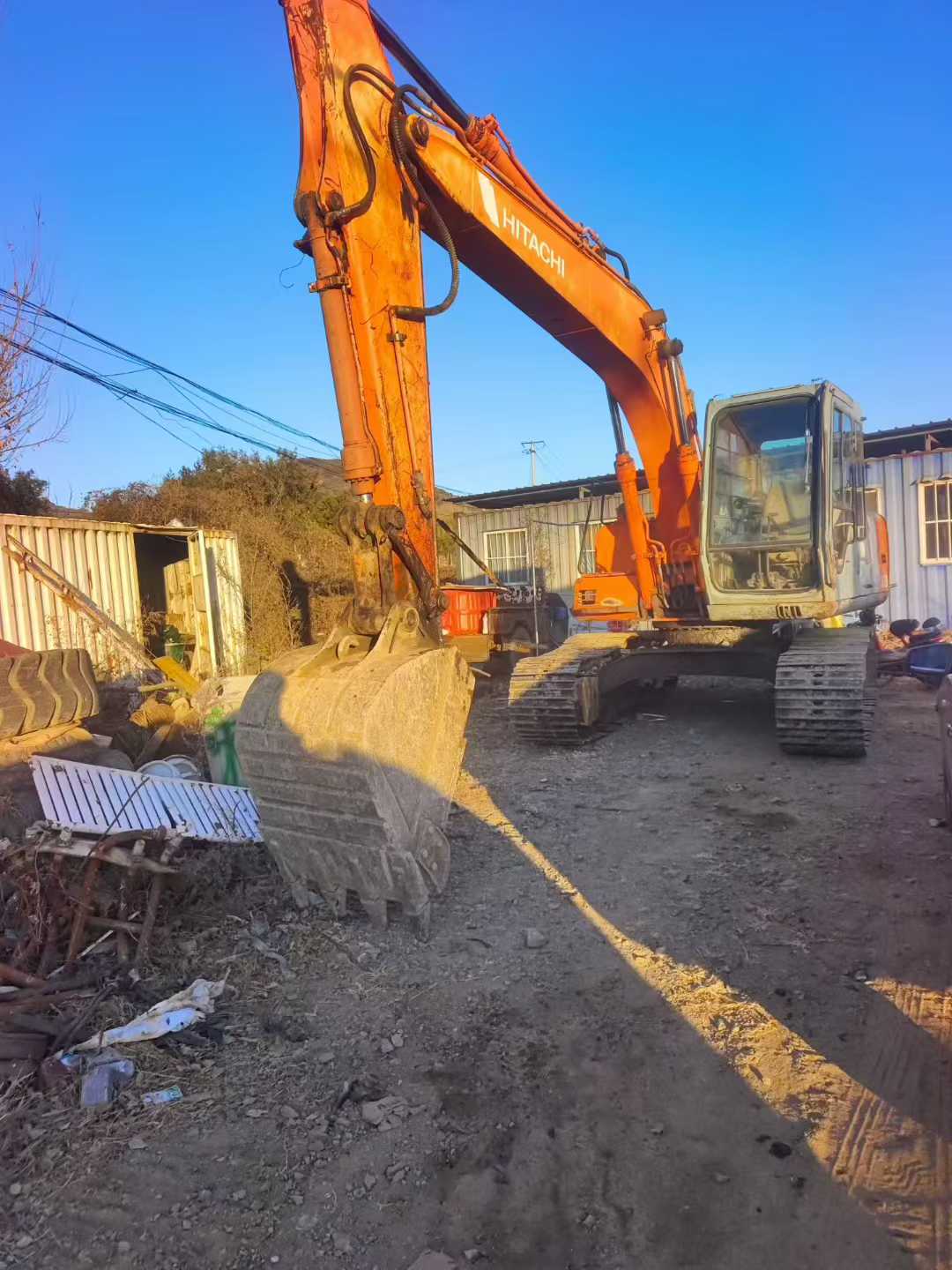

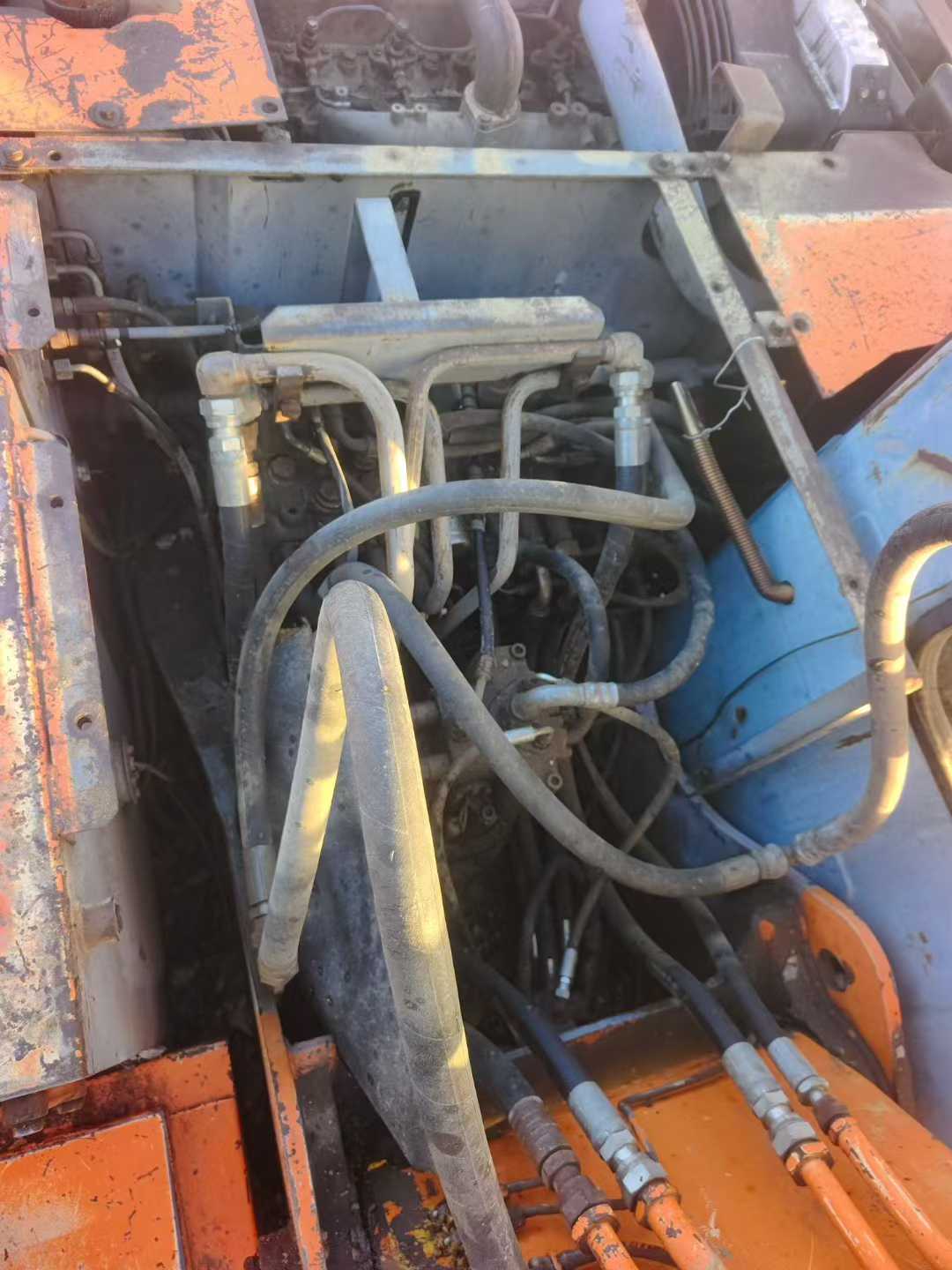

This is a top-quality second-hand Hitachi ZX120-3 excavator with a total working time of only 3,500 hours. It is well maintained and has outstanding performance. This model is equipped with an efficient Isuzu 4BG1 engine, with an output power of up to 67 kilowatts, ensuring strong power support and excellent fuel economy. Its advanced hydraulic system is equipped with a high-quality variable piston pump and hydraulic motor combination, which can achieve a precise and smooth operation experience. Whether it is digging, loading or leveling operations, it can handle them with ease. The main advantages of the equipment include: Firstly, thanks to its compact design, the ZX120-3 can move flexibly even in narrow Spaces; Secondly, the sturdy and durable structural design, combined with the selection of high-quality materials, greatly extends the service life of the machine. Finally, the humanized cab layout and low noise level provide the operator with a comfortable working environment. In addition, considering the convenience of maintenance, this excavator has specially optimized the location arrangement of daily inspection points, making regular maintenance simpler and faster. To sum up, this second-hand Hitachi ZX120-3 excavator not only
| Specifications | Value |
|---|---|
| No. | 978143 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
