Product Description

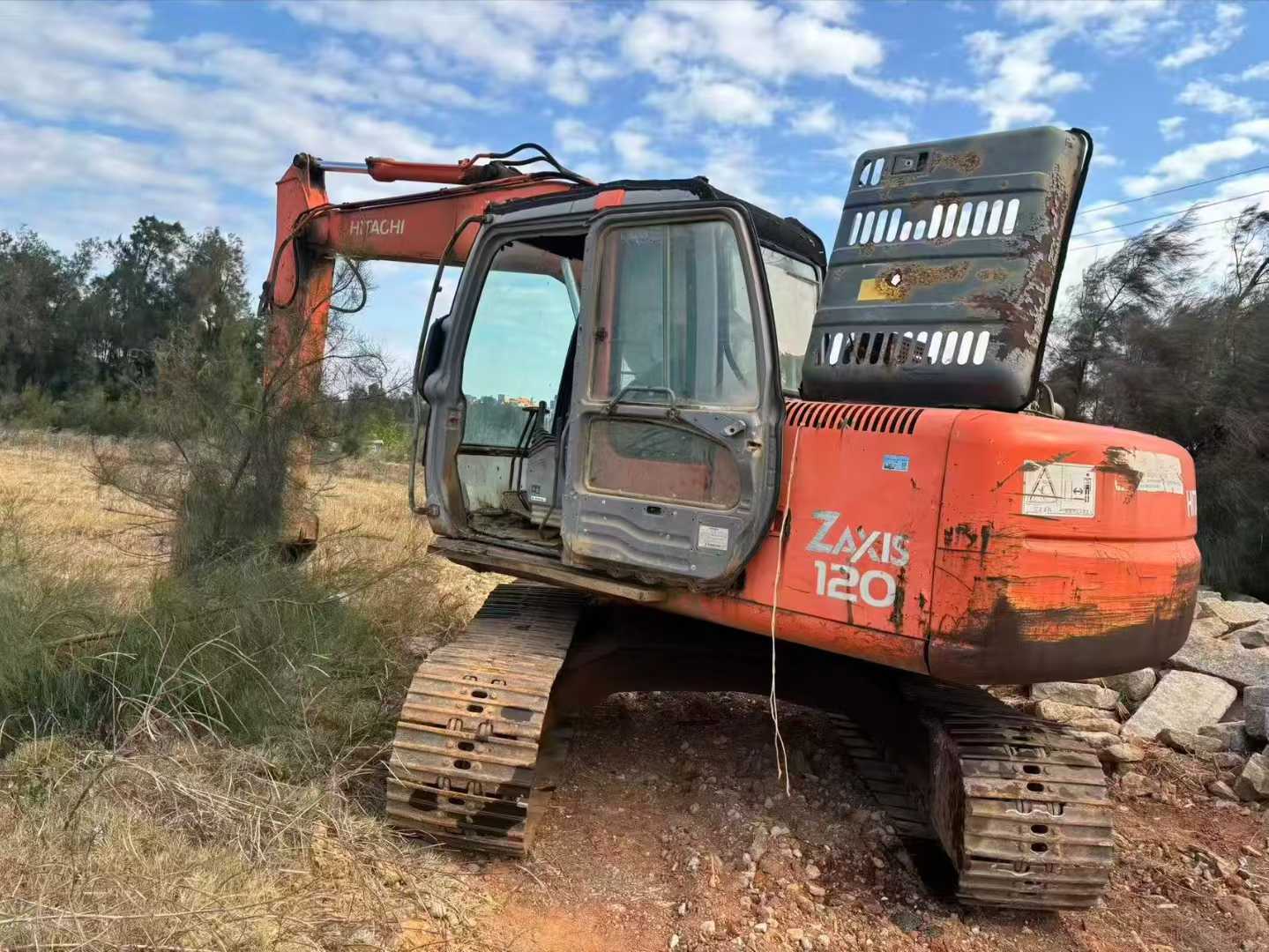

There is currently a second-hand imported Hitachi ZX120-6 excavator for sale. This equipment has a usage record of over 70,000 hours, and its outstanding working performance and durability have been widely recognized. The original gun barrel design is adopted, ensuring high efficiency and accuracy during excavation operations. In terms of power, this Hitachi ZX120-6 is equipped with a high-performance engine (the specific model may be an inline four-cylinder water-cooled diesel engine produced by Isuzu or Hitachi that meets the Euro III emission standards), with a maximum output power expected to be around 85kW, capable of providing strong and stable driving force to meet the operational requirements under various complex working conditions. Meanwhile, advanced fuel injection technology and cooling systems have effectively enhanced fuel efficiency and reduced maintenance costs. The hydraulic system is a major highlight of this machine. It adopts a high-quality combination of hydraulic pumps and motors, which not only ensures rapid response and smooth operation, but also greatly enhances the digging force and flexibility of the entire machine. In addition, the optimized return oil filtration device further extends the service life of
| Specifications | Value |
|---|---|
| No. | 978176 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12200 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4.6 |
| Rod length (mm) | 2.52 |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

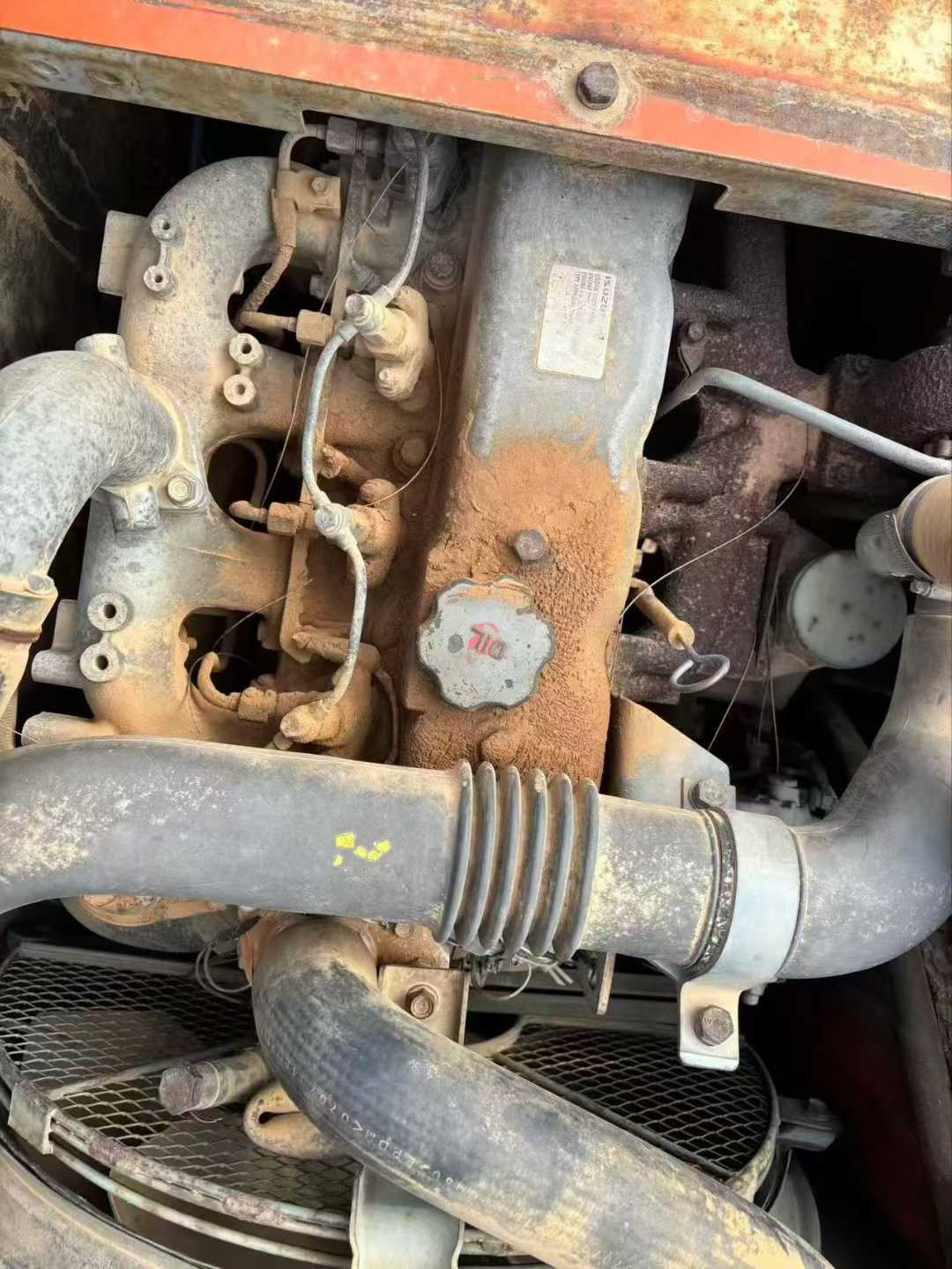

| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative plunger pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8570 |
| Maximum unloading height (mm) | 6160 |
| Maximum vertical digging depth (mm) | 5020 |
| Bulldozer lift or depth (mm) | No bulldozer |
