Product Description

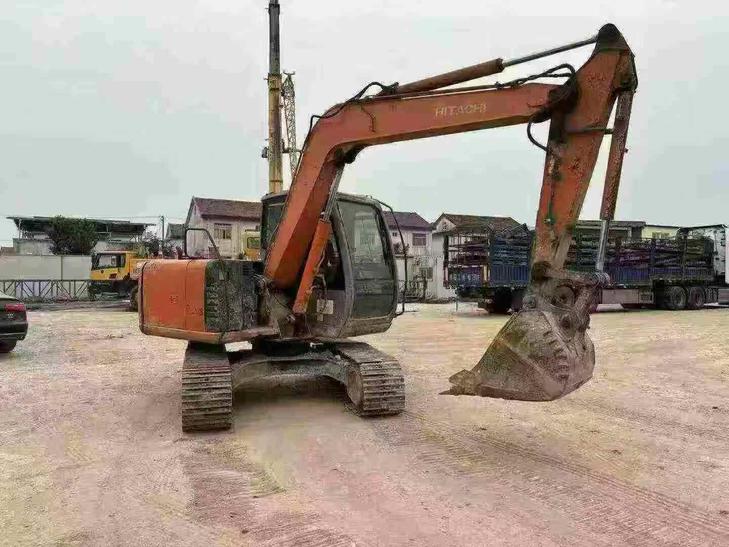

We are selling a second-hand Hitachi ZX70 excavator that was manufactured at the end of 2012. Its total working time is only 7.9 hours, which is almost equivalent to a brand new device. This model is equipped with an original imported high-efficiency and energy-saving engine from Hitachi, with an expected power output of 50 to 60 horsepower, ensuring strong power output and excellent fuel economy. In terms of the hydraulic system, it is equipped with high-performance variable piston pumps and low-noise designed hydraulic motors, which not only enable rapid response and smooth operation, but also effectively reduce operating costs. The most outstanding feature of this Hitachi ZX70 excavator lies in its excellent working performance and durability. Although a certain number of years have passed, thanks to regular maintenance and the replacement of brand-new walking chains, the overall condition of the machine has been kept in excellent condition. In addition, it features a compact and flexible design, making it particularly suitable for operations in narrow urban Spaces or small-scale engineering construction projects. In conclusion, if you are looking for a second-hand small excavator with high cost performance and reliable quality, t
| Specifications | Value |
|---|---|
| No. | 978050 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6510 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3.72 |
| Rod length (mm) | 1.62(reinforced type) |
| Country of origin | Hefei, Anhui Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4JG1 |
| Rated power (kw/rpm) | 40.5/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.318 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 30 |
| Rotation speed (rpm) | 11.3 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 3.4/5.0 |
| Main overflow set pressure (Mpa) | 31.4 |
| Rotary hydraulic motor type | Variable piston pump ×1 |
| Type of walking hydraulic motor | Variable piston pump ×2 |
| Main pump type | Variable piston pump ×3+ gear pump ×1 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 60(over 100) |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6080 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2600 |
| Full cab height (mm) | 2600 |
| Counterweight ground clearance (mm) | 760 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2765 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2200 |
| Track ground length (mm) | 2140 |
| Maximum digging radius (mm) | 6320 |
| Maximum digging depth (mm) | 4170 |
| Maximum excavation height (mm) | 7150 |
| Maximum unloading height (mm) | 5060 |
| Maximum vertical digging depth (mm) | 3730 |
| Bulldozer lift or depth (mm) | No bulldozer |
