2010 Hyundai R215-7

1/9
Used Hyundai R215-7 Excavator 2010 Model / 1

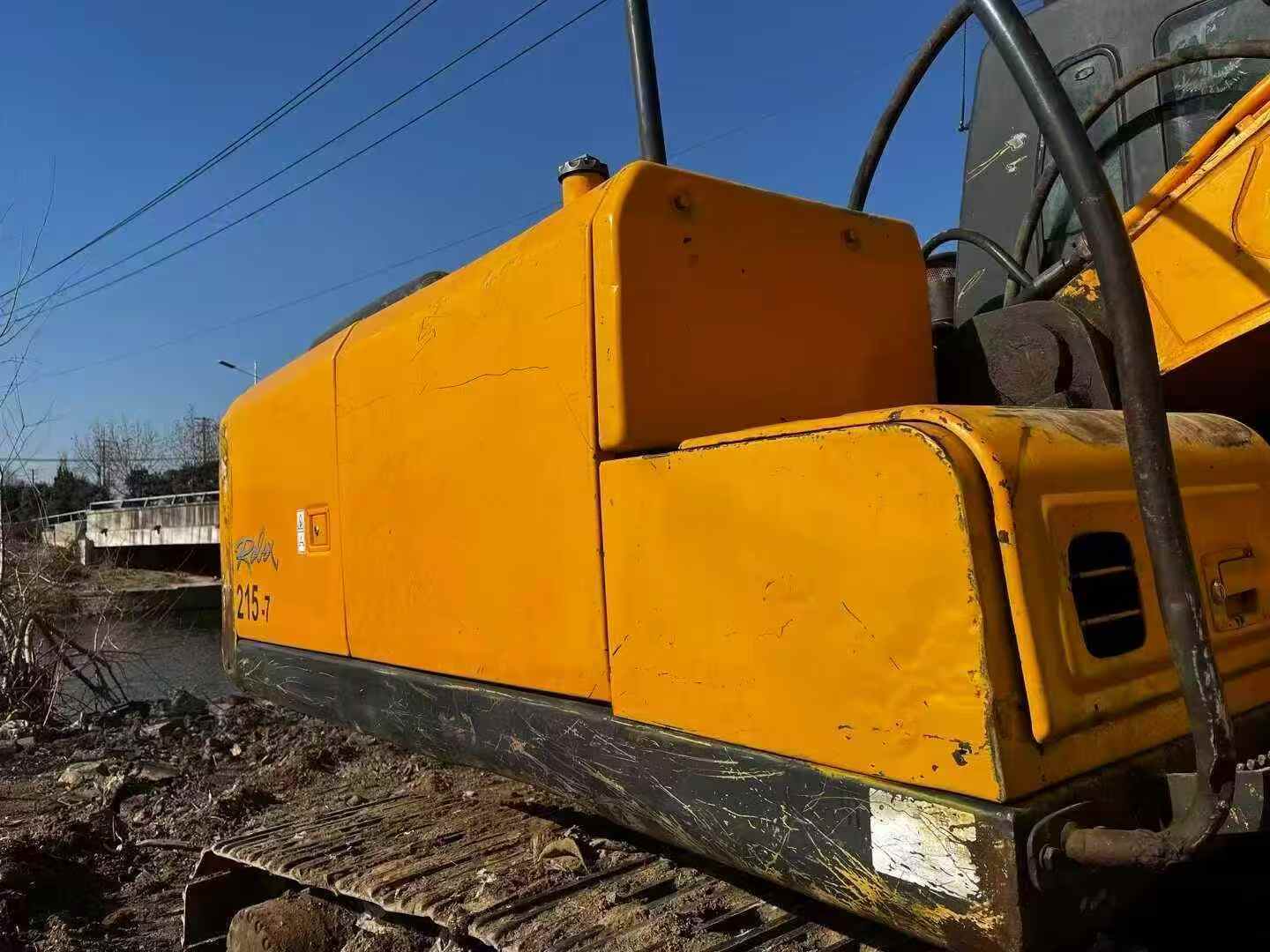

Used Hyundai R215-7 Excavator 2010 Model / 2

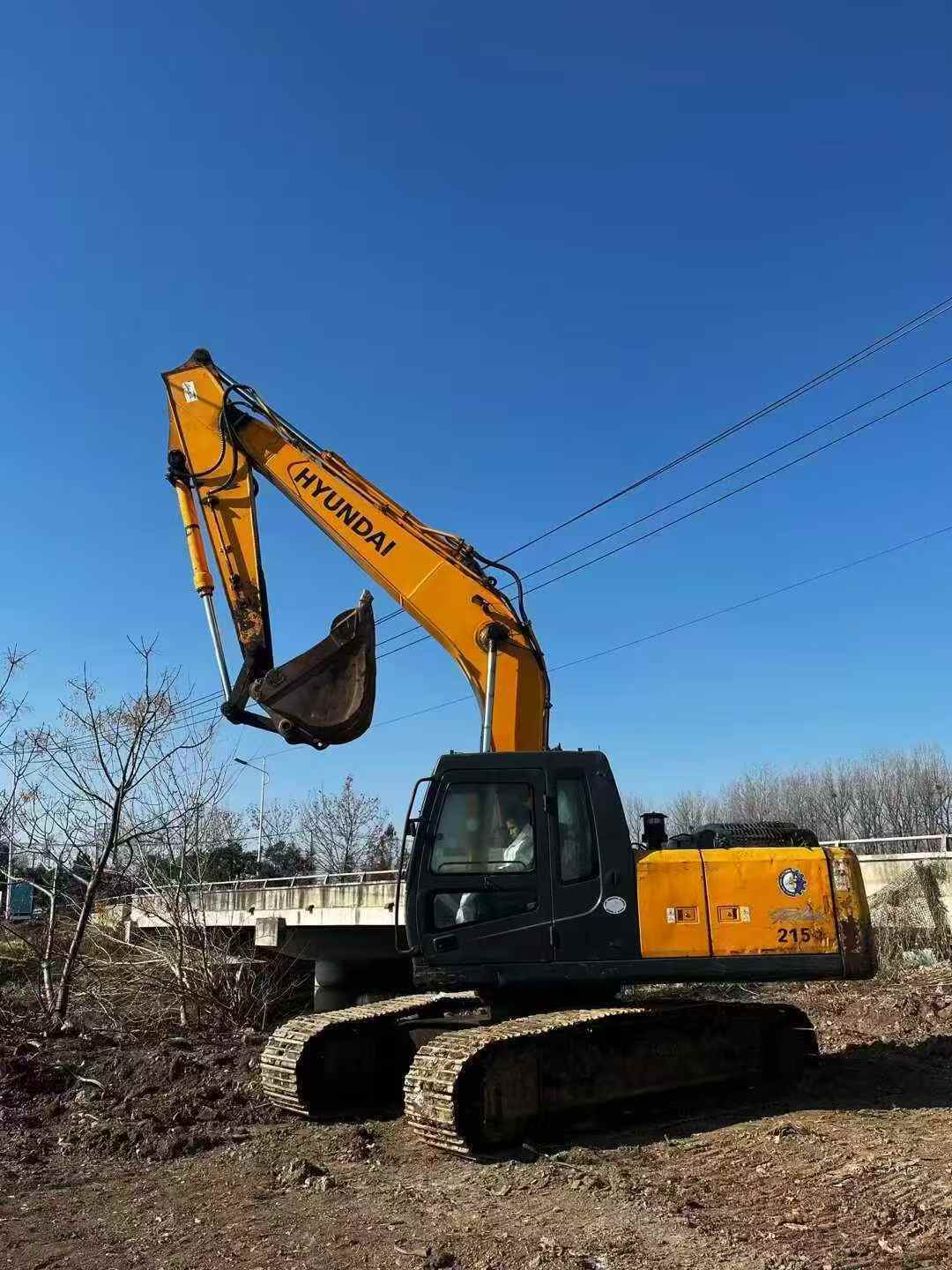

Used Hyundai R215-7 Excavator 2010 Model / 3

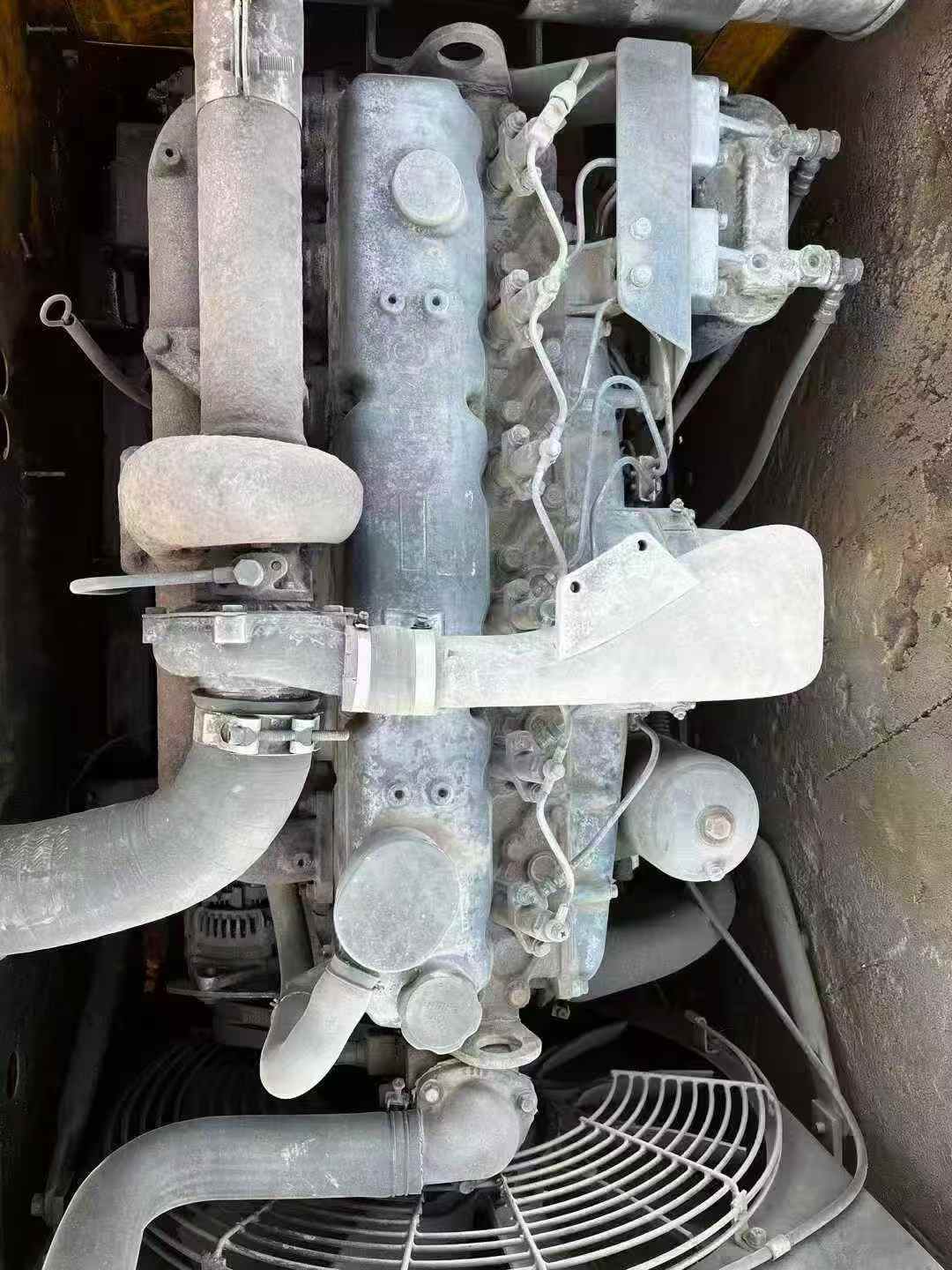

Used Hyundai R215-7 Excavator 2010 Model / 4

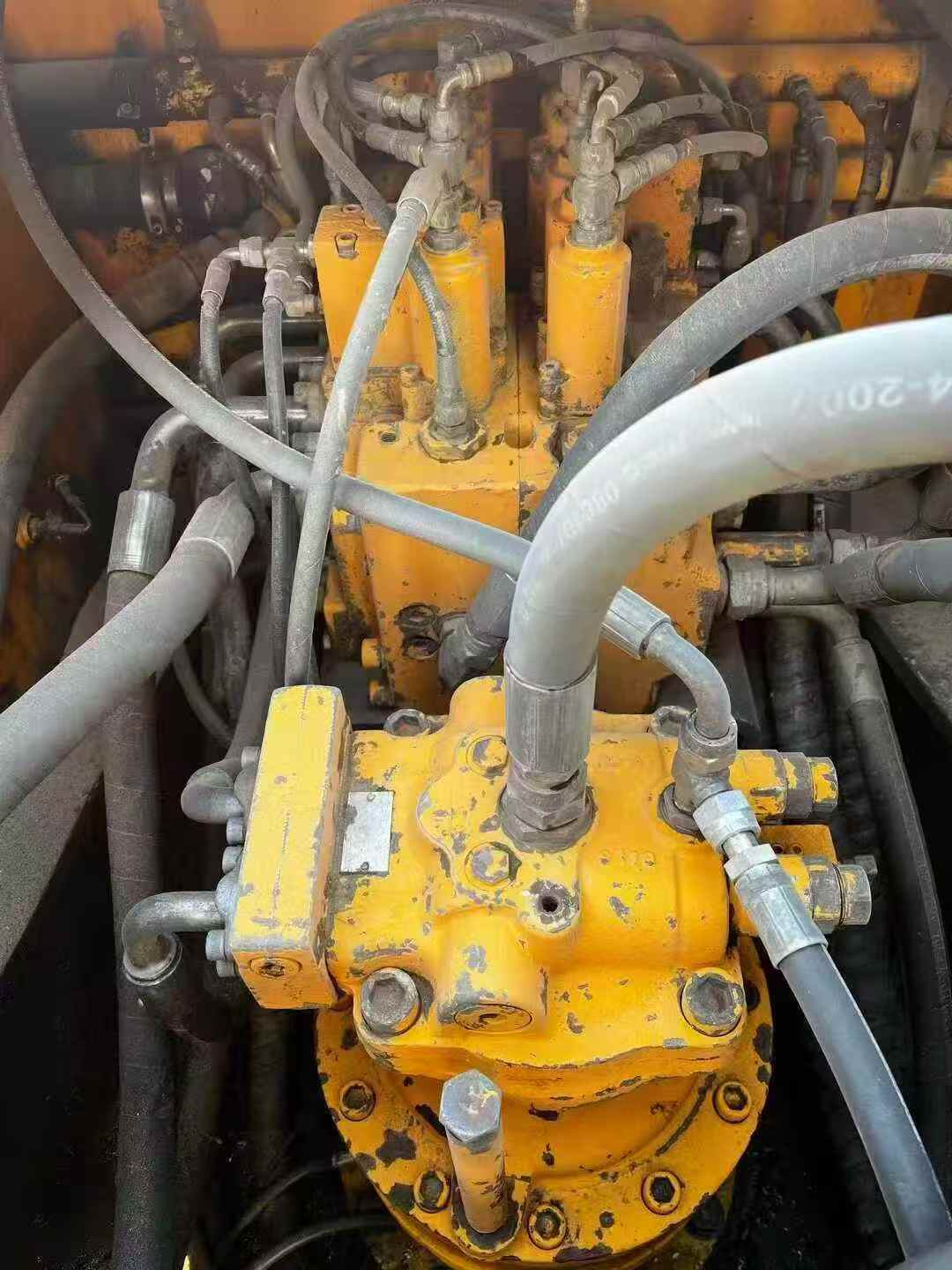

Used Hyundai R215-7 Excavator 2010 Model / 5

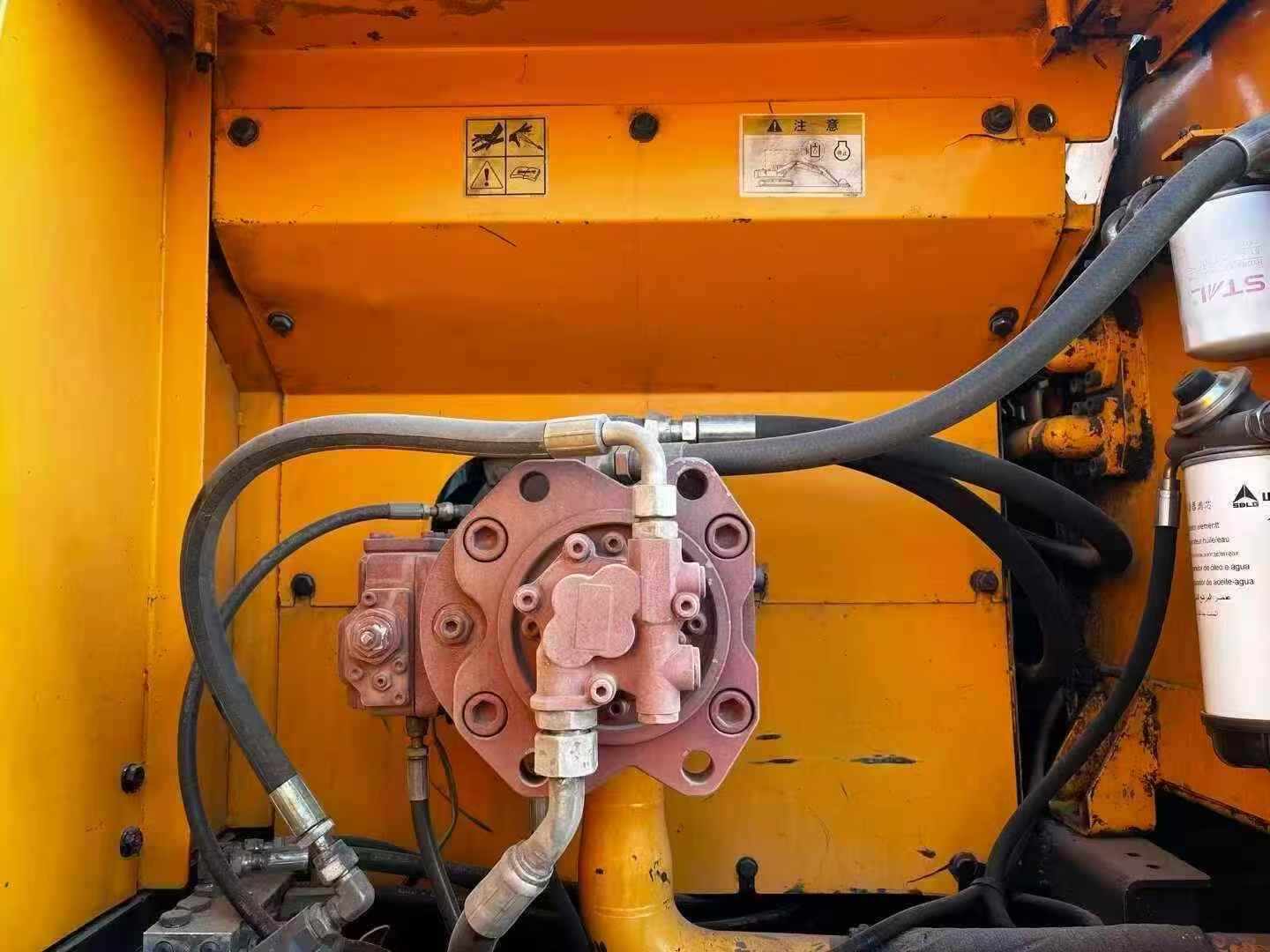

Used Hyundai R215-7 Excavator 2010 Model / 6
Used Hyundai R215-7 Excavator 2010 Model / 7

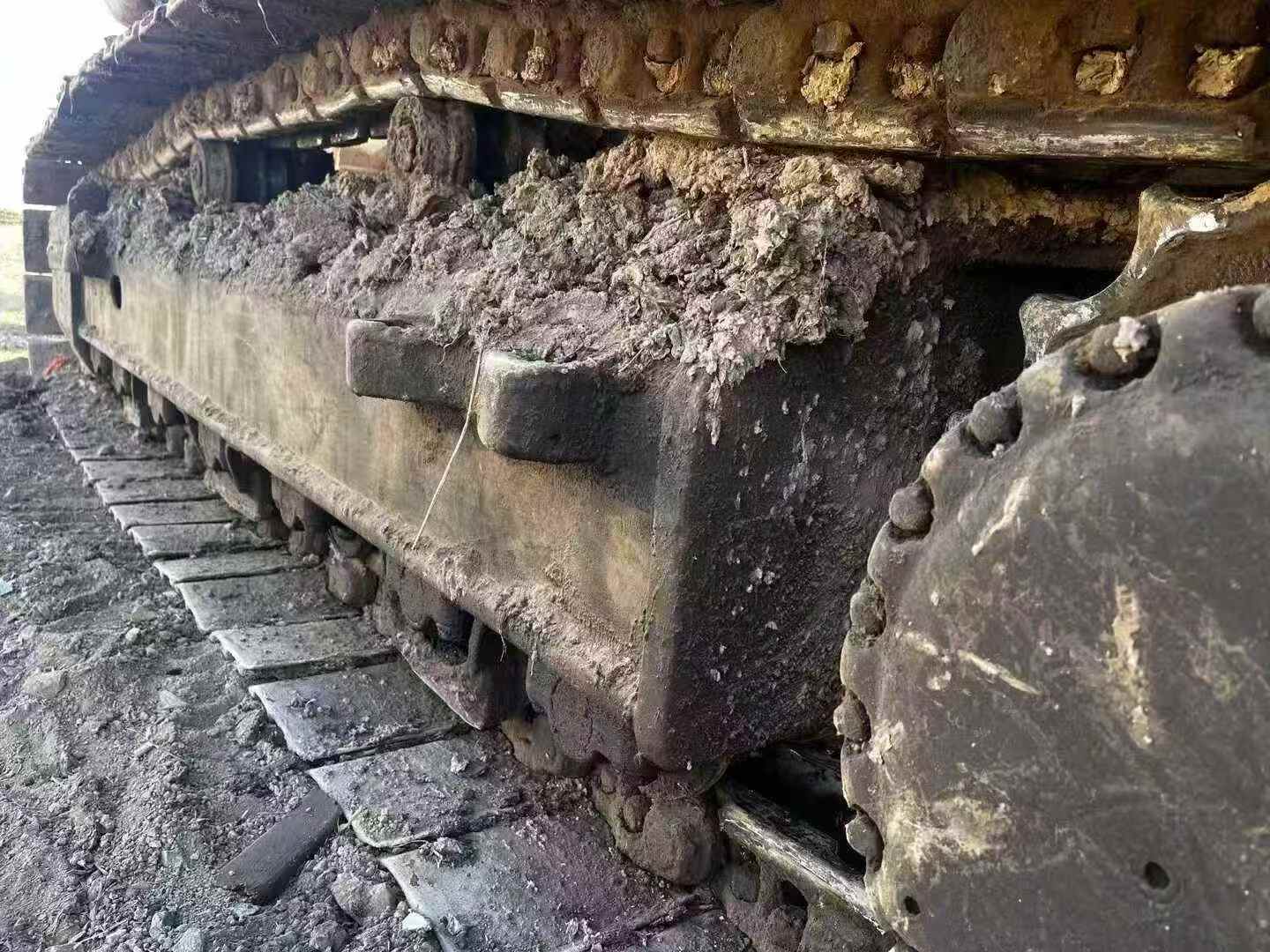

Used Hyundai R215-7 Excavator 2010 Model / 8

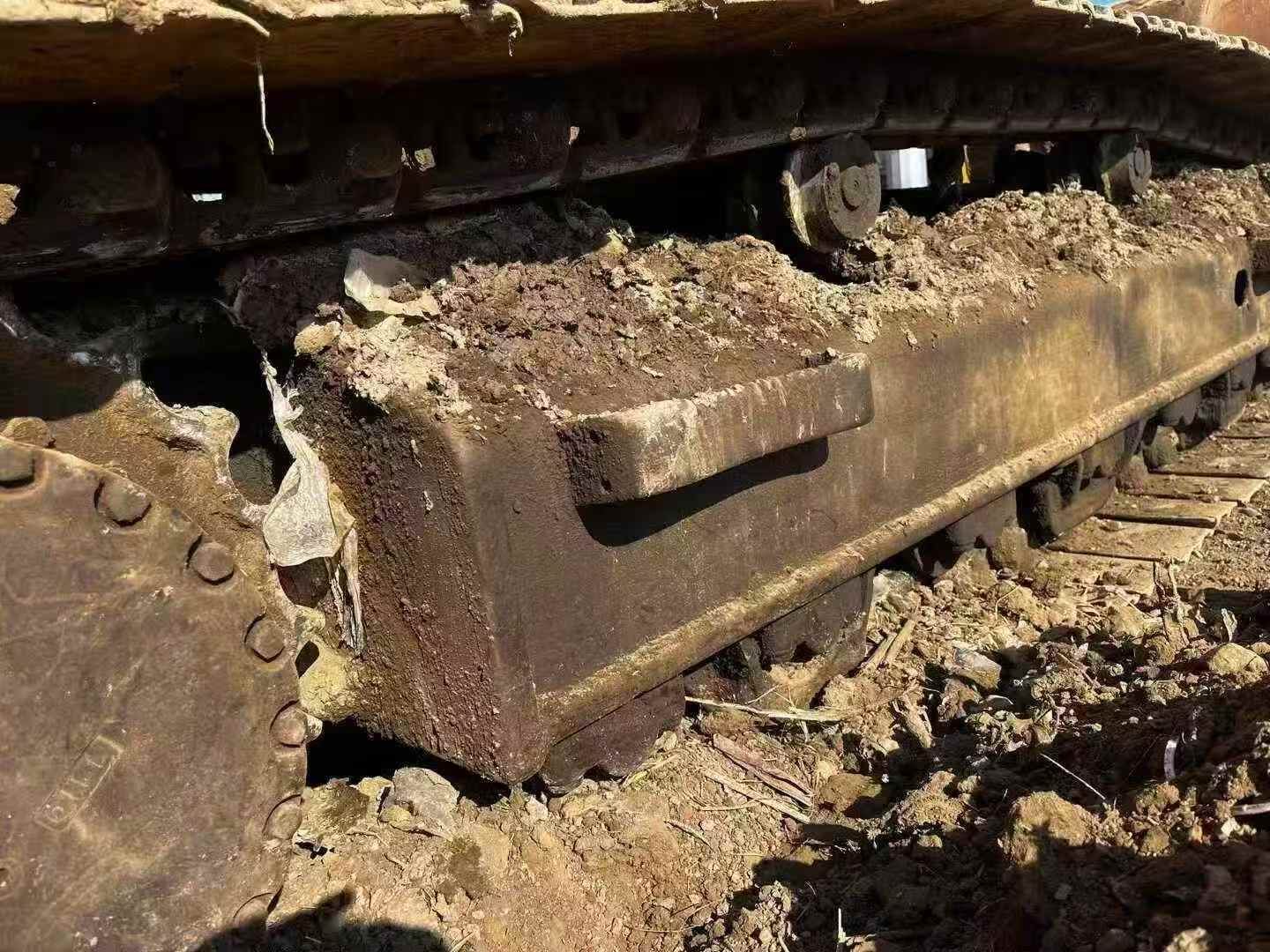

Used Hyundai R215-7 Excavator 2010 Model / 9

Product Description

There is currently a second-hand 2013 model Hyundai R215-7 excavator, with a total working time of approximately 8,000 hours. It has been used by a single customer and is well maintained with stable performance. This machine is equipped with a Cummins 6BTAA engine, with a rated power of 129kW (approximately 173 horsepower). It is powerful and has excellent fuel economy, making it suitable for efficient operation under various working conditions. In terms of the hydraulic system, this R215-7 is equipped with high-quality main pumps and main control valves, ensuring precise control and smooth operation of the equipment during operations such as excavation and loading. Both the hydraulic motor and the cylinder are in good condition with no leakage, ensuring the overall working efficiency and durability of the machine. In addition, the chassis of this excavator is in excellent condition, with a clean appearance. The large parts are dry and free of rust. The original vehicle's turntable operates smoothly without any gaps and does not lose its arm. These features not only enhance the overall aesthetic appeal of the equipment but also significantly reduce the maintenance costs in the later stage. To sum up, this is a second-hand excavator

SpecificationsValue
No.978274
Tonnage (tons)21
Working weight (kg)20700
Bucket capacity (m³)0.92
Boom length (mm)5650
Rod length (mm)2920
Country of originJiangsu (Province)
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHyundai D6BT-C
Rated power (kw/rpm)110/1950
Cooling modewater-cooling
Cylinder diameter × stroke (mm)118 x 115
Number of cylinders (PCS)6
Displacement (L)7
Working formSix-cylinder four-stroke turbocharged direct injection engine
Ground specific pressure (Kpa)47
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)123.3
Rod digging force (kN)95.1
Travel speed (km/h)3.5/5.2
Main overflow set pressure (Mpa)47
Rotary hydraulic motor typeQuantitative swash plate axial piston motor
Type of walking hydraulic motorVariable swash plate axial piston motor
Maximum flow of main pump (l/min)2 x 220
Traveling Hydraulic Circuit (Mpa)280
Rotary Hydraulic Circuit (Mpa)240
Main pump type2× variable axial piston pump + gear pump
Working Hydraulic Circuit (Mpa)280
Pilot Oil Circuit (MPa)35
Bucket cylinders - Number × diameter × stroke (mm)120 * 80 * 1120
Bucket rod cylinders - Number × diameter × stroke (mm)140 * 95 * 1570
Boom cylinders - Number × diameter × stroke (mm)125 * 85 * 1320
Fuel Tank (L)320
Hydraulic Tank (L)165
Engine Oil changes (L)16.3
Coolant (L)32.7
Hydraulic System (L)270
Total transport length (mm)9510
Total transport width (mm)2800
Total transport height (mm)2990
Full cab height (mm)2920
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)480
Back end turning radius (mm)2830
Total track length (mm)4160
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3360
Maximum digging radius (mm)9930
Maximum digging depth (mm)6800
Maximum excavation height (mm)9730
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6060
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Maximum excavation radius of stop surface (mm)9760
Maximum effective digging depth (mm)6610
see more

Overview

No.978274

Brand Name:

Hyundai

Model Number:

R215-7

Year:

2010

Location:

Jiangsu China
