2016 Hyundai R215-9

1/9

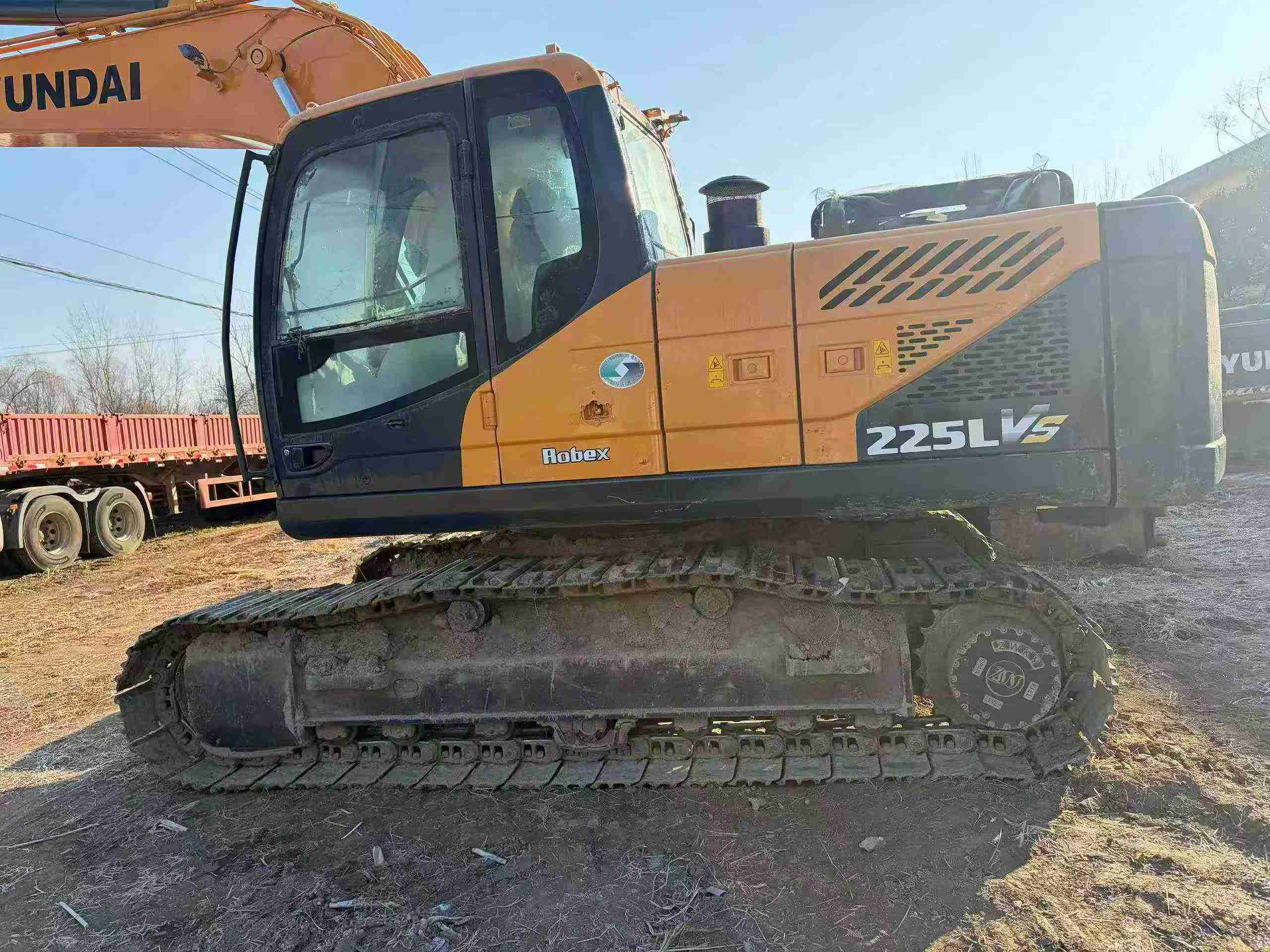

Used Hyundai R215-9 Excavator 2016 Model / 1

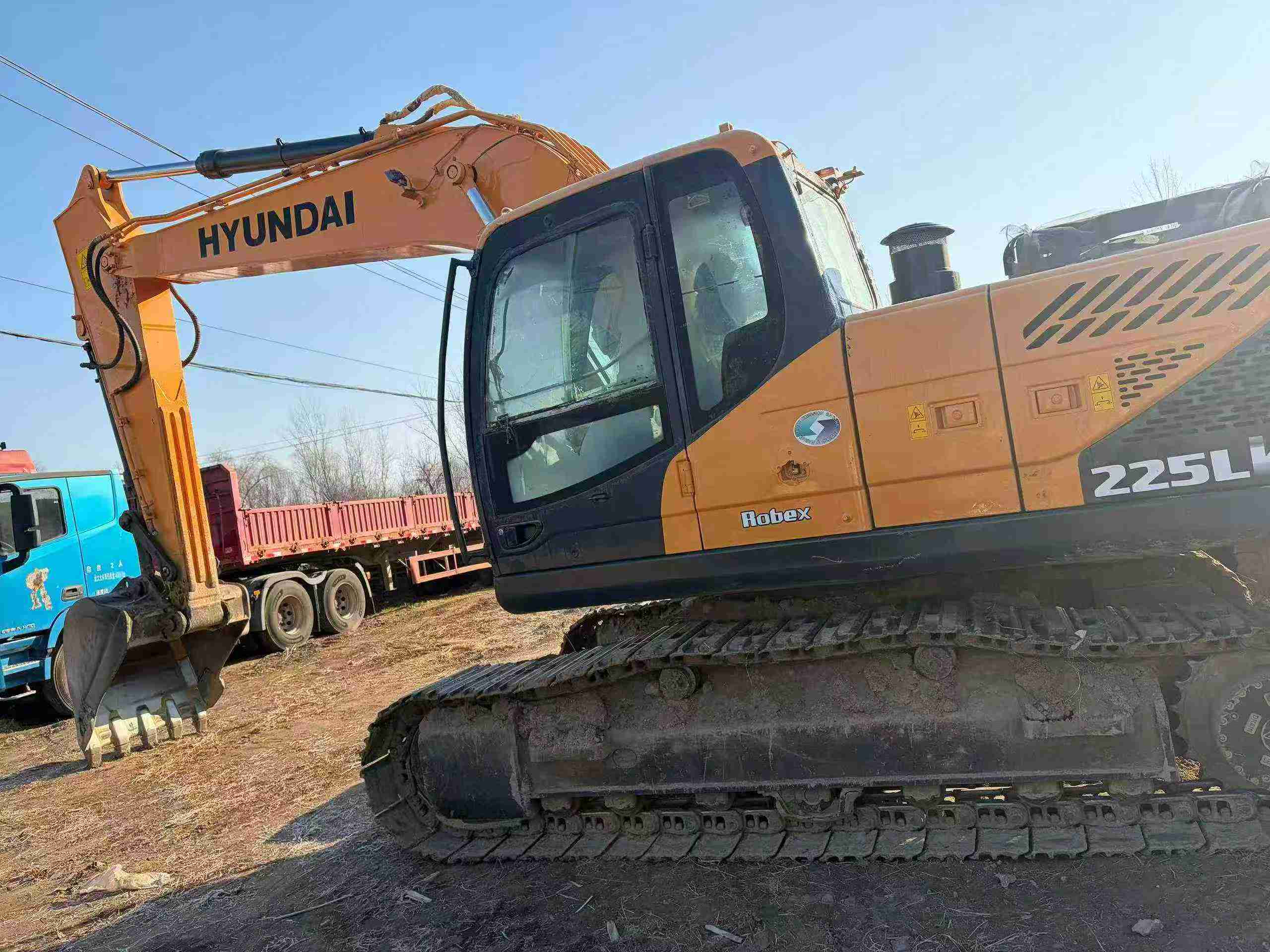

Used Hyundai R215-9 Excavator 2016 Model / 2

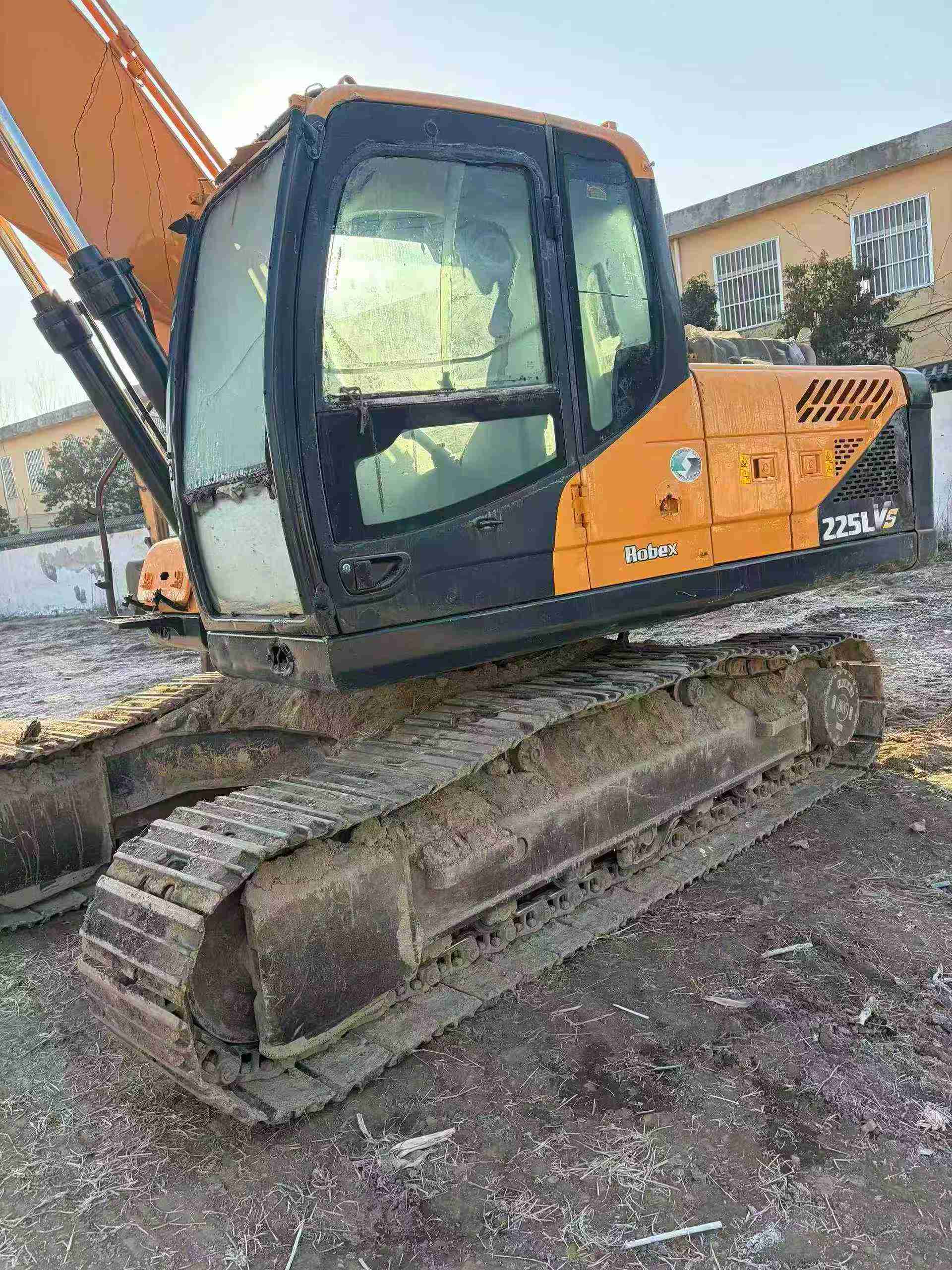

Used Hyundai R215-9 Excavator 2016 Model / 3

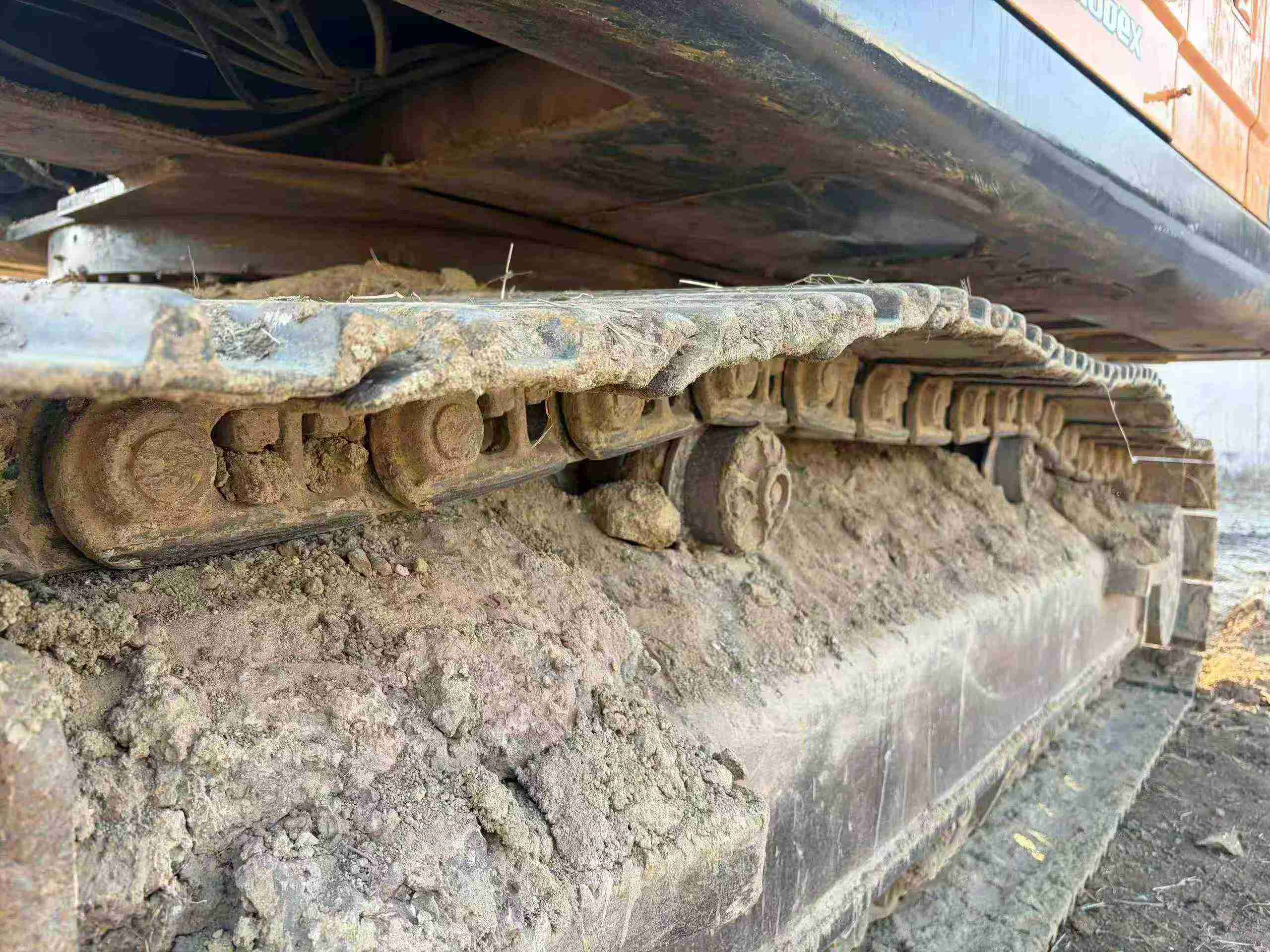

Used Hyundai R215-9 Excavator 2016 Model / 4

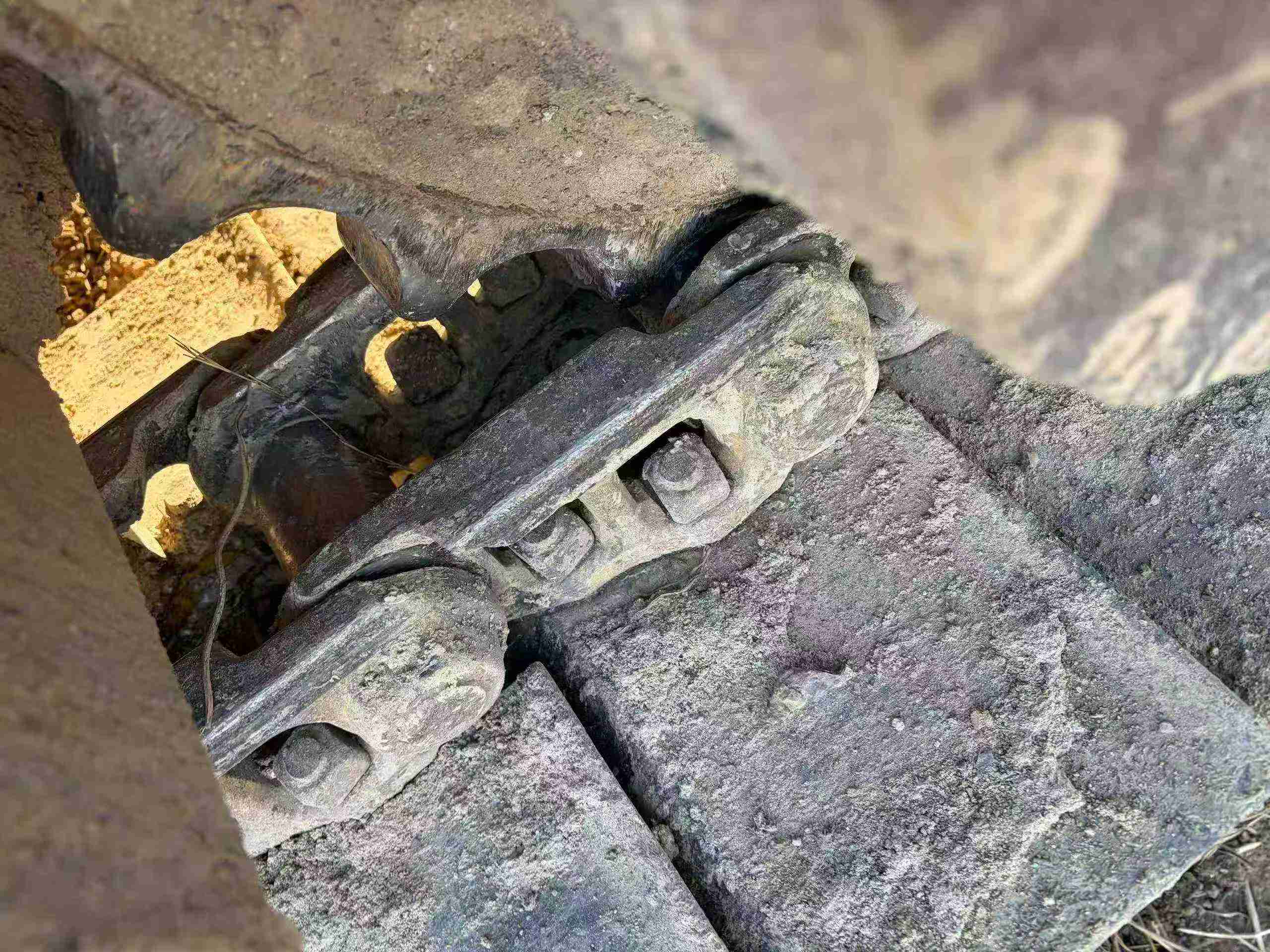

Used Hyundai R215-9 Excavator 2016 Model / 5
Used Hyundai R215-9 Excavator 2016 Model / 6
Used Hyundai R215-9 Excavator 2016 Model / 7

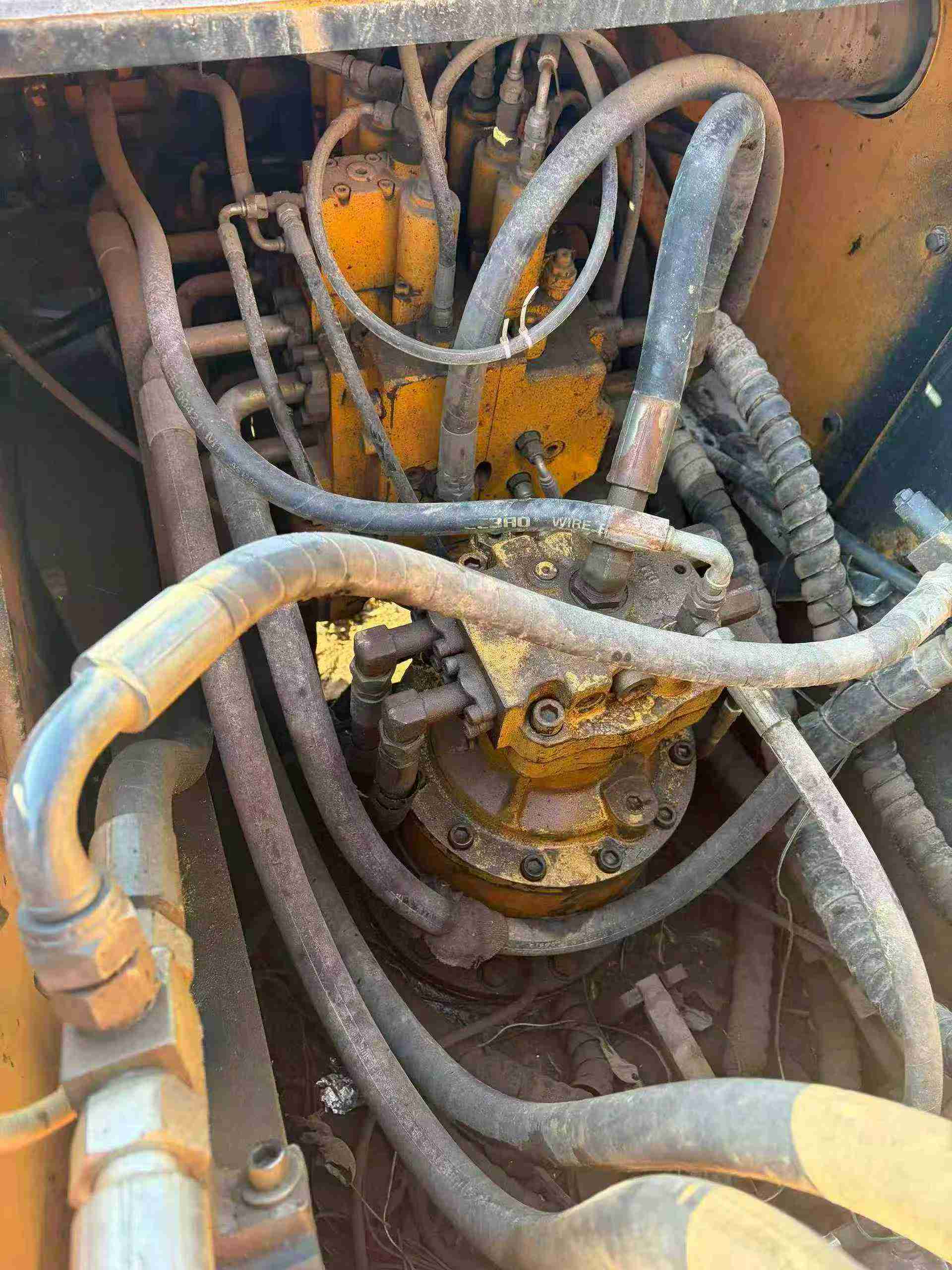

Used Hyundai R215-9 Excavator 2016 Model / 8

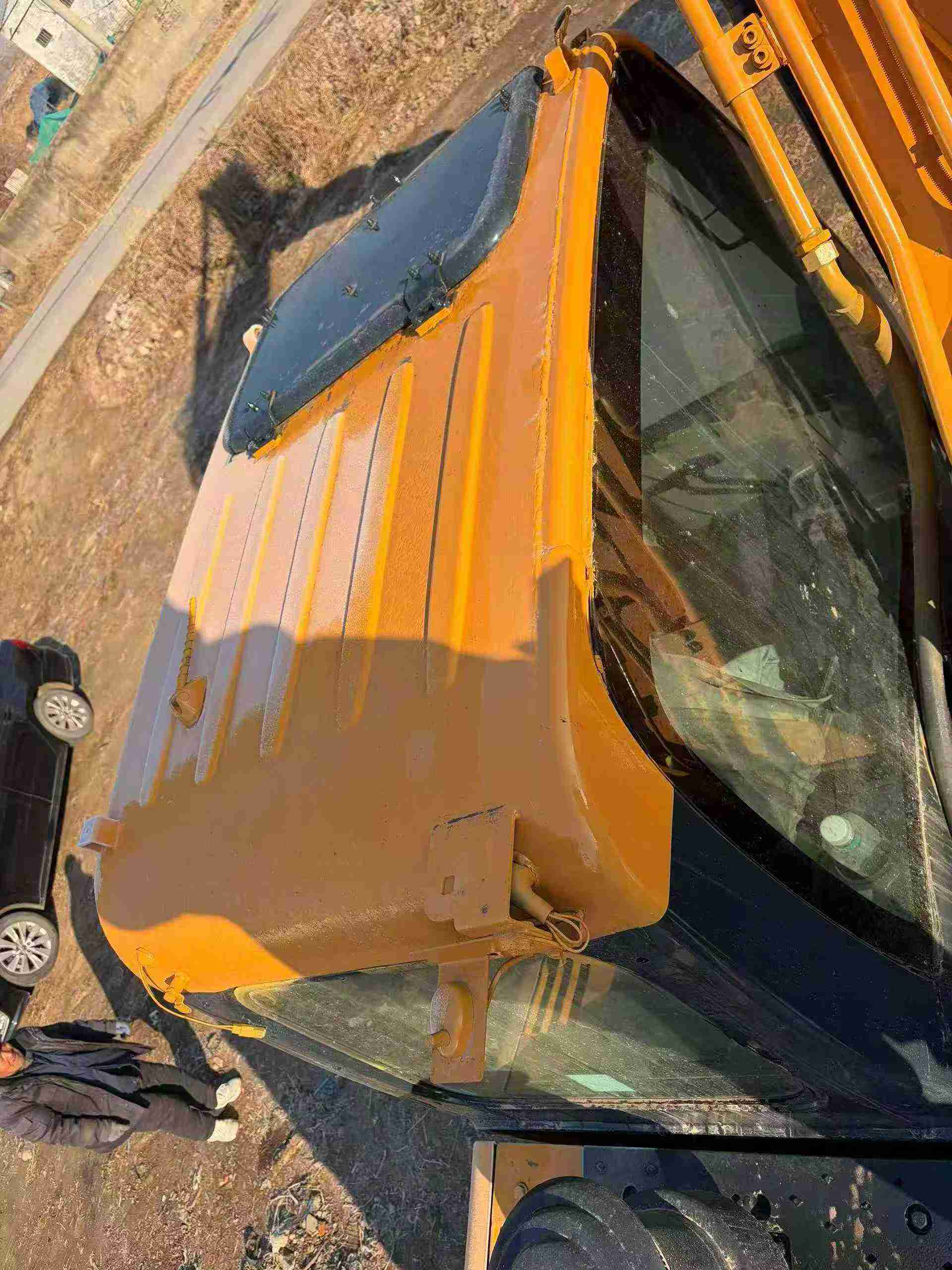

Used Hyundai R215-9 Excavator 2016 Model / 9

Product Description

We currently have a second-hand Hyundai 215-9 excavator with outstanding performance. It is in first-hand stock and ready for delivery at any time. This excavator has a working time of only 3,000 hours and is in the best mechanical condition for use, ensuring its efficient and stable operation capacity. In terms of the power system, this device is equipped with a Cummins 6-cylinder turbocharged diesel engine that has been proven in the market, with a maximum output power of up to 129 kilowatts (approximately 173 horsepower). It not only provides strong power support but also ensures a perfect balance between fuel economy and environmental performance. Whether facing complex and changeable terrains or high-load working environments, it can handle them with ease. The hydraulic system adopts advanced negative flow control technology, equipped with high-performance variable piston pumps and high-torque walking motors, which enables the entire machine to respond quickly and move smoothly during operations such as excavation and loading, greatly enhancing work efficiency. Meanwhile, the optimized design of the oil circuit layout effectively reduces internal friction losses, further enhancing the overall efficiency and durability of the sys

SpecificationsValue
No.978317
Tonnage (tons)21
Working weight (kg)20900
Bucket capacity (m³)0.92
Boom length (mm)5680
Rod length (mm)2920
Country of originJiangsu (Province)
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHyundai D6BV-C
Rated power (kw/rpm)110/1950
Cooling modewater-cooling
Cylinder diameter × stroke (mm)107 x 124
Maximum torque (N.m)568.4
Number of cylinders (PCS)6
Displacement (L)7.545
Working formSix-cylinder four-stroke turbocharged direct injection engine
Ground specific pressure (Kpa)48
Rotation speed (rpm)12
Climbing ability (%)70/35 °
Bucket digging force (kN)143.7
Rod digging force (kN)102.4
Maximum tractive force (kN)195
Travel speed (km/h)5.3/3.4
Rotary hydraulic motor typeQuantitative swash plate axial piston pump
Type of walking hydraulic motorVariable swash plate axial piston pump
Maximum flow of main pump (l/min)2 x 222
Traveling Hydraulic Circuit (Mpa)330
Rotary Hydraulic Circuit (Mpa)265
Hydraulic crushing pipeline is standardno
Main pump type2× variable axial piston pump + gear pump
Working Hydraulic Circuit (Mpa)330
Pilot Oil Circuit (MPa)40
Bucket cylinders - Number × diameter × stroke (mm)120 * 85 * 1055
Bucket rod cylinders - Number × diameter × stroke (mm)140 * 100 * 1510
Boom cylinders - Number × diameter × stroke (mm)120 * 85 * 1290
Fuel Tank (L)400
Hydraulic Tank (L)160
Engine Oil changes (L)16.3
Coolant (L)35
Hydraulic System (L)275
Total transport length (mm)9530
Total transport width (mm)2800
Total transport height (mm)3030
Full cab height (mm)2920
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)3740
Back end turning radius (mm)2840
Onboard width (mm)2740
Total track length (mm)4160
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9980
Maximum digging depth (mm)6730
Maximum excavation height (mm)9600
Maximum unloading height (mm)6780
Maximum vertical digging depth (mm)6280
Bulldozer lift or depth (mm)There is no
Dodging plate width × height (mm)There is no
Maximum excavation radius of stop surface (mm)9820
Maximum effective digging depth (mm)6560
see more

Overview

No.978317

Brand Name:

Hyundai

Model Number:

R215-9

Year:

2016

Location:

Zhejiang China
