Product Description

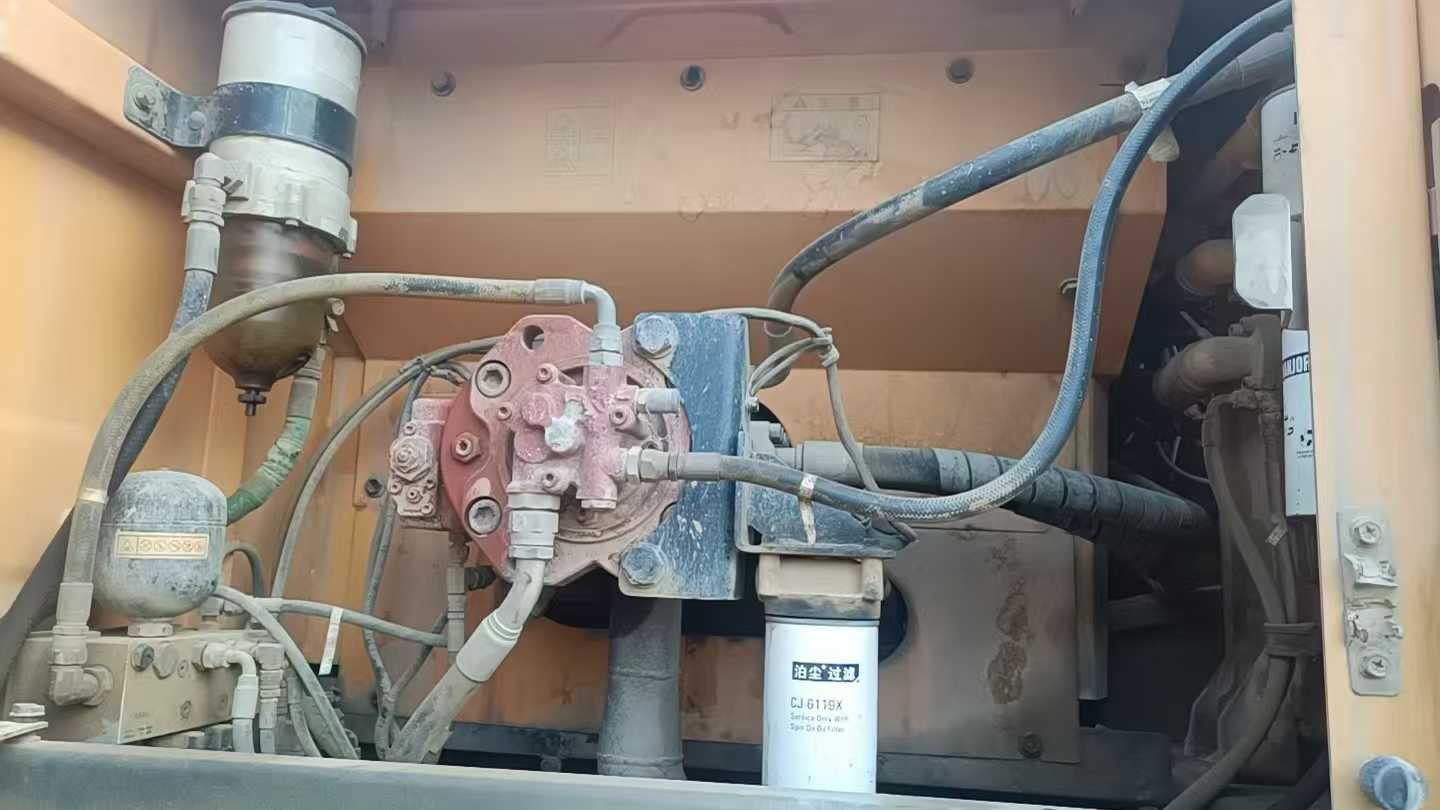

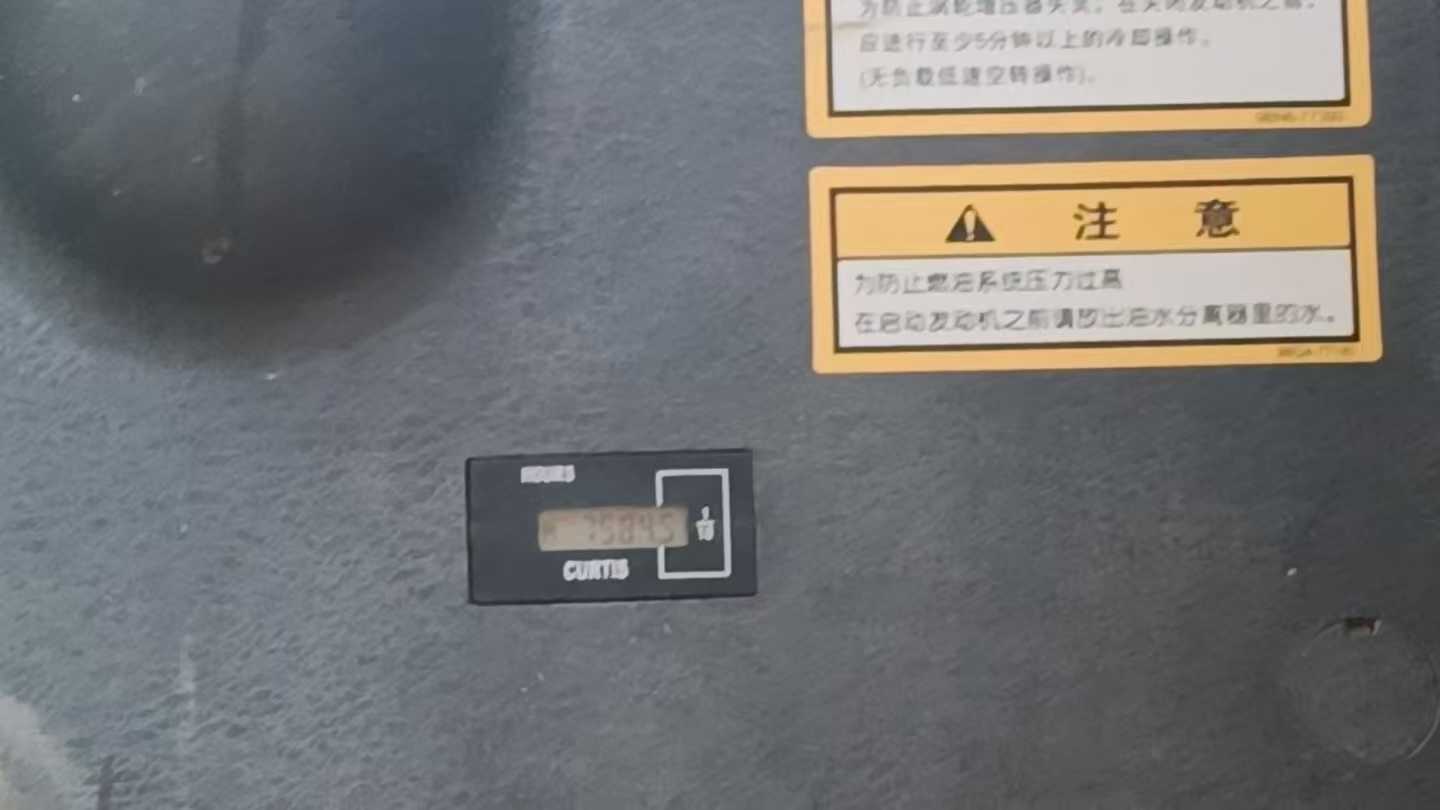

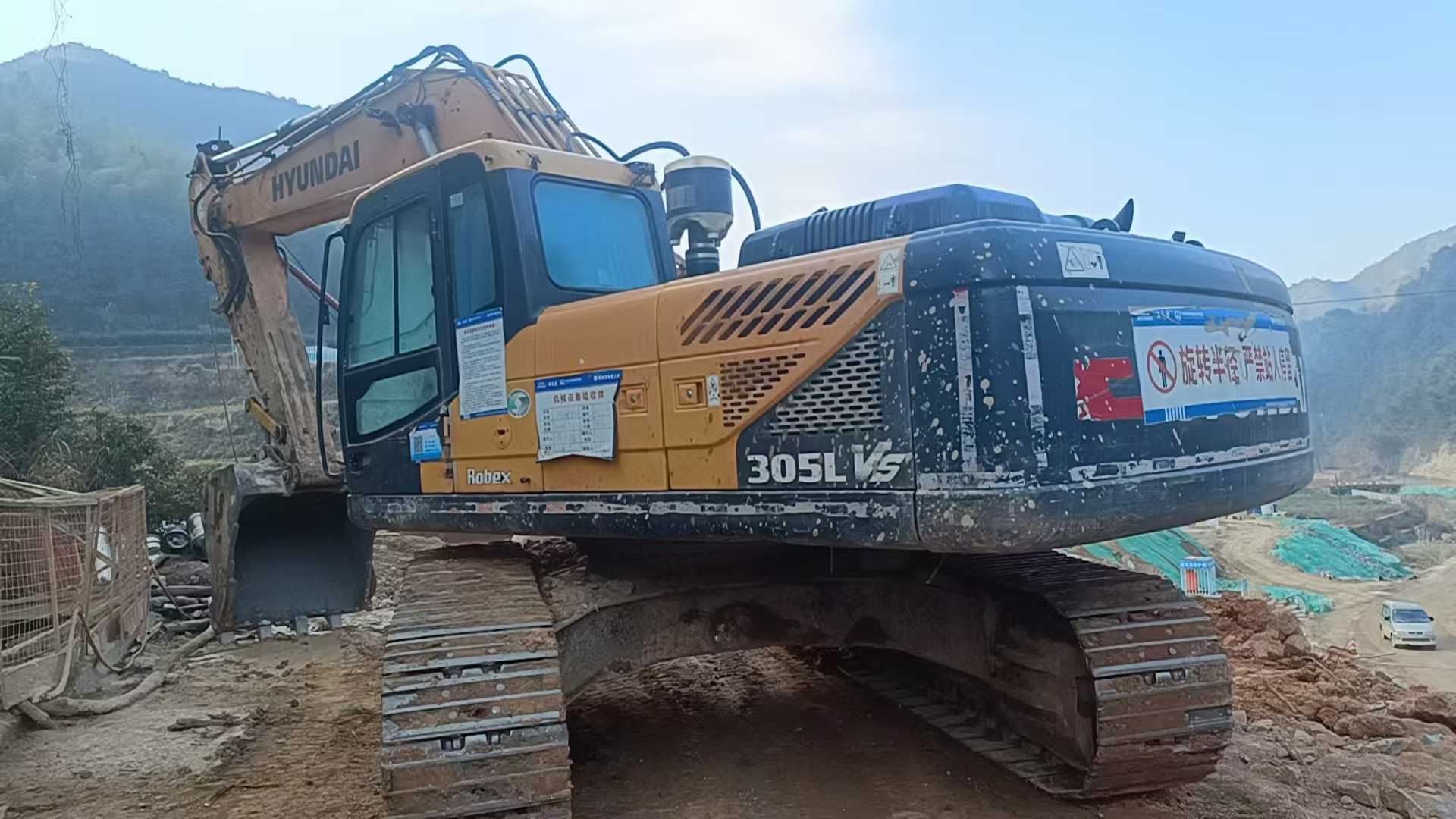

There is currently a second-hand Hyundai 305VS excavator produced in November 2019, with a total working time of approximately 4,000 hours, and it is in good operating condition. This device is equipped with an efficient Cummins engine, model B5.9, with a power output of 130 kilowatts. It features strong power output and stable performance, ensuring efficient operation under various complex working conditions. In terms of the hydraulic system, this Hyundai 305VS is equipped with advanced variable piston pumps and high-quality hydraulic motors, capable of providing stable and responsive hydraulic power to meet the demands of precise operations and high-intensity excavation. In addition, its optimally designed hydraulic circuit effectively reduces energy consumption and improves fuel economy. As a medium-sized excavator, the Hyundai 305VS not only boasts excellent maneuverability and comfort, but also places particular emphasis on maintenance convenience. The spacious operation room, humanized control layout and easily accessible maintenance points make daily inspection and maintenance more convenient. More importantly, the robust and durable structural design ensures the reliability of the machine after long-term use. In conclusion,
| Specifications | Value |
|---|---|
| No. | 978405 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30200 |
| Bucket capacity (m³) | 1.44 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | HYUNDAI HE6.7 |
| Rated power (kw/rpm) | 169/ 1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Rotation speed (rpm) | 10.2 |
| Climbing ability (%) | 70 |
| Travel speed (km/h) | 5.6/3.2 |
| Maximum flow of main pump (l/min) | 2 x 252 |
| Main pump type | Two variable plunger pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-135 x 95 x 1185 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-150 x 110 x 1765 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140 x 100 x 1465 |
| Fuel Tank (L) | 560 |
| Hydraulic Tank (L) | 190 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 330 |
| Total transport length (mm) | 10453 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3350 |
| Full cab height (mm) | 3010 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum turning radius of front working device (mm) | 4300 |
| Back end turning radius (mm) | 3196 |
| Onboard width (mm) | 2980 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 48 |
| Maximum digging radius (mm) | 10590 |
| Maximum digging depth (mm) | 7180 |
| Maximum excavation height (mm) | 10030 |
| Maximum unloading height (mm) | 7000 |
| Maximum vertical digging depth (mm) | 6120 |
| Maximum excavation radius of stop surface (mm) | 10400 |
