2016 Kobelco SK2008

1/9

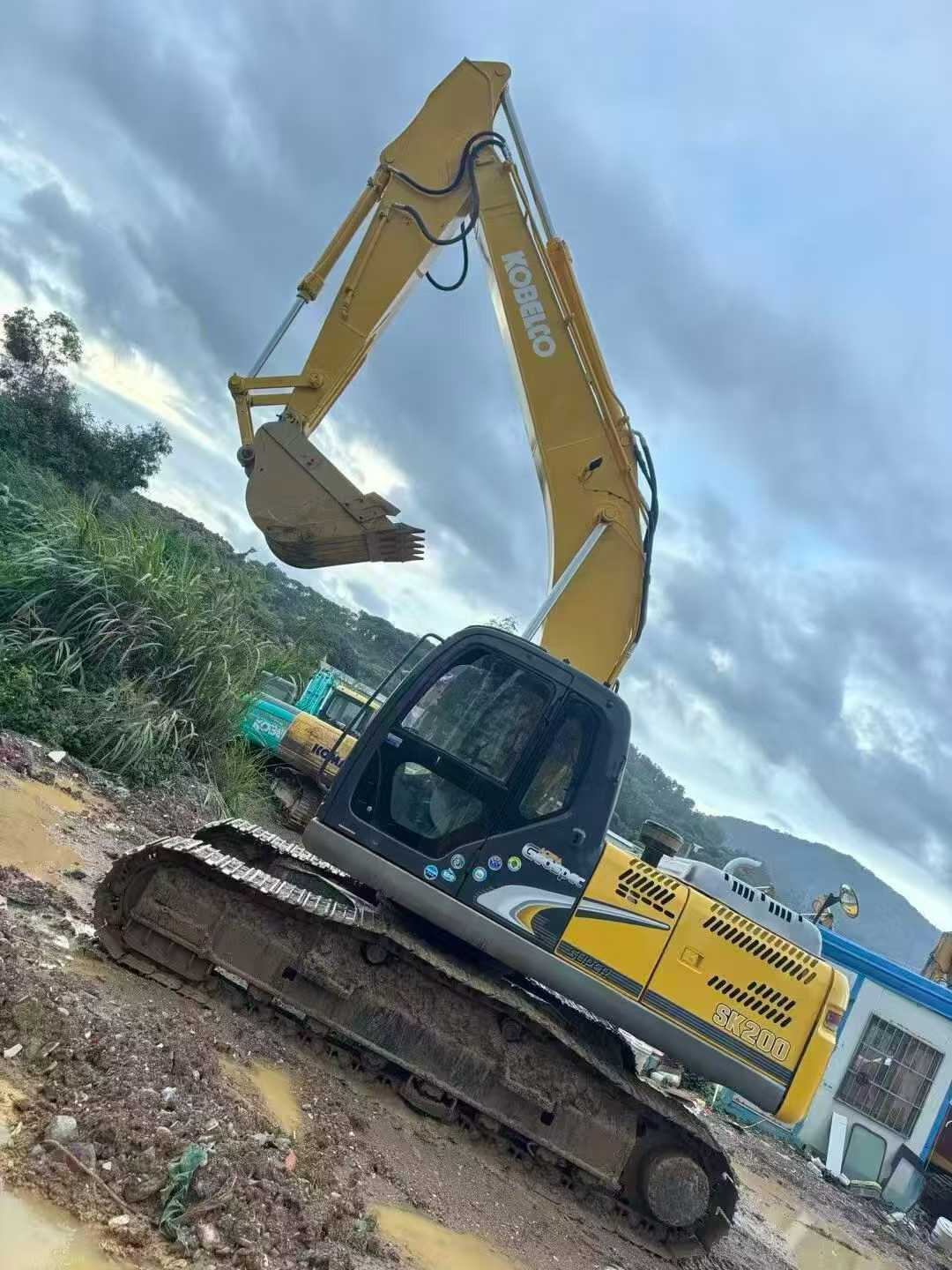

Used Kobelco SK2008 Excavator 2016 Model / 1

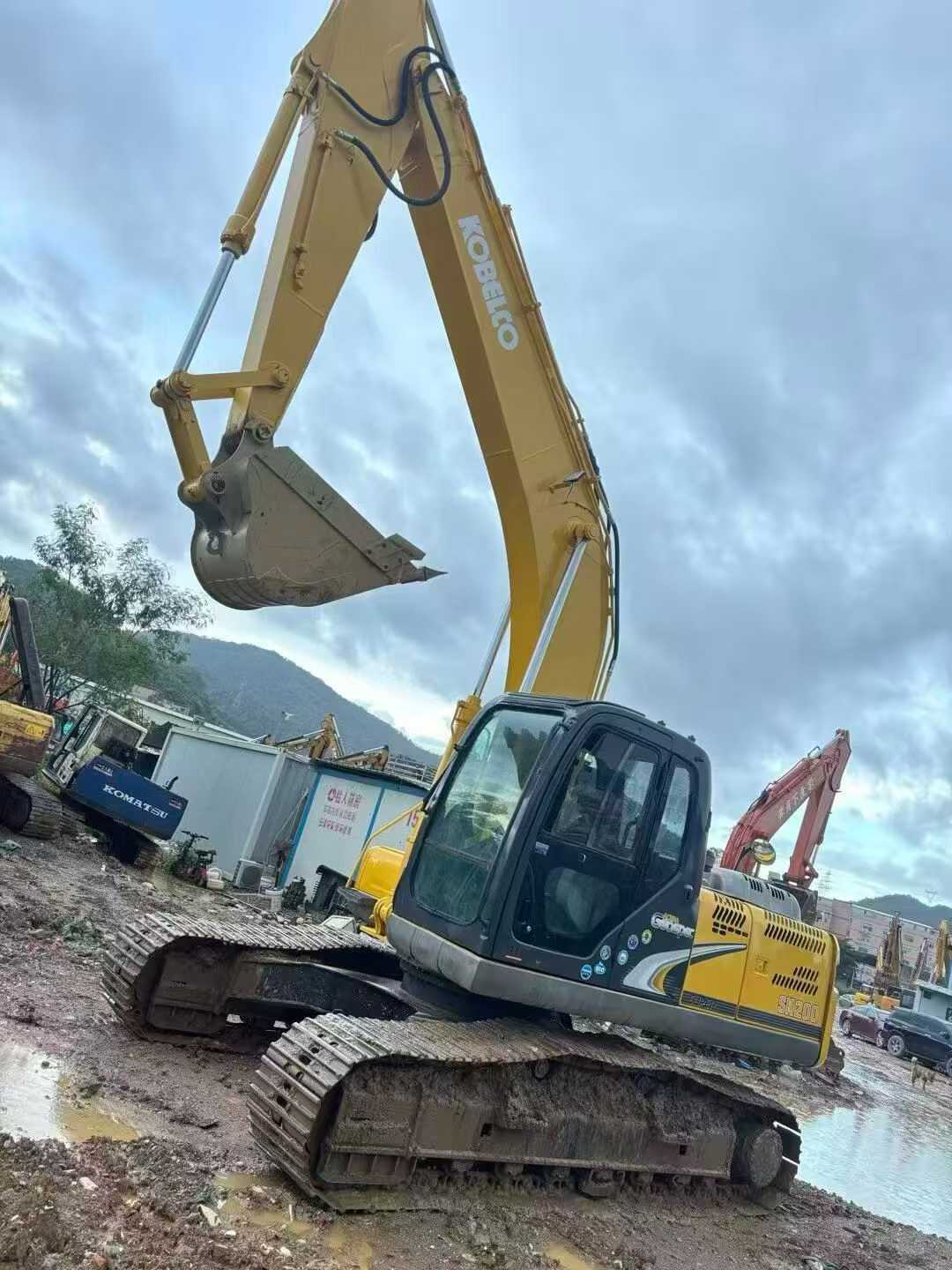

Used Kobelco SK2008 Excavator 2016 Model / 2

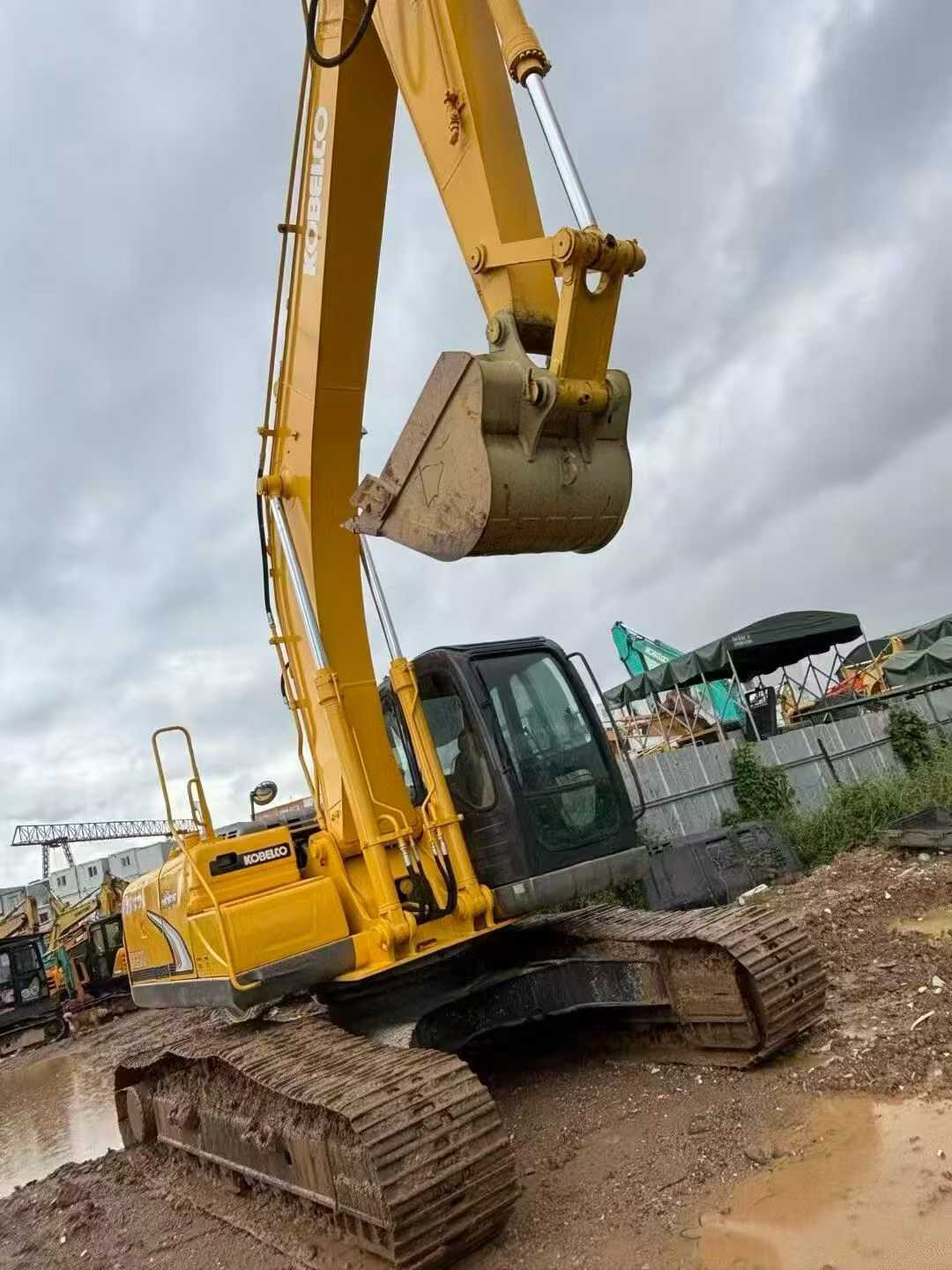

Used Kobelco SK2008 Excavator 2016 Model / 3
Used Kobelco SK2008 Excavator 2016 Model / 4

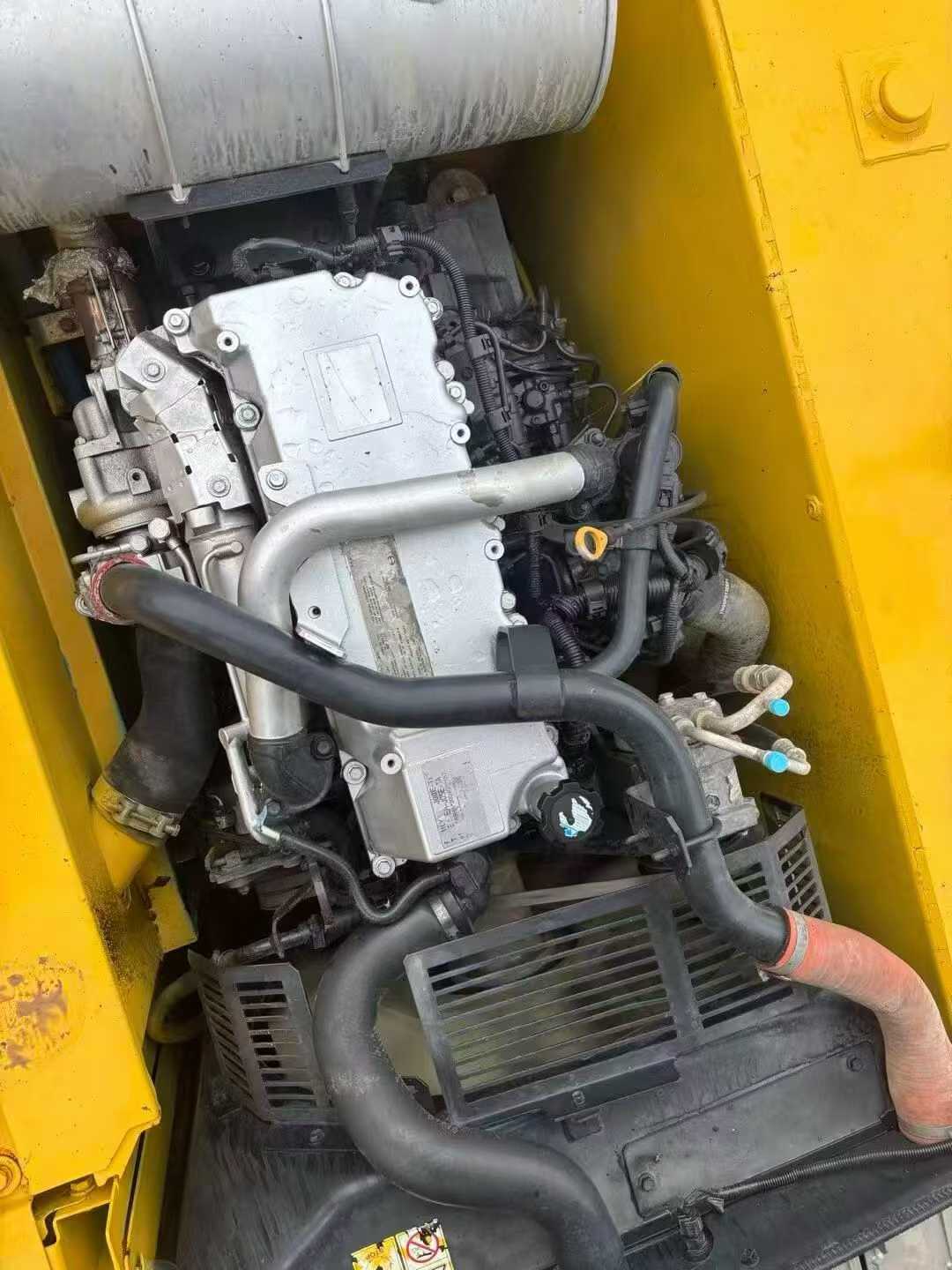

Used Kobelco SK2008 Excavator 2016 Model / 5

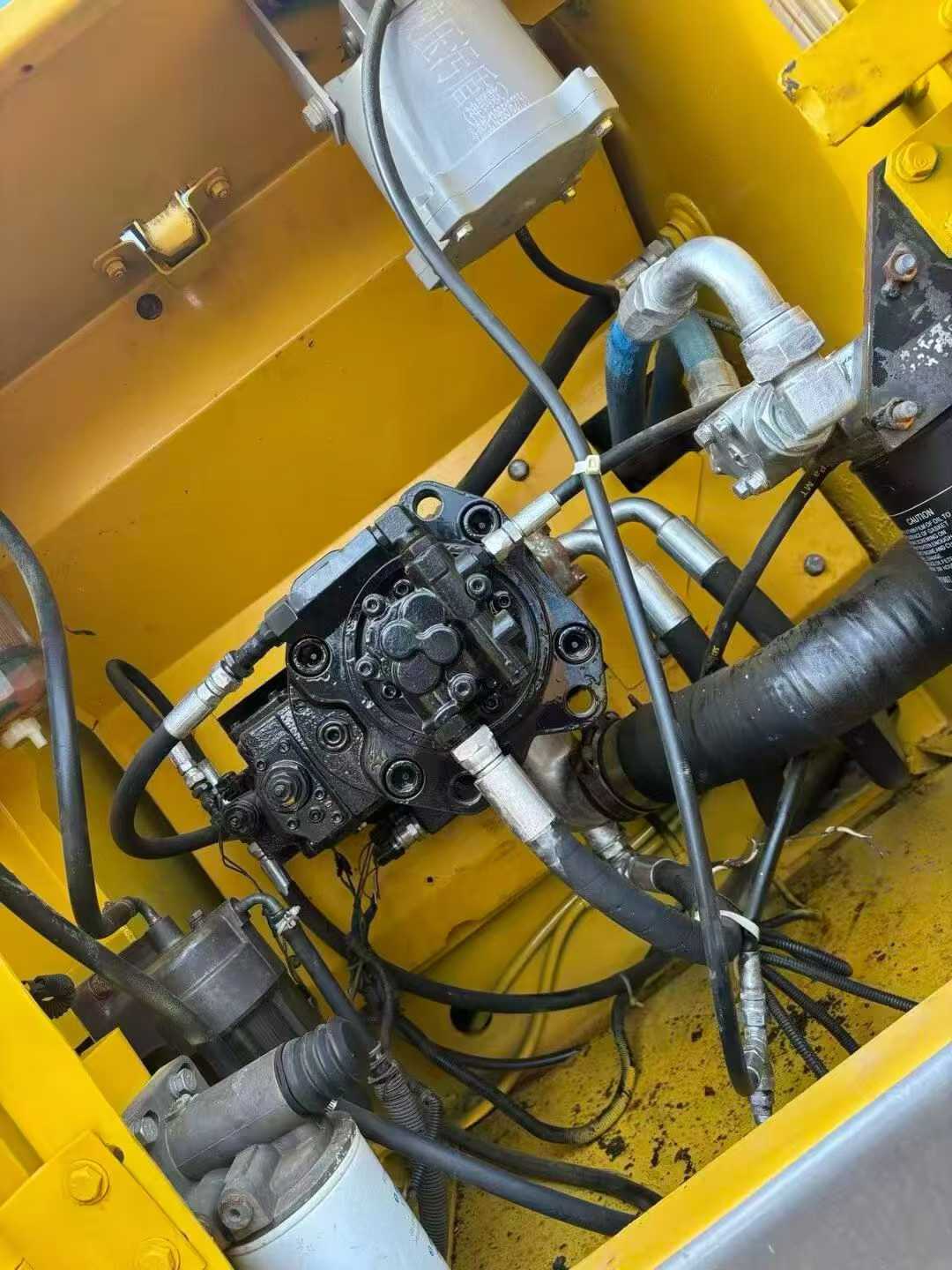

Used Kobelco SK2008 Excavator 2016 Model / 6

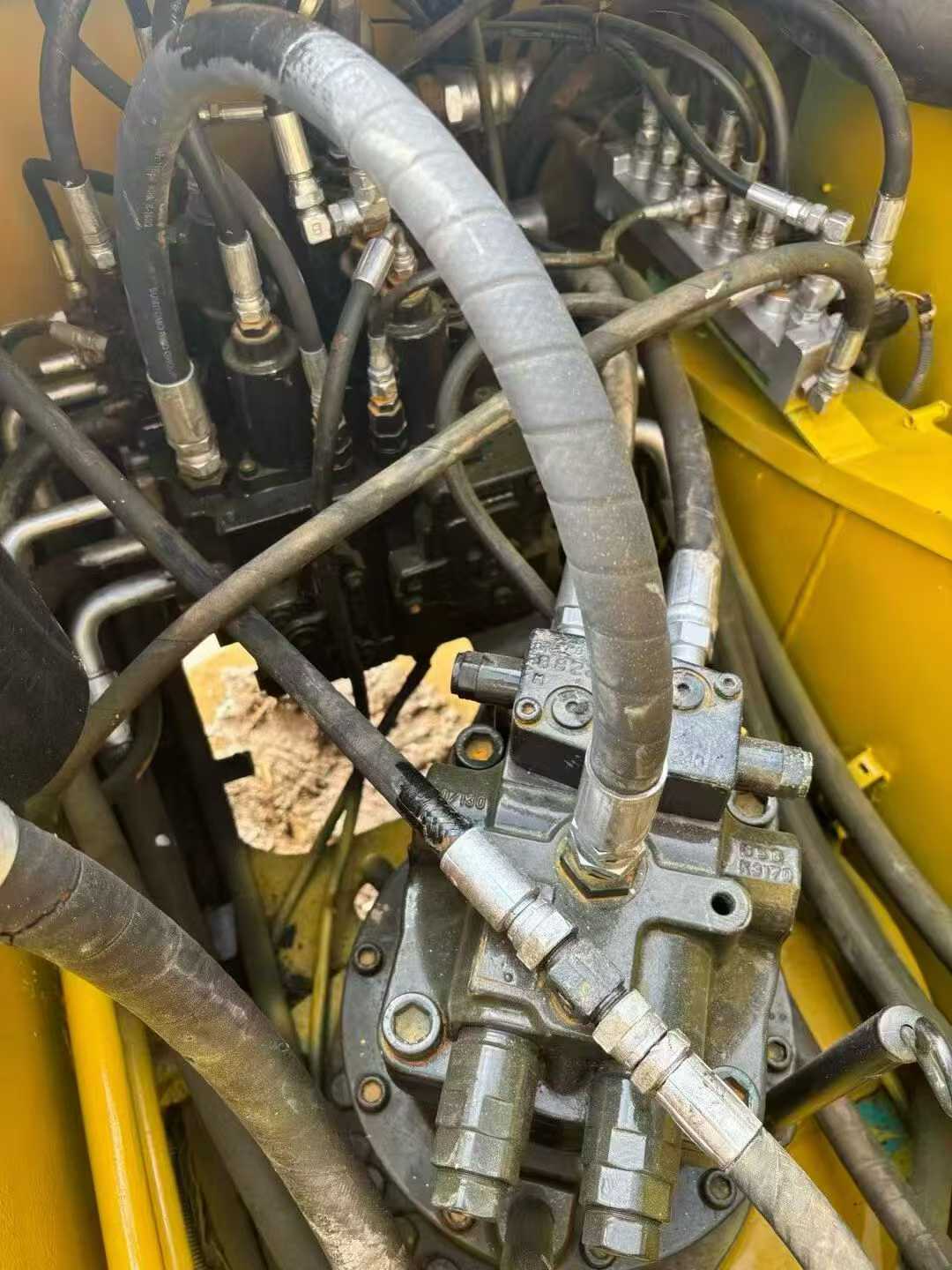

Used Kobelco SK2008 Excavator 2016 Model / 7
Used Kobelco SK2008 Excavator 2016 Model / 8

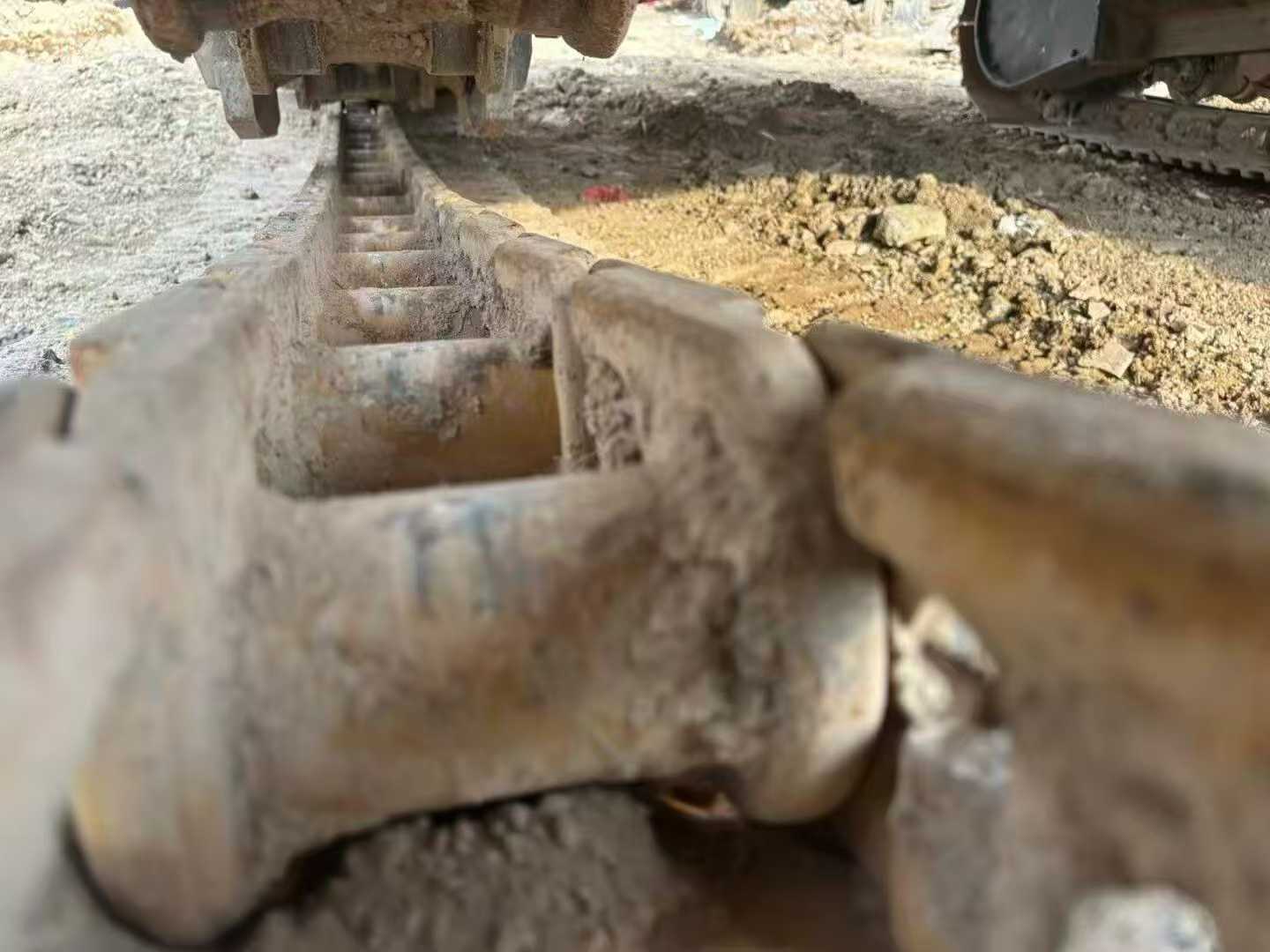

Used Kobelco SK2008 Excavator 2016 Model / 9

Product Description

We are selling a second-hand Kobelco SK200-8 extra-long arm excavator with outstanding performance. This equipment has a working time of over 10,000 hours, demonstrating its reliability and durability under various working conditions. In terms of power, it is equipped with an efficient and energy-saving Isuzu 4HK1X engine, with a maximum output power of up to 129kW, ensuring strong power output and low fuel consumption performance. The hydraulic system adopts advanced negative flow control technology, combined with large-capacity hydraulic pumps and high-performance hydraulic motors, which not only improves work efficiency but also enhances the smoothness and accuracy of operation. The main advantages of this model of excavator include: - High efficiency and energy conservation: By optimizing the design of the fuel injection system and exhaust after-treatment device, a lower emission level and higher fuel economy have been achieved. - Strong digging force and stability: The extended boom structure enables the machine to easily handle complex working environments such as deep trench excavation and slope trimming, while maintaining good vehicle body balance. - Comfortable operating experience: The spacious and bright cab is equipped wit

SpecificationsValue
No.974449
Tonnage (tons)20
Working weight (kg)20600
Bucket capacity (m³)0.8
Rod length (mm)2.94(Standard)
Country of originHangzhou
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHino J05E
Rated power (kw/rpm)114/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)112 x 130
Number of cylinders (PCS)4
Displacement (L)5.123
Working formDirect injection, four stroke, turbocharged, built-in intercooling
Ground specific pressure (Kpa)46
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)143
Rod digging force (kN)102
Travel speed (km/h)3.6/6.0
Maximum flow of main pump (l/min)2 x 220 + 20
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)29
Control Hydraulic Circuit (Mpa)5
Hydraulic crushing pipeline is standardis
Main pump typeDual variable displacement axial piston pump ×2+ pilot gear pump ×1
Working Hydraulic Circuit (Mpa)34.3
Bucket cylinders - Number × diameter × stroke (mm)120 x 1080
Bucket rod cylinders - Number × diameter × stroke (mm)135 x 1558
Boom cylinders - Number × diameter × stroke (mm)120 x 1355
Fuel Tank (L)370
Hydraulic Tank (L)146
Engine Oil changes (L)22
Coolant (L)22
Total transport length (mm)9450
Total transport width (mm)2800
Total transport height (mm)2980
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)450
Minimum turning radius of front working device (mm)3540
Back end turning radius (mm)2750
Total track length (mm)4170
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900
Maximum digging depth (mm)6700
Maximum excavation height (mm)9720
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6100
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)9730
Maximum effective digging depth (mm)6520
see more

Overview

No.974449

Brand Name:

Kobelco

Model Number:

SK2008

Year:

2016

Location:

Guangdong China
