Product Description

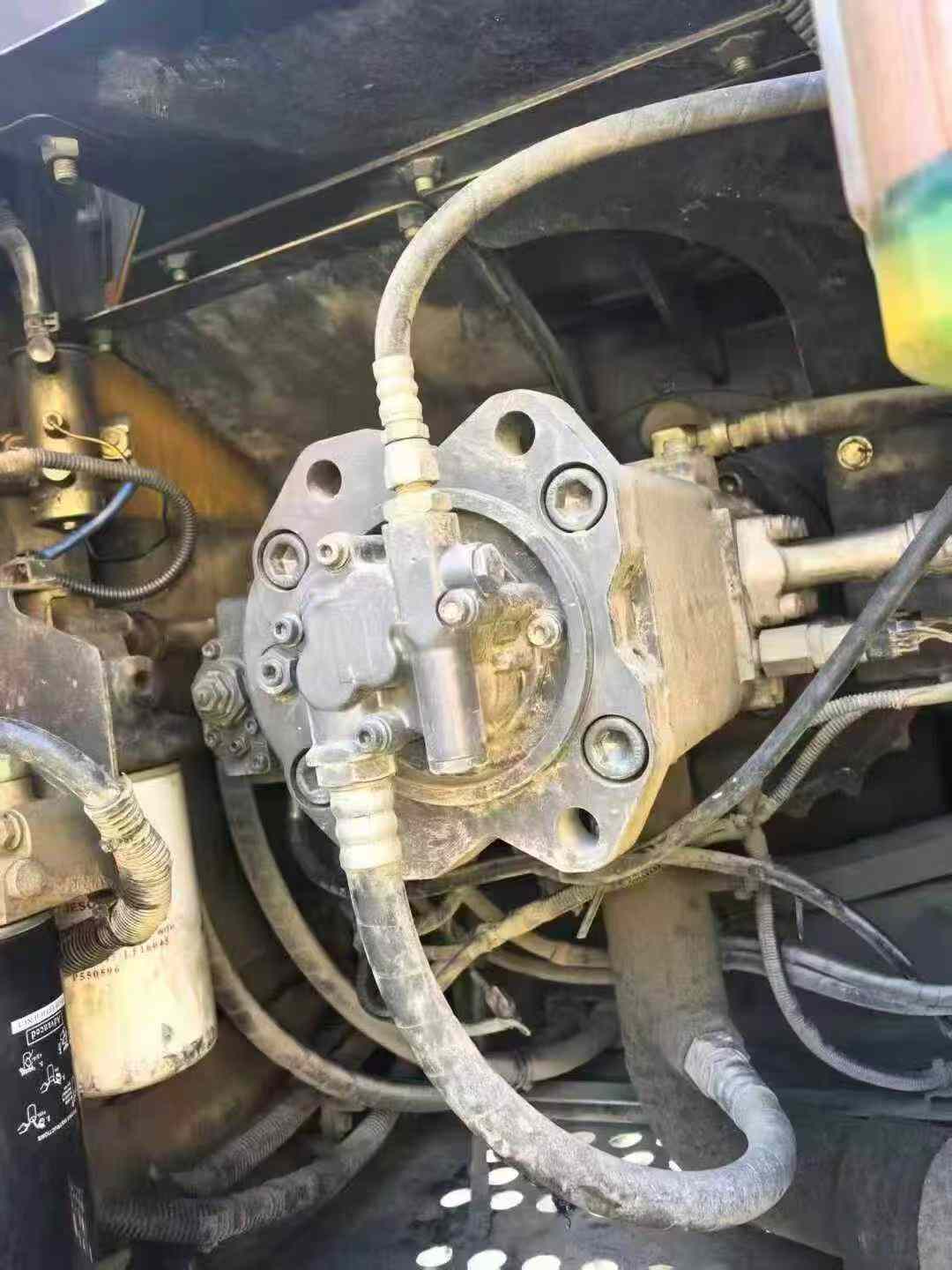

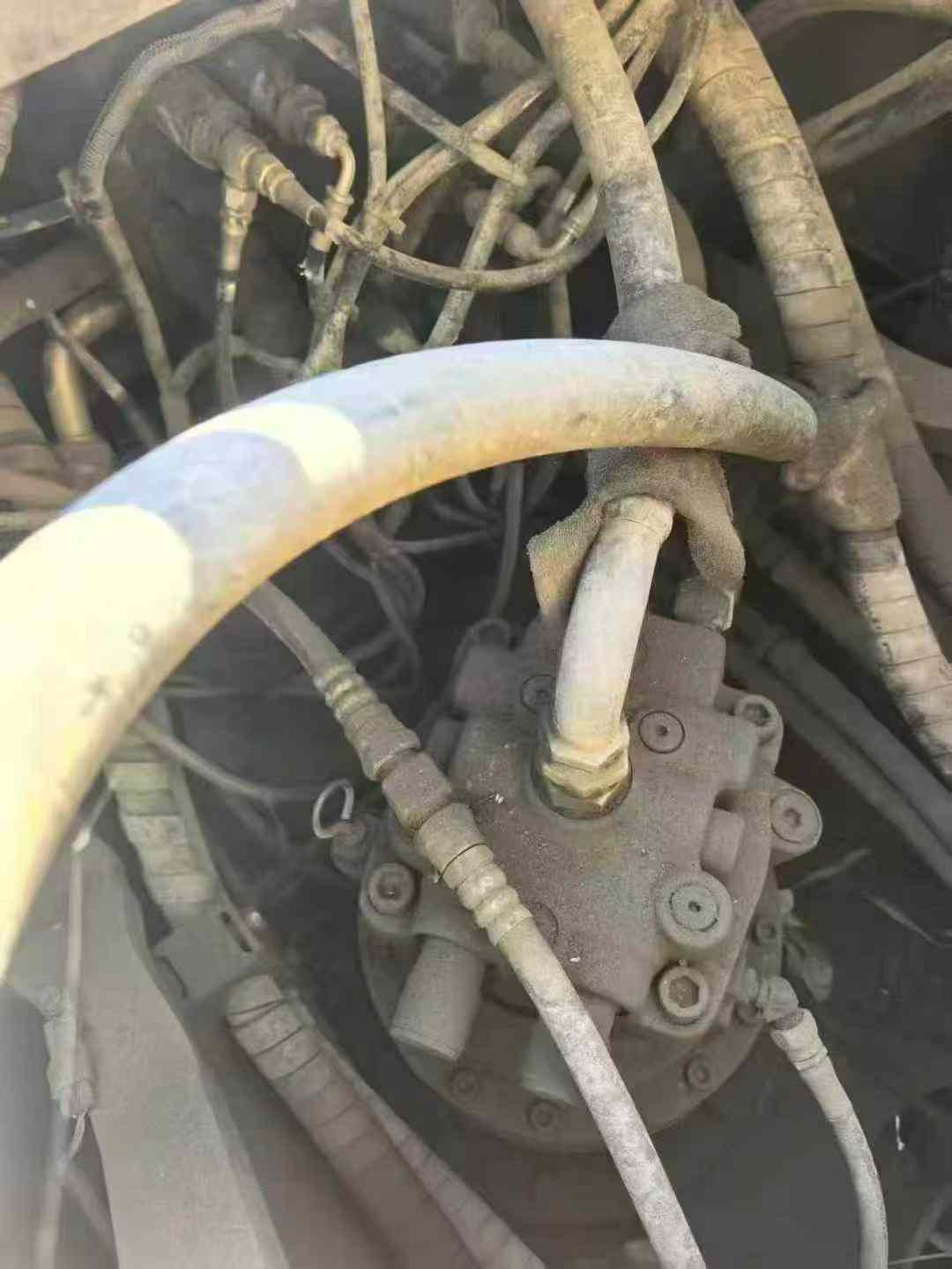

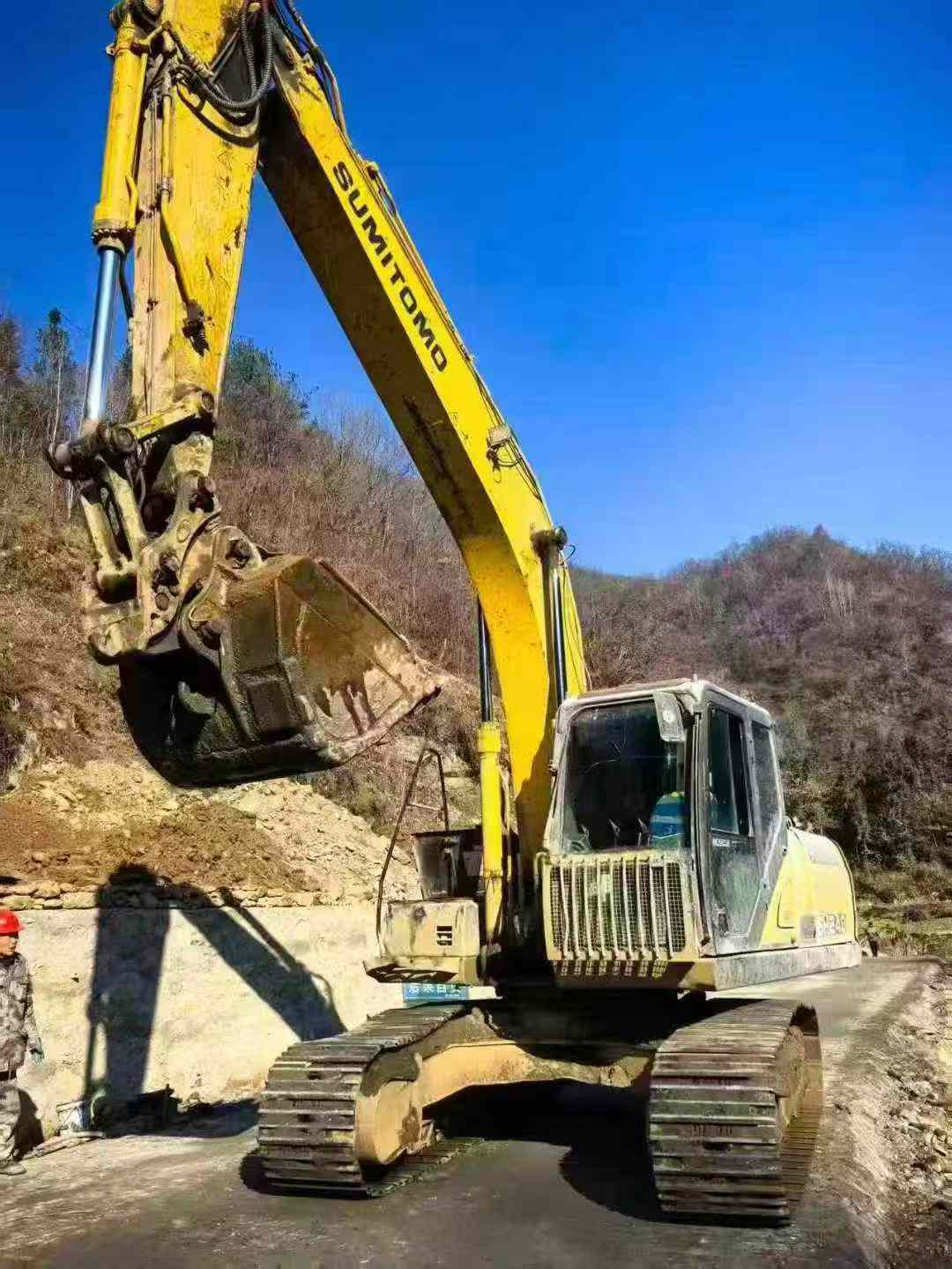

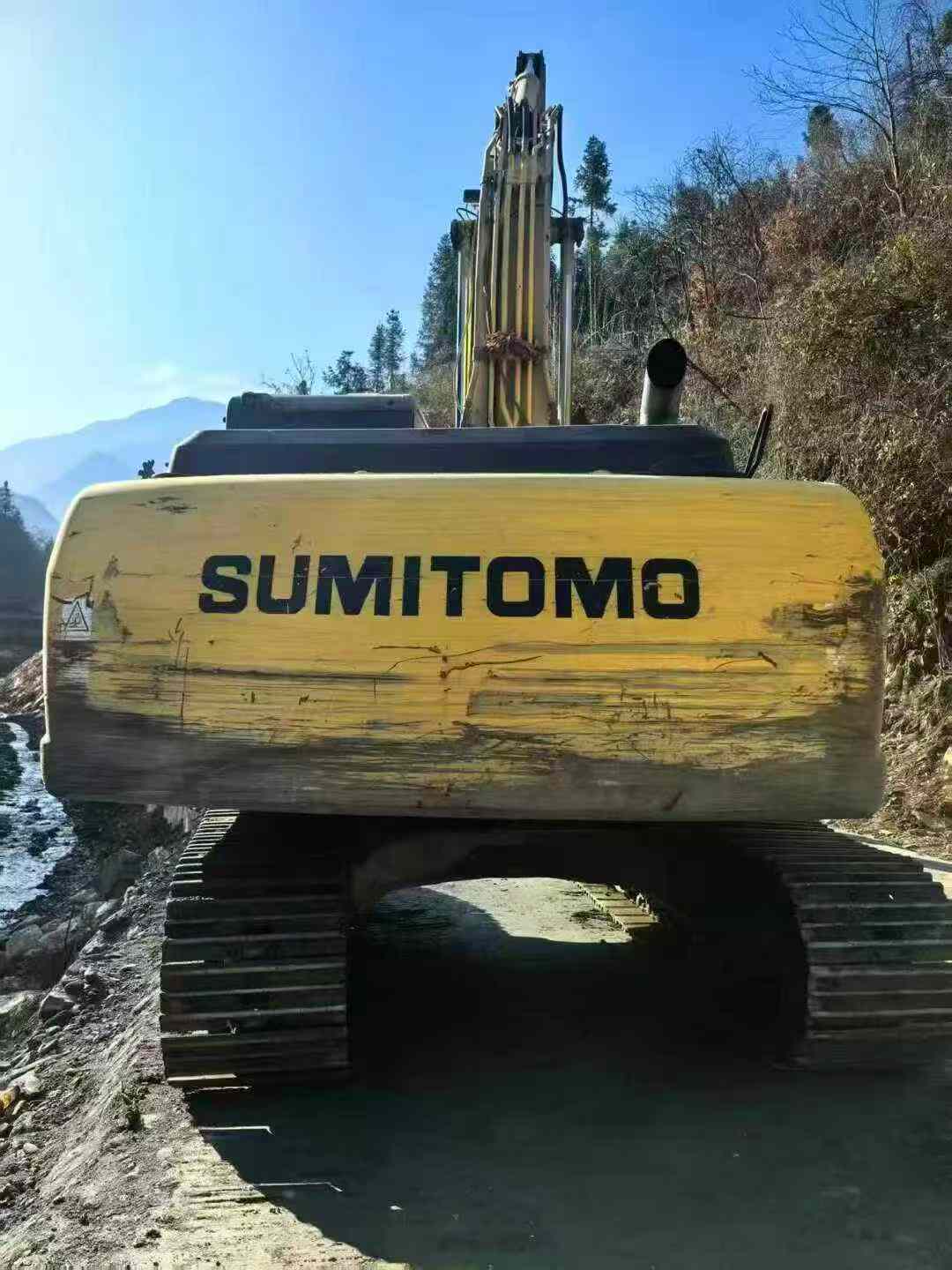

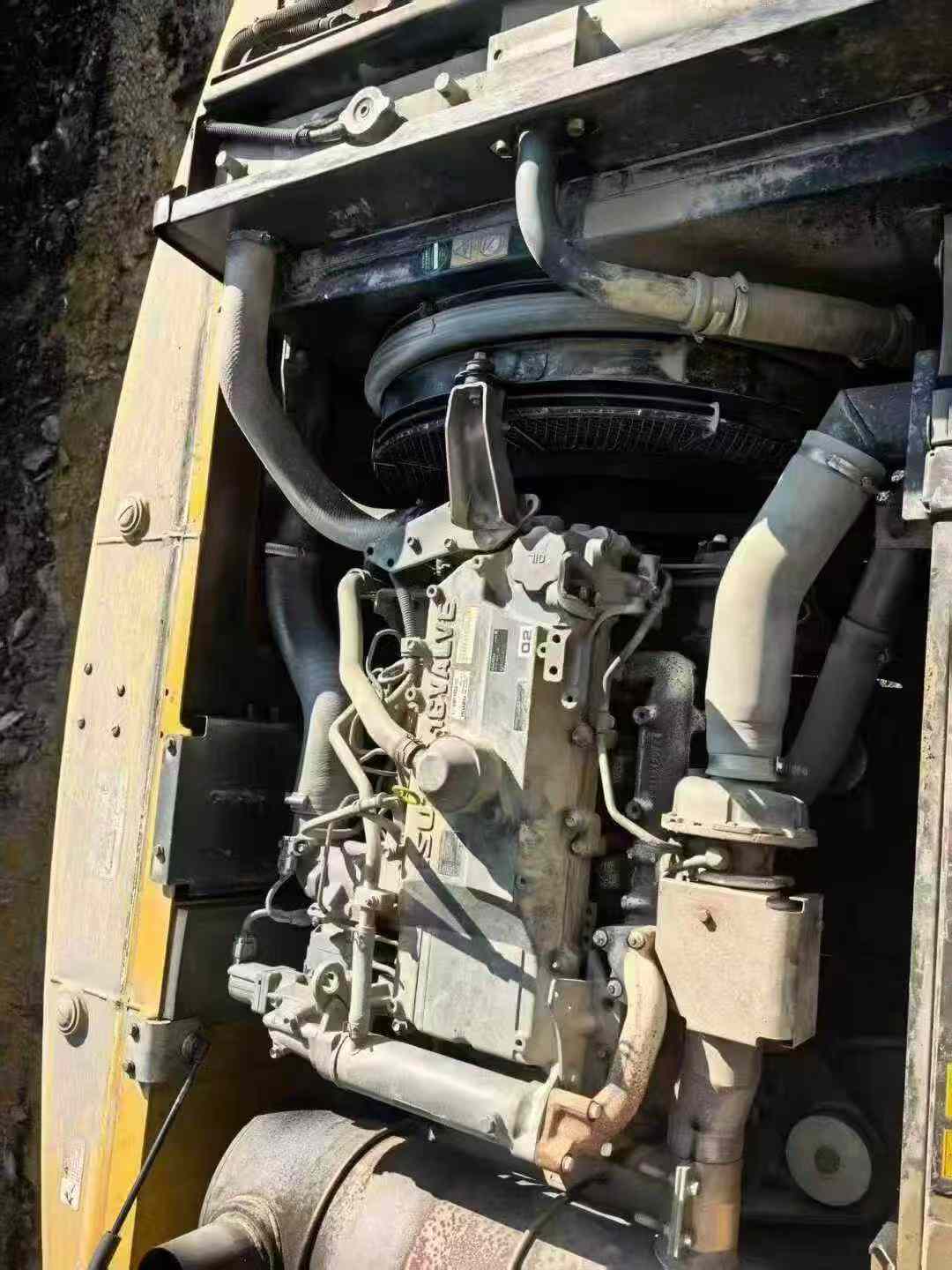

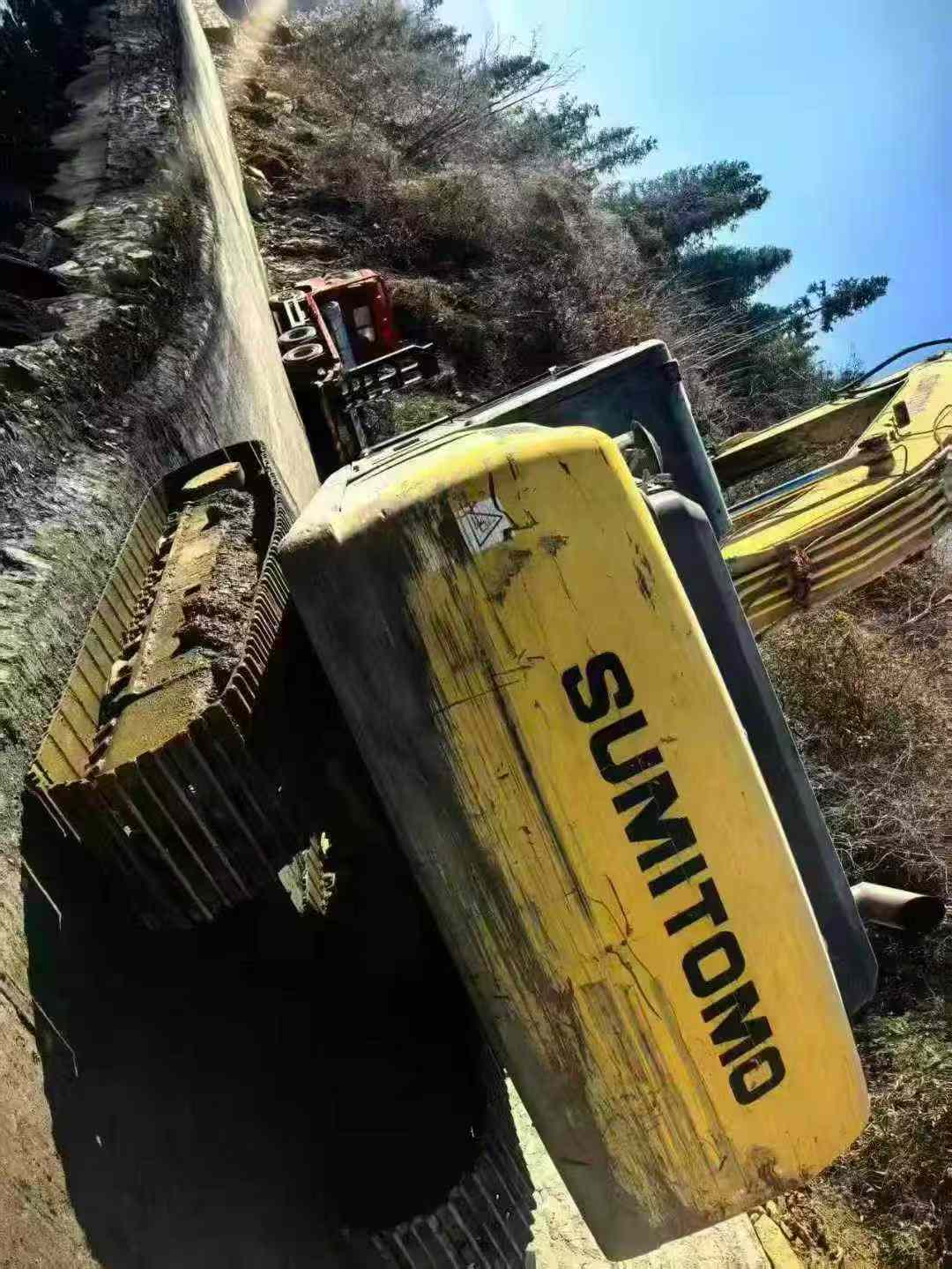

【 Premium Recommendation 】 A second-hand Sumitomo SH210-5 excavator from 2019, with complete documentation. The original version has only a mileage of over 240,000 hours, demonstrating outstanding performance and excellent condition. This excavator is equipped with a high-performance Isuzu engine, with a maximum power output of 123kW (approximately 165 horsepower). It is powerful and runs smoothly, capable of easily handling various complex working conditions. In terms of the hydraulic system, this equipment is equipped with an advanced variable piston pump and an efficient hydraulic motor combination, ensuring high-efficiency conversion and low energy consumption during operation. Its unique hydraulic control technology not only enhances operational efficiency but also significantly reduces maintenance costs, making it an indispensable helper in your engineering projects. In addition, this SH210-5 excavator is designed with the user's needs fully in mind, featuring a spacious and comfortable cab, an intuitive and user-friendly operation interface, as well as comprehensive safety protection measures. Whether it is urban construction or mining, it can demonstrate outstanding working performance, helping you complete tasks smoothly whi
| Specifications | Value |
|---|---|
| No. | 978303 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.9-1.0 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 117.3/1800 |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 142 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 3.4/5.6 |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 422 |
| Main pump type | |
| Bucket cylinders - Number × diameter × stroke (mm) | |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1460 |
| Boom cylinders - Number × diameter × stroke (mm) | |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 147 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 26 |
| Hydraulic System (L) | 240 |
| Total transport length (mm) | 9400 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 2720 |
| Total track length (mm) | 4180 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9900 |
| Maximum digging depth (mm) | 6650 |
| Maximum excavation height (mm) | 9610 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5960 |
