Product Description

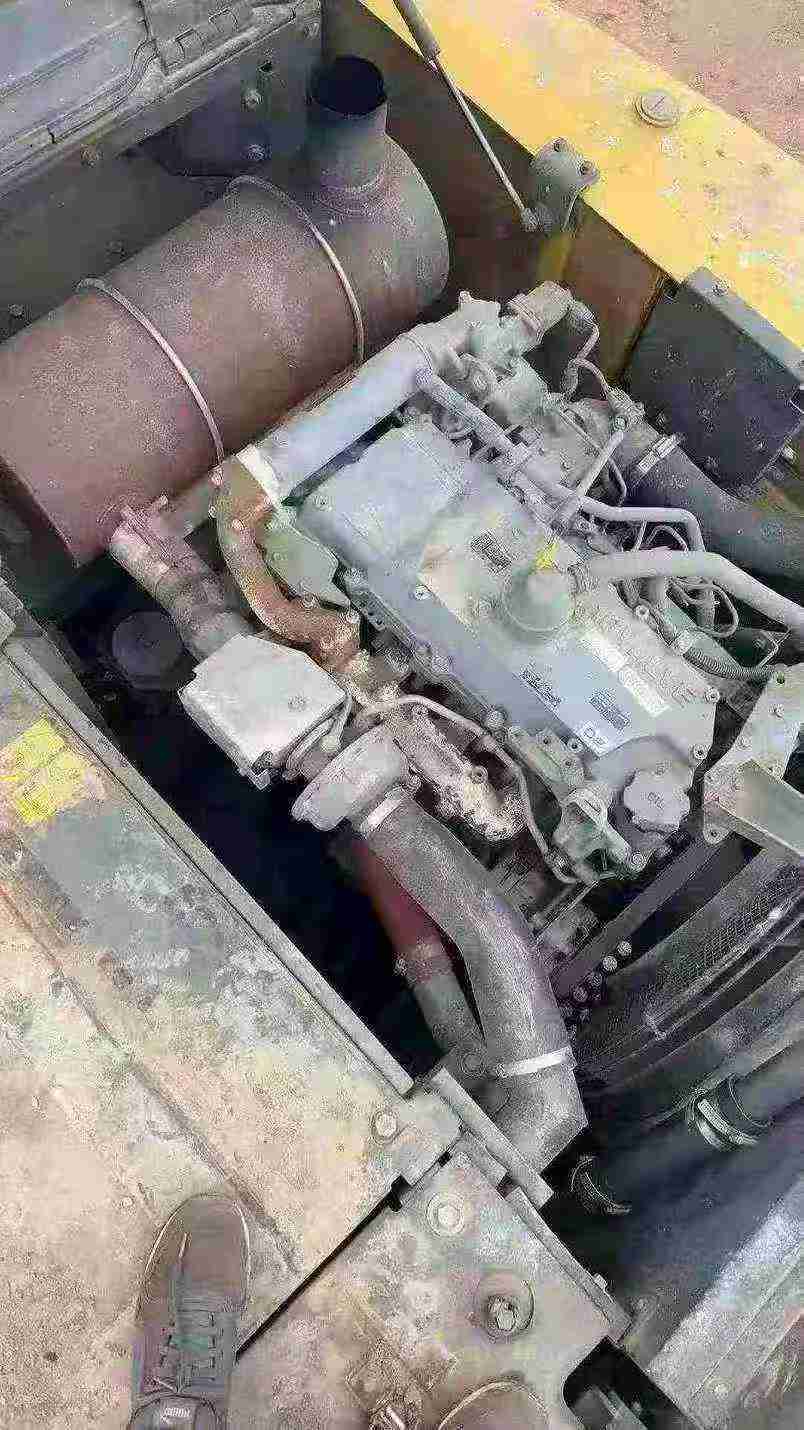

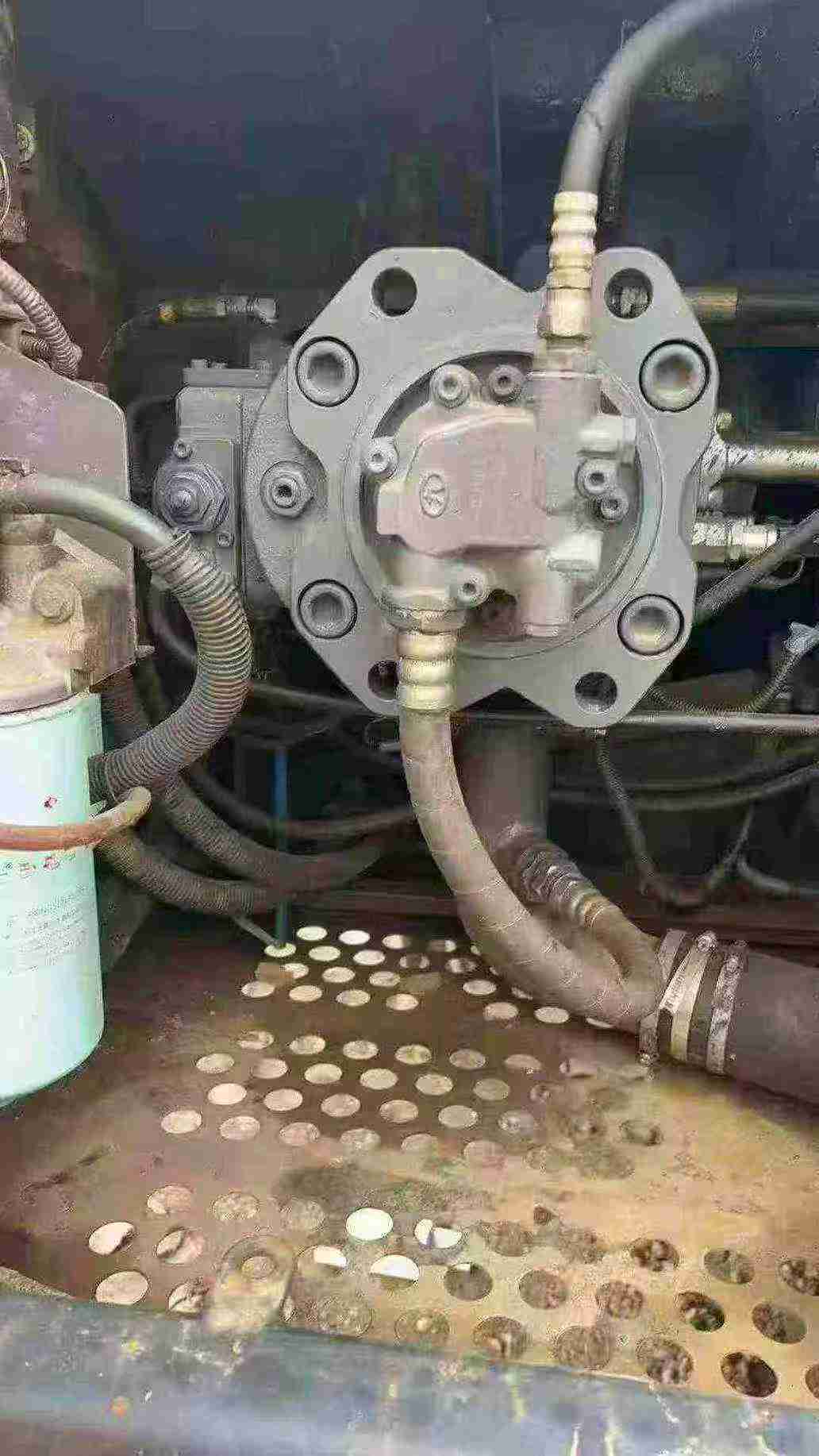

This second-hand Sumitomo SH210 excavator from 2018 has a cumulative working time of approximately 230,000 hours. With its outstanding performance and reliable durability, it enjoys an extremely high reputation in the market. This model is equipped with an efficient Isuzu 4HK1X engine with a rated power of 115kW, ensuring strong power output and a smooth operating experience. The advanced hydraulic system is equipped with a high-performance variable piston pump and hydraulic motor combination, which not only enhances the operational efficiency but also effectively reduces energy consumption, making the overall operation of the machine more economical and environmentally friendly. The main advantages of the Sumitomo SH210 excavator lie in its excellent maneuverability and stability. It adopts an optimally designed working device and reinforced structural components, enabling it to handle complex and changeable working conditions with ease. In addition, the spacious and comfortable cab is equipped with a multi-functional display screen, which can monitor the machine status in real time, greatly enhancing the operator's working comfort and safety. For enterprises seeking high cost-performance, stable and reliable construction equipment,
| Specifications | Value |
|---|---|
| No. | 978328 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.9-1.0 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 117.3/1800 |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 142 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 3.4/5.6 |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 422 |
| Main pump type | |
| Bucket cylinders - Number × diameter × stroke (mm) | |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1460 |
| Boom cylinders - Number × diameter × stroke (mm) | |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 147 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 26 |
| Hydraulic System (L) | 240 |
| Total transport length (mm) | 9400 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 2720 |
| Total track length (mm) | 4180 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9900 |
| Maximum digging depth (mm) | 6650 |
| Maximum excavation height (mm) | 9610 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5960 |
