Product Description

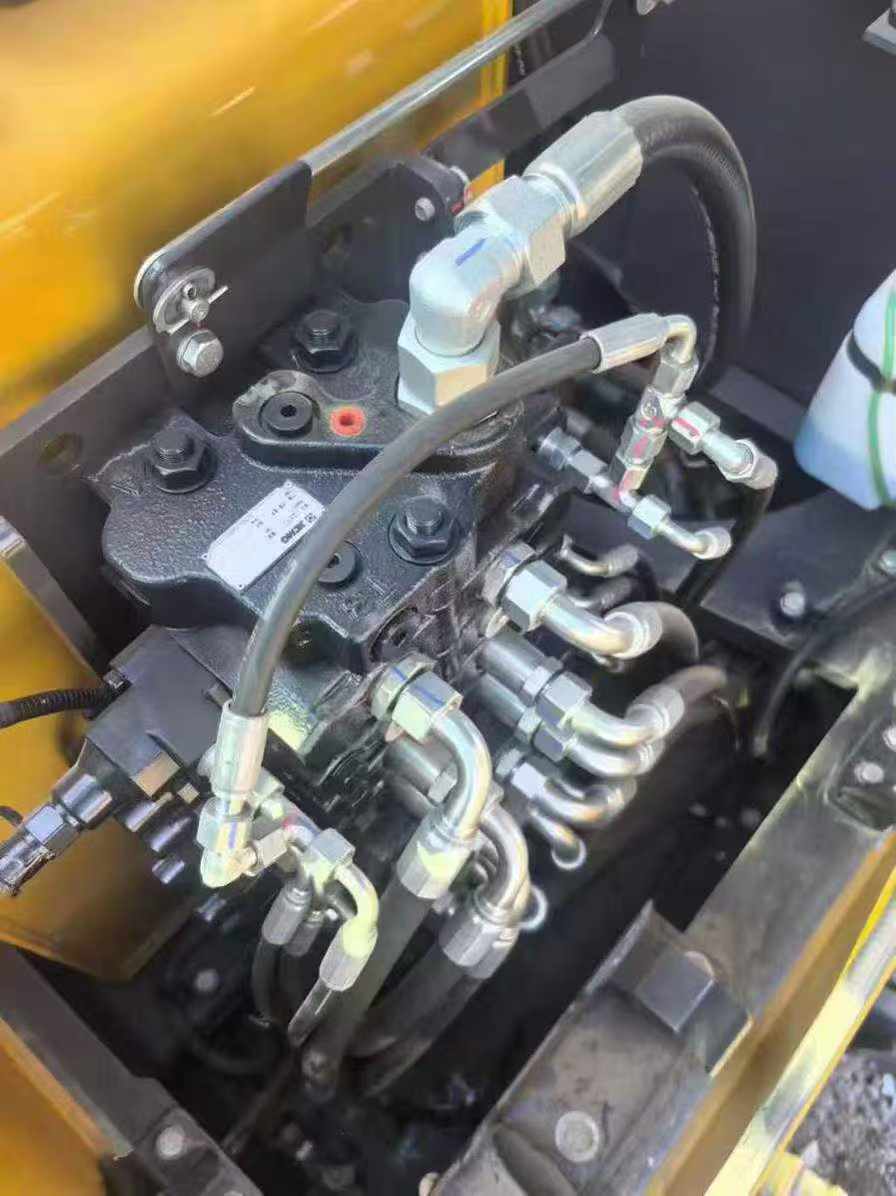

There is currently a second-hand XCMG XE60 excavator from 2024, which has been in operation for only a few hours and is in almost brand new condition. This equipment is equipped with an efficient and reliable engine, which is expected to be a well-known brand model. It has strong power and can meet various construction needs. The power system has been meticulously tuned to ensure stable and abundant power output under various working conditions. In terms of the hydraulic system, this excavator is equipped with high-performance hydraulic pumps and hydraulic motors, ensuring precise control and smooth operation during the operation process. The response speed of the hydraulic system is extremely fast, enabling rapid switching and precise action, which significantly enhances work efficiency and construction quality. In addition, advanced hydraulic technology has effectively reduced energy consumption and improved fuel economy. The main advantages of this XCMG XE60 excavator include: 1. ** Minimum operating hours ** : The working time is only a few hours, almost equivalent to that of a new machine, with reliable performance. 2. ** High-Efficiency Power System ** : Equipped with a high-performance engine, it offers strong and stable power
| Specifications | Value |
|---|---|
| No. | 978129 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

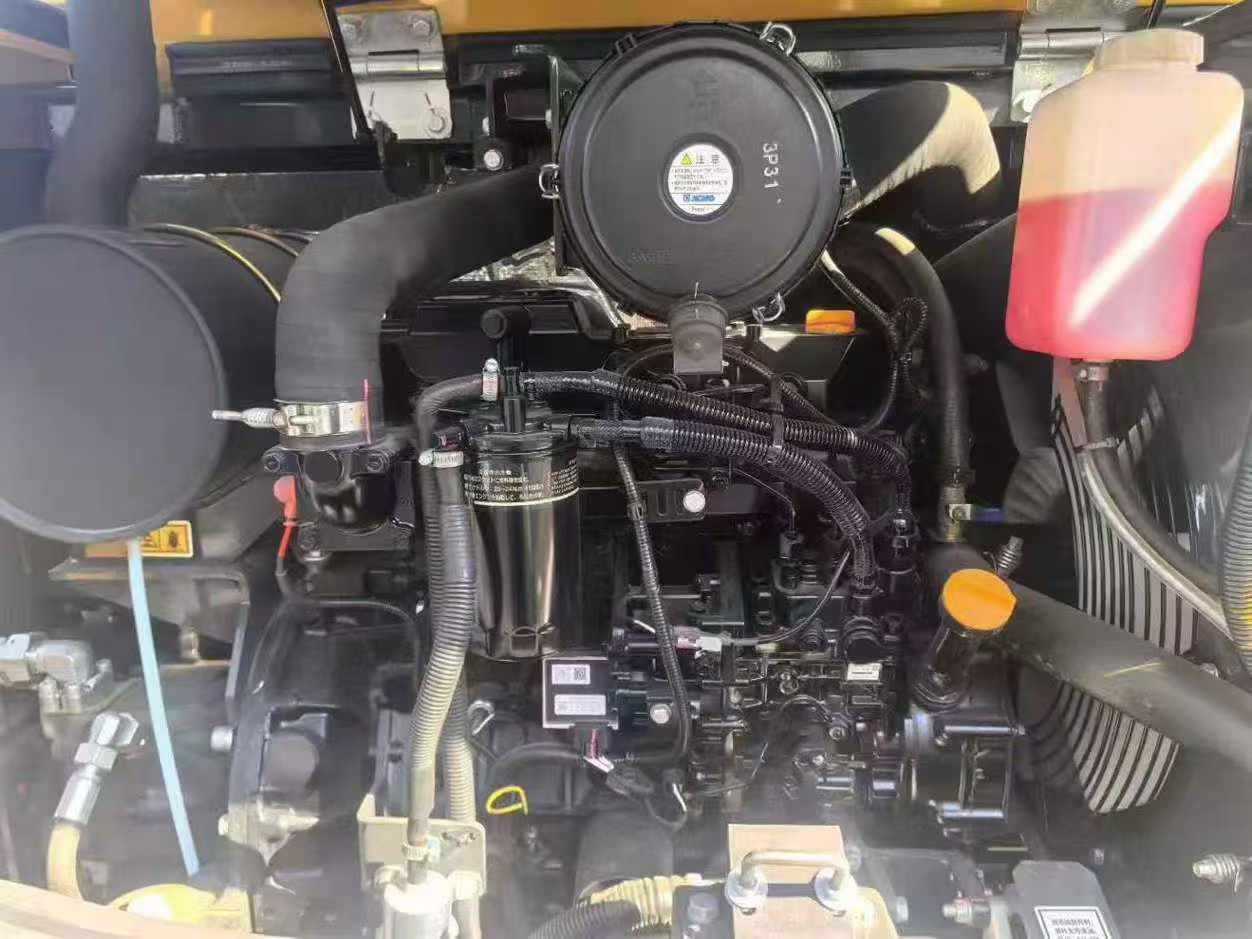

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |

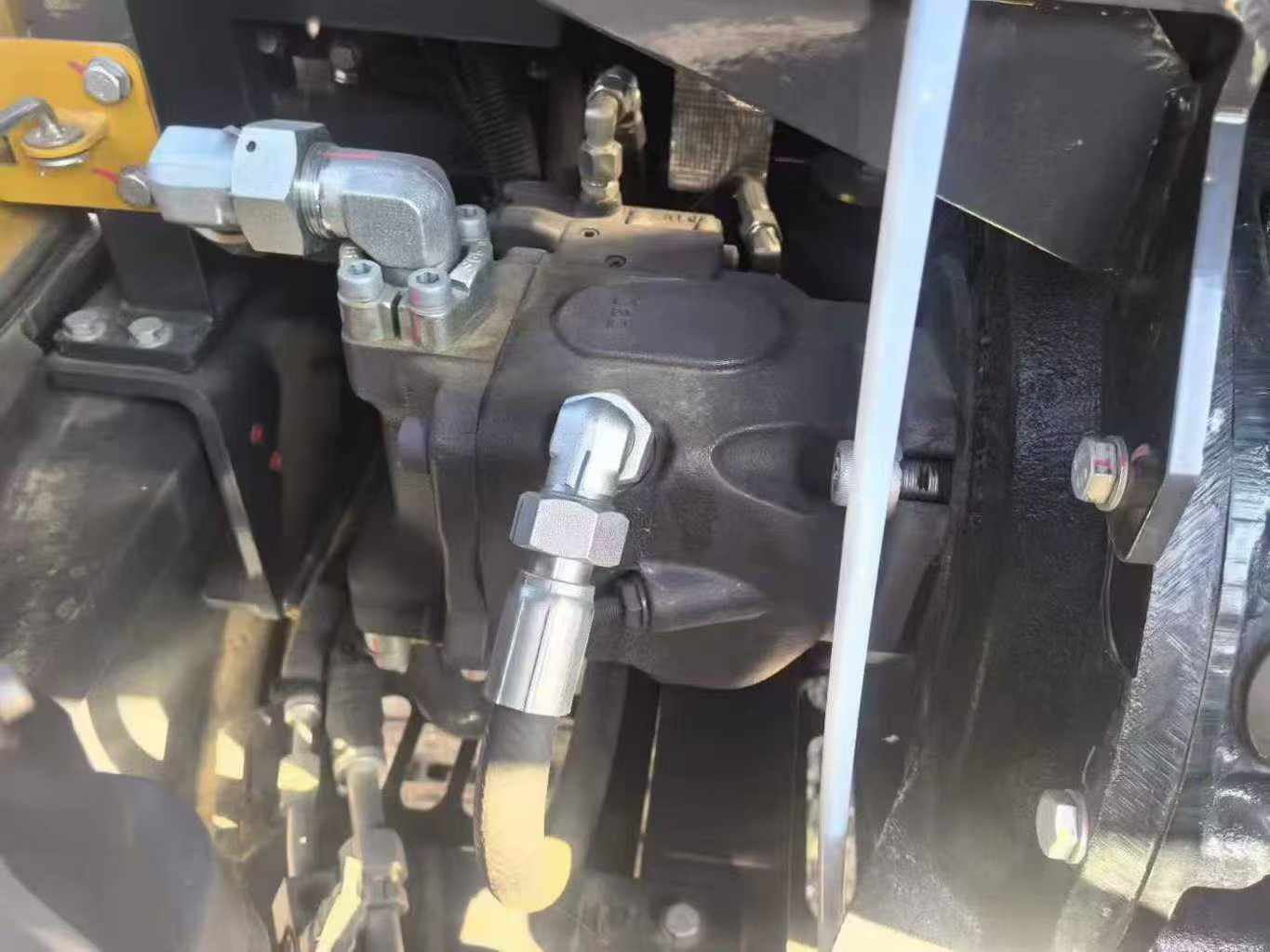

| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |

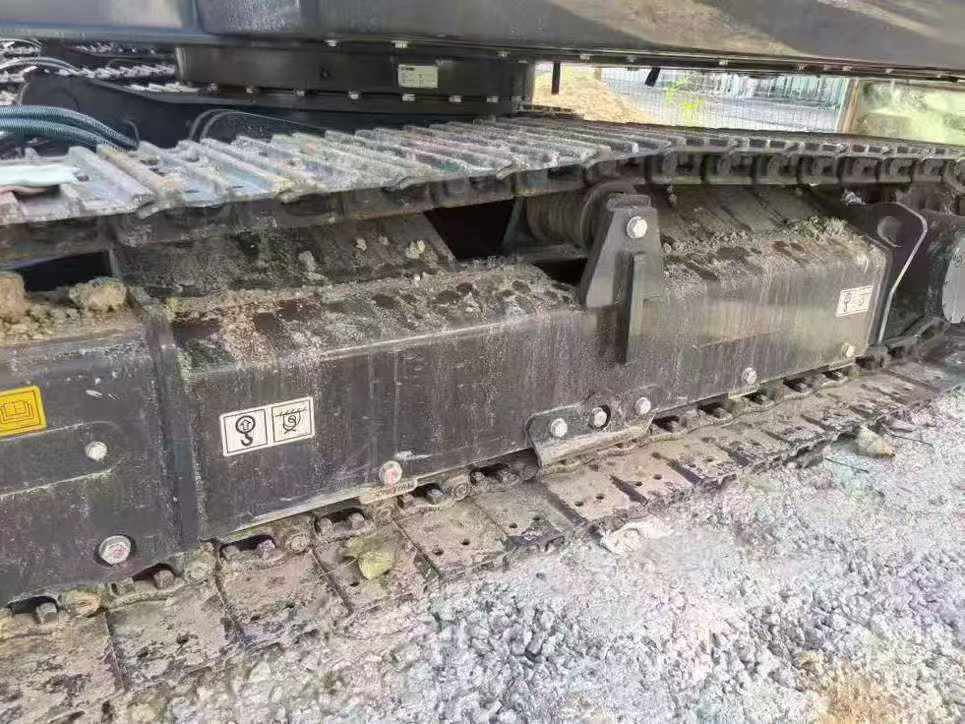

| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |

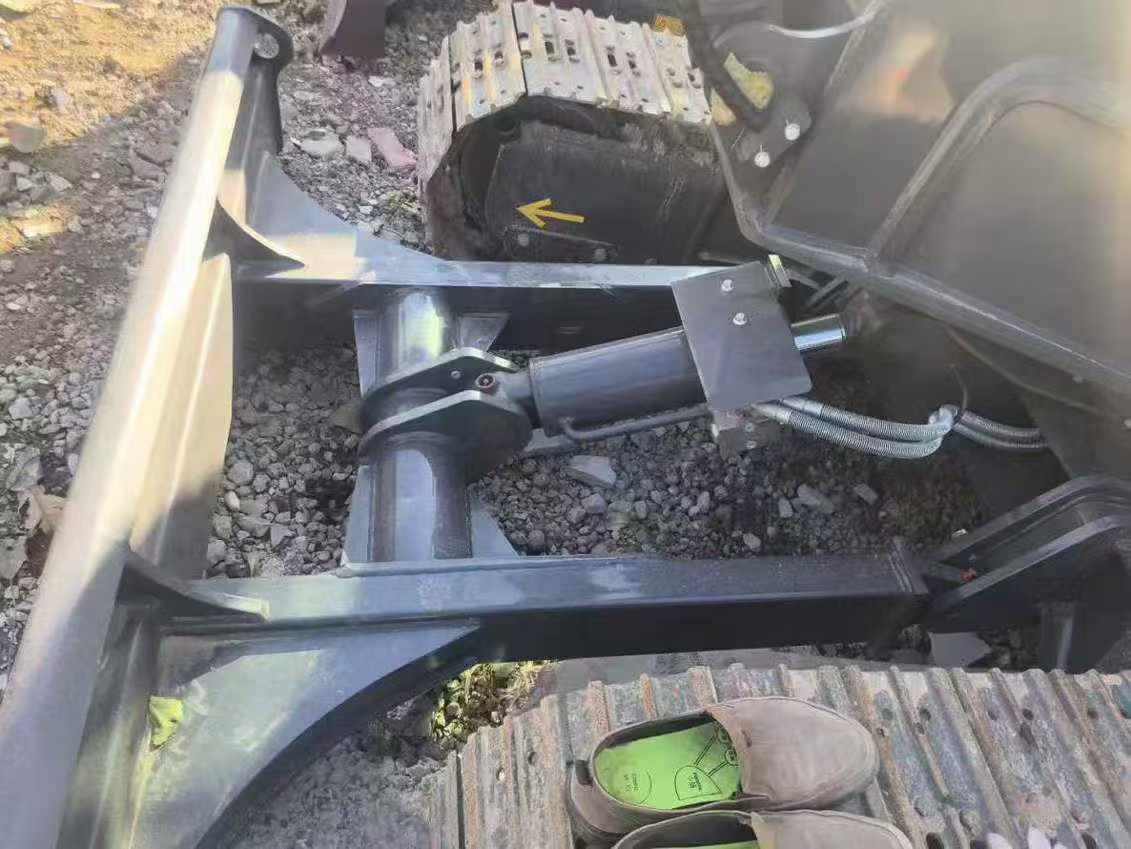

| Dodging plate width × height (mm) | 1880*365/1920*340 |
