Product Description

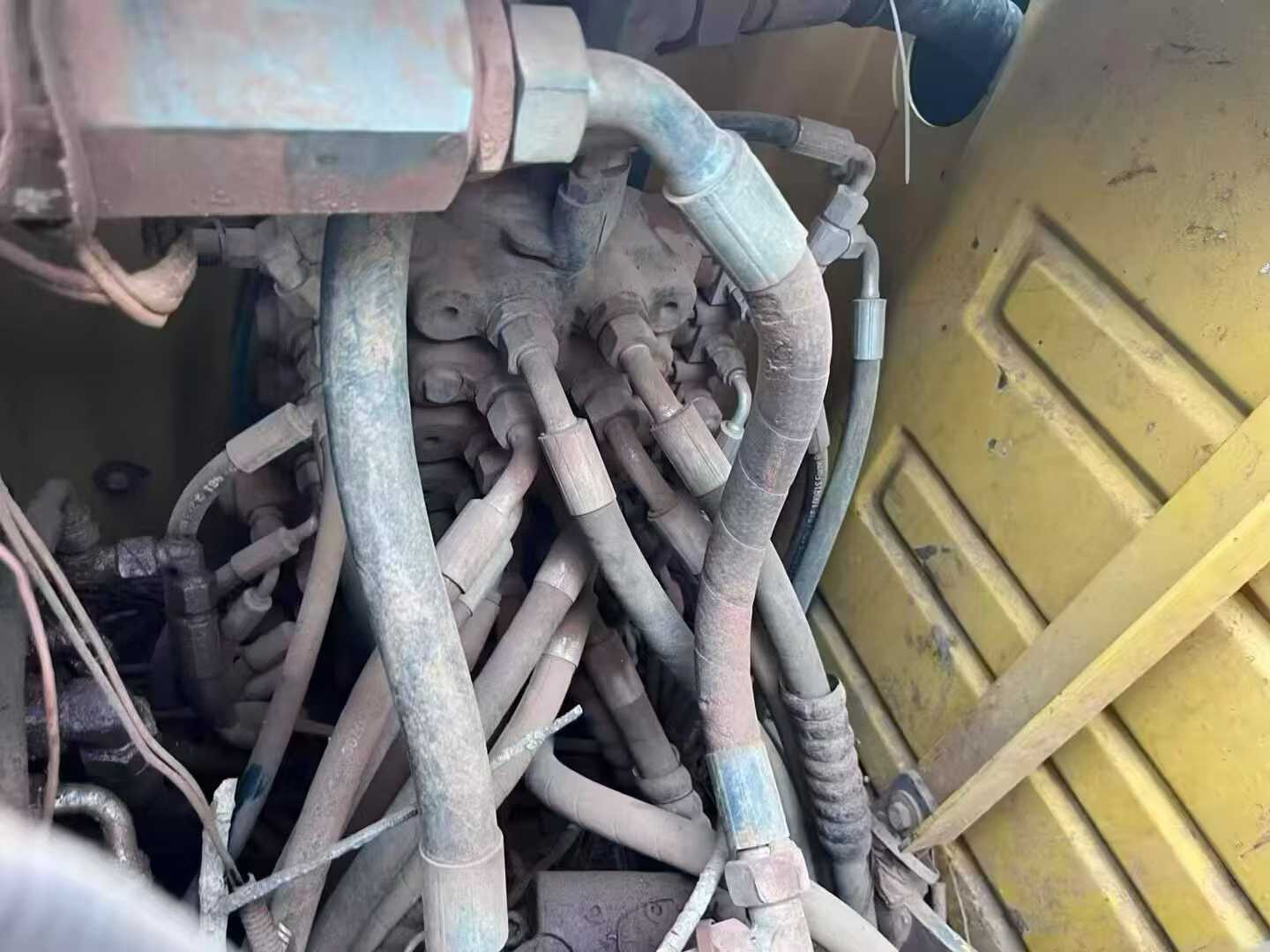

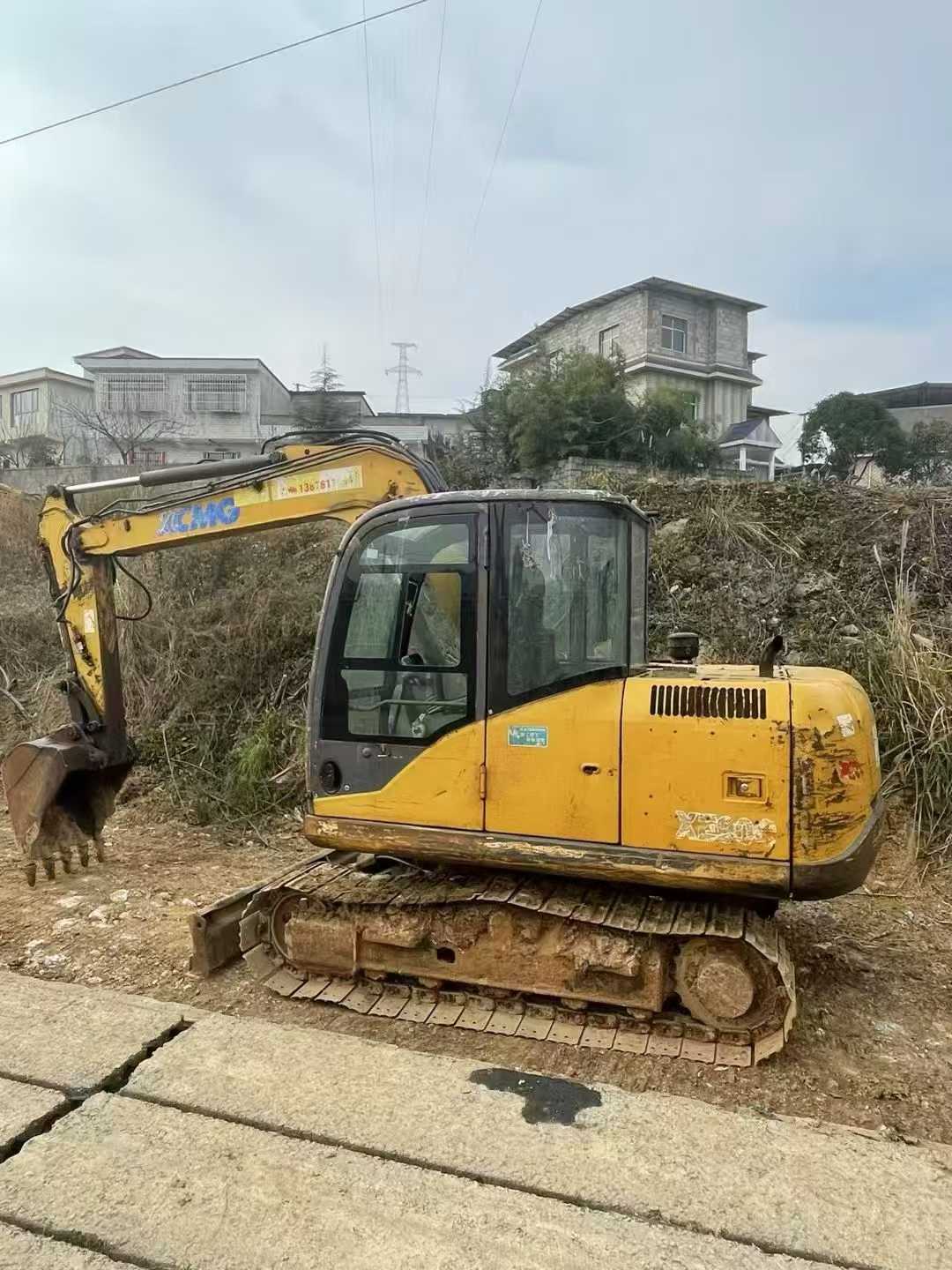

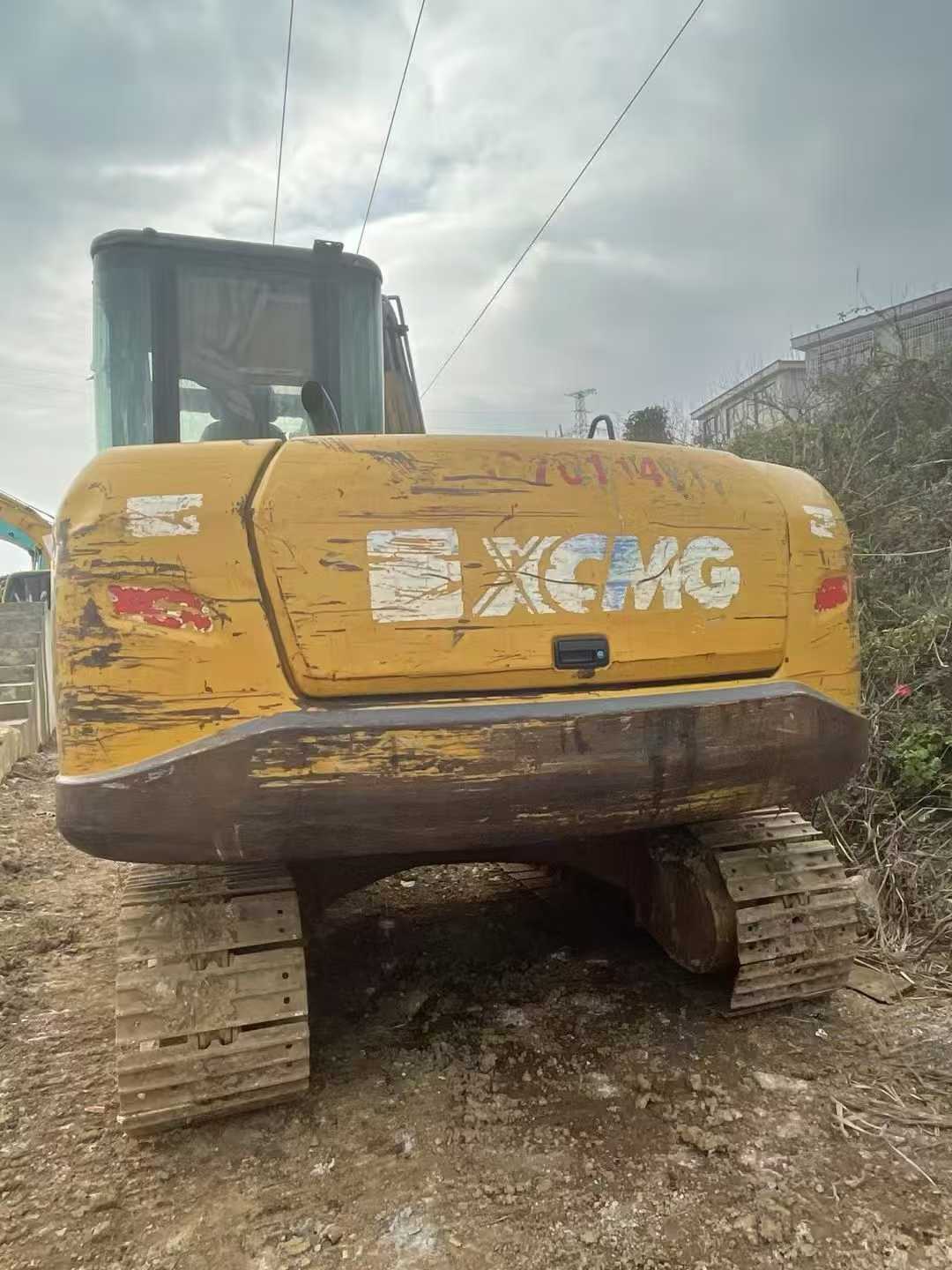

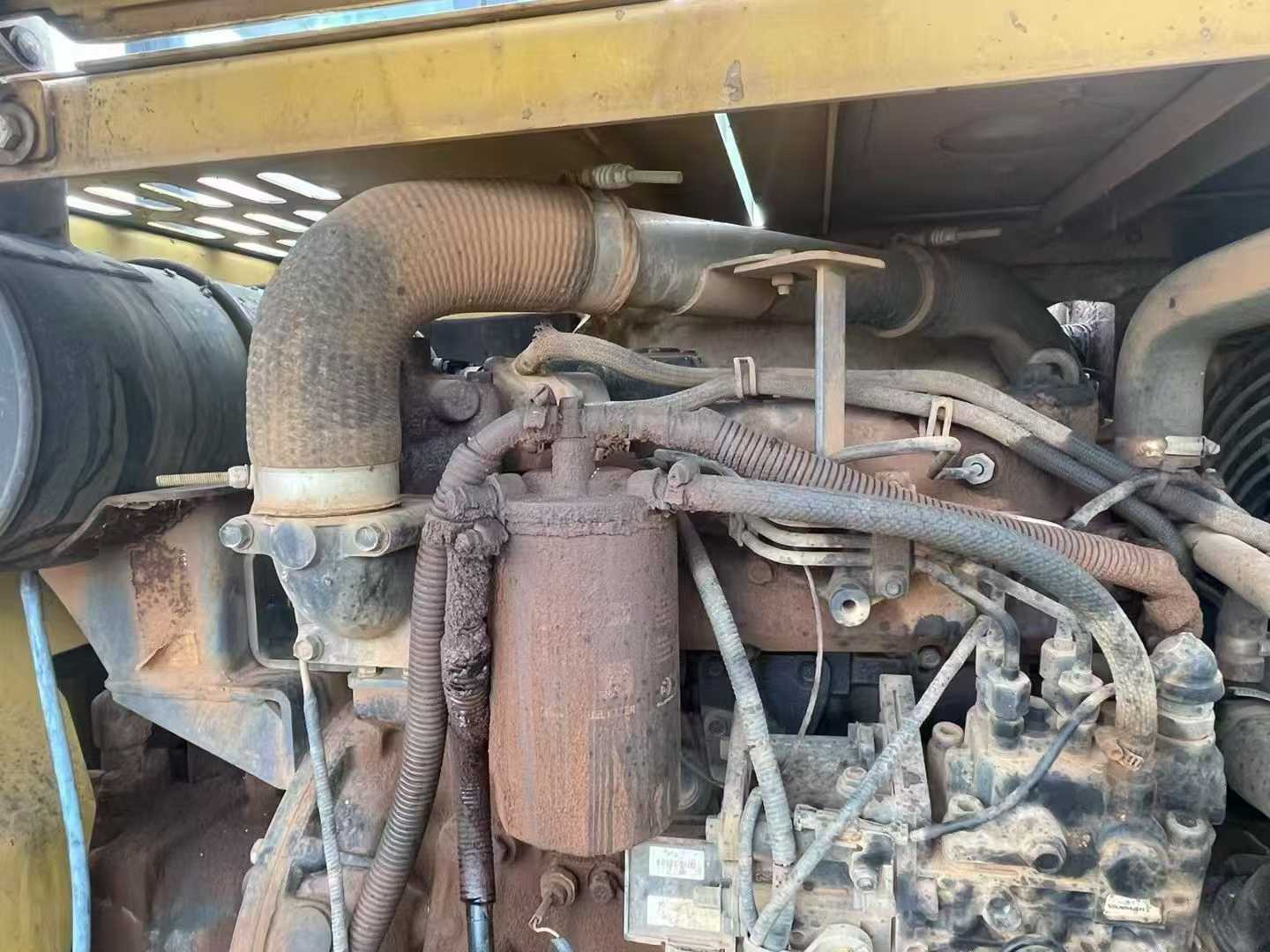

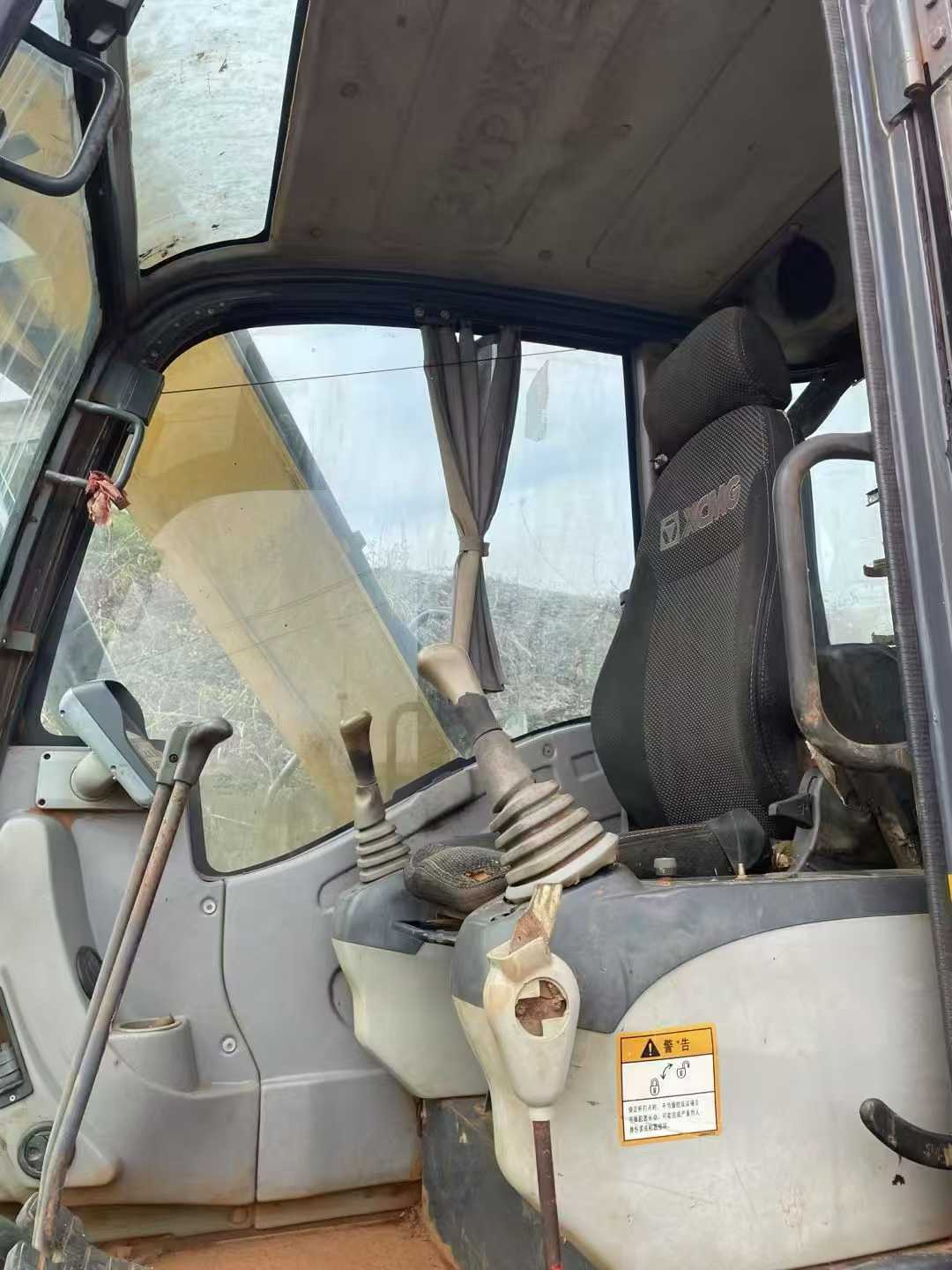

There is currently a second-hand XCMG XE80 excavator produced in 2017, with a cumulative working time of approximately 80,000 hours. Its overall performance is stable and it is well maintained. This equipment is equipped with an efficient Weichai WP4G engine, with a maximum output power of up to 50kW, ensuring strong power support and good fuel economy, making it suitable for efficient operation under various complex working conditions. In terms of the hydraulic system, an advanced variable piston pump combined with a high-quality hydraulic motor is adopted, ensuring a precise and smooth operation experience as well as long-term durability. This hydraulic configuration not only enhances the excavation efficiency but also reduces energy consumption, ensuring that the machine remains in good condition even during long-term high-intensity operation. The main advantages of this excavator include: easy operation, wide field of vision and high driving comfort. The compact structure and design facilitate transportation and relocation. The sturdy and durable chassis is adaptable to various terrain conditions. It is equipped with a multi-functional accessory interface, allowing for quick replacement of tools such as buckets to meet different
| Specifications | Value |
|---|---|
| No. | 978265 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7425 |
| Bucket capacity (m³) | 0.14-0.34 |
| Boom length (mm) | 3710 |
| Rod length (mm) | 1650 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Cummins B3.3 |
| Rated power (kw/rpm) | 60/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 3.3 |
| Working form | Water cooled/turbocharged |
| Ground specific pressure (Kpa) | 34.2 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 53.6 |
| Rod digging force (kN) | 39.2 |
| Travel speed (km/h) | 4.2/2.7 |
| Main overflow set pressure (Mpa) | 27.4 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*198+21 |
| Traveling Hydraulic Circuit (Mpa) | 27.4 |
| Rotary Hydraulic Circuit (Mpa) | 20.6 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Toshiba variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 127 |
| Hydraulic Tank (L) | 124 |
| Engine Oil changes (L) | 7 |
| Total transport length (mm) | 6155 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2610 |
| Counterweight ground clearance (mm) | 786 |
| Minimum ground clearance (mm) | 392 |
| Minimum turning radius of front working device (mm) | 1815 |
| Back end turning radius (mm) | 1770 |
| Track gauge (mm) | 1700 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2119 |
| Maximum digging radius (mm) | 6375 |
| Maximum digging depth (mm) | 4140 |
| Maximum excavation height (mm) | 7167 |
| Maximum unloading height (mm) | 5100 |
| Maximum vertical digging depth (mm) | 3218 |
